A Large-Format A/A Panel Built for Open Casework and Double-Faced Components

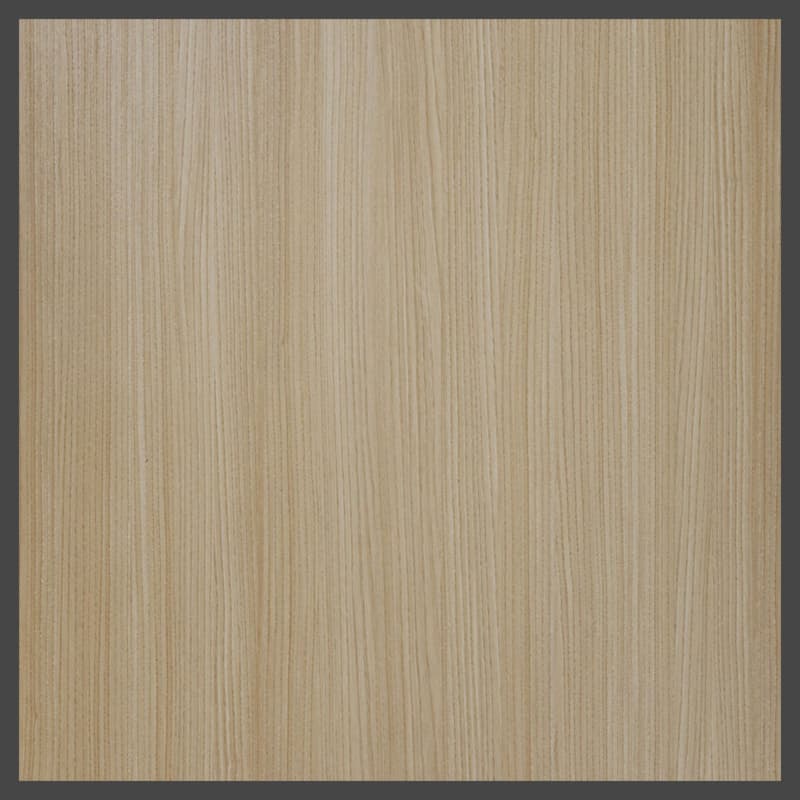

The SM'art SMIN02 Zenzero decorative panel is a 19 mm A/A thermally fused laminate board finished in the Intagli texture on both faces, sized at 81-1/2 inch by 120-5/64 inch. Because both sides carry the same Zenzero decor to the same A-grade standard, it is the right choice wherever a component will be seen from more than one angle — open shelving, room dividers, freestanding cabinets, and furniture pieces where a visible back is not an option.
Key Features
- 13-hour water-resistant core — a vendor test result, not a wet-area rating, and useful where spills and humidity are routine.
- 50% post-consumer recycled core — half the core content is reclaimed wood fiber.
- CARB2 compliant — meets the California formaldehyde emission limits that commercial and residential specifications ask for.
- CARB2 hardwood particleboard core — the substrate the decor is fused to.
- A/A grade pair on both faces: the Zenzero decor and Intagli texture appear on both sides, so either face can be the show face.
- Intagli surface texture: a tactile embossed finish that adds depth and reduces the flat, printed look common to lower-end panels.
- 19 mm thickness: the standard cabinet-box dimension, compatible with confirmat fasteners and 23 mm edgebanding on a square edge.
- Large nominal sheet size: 81-1/2 inch by 120-5/64 inch gives a tall panel with enough length to yield full-height parts with usable offcuts on most cut lists.
- TFL construction: the decorative face is fused directly to the core under heat and pressure, leaving no adhesive layer to open at a cut edge.
- Matching ABS edgebanding available: color-matched banding in this decor closes cut edges so the panel reads as a finished component rather than a faced board.
Where This Panel Fits the Work
Zenzero is a warm, textured decor, and the Intagli finish gives it enough surface relief that it holds up under close inspection and raking light. The A/A construction means there is no backer decision to manage — both faces are finished to the same standard, and the layout does not need to account for which side faces out. That makes this panel particularly useful for open-shelf cabinet runs, room-dividing partitions built into a space, and freestanding furniture pieces where the back panel is exposed to the room. It also simplifies production planning on a cut list that generates a lot of secondary panels, because every offcut carries the same face quality on both sides.
Construction and Finish Details
SM'art panels use a thermally fused laminate construction: the decorative paper is impregnated with melamine resin and fused directly to the particleboard core under heat and pressure. There is no separate laminate sheet and no glue line, which keeps the edge clean when the panel is cut. The Intagli texture is pressed into the surface during fusion, so the relief is part of the face rather than a film applied over it. At 19 mm, the core accepts standard European hardware — confirmat screws, shelf pin holes, and hinge cup borings — without backing out or splitting. Matching ABS edgebanding is available for this color, so the cut edge and the face surface read as one material after banding.
Who Reaches for This Panel
Cabinet shops running open-box designs or furniture-grade casework reach for an A/A panel when the cut list cannot afford a wasted back face. Interior designers specifying built-in storage that wraps a room — units that turn a corner or stand free of the wall — will find the consistent A/A finish removes a material-management problem from the install. Contractors supplying and building commercial millwork benefit from the large sheet size, which keeps the part count lower on tall applications and reduces the number of seams on a full-height wall run. The Intagli texture and Zenzero color suit warm contemporary interiors, transitional kitchen designs, and natural-material-adjacent commercial spaces.
What does A/A mean on this panel?
A/A identifies the grade pair: both faces are finished to the A-grade appearance standard in the Zenzero Intagli decor. Either face can be the show face, and neither is a balancing backer. This is different from an A/B panel, where one face is graded to a looser standard and the back is typically kept concealed.
Is matching edgebanding available for SMIN02 Zenzero?
Yes. Matching ABS edgebanding is available for this color in the SM'art collection. ABS is chlorine-free, which clears specifications that restrict PVC, and it matches the face decor closely enough that the banded edge reads as part of the panel surface.
Can this panel be used for cabinet box construction at 19 mm?
Yes. The 19 mm thickness is the standard European cabinet-box dimension. It takes confirmat screws, cam-lock fasteners, shelf pin holes, and 35 mm hinge cup borings without backing out. Pair it with 23 mm edgebanding on a square-edge application for a clean, flush result.
How does the Intagli texture affect the surface in use?
Intagli is an embossed texture pressed into the TFL face during manufacturing. It adds tactile depth and reduces flat glare under directional light. The texture is part of the panel face itself, not a film layer, so it does not peel or delaminate with normal handling and cleaning.
Is matching HPL available for SM'art panels?
Matching HPL is available for the SM'art collection in a 60 inch by 120 inch sheet, which lets you carry the same color onto a countertop or high-wear horizontal surface the panel alone does not cover.
The Right Panel When Both Faces Matter
When the design puts two faces on display, the A/A Zenzero panel removes the guesswork from layout and delivers the same finished surface wherever the component lands in the room.
