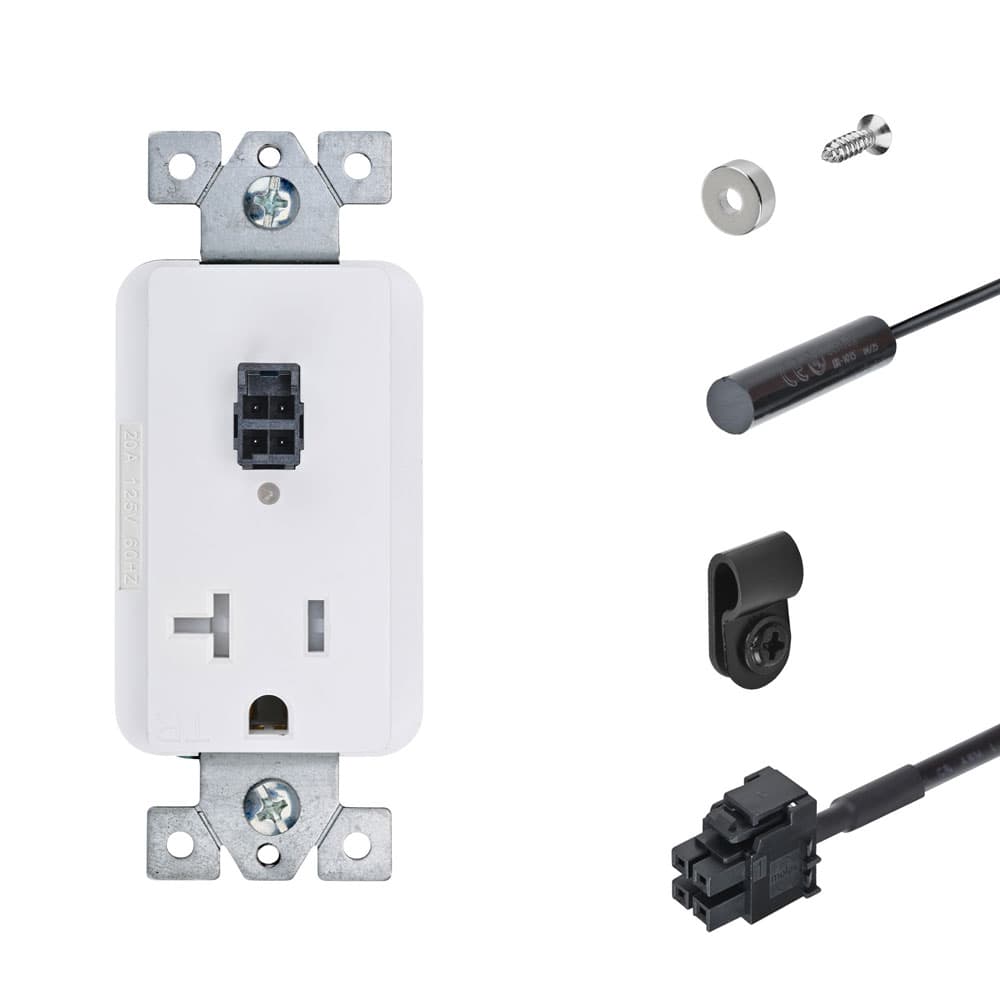

Docking Drawer 20 amp Safety Interlock Outlet for Appliance Garages with Magnetic Switch (Normally Closed)
Item # DDR6020-2002B
•Mfr # 6020-2002B
$102.29
/Each
Min Order: 1
Qty mult. by: 1
Product Details
Docking Drawer 20 amp Safety Interlock Outlet for Appliance Garages with Magnetic Switch (Normally Closed)

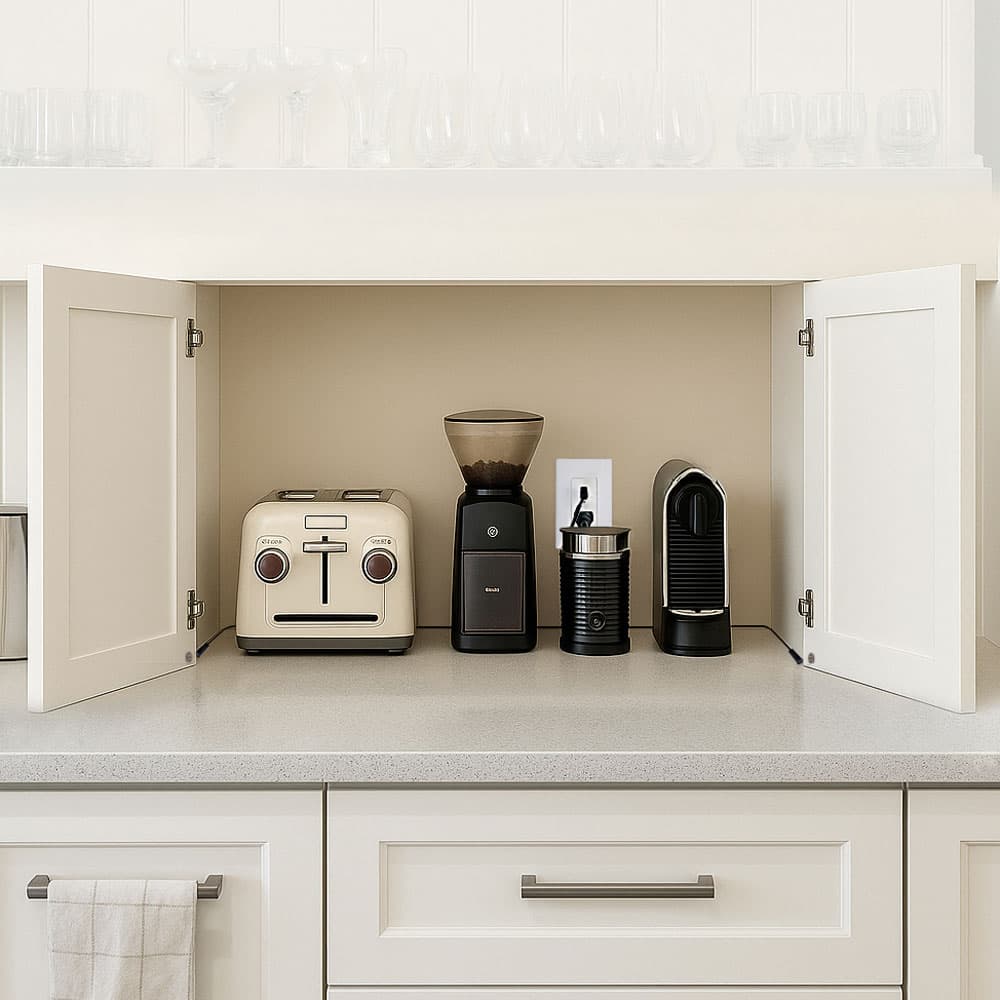

This innovative solution is crafted to power and safeguard a single small appliance, fitting smoothly into any electrical system and working with all appliance garage door types-hinged, pocket, lift, or tambour. Designed to add an extra layer of safety to powered appliance garages, this system automatically cuts power when the door is closed.
Features:

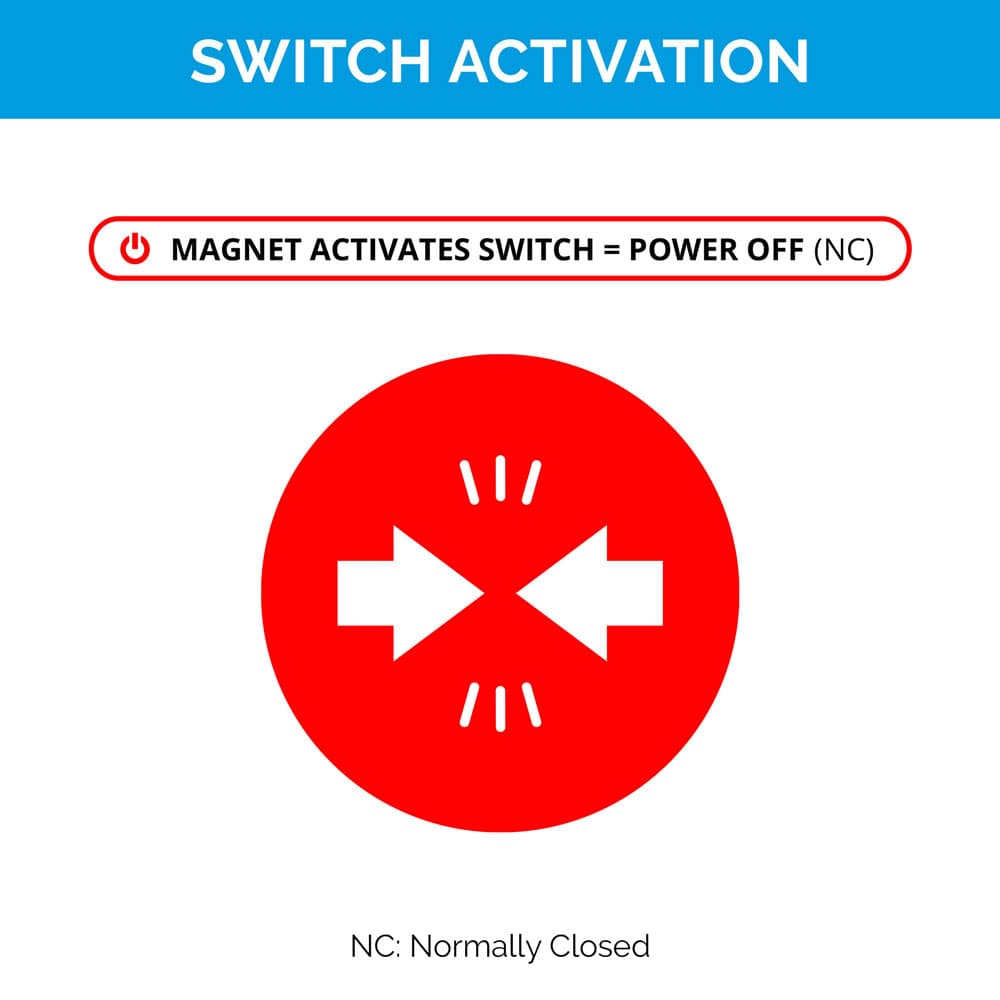

- Smart Safety: Power turns OFF automatically when the switch aligns with the magnet for worry-free protection.

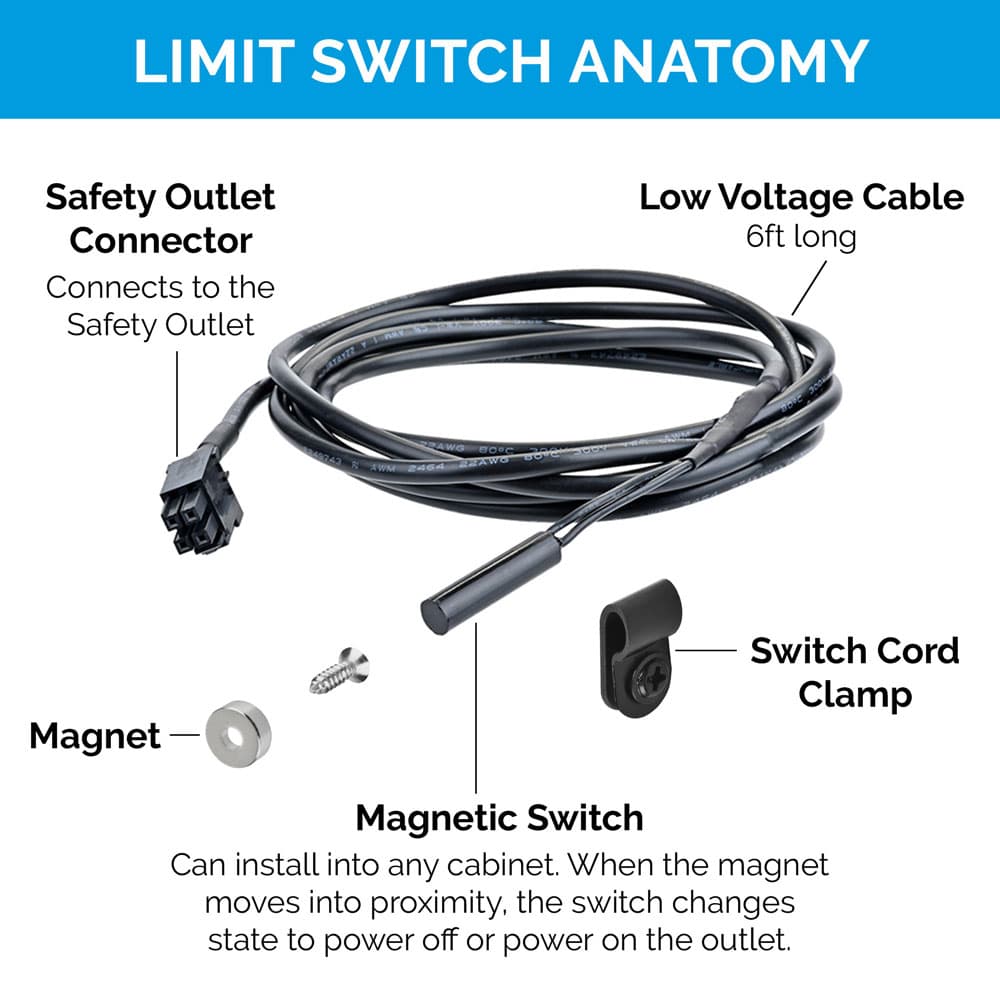

- Magnetic Switch: Uses a non-contact magnetic switch for reliable power control every time.

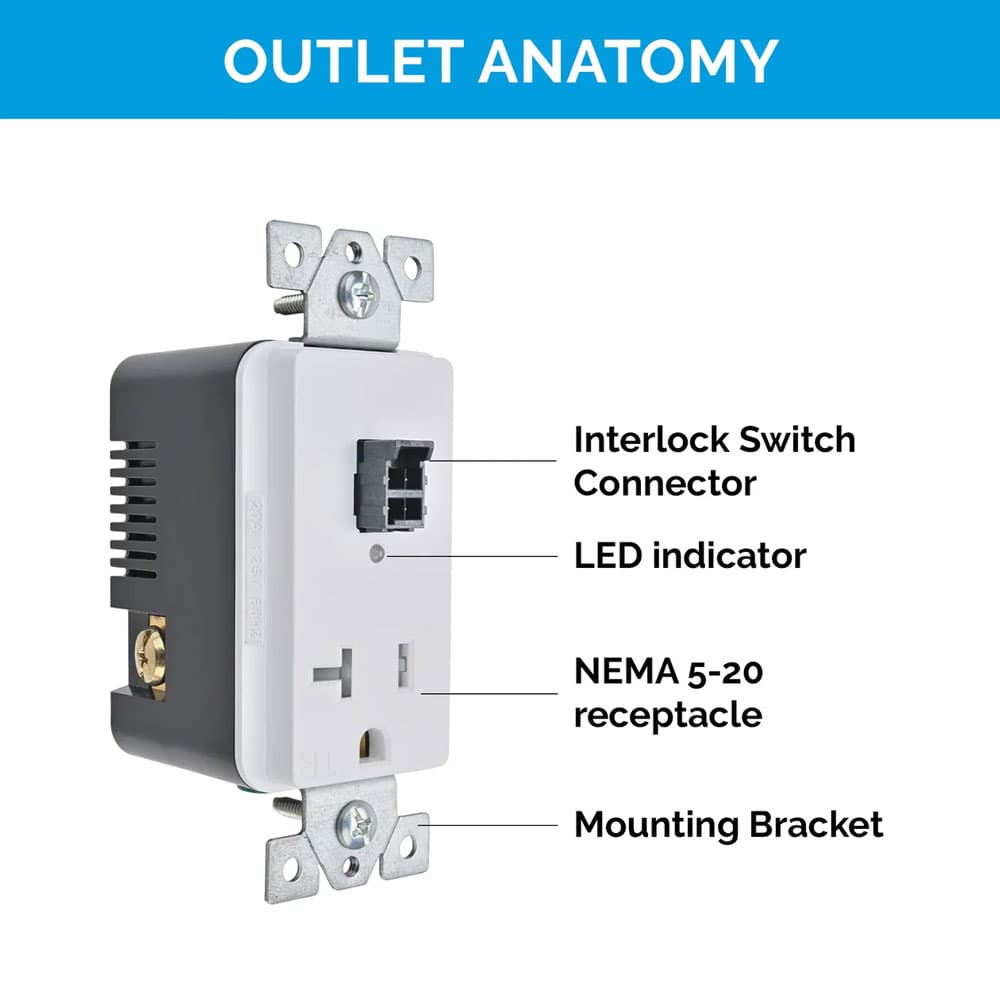

- Easy Installation: Fits a standard single-gang wall box and mounts neatly behind cabinet doors.
- Peace of Mind: Ensures heat-generating appliances are turned off inside closed cabinet spaces.
- Configuration: Directly connects one appliance with a single plug for convenience.
- ETL Listed: Complies with NEC & CEC standards and is certified for UL 498, CSA 22.2 #42. Approved for use in the US and Canada.
Specifications
| Box Quantity | 1 |
| Product Type | Safety Interlock Outlet, Closed |
| Wood Species | |
| Material | |
| Finish | White |
| Width | |
| Depth | |
| Height | |
| Number of Pegs | |
| Certifications | |
| Slides Included |
