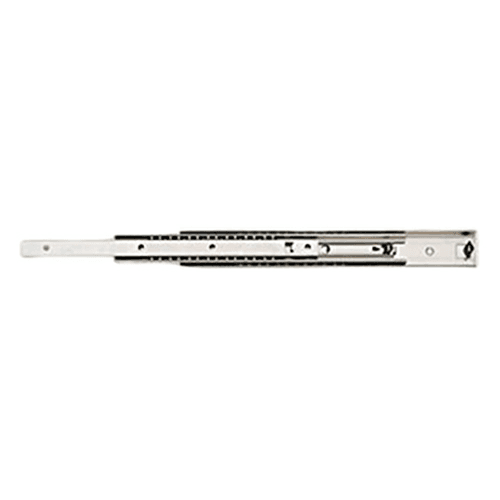

Drawer Slide with 149lb. Capacity, Side Mount, Full Extension, Plain, 29-9/16"
Item # SG5302-750
•Mfr # 5302-750
$425.26
/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features: • Drawer slide with 149lb. capacity • Full extension • Positive stop • Non handed • Hold in detent • Mount with M5 Flat head screws
Specifications
| Box Quantity | 1 |
| Length | 29-9/16" |
| Finish | Plain |
| Drawer Length | |
| Closing Type | Standard |
| Model | |
| Load Capacity | 149 lbs |
| Travel | 30-19/32" |
| Product Type | Drawer Slide |
| Weight Capacity | |
| Left or Right | |
| Cabinet Type | |
| Minimum Clearance | |
| Mounting Type | Side Mount |
| Material | 304 Stainless Steel, Rubber |
| Hole Pattern | |
| Slide Type | Ball Bearing |
| Application | |
| Height | 2-1/8" |
| Depth | |
| Certifications | |
| Width | 0.75" |
| Material Thickness | |
| Clearance |
