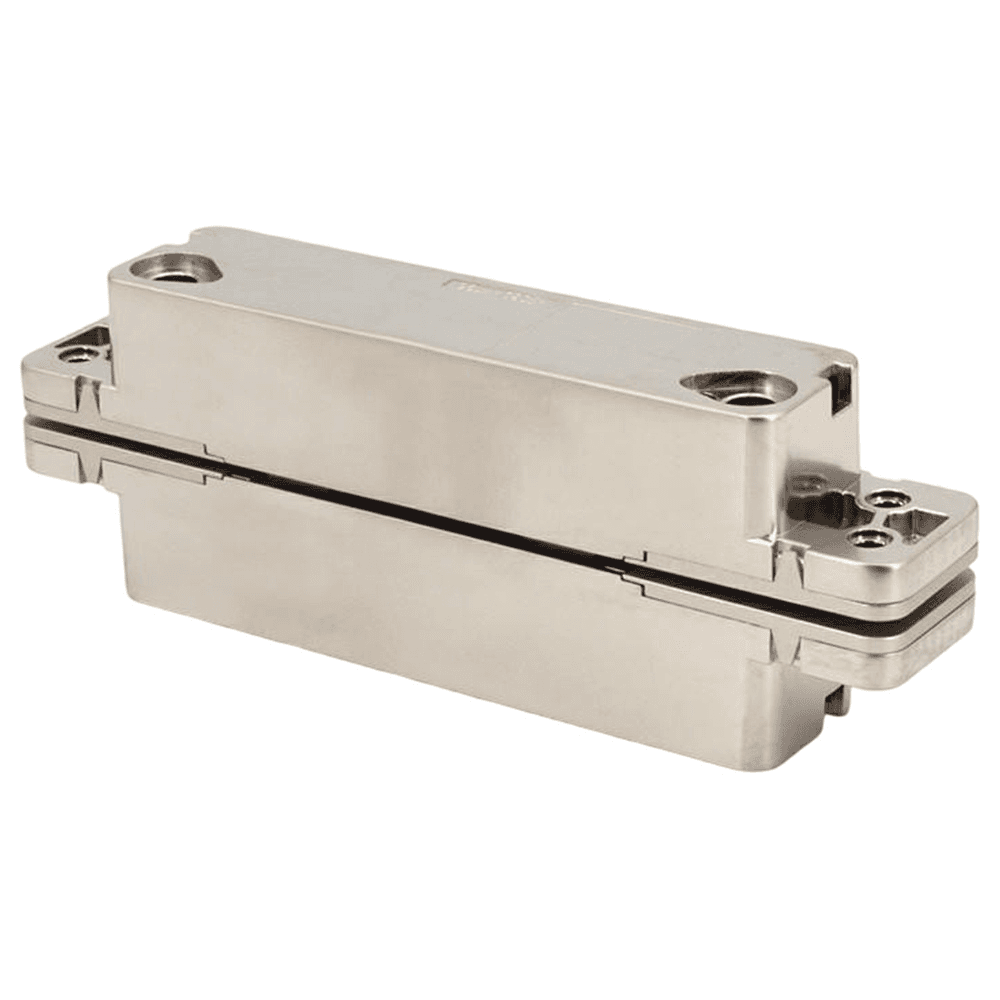

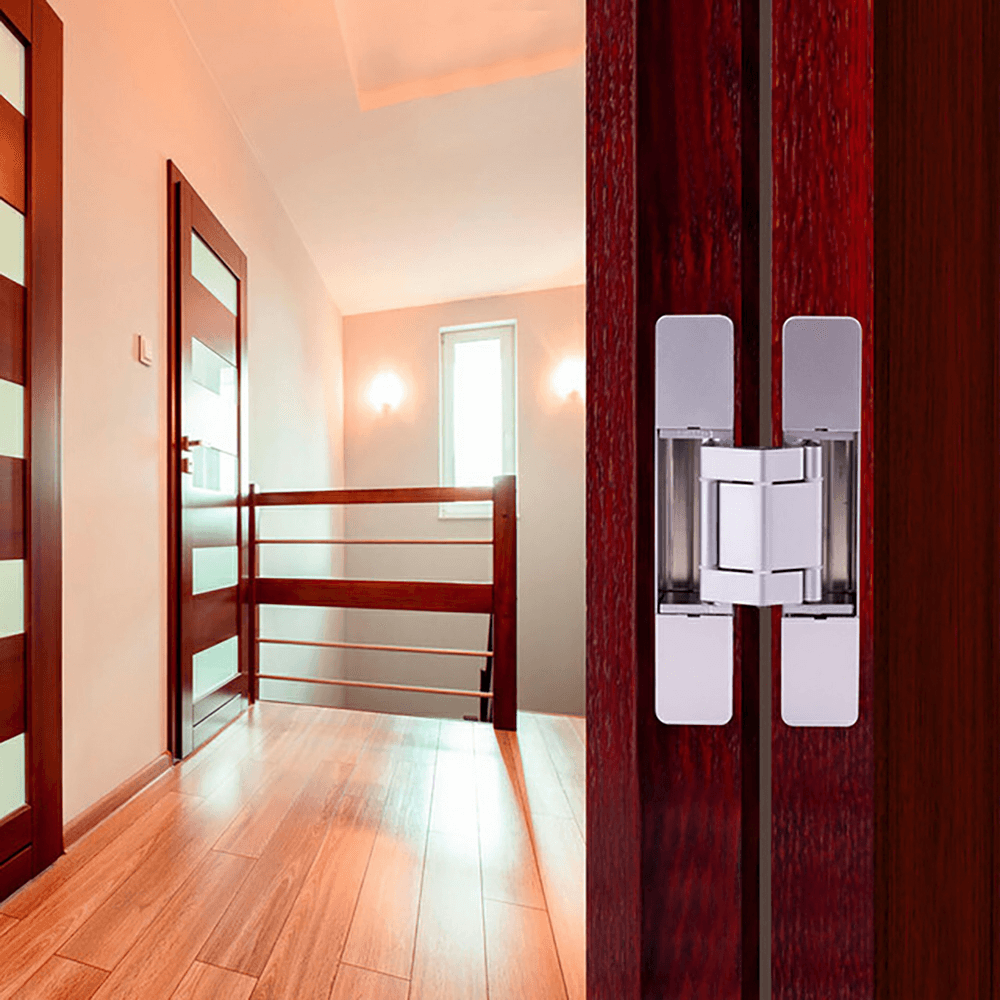

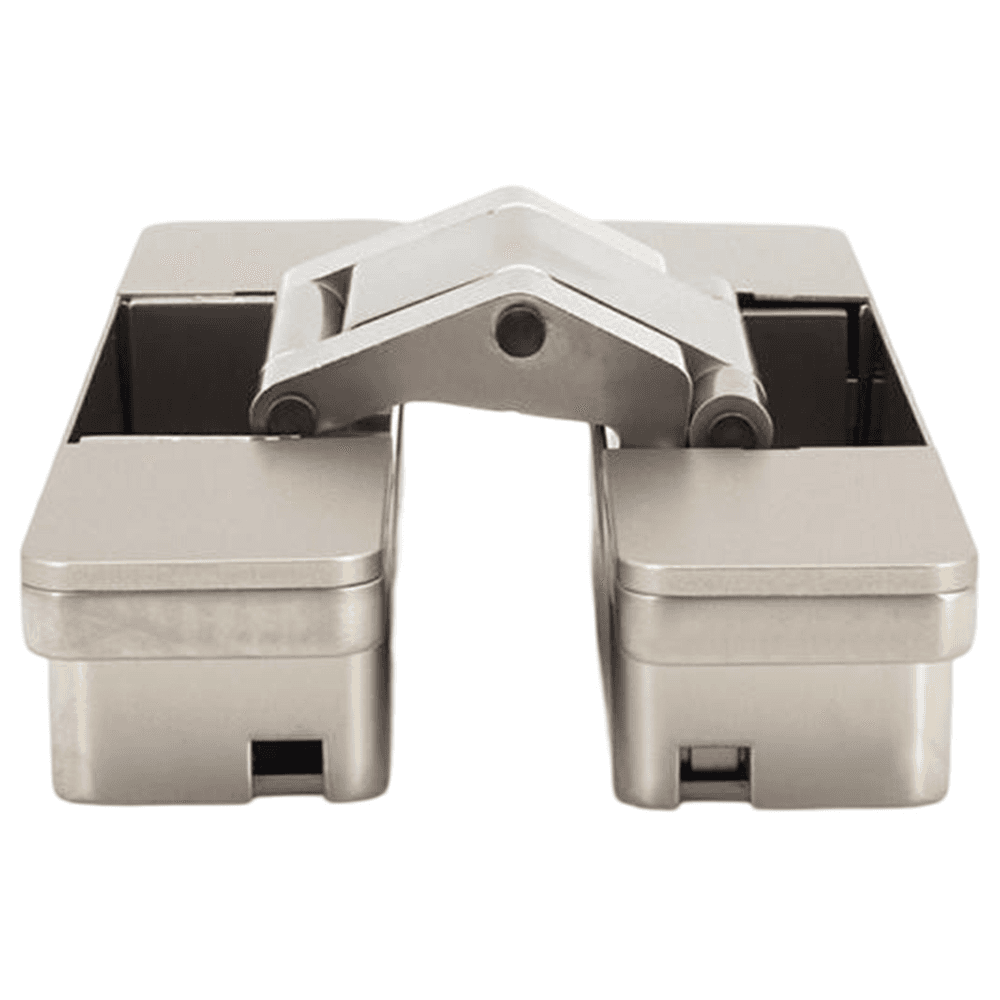

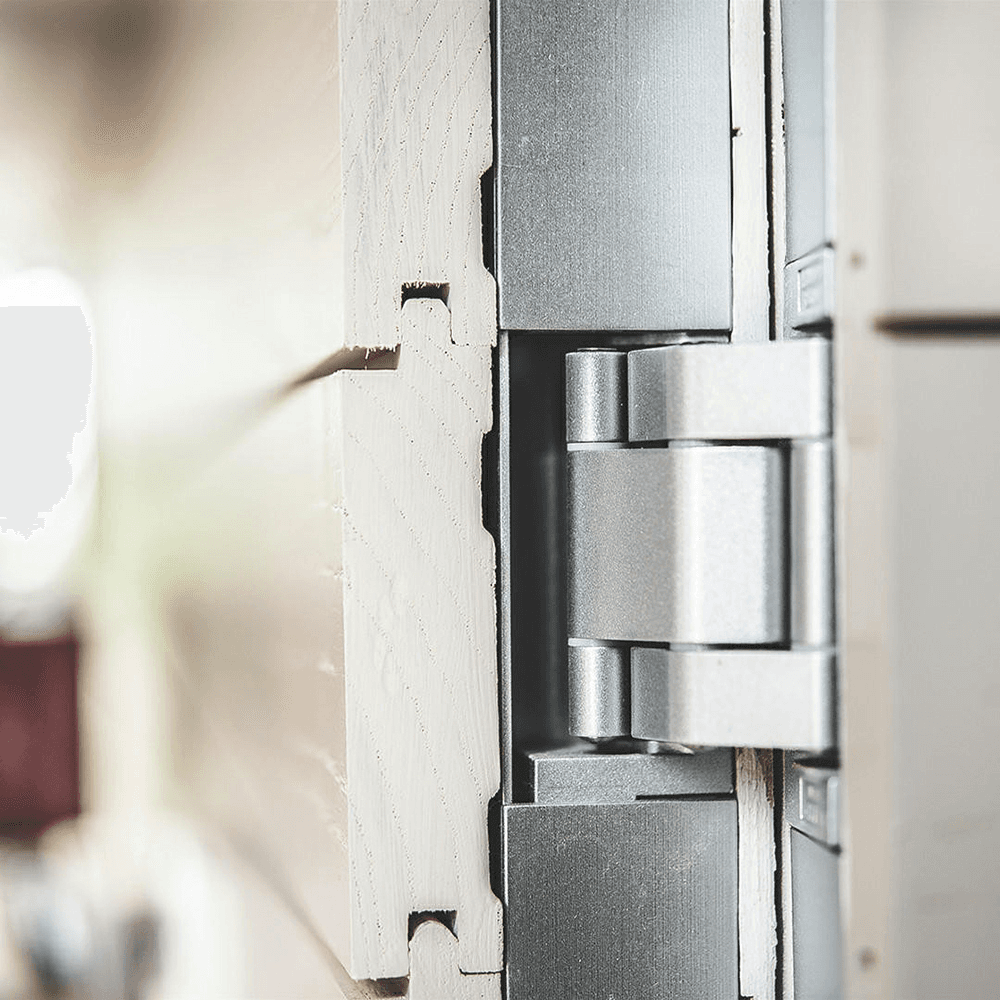

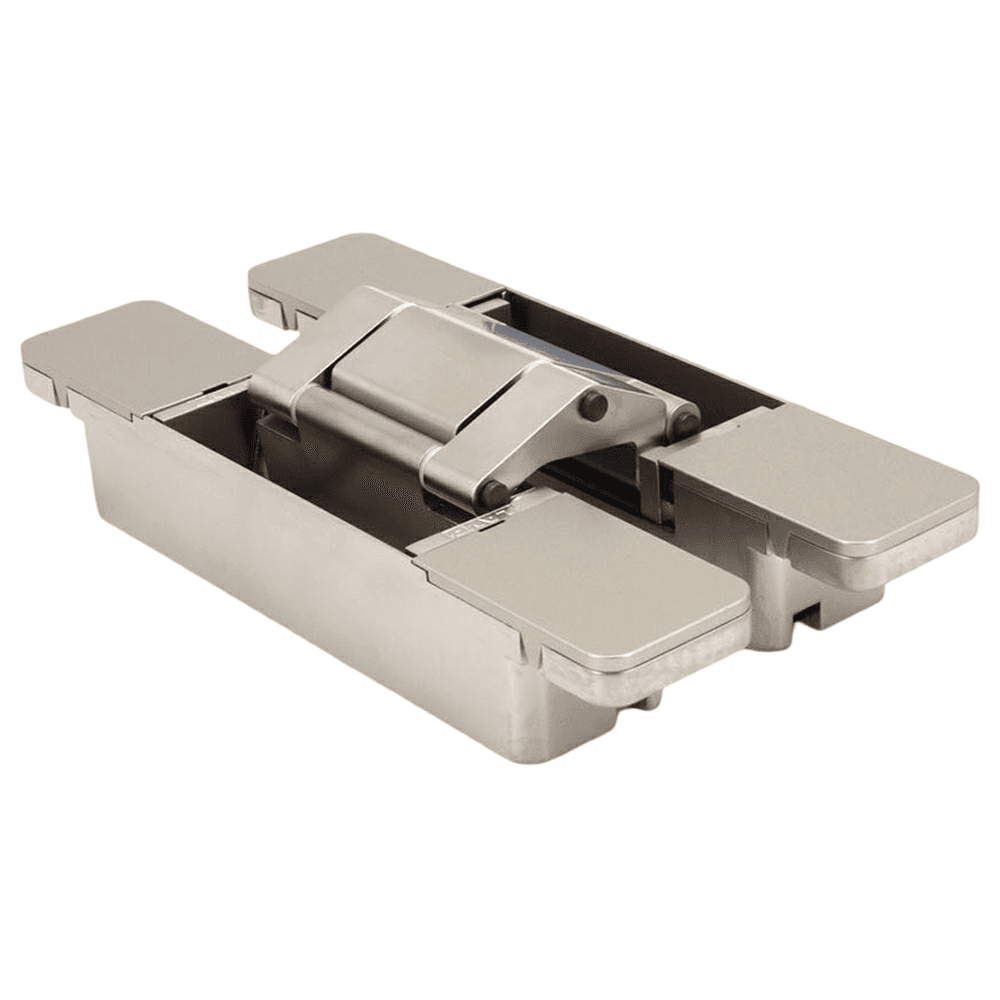

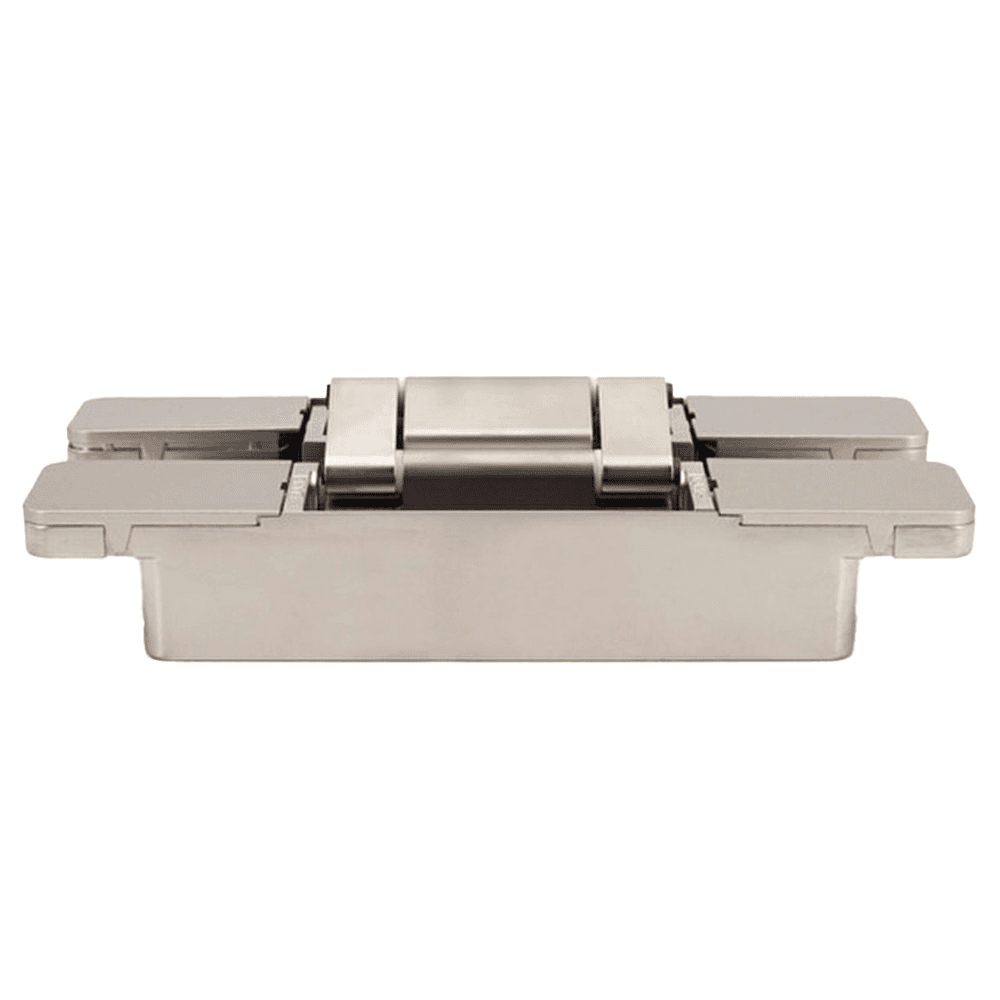

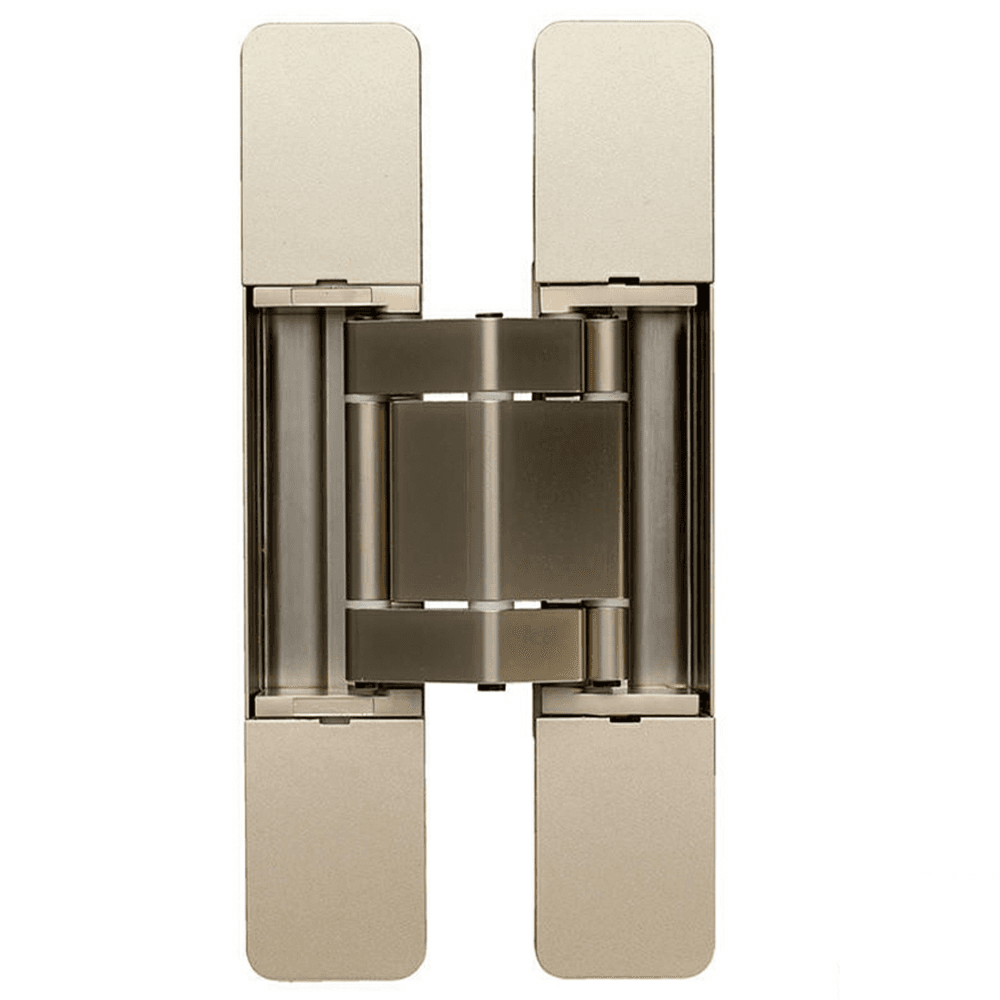

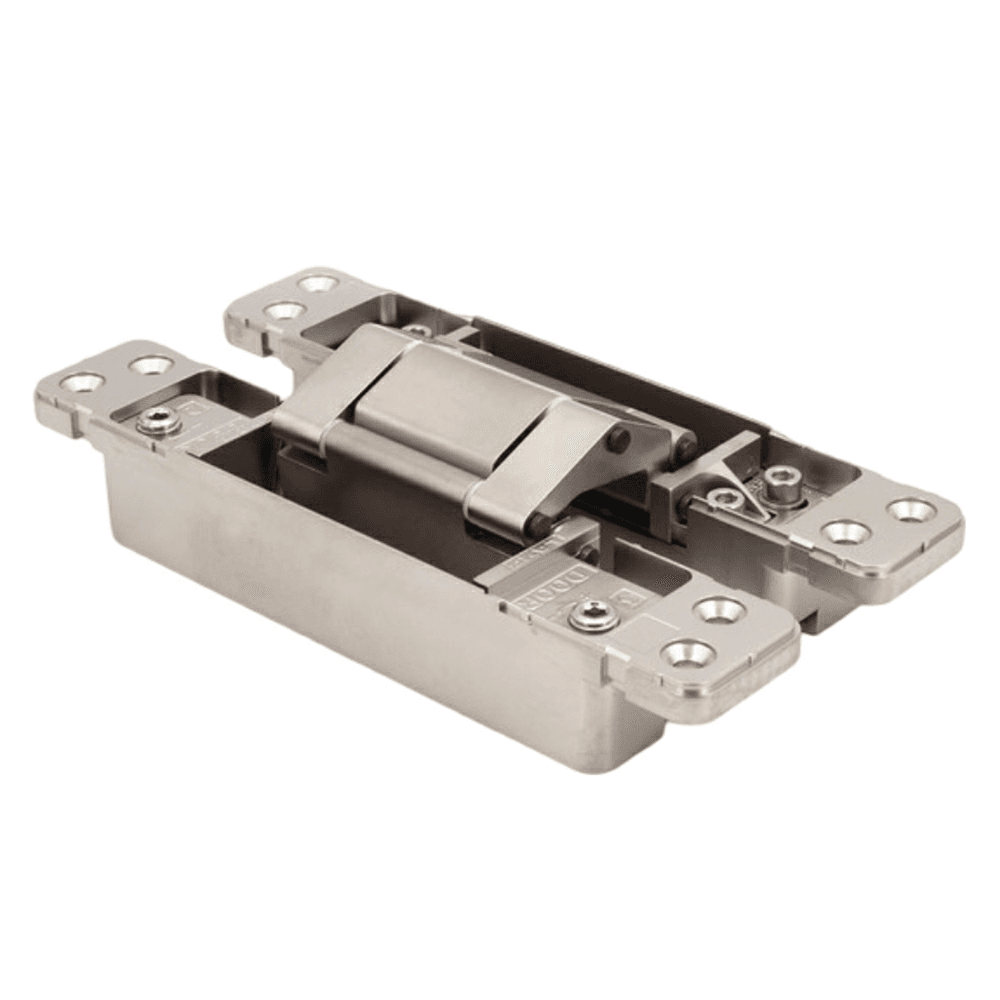

HES3D-W190 3-Way Adjustable Concealed Hinge for Cladded Doors with UL Rated, Dull Nickel
Finish: Dull Nickel
Product Details

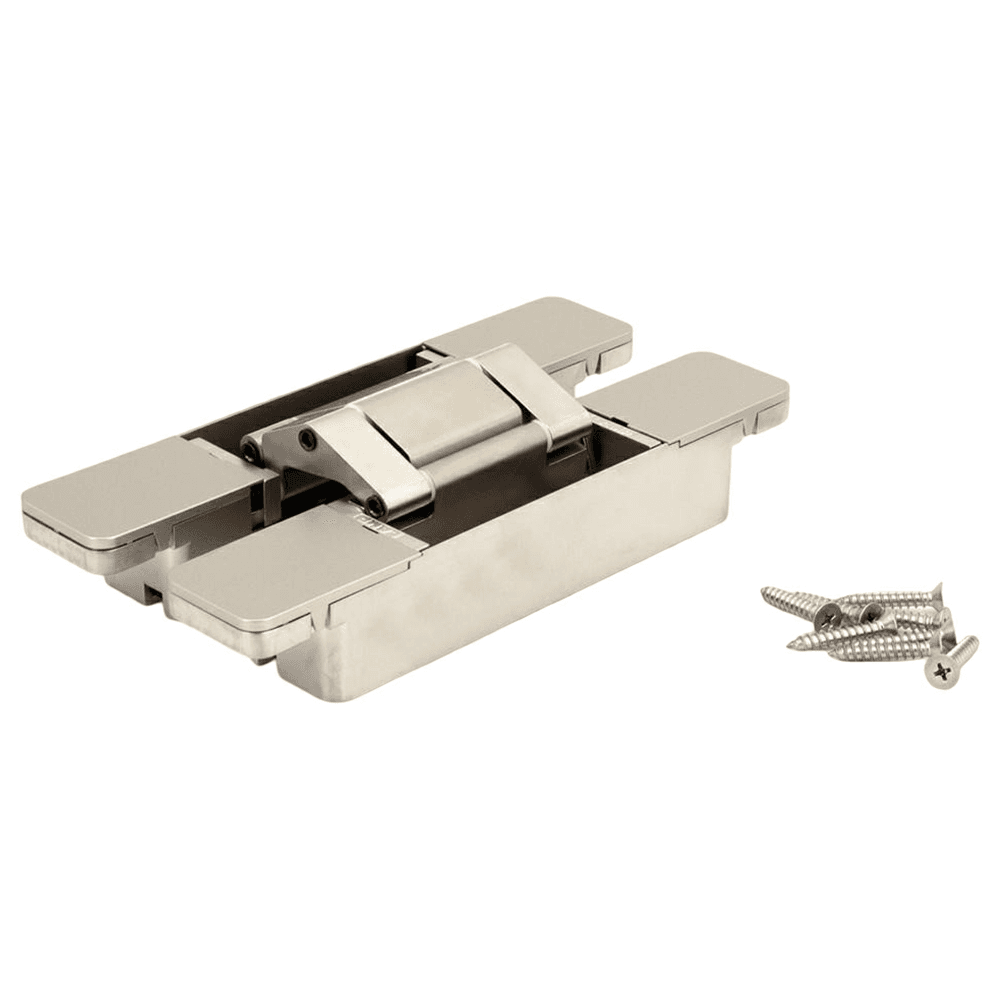

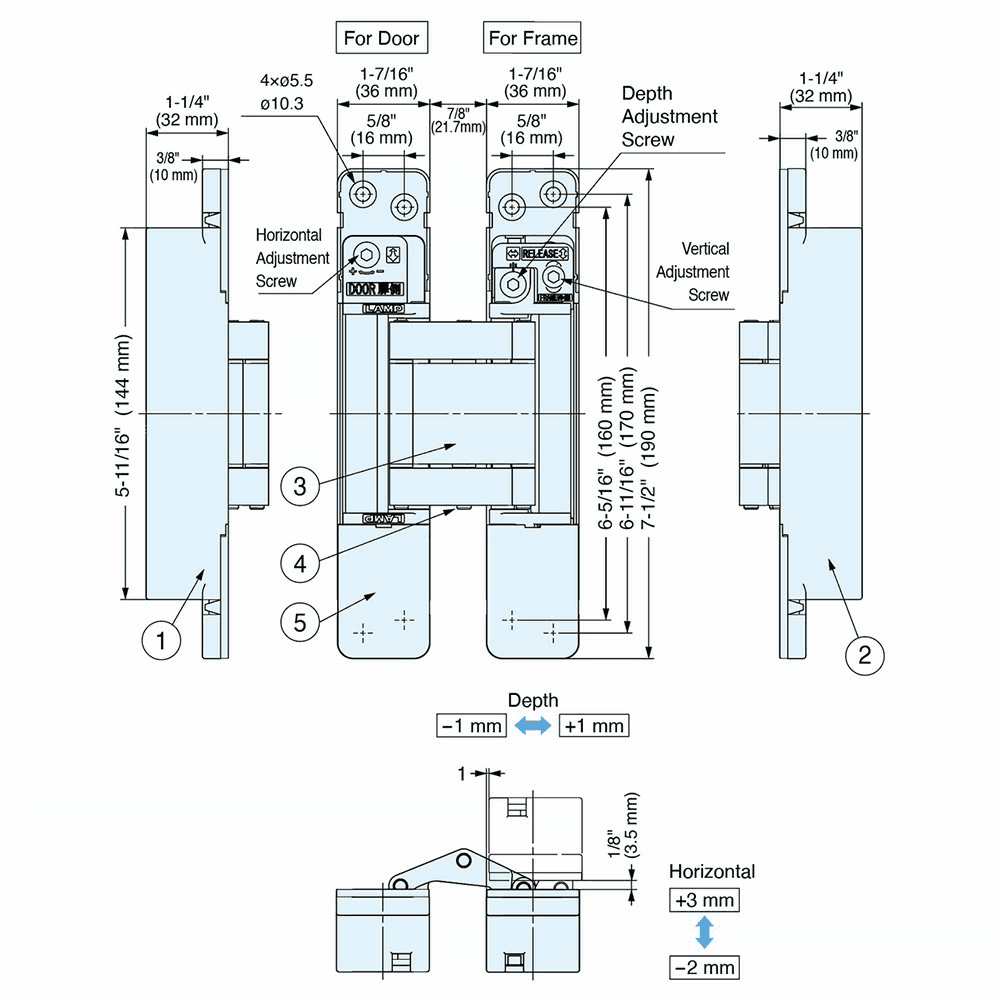

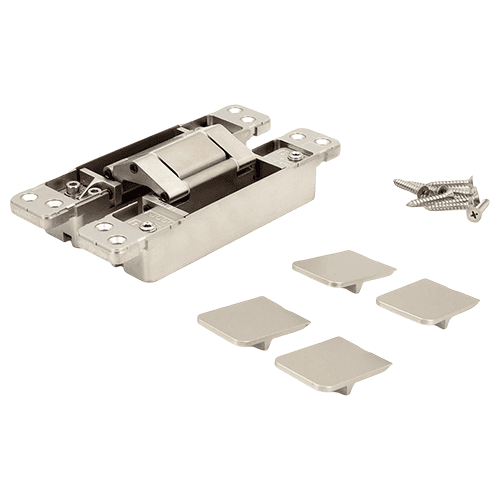

Features: • HES3D-W190 3-way adjustable concealed hinge for cladded doors with ul rated in dull nickel finish • Has a long arm for a wider throw, allowing 3/8" (10 mm) clearance for flush installation or 1/2" (13 mm) clearance for installation with a molding. Opens to 180° • Features 3-way adjustability (vertical, horizontal and depth) • UL Rated, up to 3 Hours • Flanges come apart for the door to be provisionally hung for making adjustments. This provides a quick and easy installation when ready for fixing screws • Successfully passed 300,000 open/ close private cycle tests • Replacement screw covers available for all finishes • Only the HES3D-W190PN model includes metal cover plates, all other models include plastic cover plates • Included self tapping countersunk screw • Fasteners Size: 5 x 30 mm
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Dull Nickel |
| Opening Angle | |
| Hinge Type | Adjustable Hinge |
| Material | Zinc Alloy |
| Length | |
| Barrel Diameter | |
| Material Thickness | |
| Screw Hole | |
| Door Thickness | |
| Height | 7-1/2" |
| Width | |
| Closing Type |
