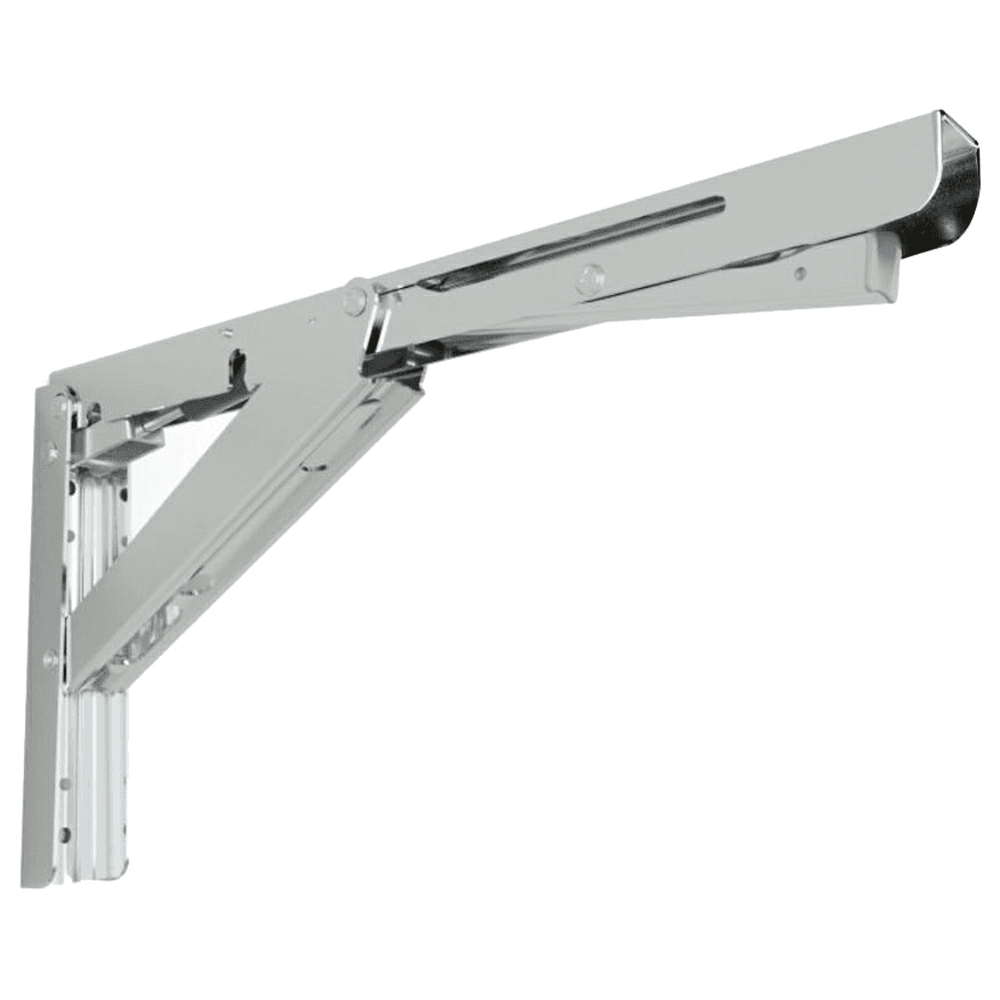

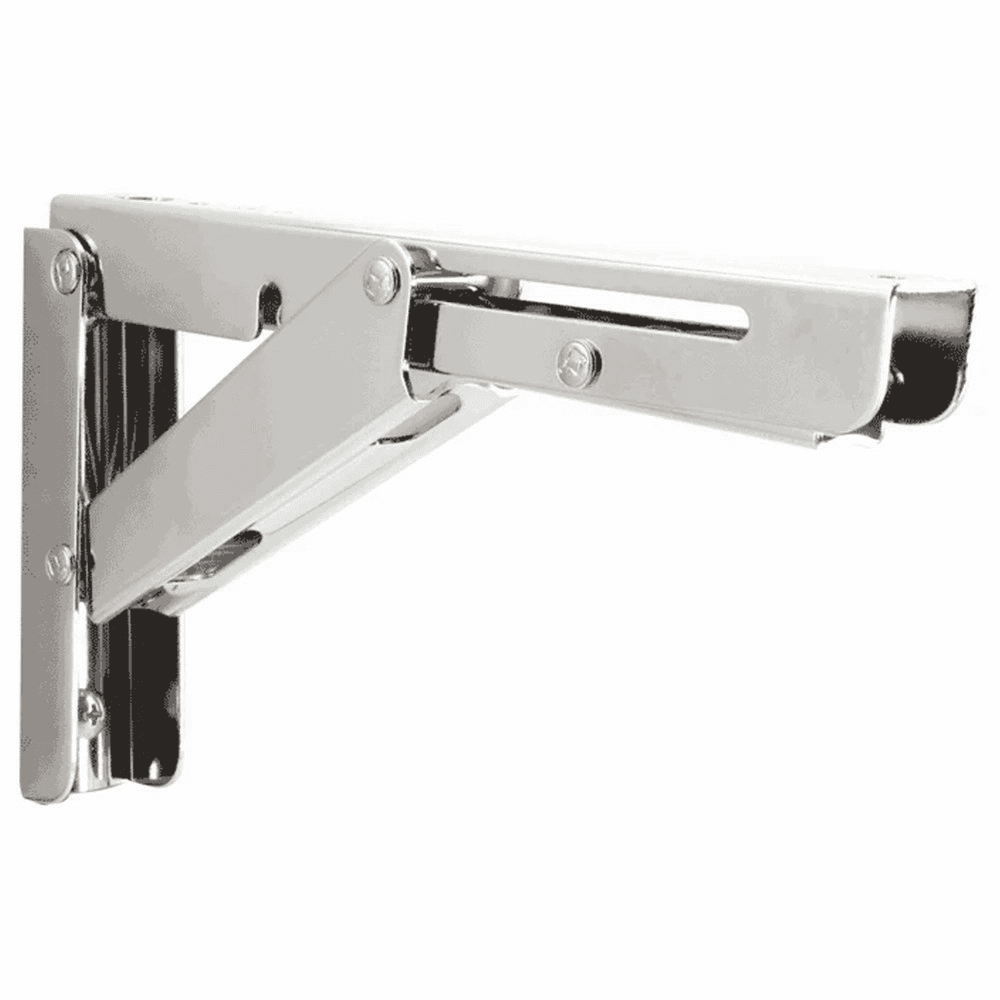

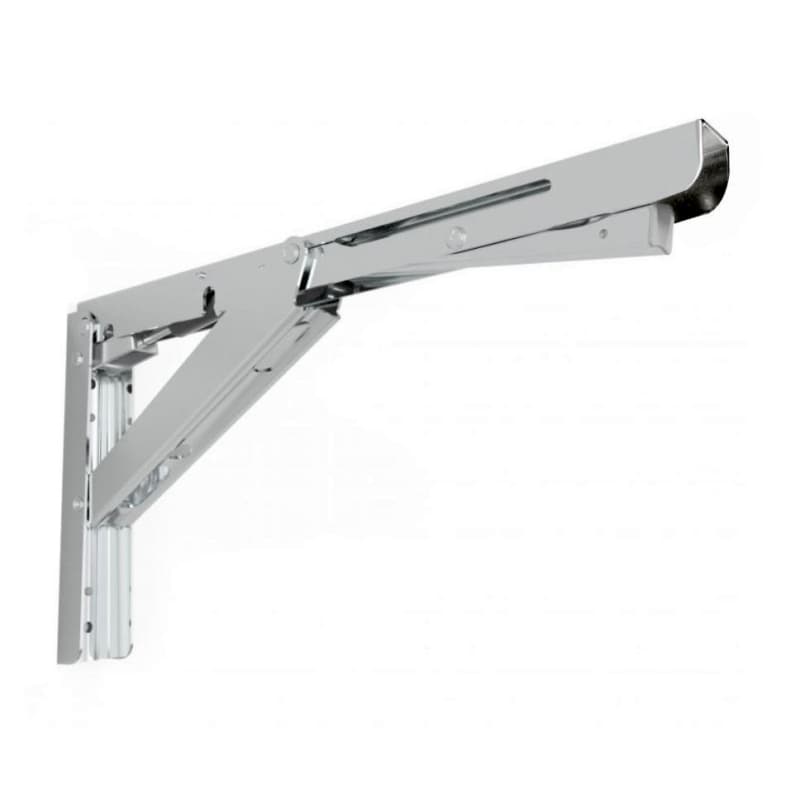

303/EP Folding Bracket with Soft Close, Plain
Finish: Plain
Product Details
Features: • Automatically locks when flap is in opened position • Press lever to release the lock • Hinges not required • Damper unit with a soft-closing feature which makes it smoother and safer • Durability tested 50,000 cycles (private) • Refer to the DAMPER WEIGHT CHART for damper weight capacity • Operating temperature: -30~120°C (-22~248°F) • Fasteners Included • Fasteners Size: 5x16 (3pcs), 5x35 (3pcs) • Fasteners Type: Truss Tapping Screws

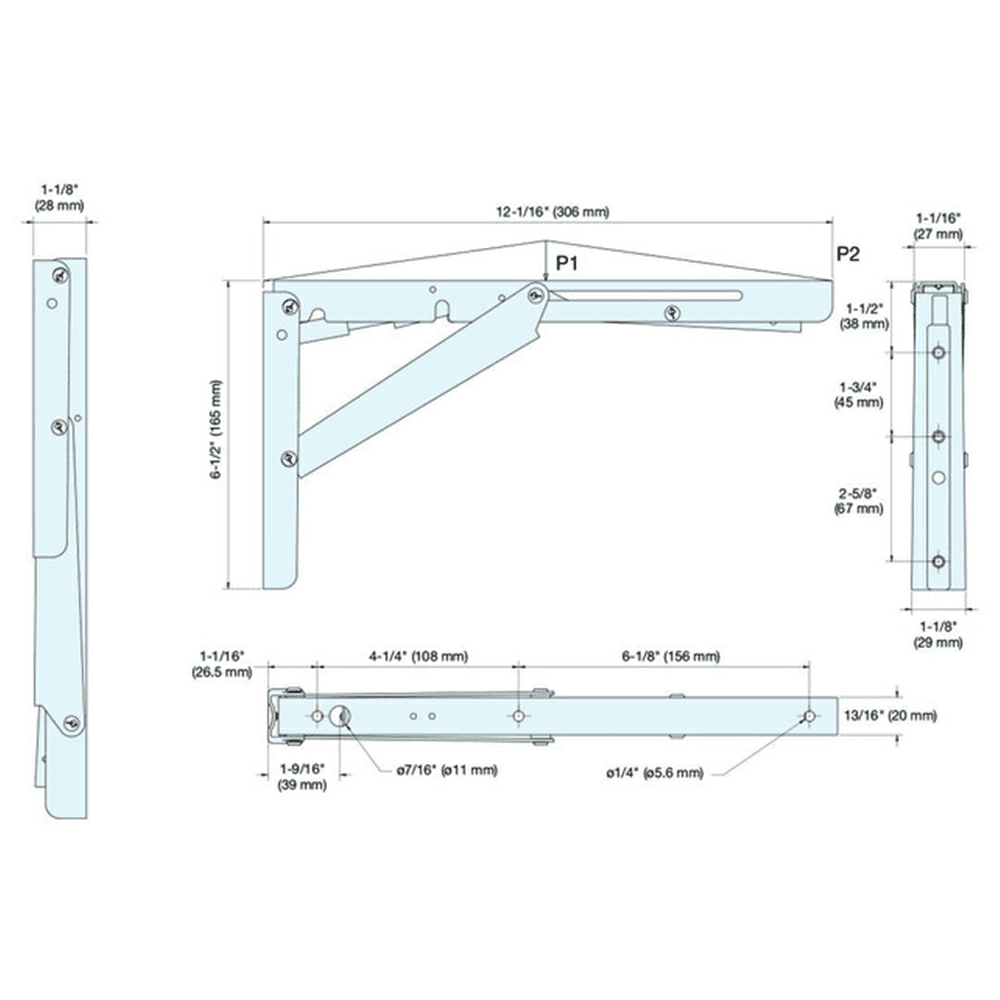

Specifications
| Box Quantity | 1 |
| Depth | |
| Height | 6-1/2" |
| Product Type | Folding Bracket |
| Finish | Plain |
| Material | 304 Stainless Steel |
| Folding | Yes |
| Weight Capacity | |
| Width | 13/16" |
| Style | |
| Length | 12-1/16" |
| Application |
