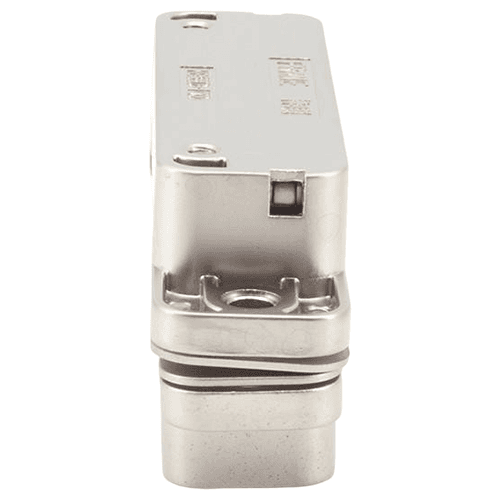

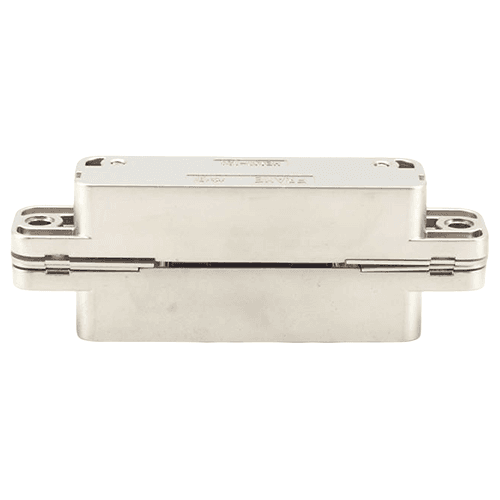

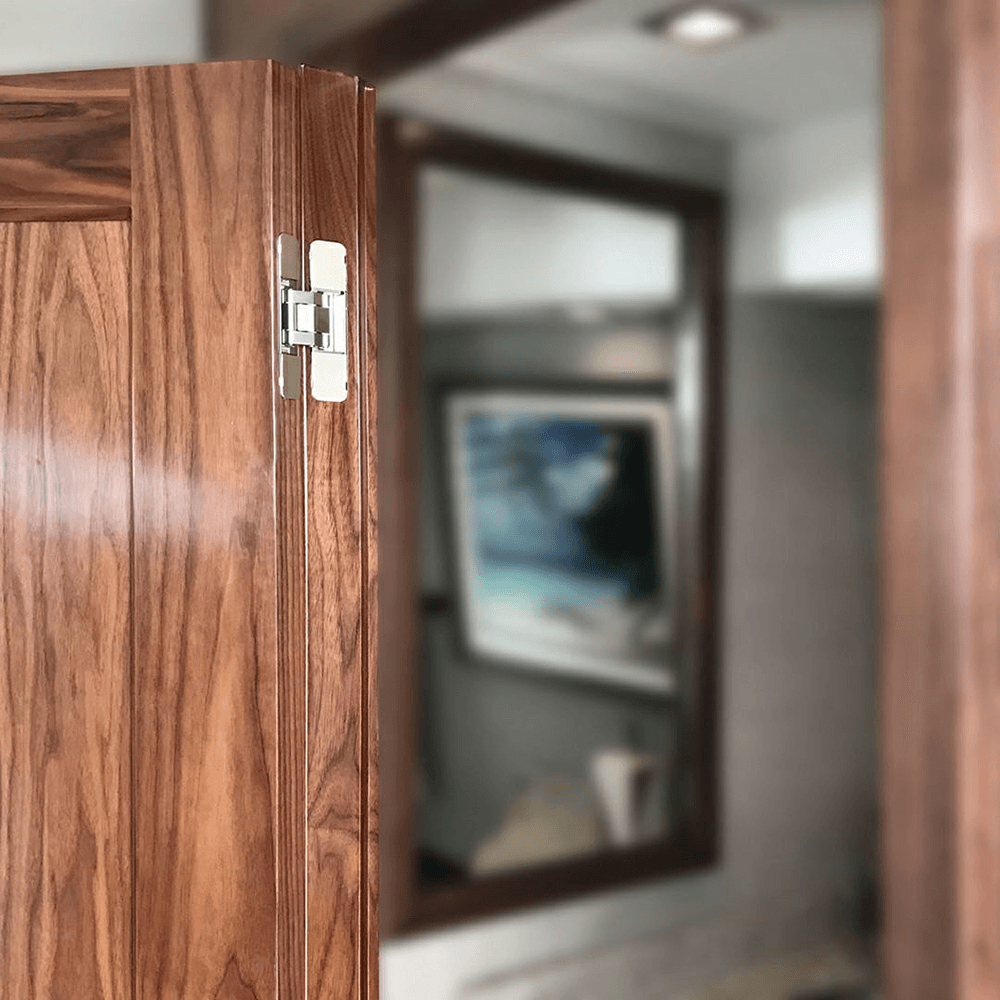

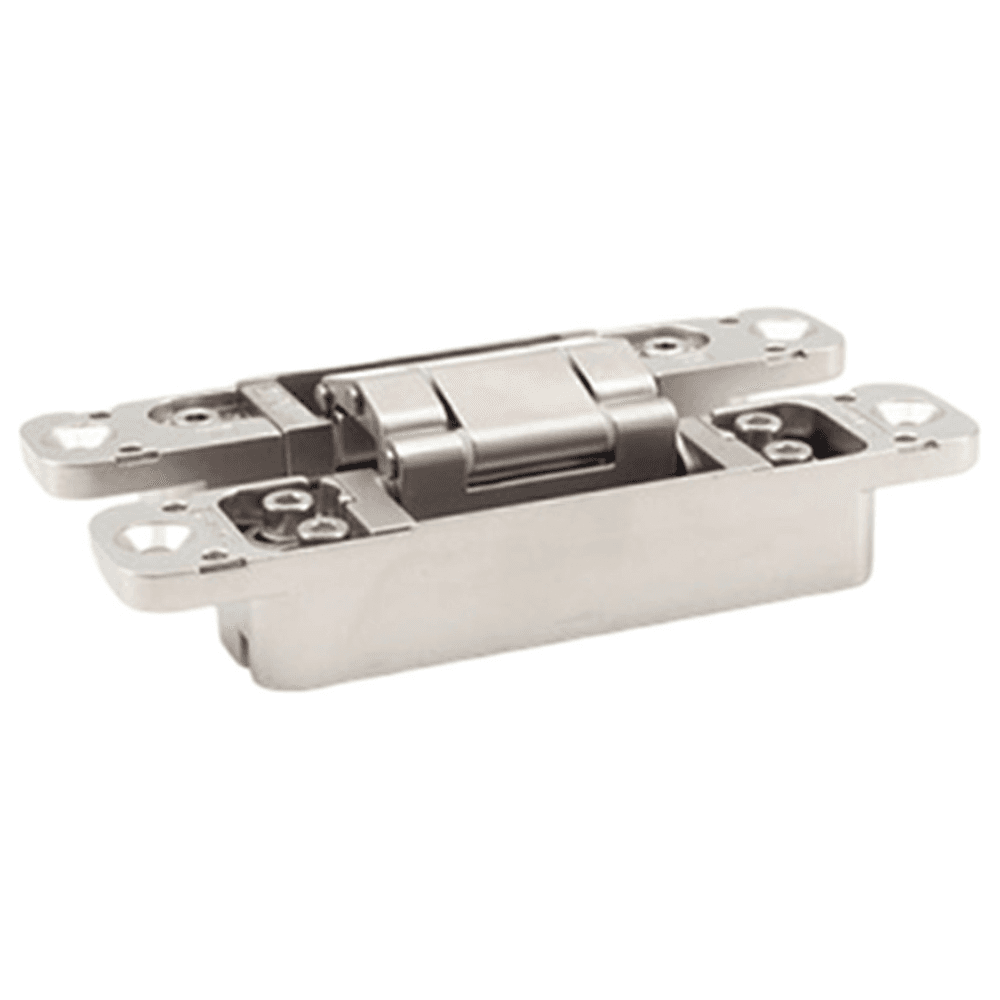

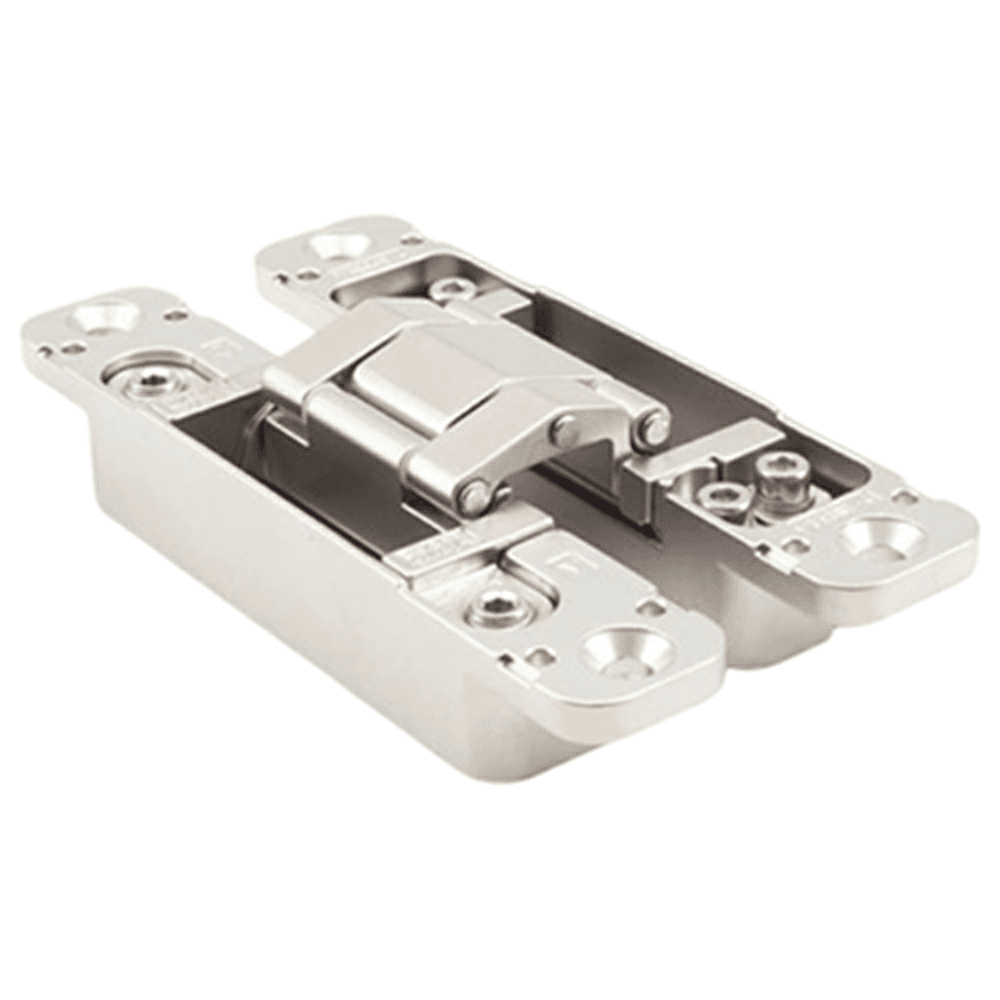

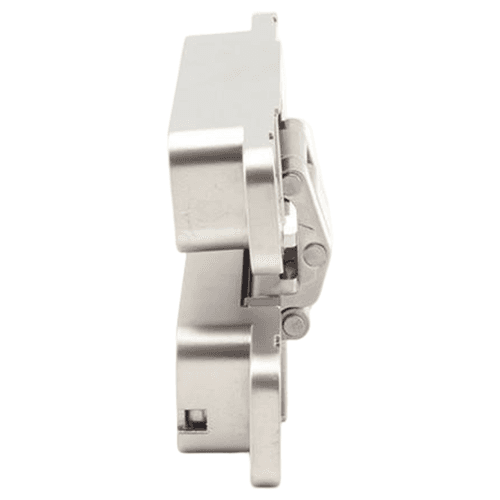

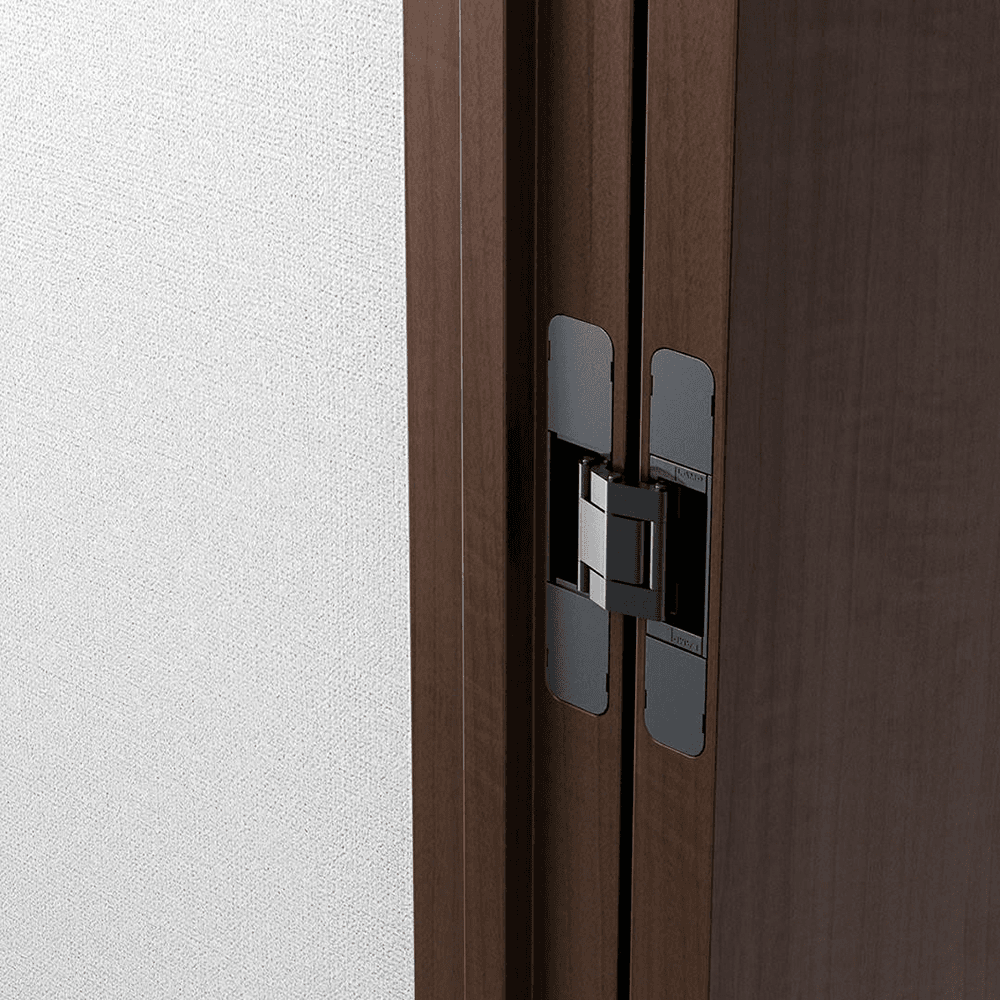

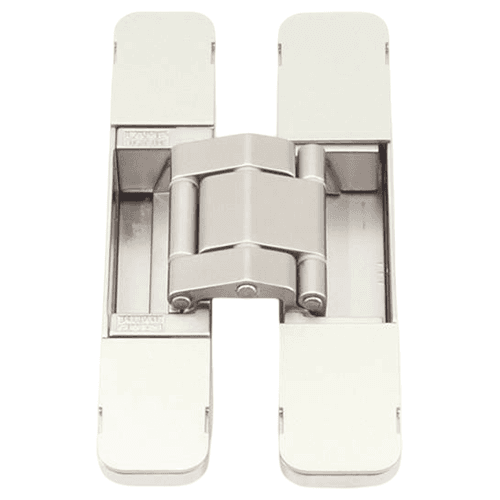

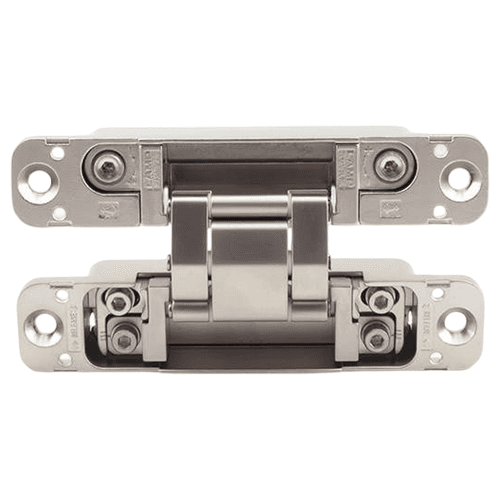

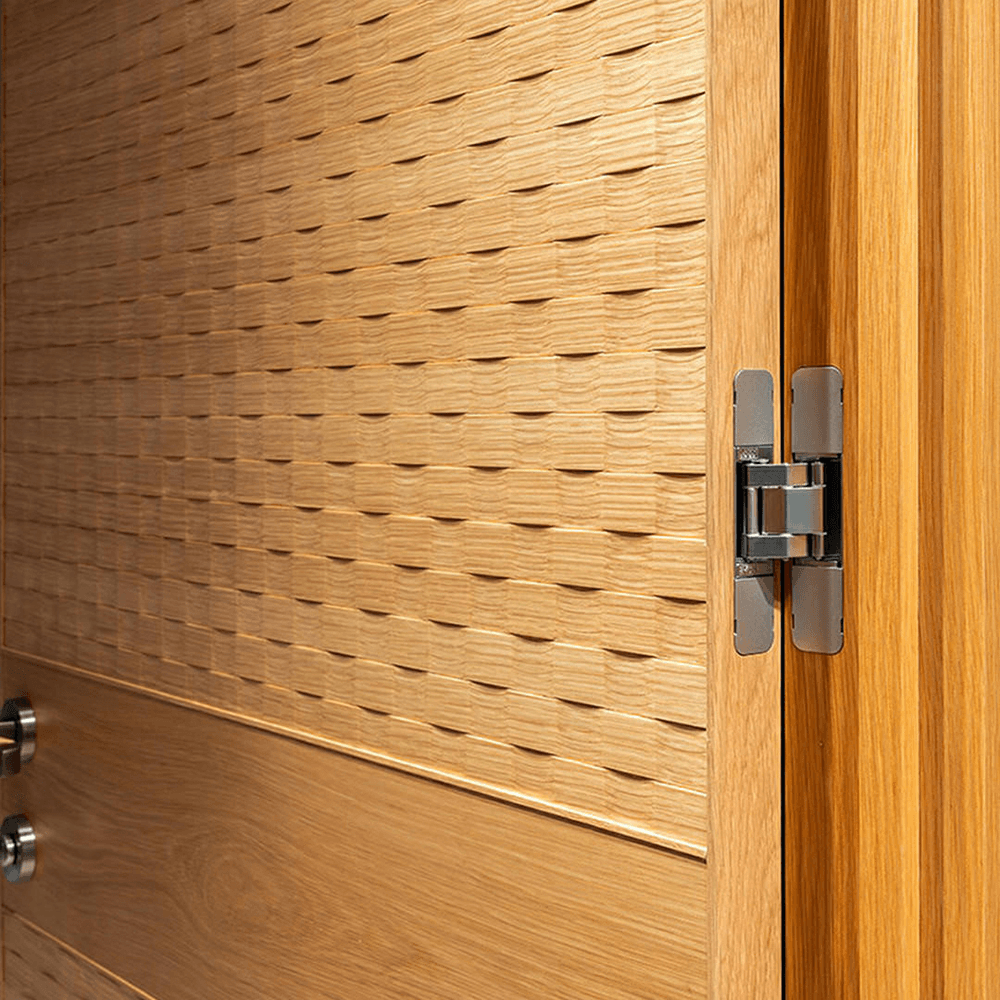

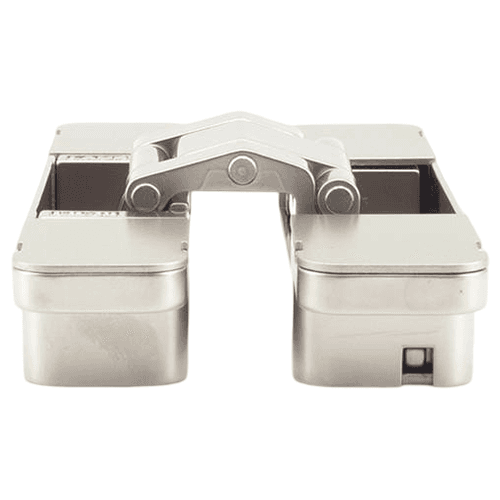

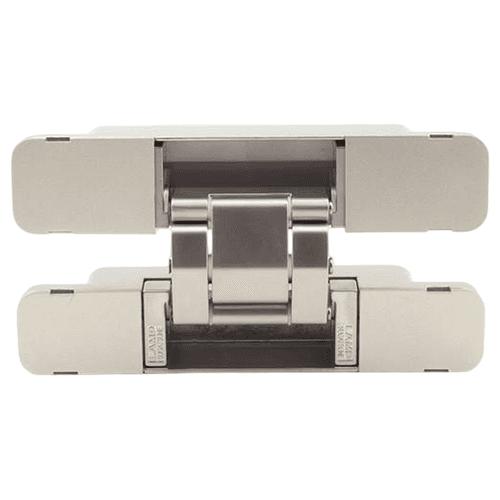

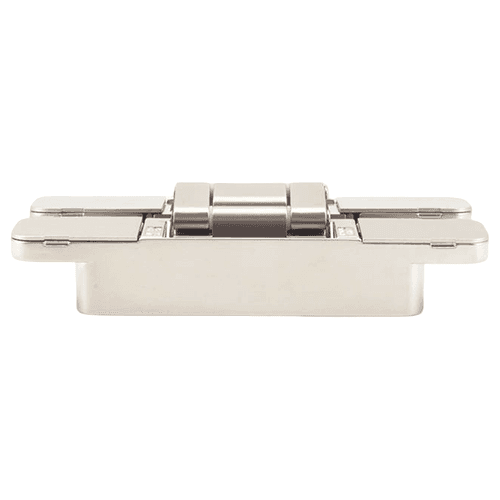

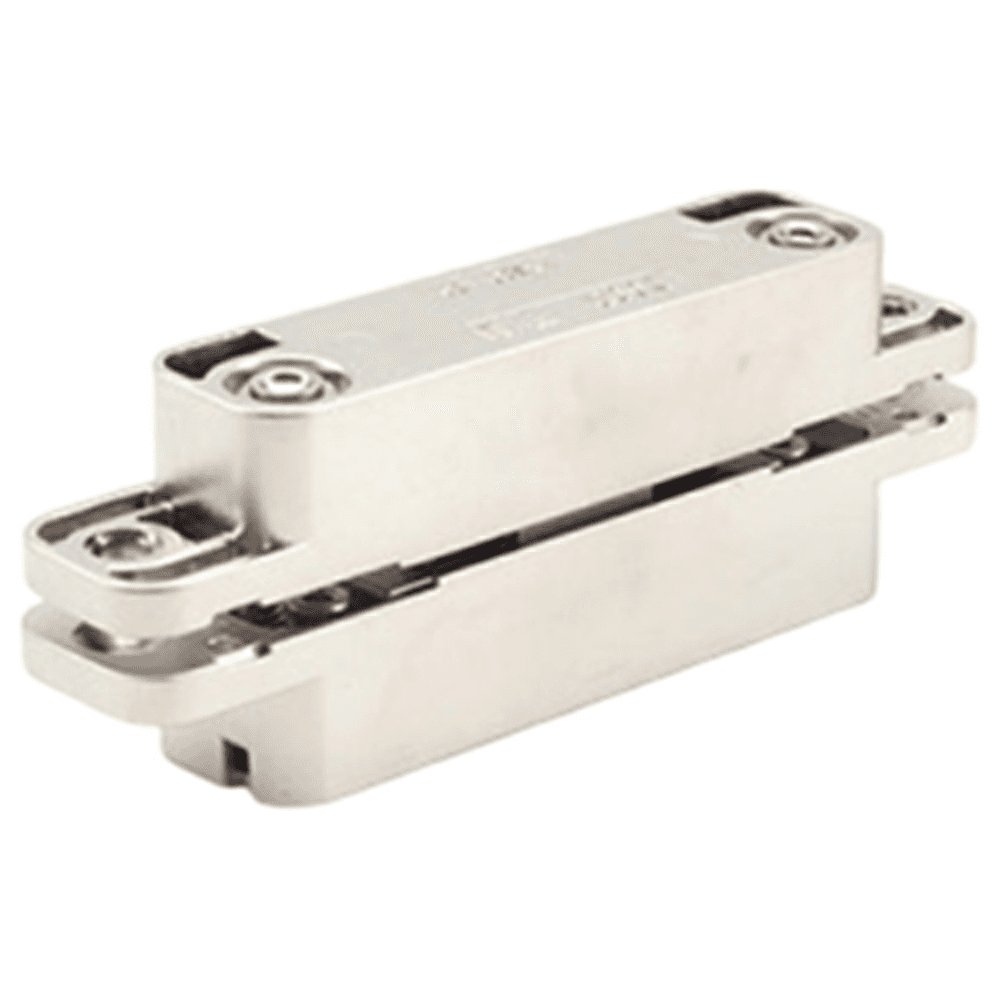

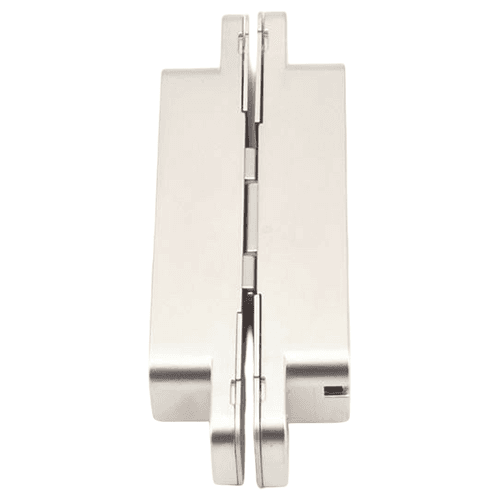

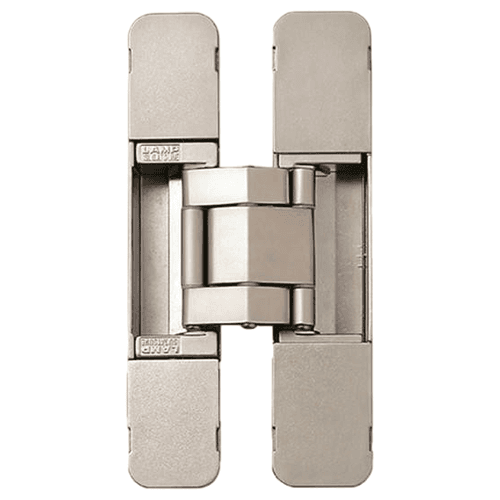

HES3D-120 3-Way Adjustable Concealed Hinge, Dull Nickel
Finish: Dull Nickel
Product Details

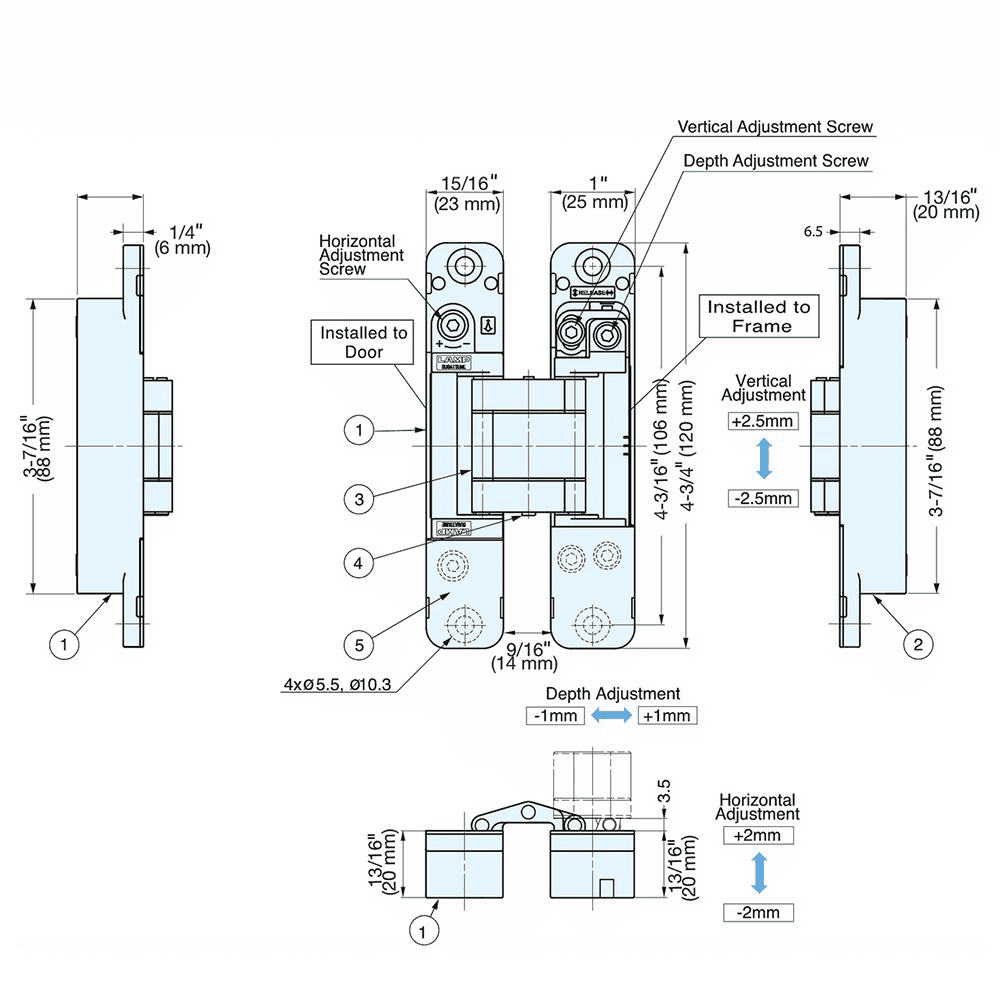

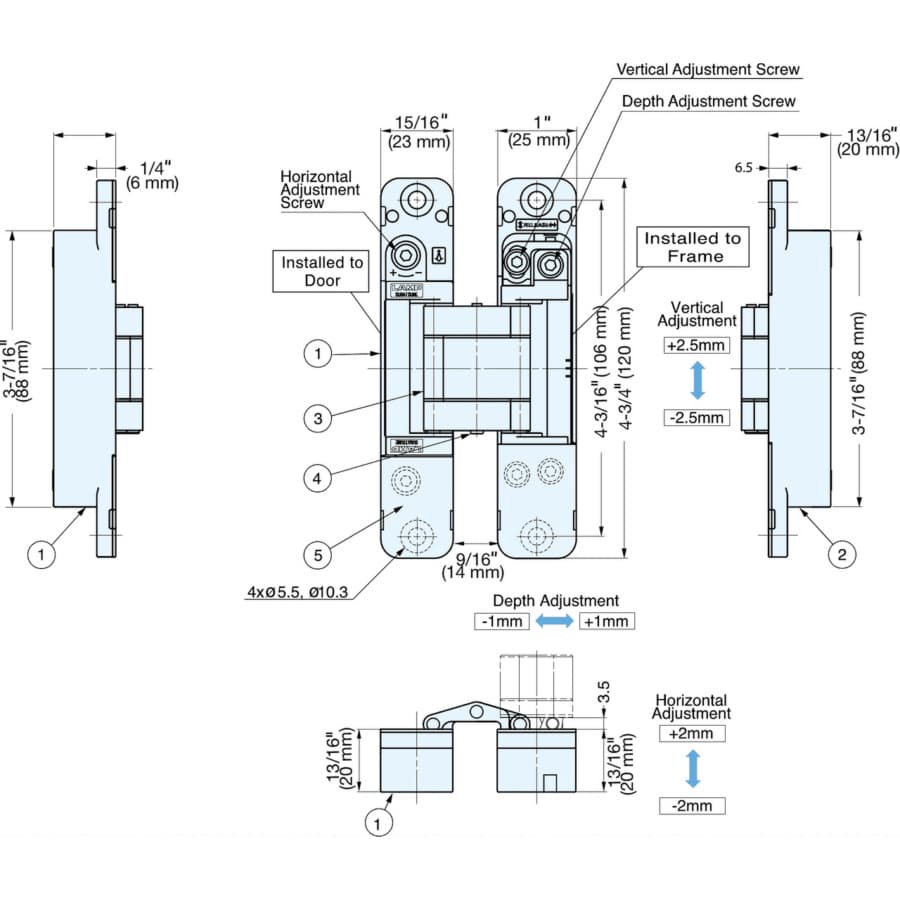

Features: • HES3D 3-Way adjustable concealed hinge in dull nickel finish • 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed • Easy installation and adjustment • Successfully passed 300,000 open/close private cycle tests • Supplied with steel flat head screw • Covers hide all screw heads for clean appearance • Door Weight: Max. 30 kg (66 lbs)/2 pcs, 40 kg (88 lbs)/3 pcs • Door Thickness: Min. 29 mm (1-1/8") • Max. Door Size: H 2400 mm × W 900 mm (H 94-1/2" × W 35-7/16") • Included Flat Head Screw • Fasteners Size: 5 x 20
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Dull Nickel |
| Opening Angle | |
| Hinge Type | Adjustable Hinge |
| Material | Zinc Alloy |
| Length | |
| Barrel Diameter | |
| Material Thickness | |
| Screw Hole | |
| Door Thickness | |
| Height | 4-3/4" |
| Width | |
| Closing Type |
