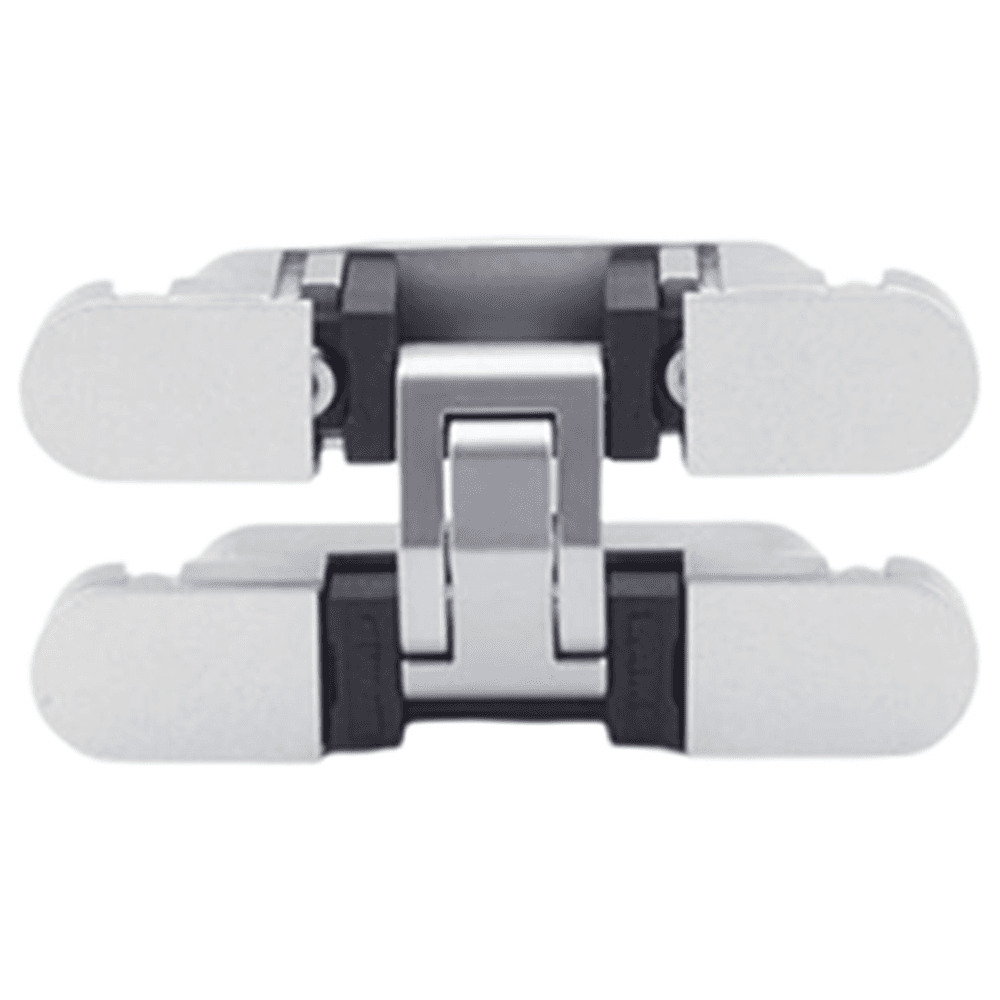

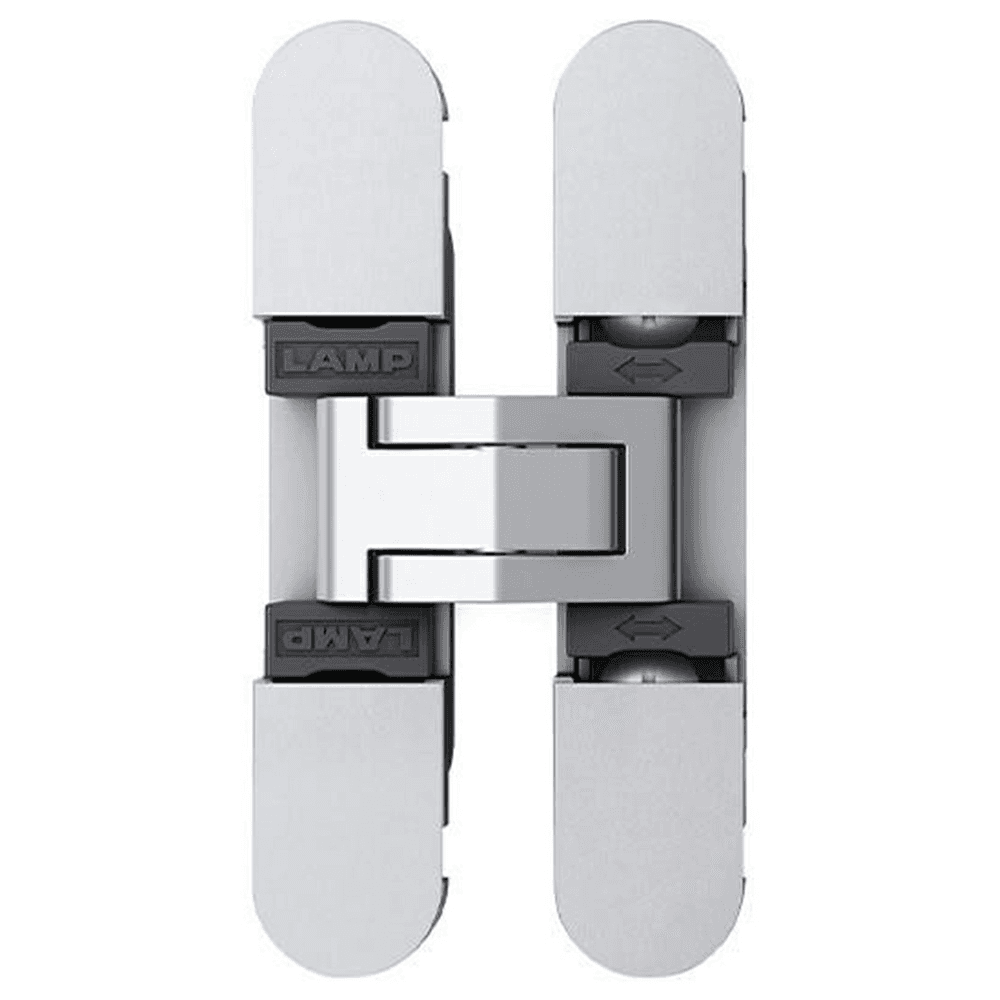

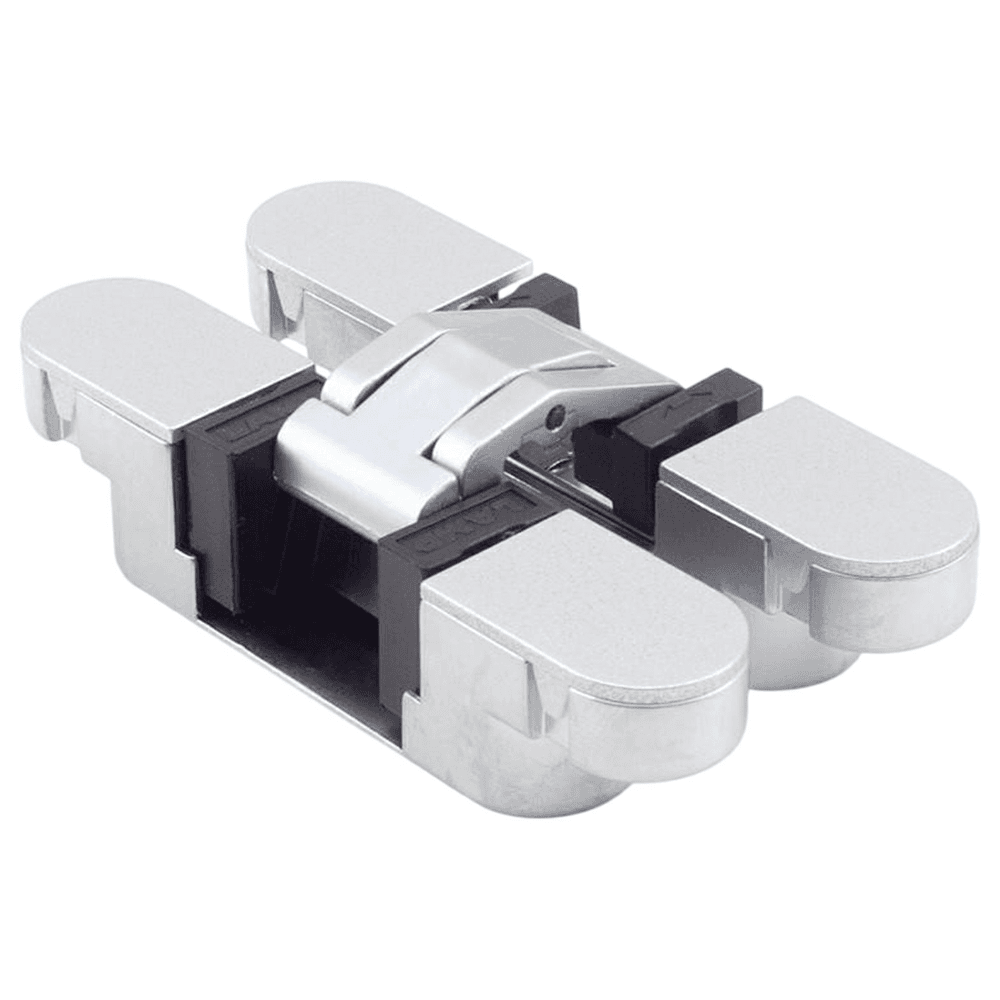

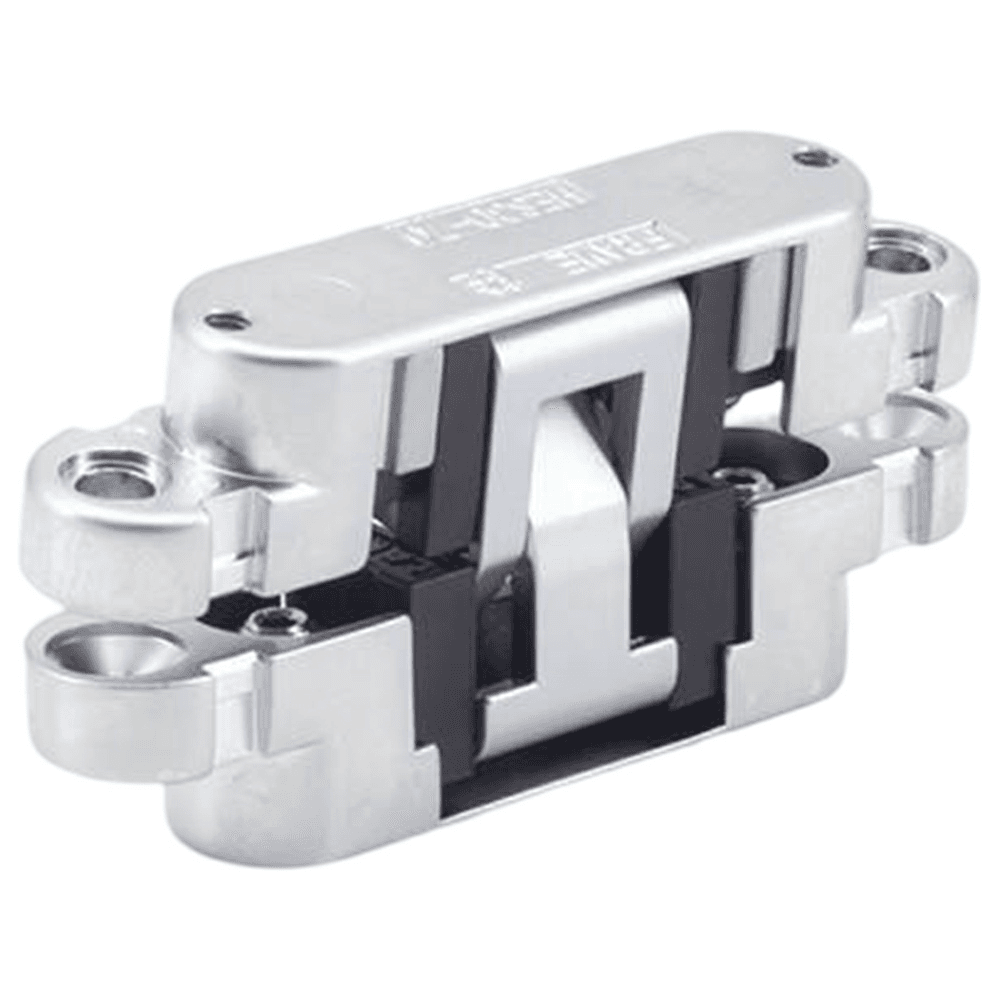

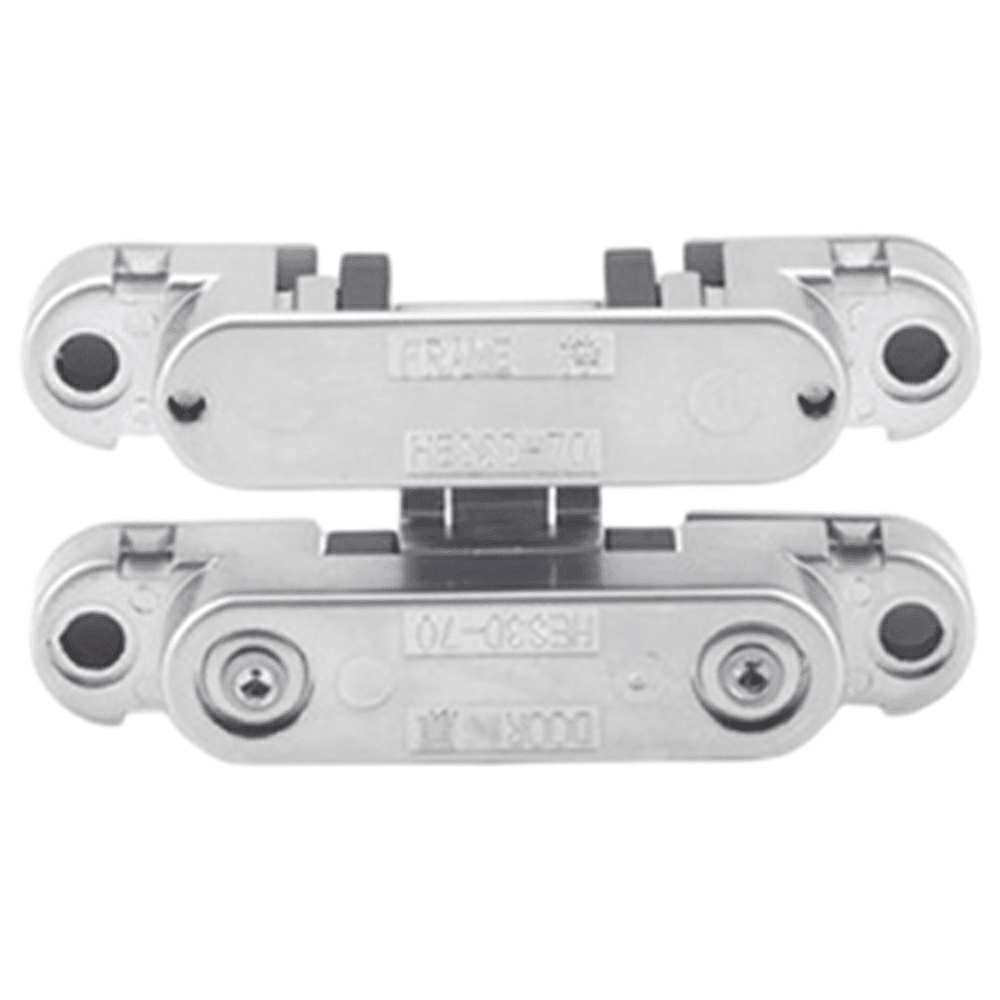

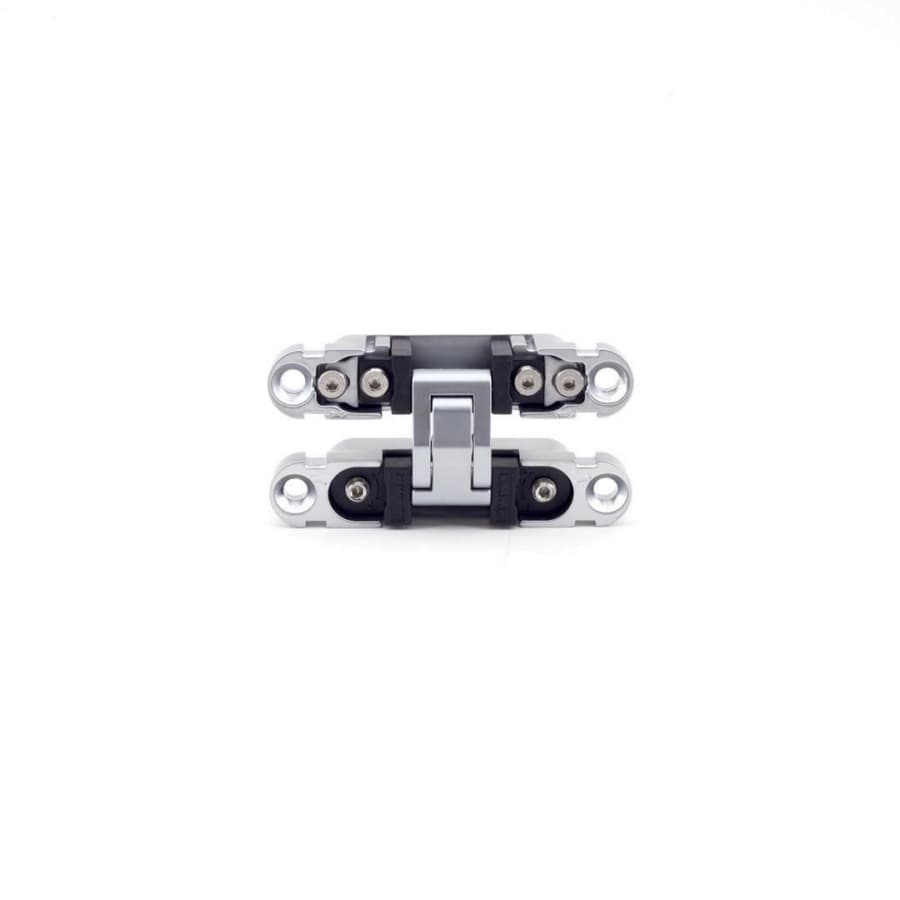

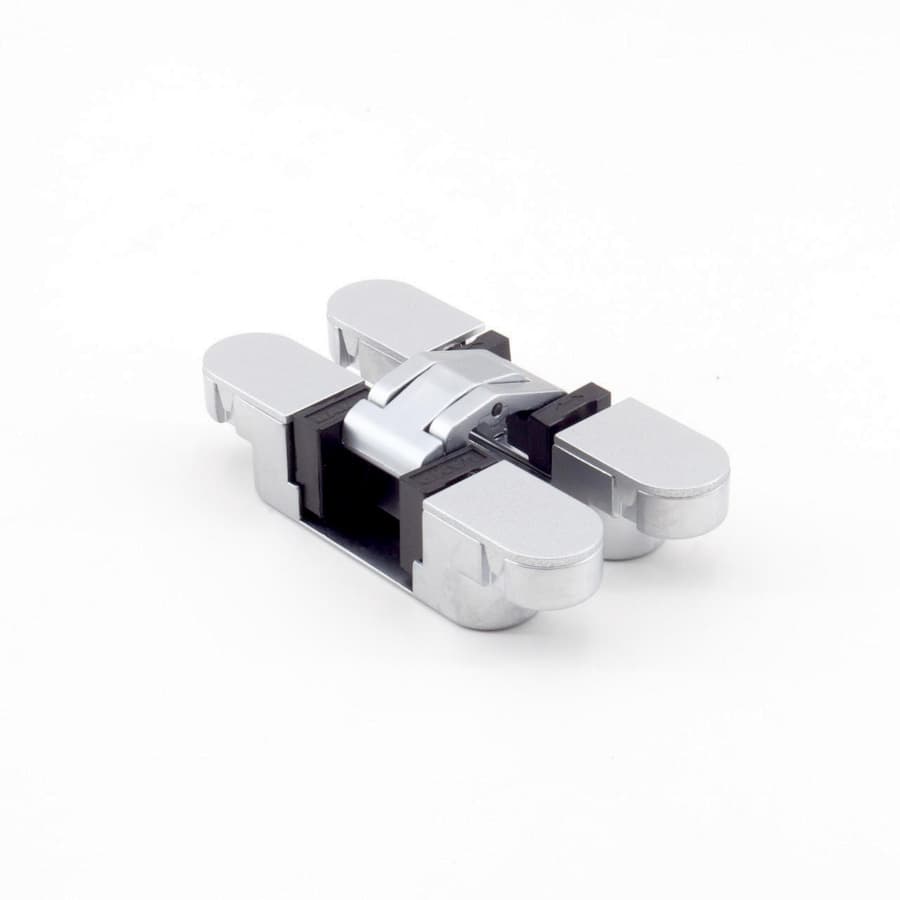

HES3D-70 3-Way Adjustable Concealed Hinge, Dull Chrome
Finish: Dull Chrome
Product Details

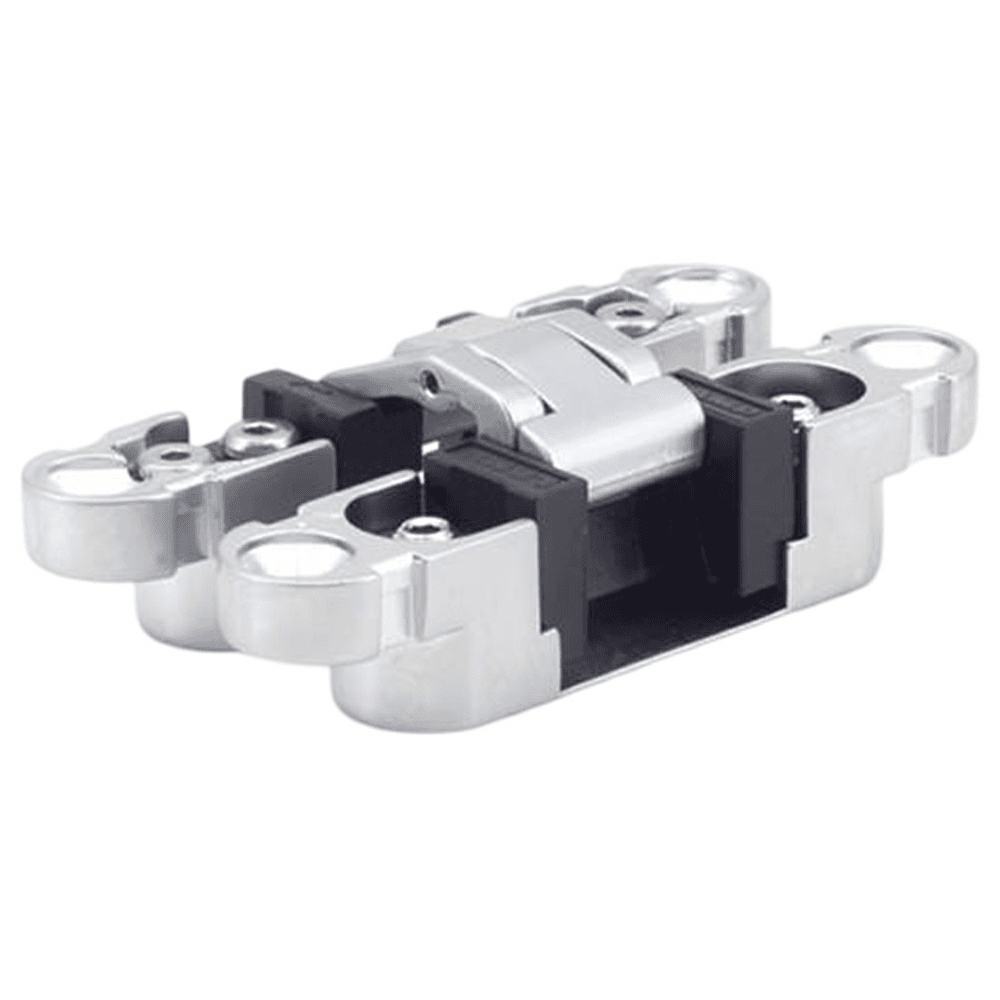

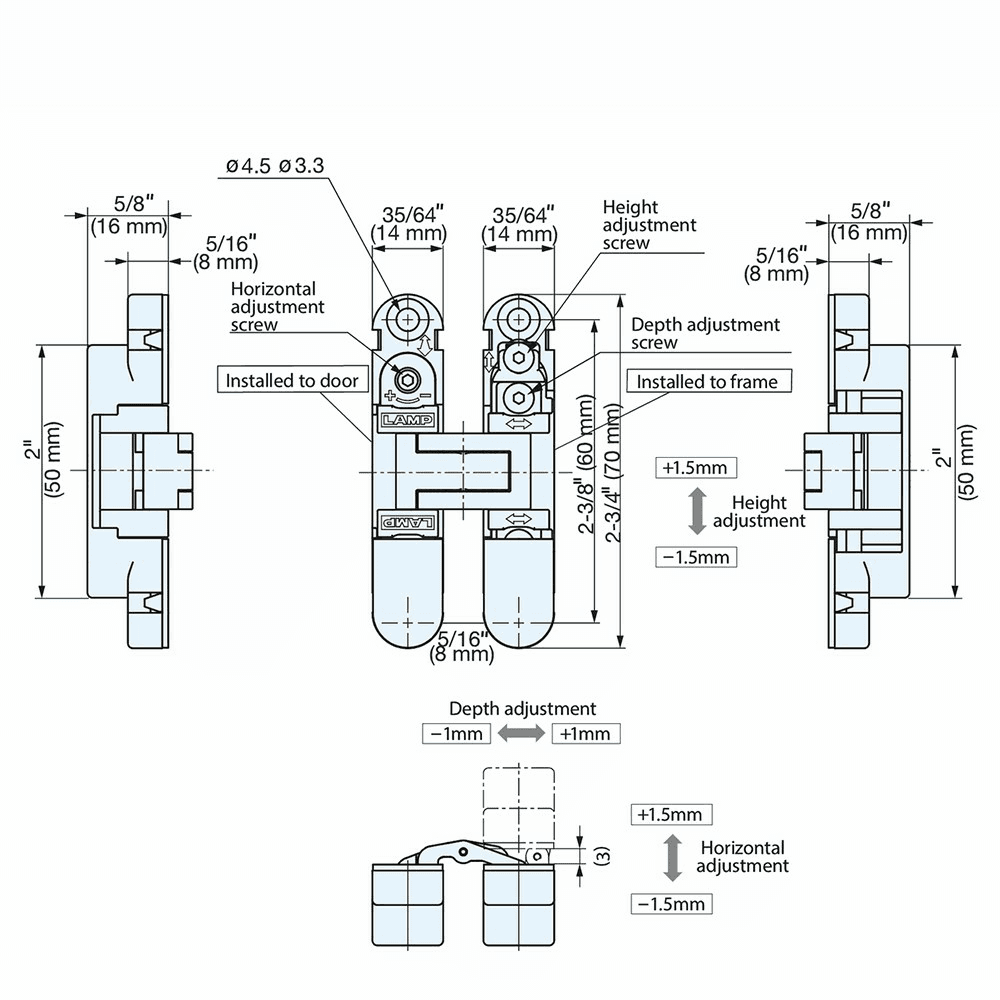

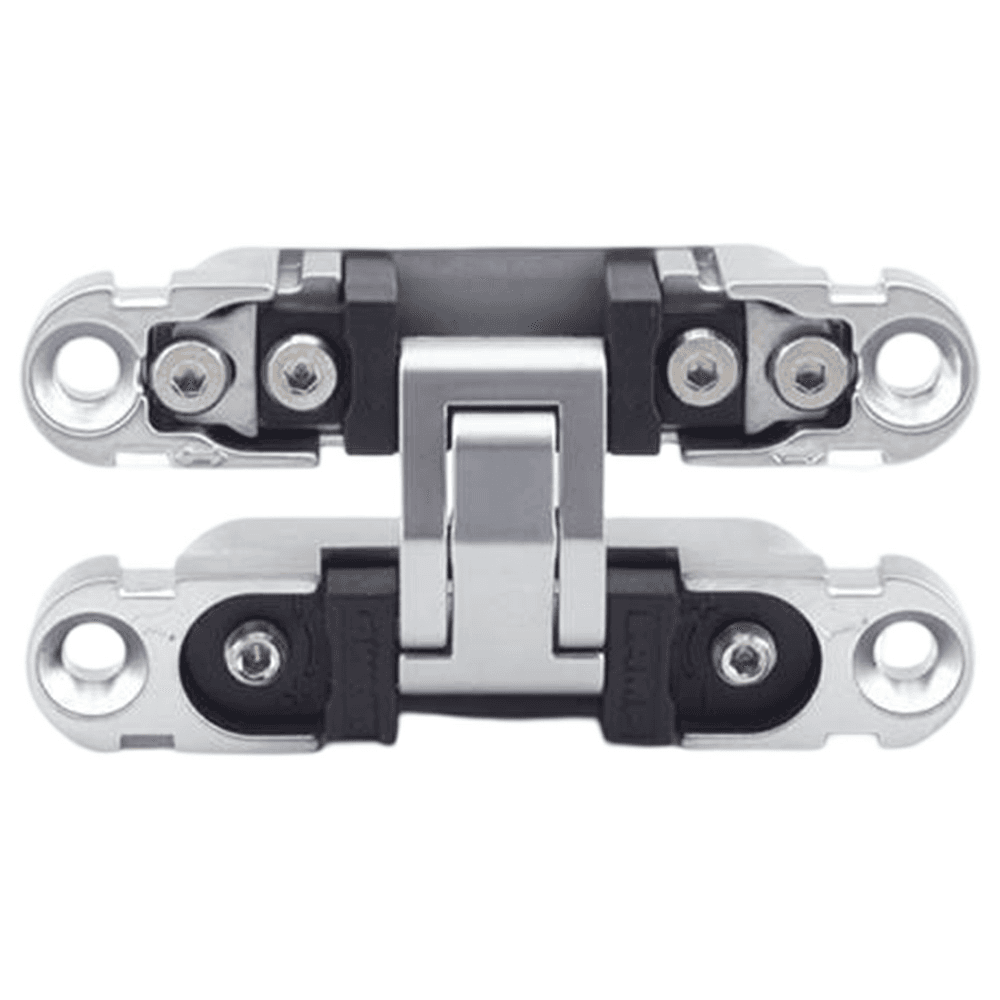

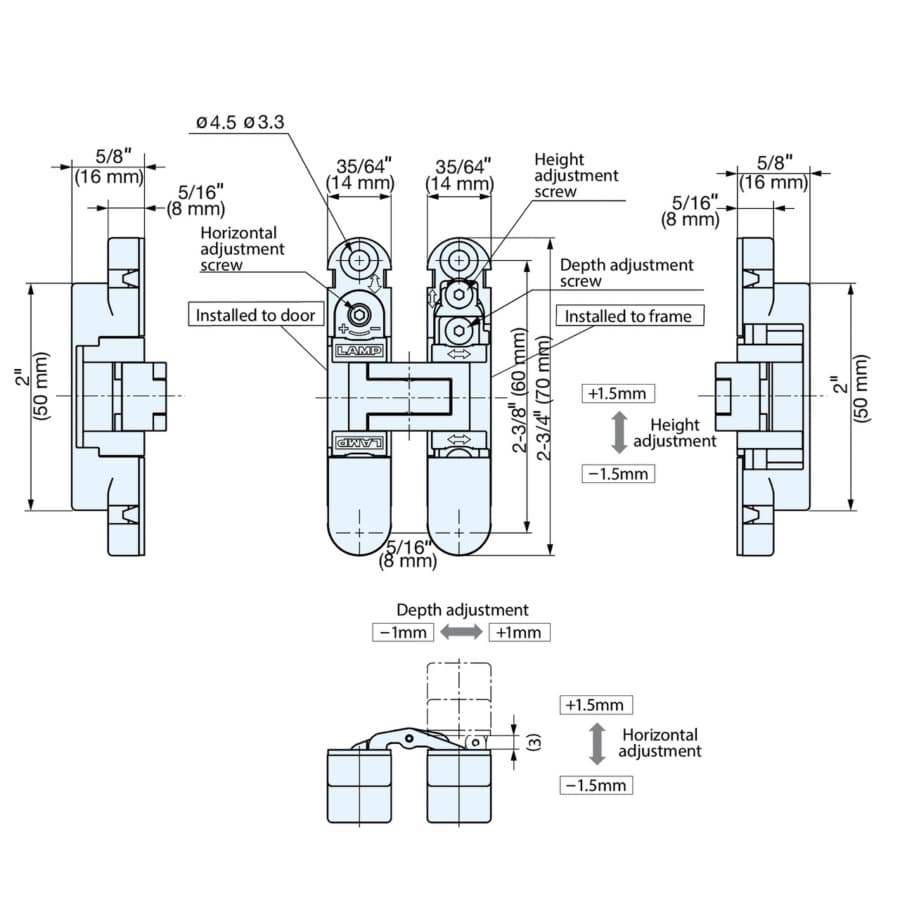

Features: • HES3D 3-Way adjustable concealed hinge in dull chrome finish • 3-WAY adjustment function allows vertical, horizontal and depth adjustment after installation. • Hinge leaves separate for easy installation. • Covers hide screw heads for clean appearance. • Includes steel countersunk wood screws. • Small size for min. 3/4" panel thickness. • Door weight: Max. 9 kg (19.8 lbs)/2 pcs, 12 kg (26.4 lbs)/3 pcs • Door thickness: Min. 19 mm (3/4") • Max. door size: H 1200 mm × W 600 mm (47-1/4" × 23-5/8") • Fasteners Size: 4 x 20 • Included Countersunk Wood Screw
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Dull Chrome |
| Opening Angle | |
| Hinge Type | Adjustable Hinge |
| Material | Zinc Alloy |
| Length | |
| Barrel Diameter | |
| Material Thickness | |
| Screw Hole | |
| Door Thickness | |
| Height | 2-3/4" |
| Width | |
| Closing Type |
