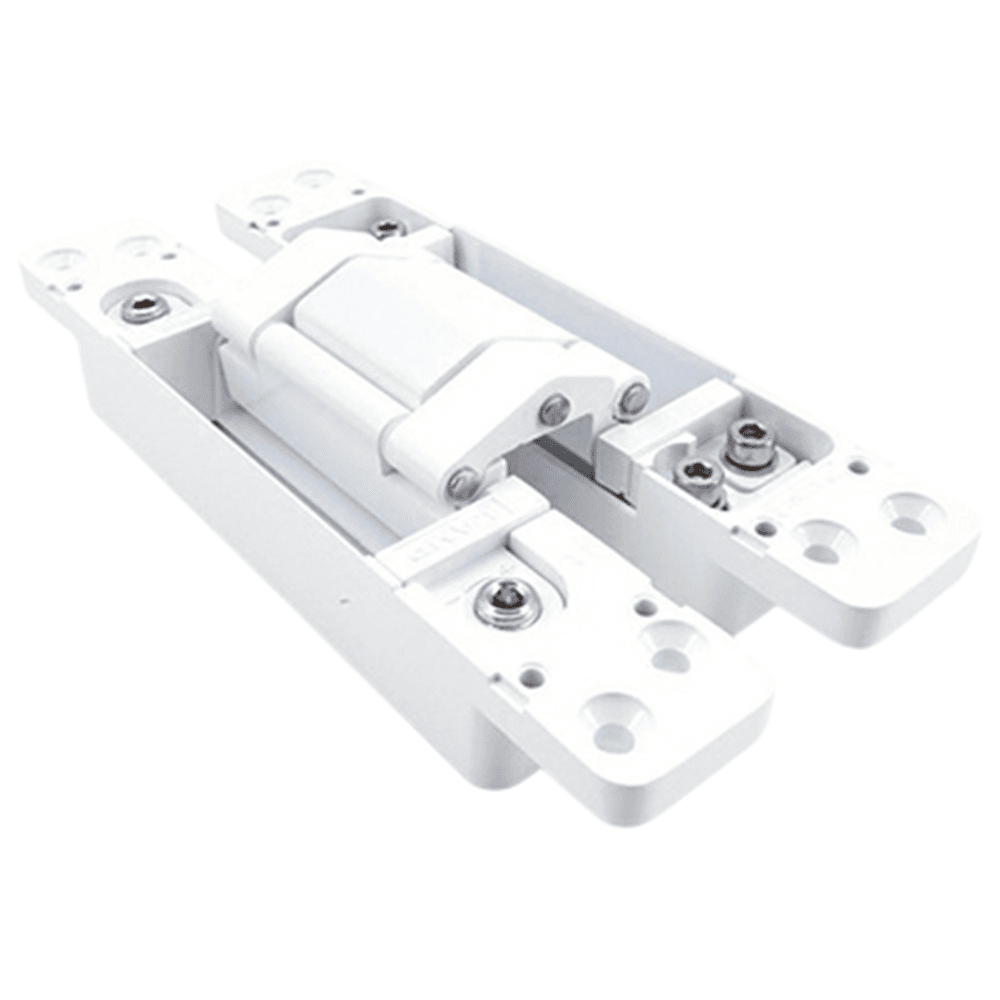

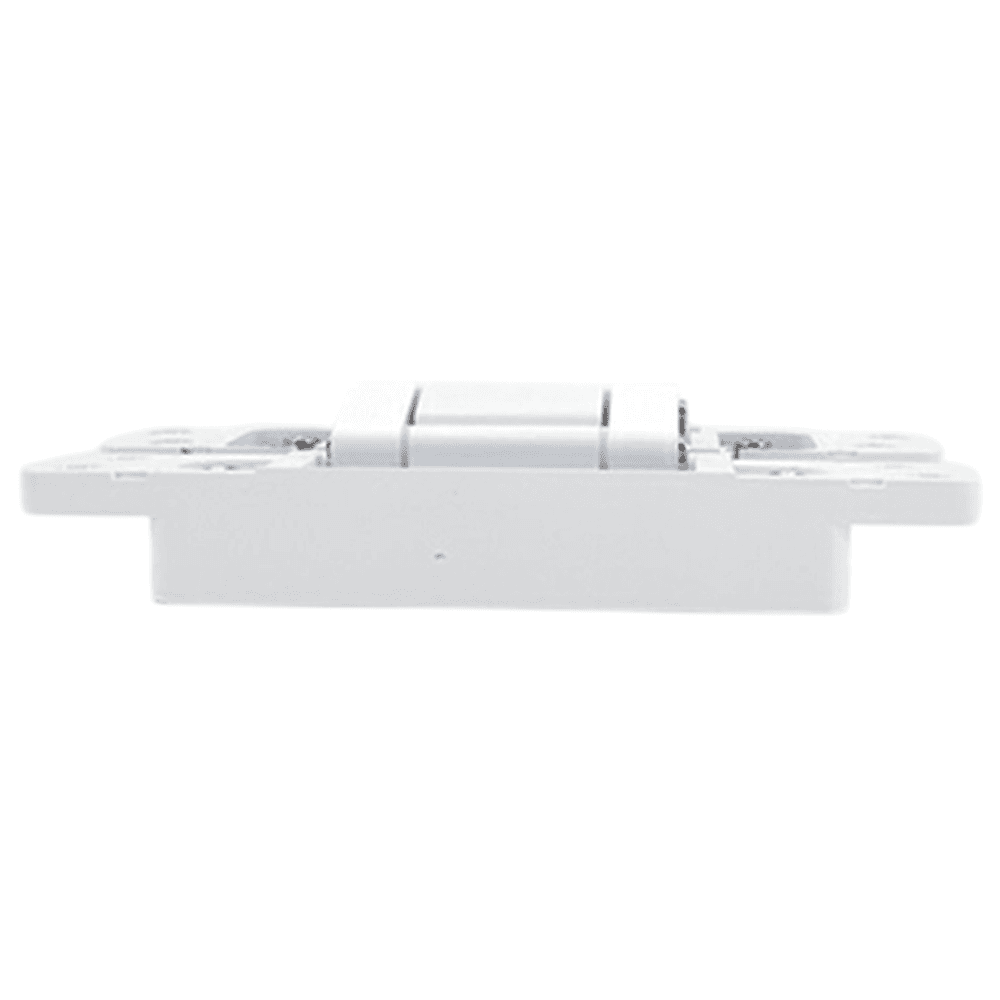

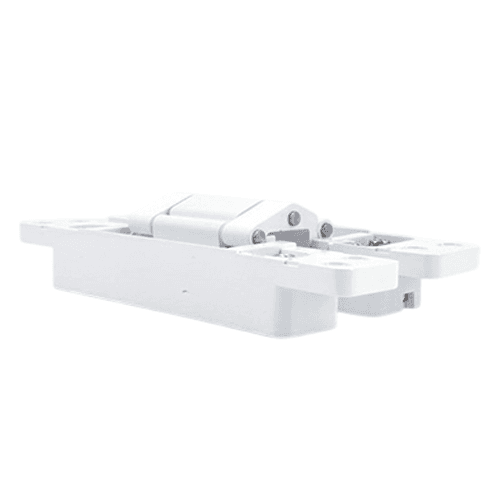

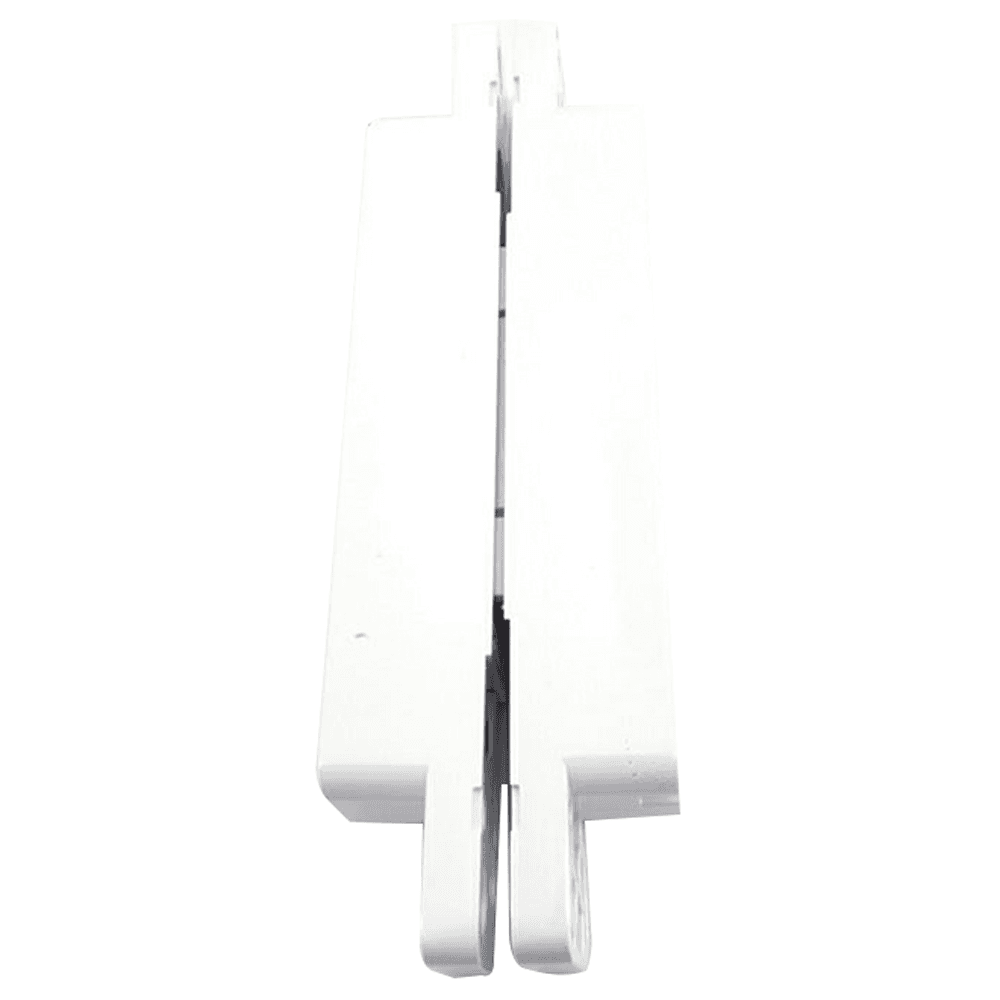

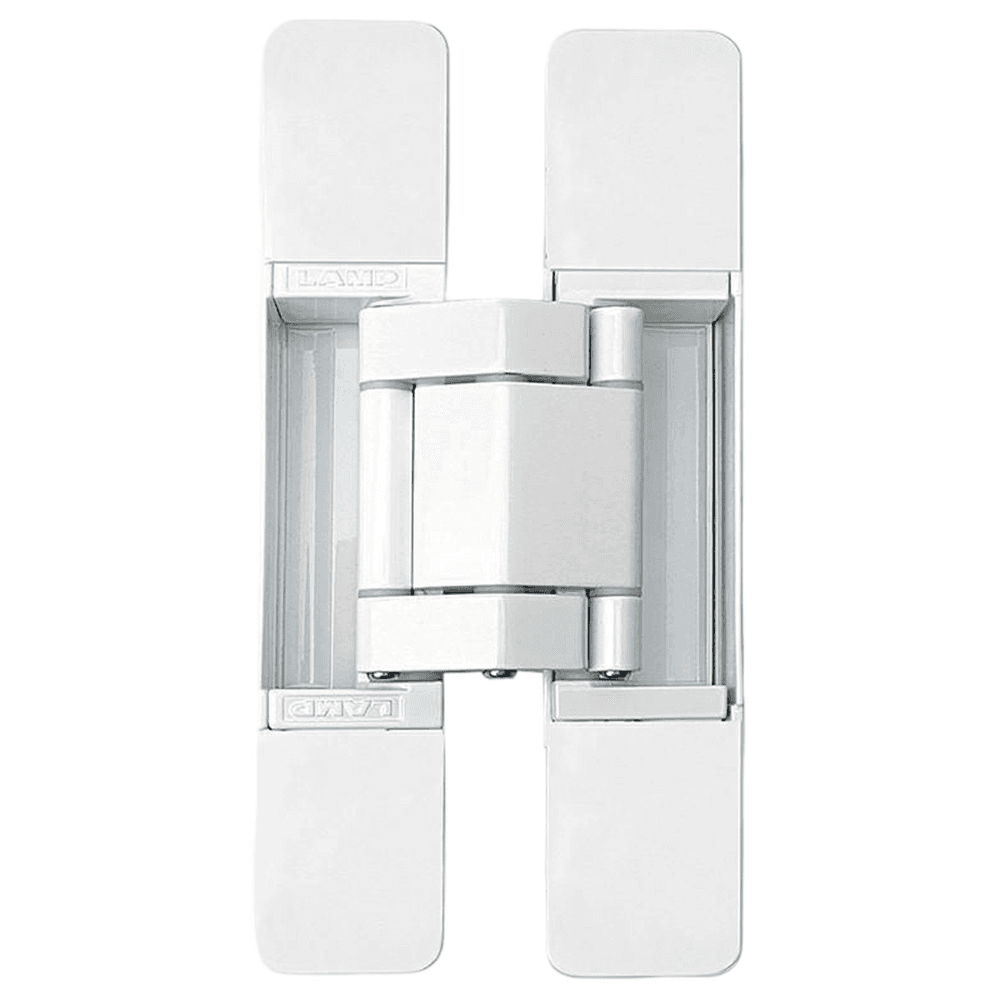

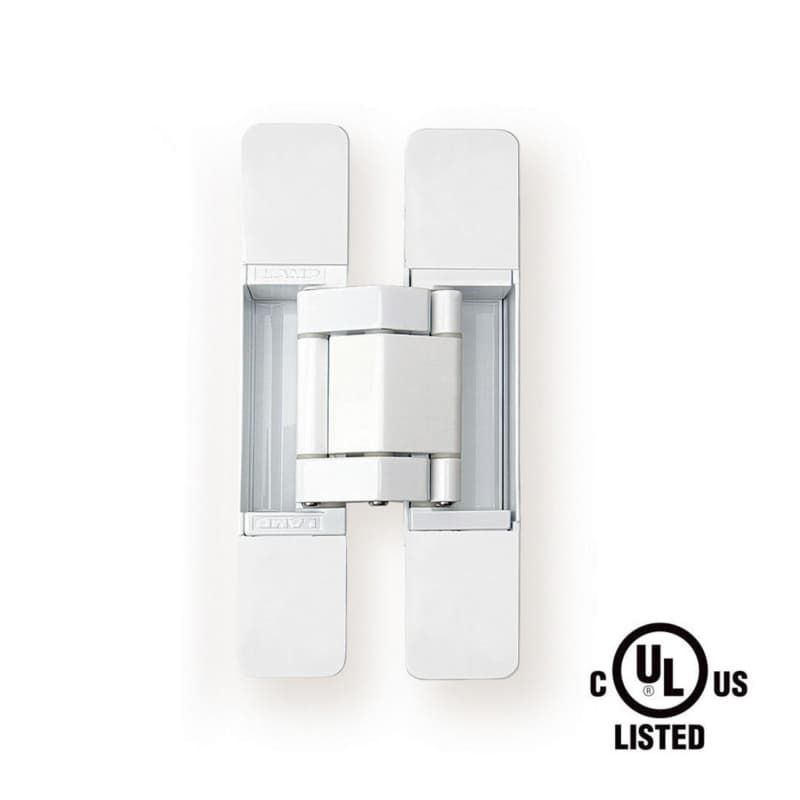

HES3D-E190 3-Way Adjustable Concealed Hinge with UL Rated, White
Finish: White
Product Details

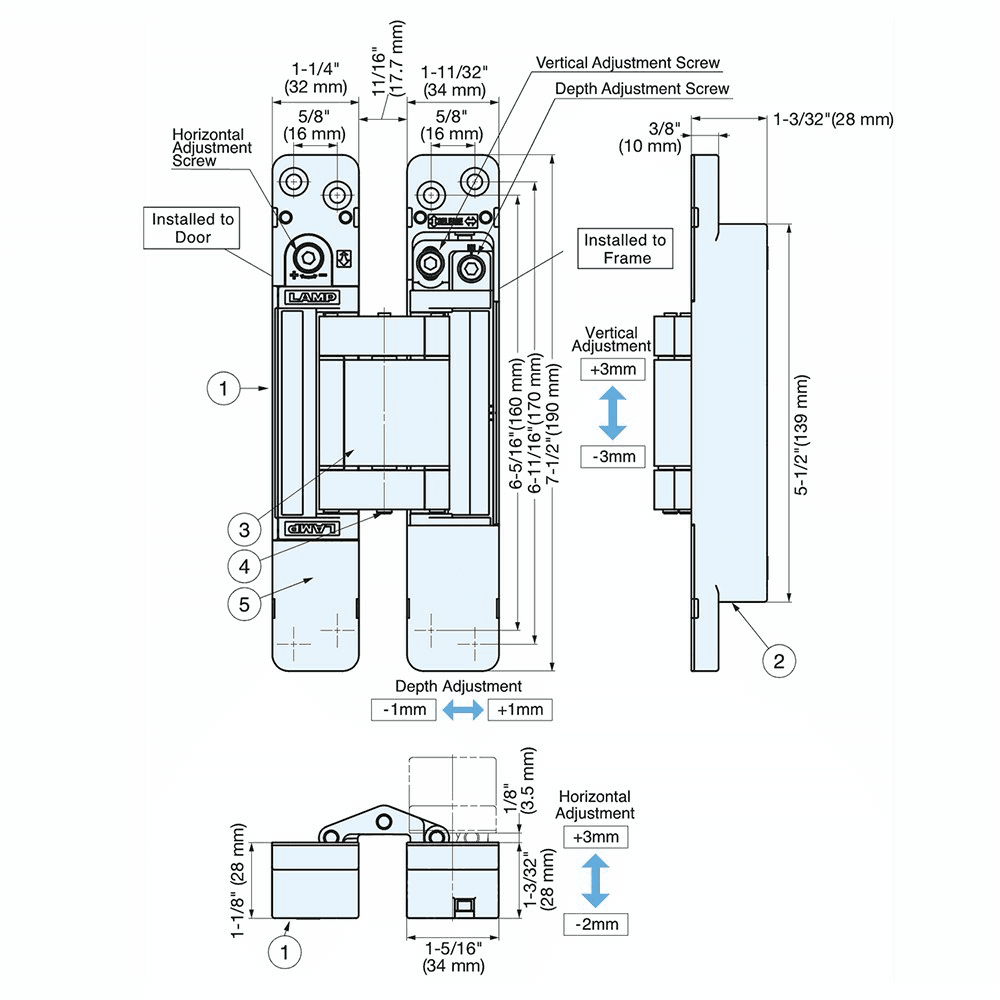

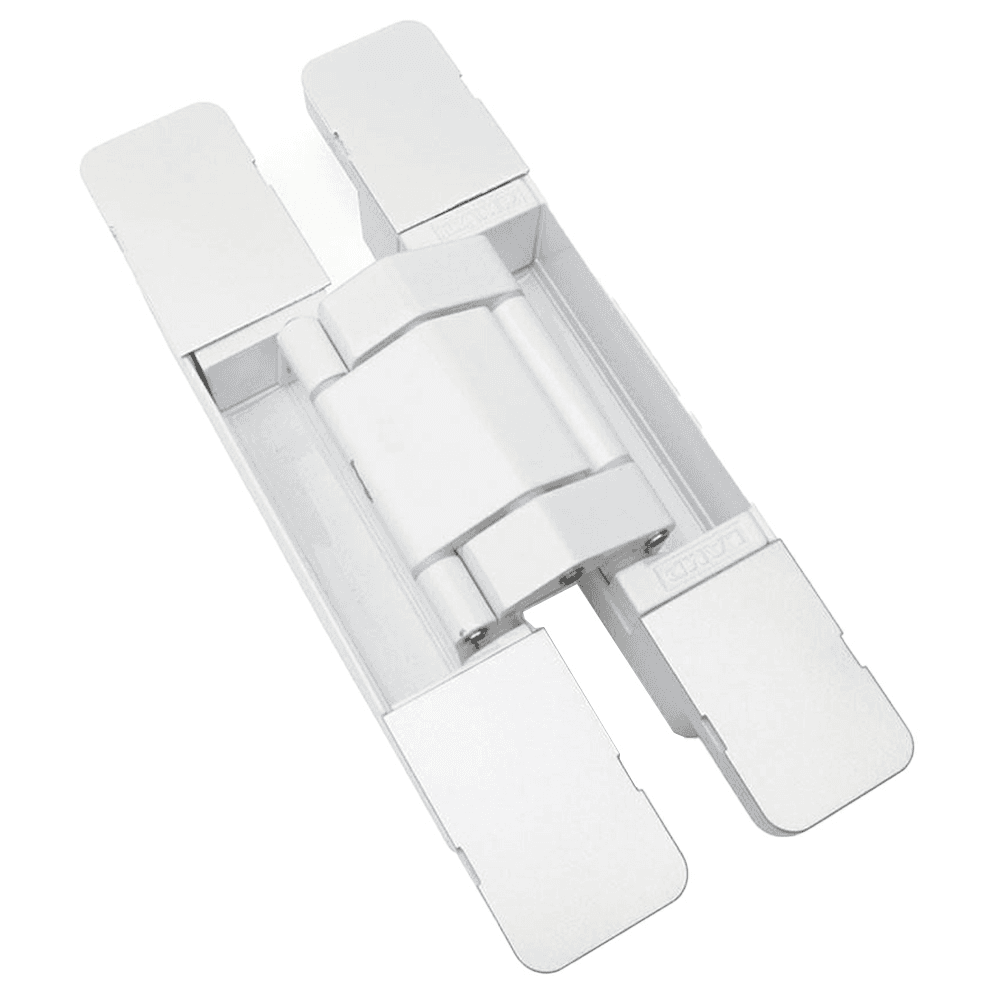

Features: • 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed • Easy installation with LIFT-OFF FEATURE: can be split into two parts (one for the frame and one for the flap), can temporarily be hung and hold position without being affixed with screws • Successfully passed 300,000 open/close private cycle tests • UL Rated, up to 3 Hours • Supplied with steel flat head screw • Covers hide all screw heads for clean appearance • Door weight : Max. 100 kg (220 lbs)/2 pcs, 125 kg (275 lbs)/3 pcs • Door Thickness : Min. 38 mm (1-1/2") • Max. Door Size : H 2400 mm (94-1/2") × W 915 mm (36") • Bracket for sheet metal doors and frames available (sold separately) • Included 5 x 30 Flat Head Screws
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | White |
| Opening Angle | |
| Hinge Type | Adjustable Hinge |
| Material | Zinc Alloy |
| Length | |
| Barrel Diameter | |
| Material Thickness | |
| Screw Hole | |
| Door Thickness | |
| Height | 7-1/2" |
| Width | |
| Closing Type |
