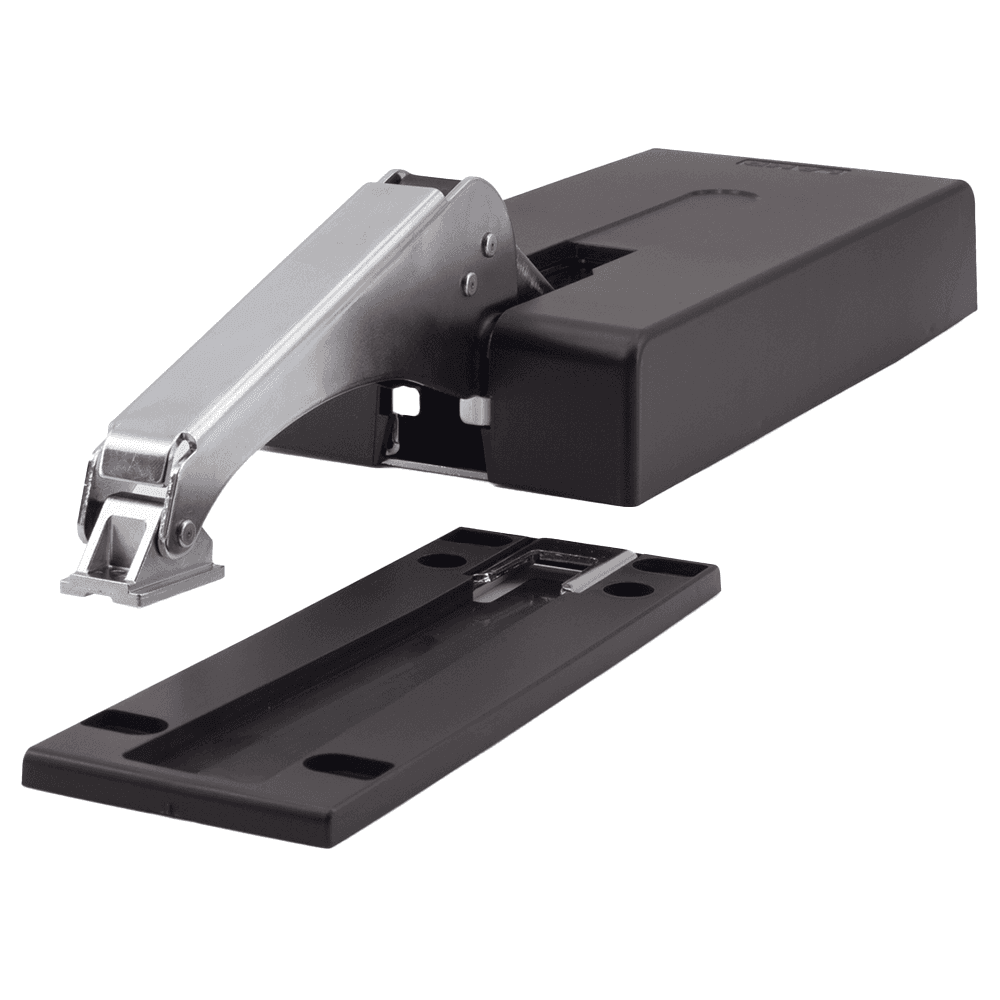

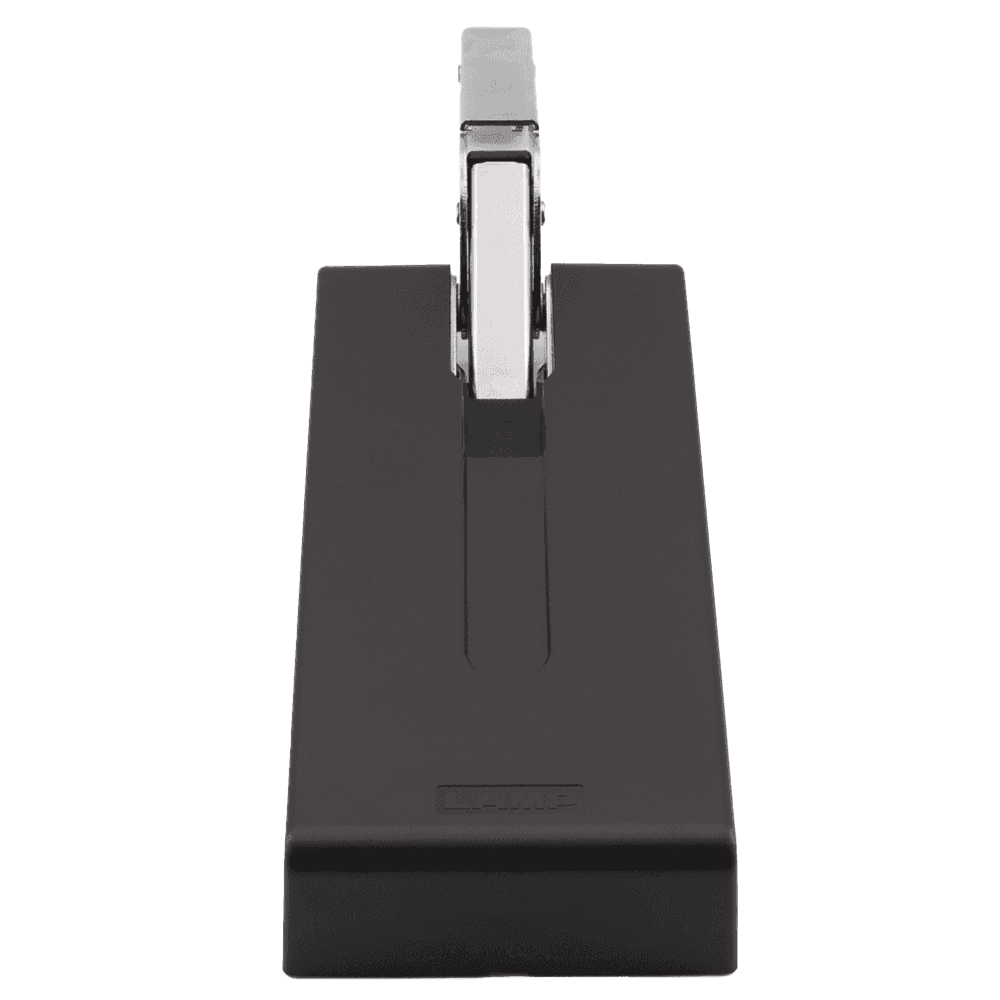

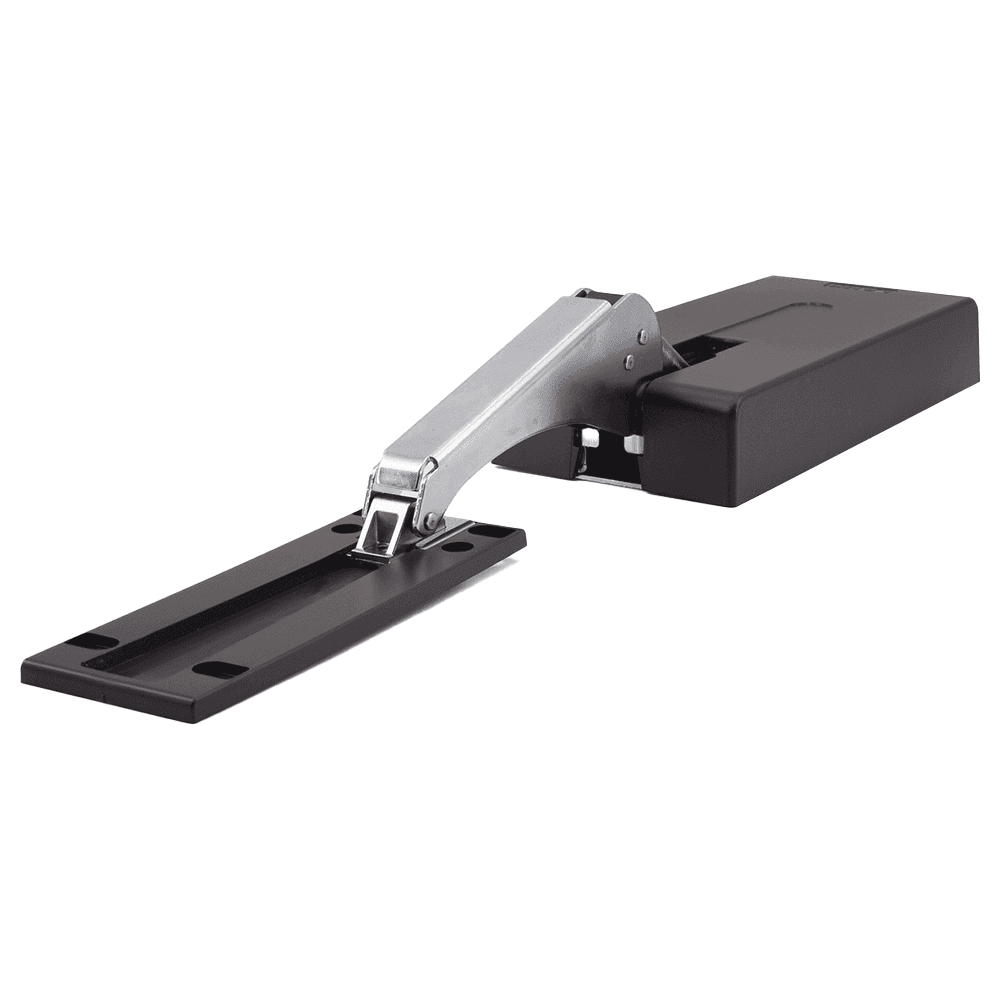

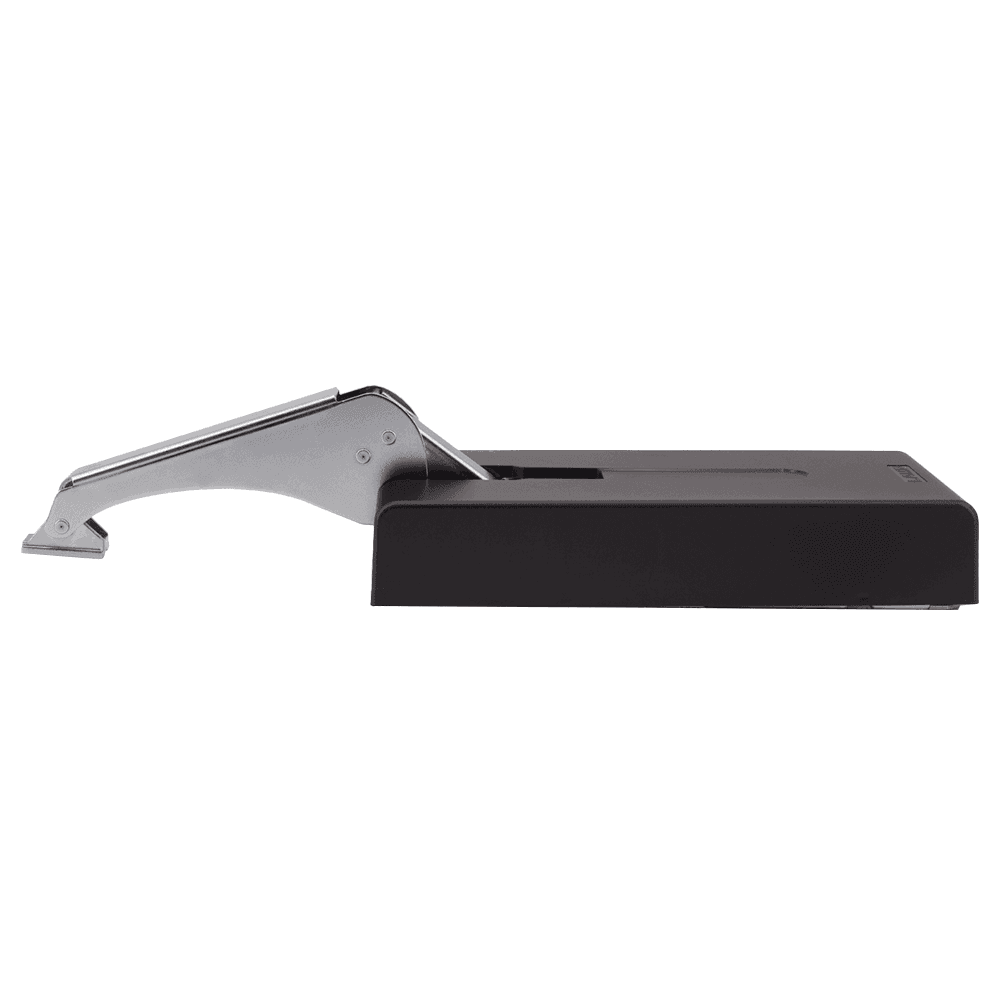

9-15/16" Heavy Duty Lift Assist Damper, Nickel Plating
Finish: Nickel Plating
Material: Steel (SPCC)
Product Details
Features: • Heavy duty lift assist damper with nickel plating • Lift-assist function helps children, elderly, and disabled to open and close • Soft-close damper eliminates panel from slamming shut on hands and fingers • Damper function engages at low angles (does not need to be fully opened to soft-close) • Stopper holds panel at 95° to prevent over-rotation • Surface-mounting allows retrofit into existing countertop passages
Downloads

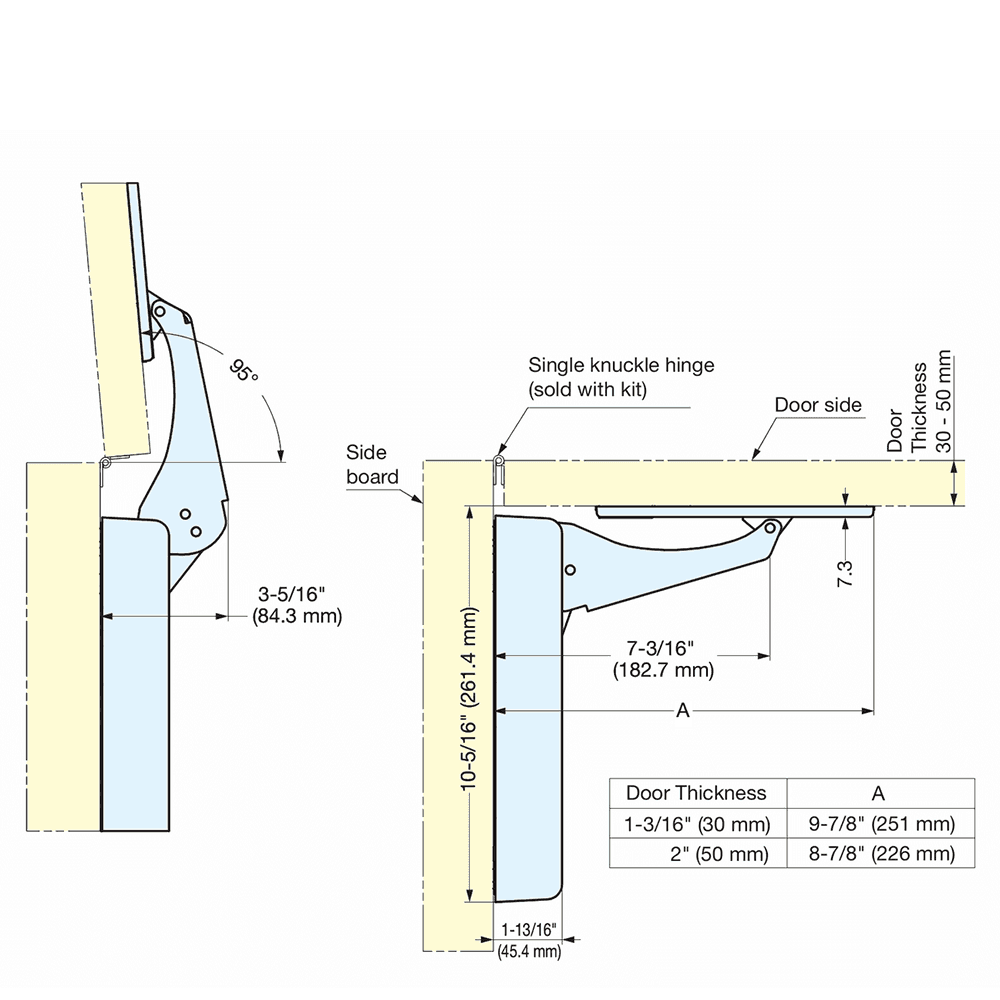

Specifications
| Box Quantity | 1 |
| Product Type | Lift Assist Damper |
| Closing Type | |
| Opening Angle | 95° |
| Mounting Type | |
| Height | 10-5/16" |
| Finish | Nickel Plating |
| Material | Steel (SPCC) |
| Length | 9-15/16" |
| Opening | |
| Power Factor Range | |
| Door Weight | |
| Cabinet Height Range | |
| Left or Right | |
| Width | 4-5/8" |
