Wide-Format ABS Edgebanding For Thick Panels and Tall Doors

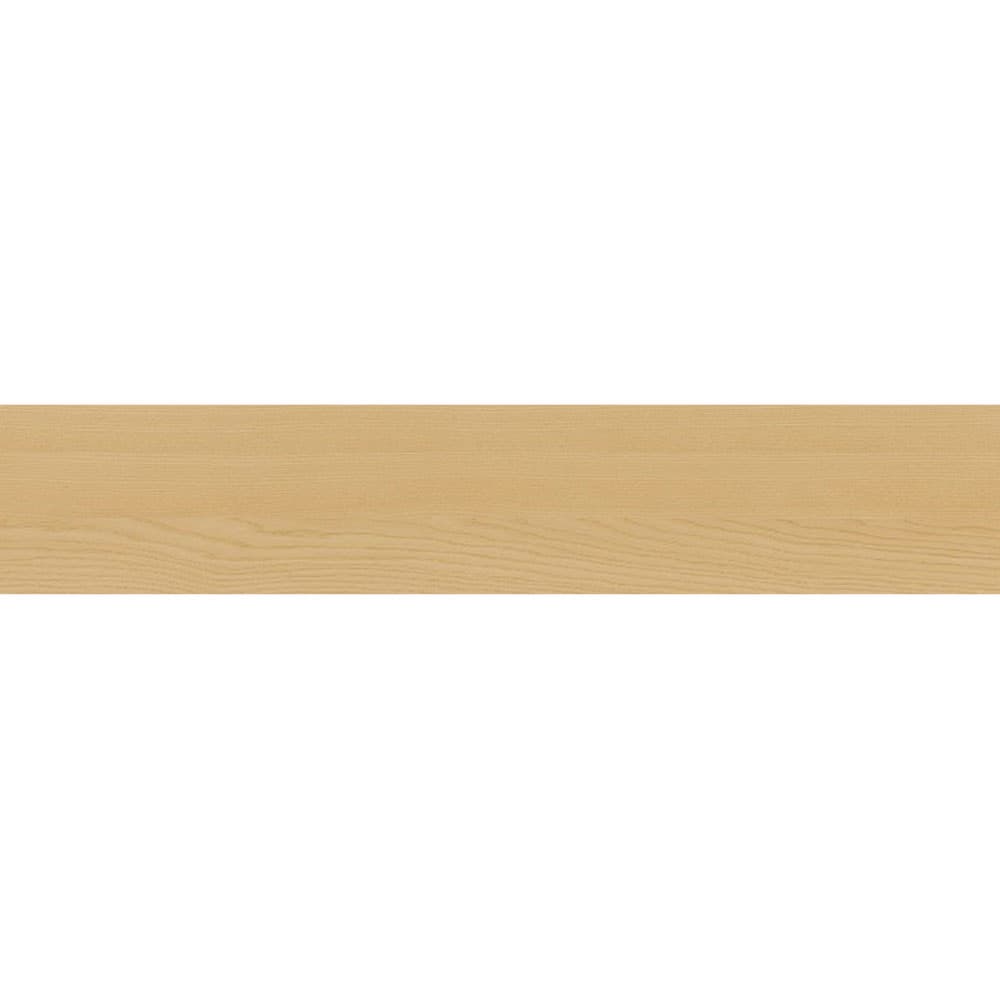

This 65 mm ABS edgebanding in Frassino Chiaro is the color-matched edge solution for Pura Vita panels in PVFC23, designed to close the cut edge of thicker panels and taller door components where a narrow band would fall short. Chlorine-free ABS holds the Frassino Chiaro natural ash finish across the trim line so face and edge read as one continuous surface.
Key Features
- 65 mm width provides adequate overhang on thick or oversize panel stock, trimming flush without exposing the core on either face.
- 1 mm ABS thickness delivers a clean, consistent edge that machines predictably on both manual and automated edgebanders.
- 328-foot production roll covers a high-volume run without mid-job splicing or roll changes.
- Chlorine-free ABS material meets specifications that exclude PVC, giving the roll a broader range of approved environments.
- PVFC23 Frassino Chiaro color match aligns with the Pura Vita panel program so the edge disappears against the face.
- Natural ash finish carries the light, open-grain character of the Frassino Chiaro decor to every visible edge.
Where the 65 mm Width Earns Its Place
Standard edgebanding widths work cleanly on 19 mm and 25 mm stock, but the 65 mm roll exists because some work demands more overhang. Thick laminated door slabs, stacked-panel shelving, and structural components cut from oversize sheet goods all present an edge tall enough that a narrower band risks coming up short after trimming. The 65 mm width gives the edgebander enough material to land cleanly, trim both faces flush, and leave a finished edge with no gap at the top or bottom. It is also the practical choice when a design calls for a deliberately thick visual edge as a detail element, where the band itself is meant to be seen.
ABS Construction and the Frassino Chiaro Finish
ABS banding is extruded from acrylonitrile butadiene styrene, a chlorine-free polymer that dimensions consistently and holds color well through the trimming and scraping steps. Where a PVC band can vary in stiffness on the feed, ABS tracks through the machine at a more uniform rate, which matters on a long production run. The Frassino Chiaro finish is a light natural ash: a pale, open-grain wood decor with a soft, neutral tone that works across a wide range of case colors. At 1 mm the band is thick enough to survive a scraper pass without cutting through to the carrier, and thin enough to disappear at the glue line on a properly set edgebander.
The Right Roll for High-Volume Cabinet and Millwork Shops
A 328-foot roll is a production quantity. It suits a shop running Pura Vita panels in Frassino Chiaro as a house color, a millwork operation closing out a commercial casegoods run, or any situation where stopping to swap rolls mid-batch costs more than the roll itself. Designers specifying Pura Vita throughout a project can call out PVFC23 edgebanding by part number knowing the color relationship is published by the panel maker, not approximated from a swatch. For smaller jobs in the same color, check whether a shorter roll is available in this width before committing to the full 328 feet.
Does this banding work with Pura Vita panels on both the A-grade face side and the B-grade back side?
Yes. The edgebanding closes the cut edge of the panel substrate regardless of which face is oriented outward. On an A/B panel used with one visible face, the edge is still seen, so matching it to the face decor is the standard approach. On an A/A panel where both faces show, the same band reads correctly from either direction.
What panel thickness does 65 mm banding suit?
The 65 mm width is sized to overhang panels substantially thicker than the standard 19 mm board, typically 38 mm and above, though it is also used where a visible thick-edge detail is part of the design. For 19 mm Pura Vita panels, a 23 mm band trims flush with less waste. Choose the width that matches your panel thickness and your design intent.
Is this roll pre-glued for iron-on application?
This is an unglued production roll intended for machine application with a hot-melt adhesive system. It is not an iron-on band. Pre-glued rolls are a separate product for small-shop and site-repair use.
Can this banding be used on non-Pura Vita panels with a similar ash decor?
The color is developed to match the Pura Vita PVFC23 panel, and the closest visual result comes from pairing it with that panel. Whether it reads as a satisfactory match on a third-party ash decor depends on how closely that decor matches PVFC23 in tone and grain, which varies by manufacturer. Order a sample for comparison before committing to a mixed-source specification.
Consistent Color From Face to Edge
A panel program that stops at the face and guesses at the edge is a program half finished. Pairing Pura Vita panels with the published PVFC23 edgebanding means the ash decor carries fully around every cut component, and the finished piece reads as one material rather than a panel with a close approximation on its edges.
