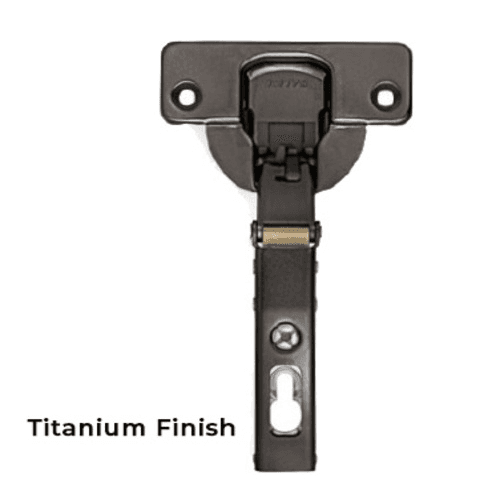

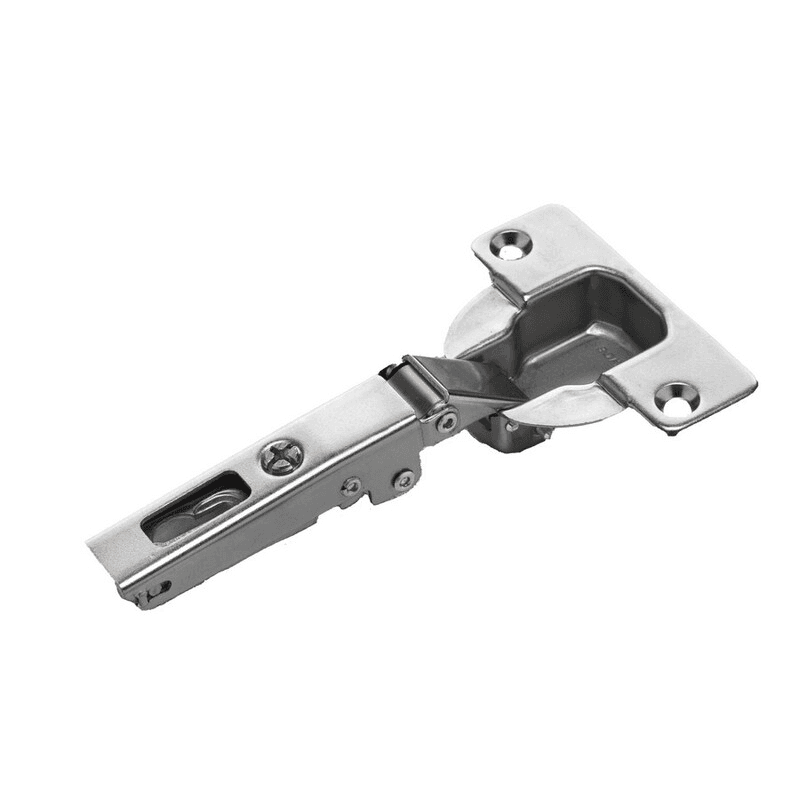

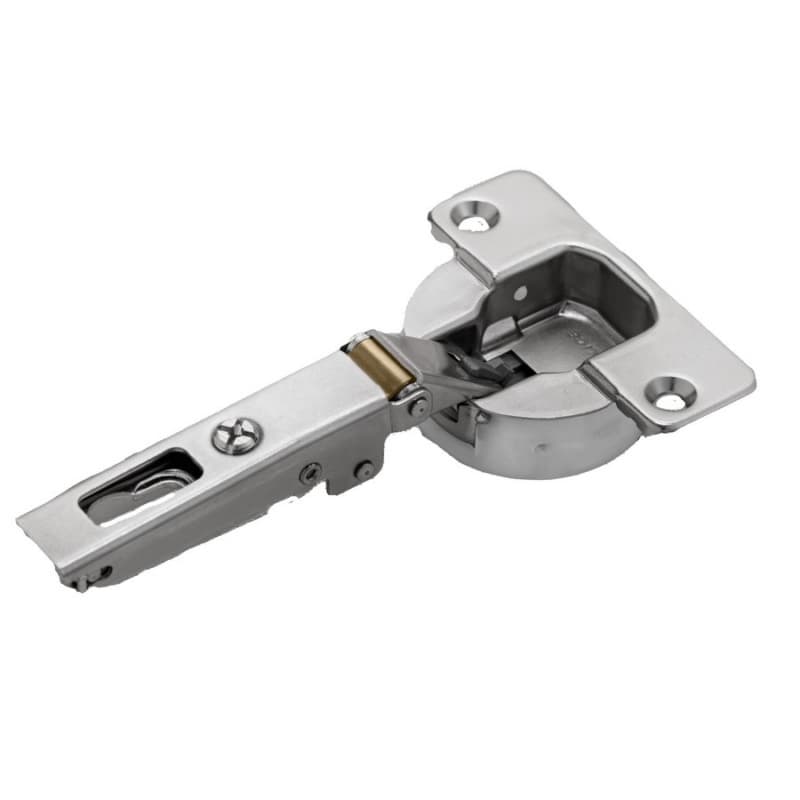

Series N 94° Opening Thick Door Hinge, 52mm Bore Pattern, Full Overlay Hinge, Soft-Closing, Screw-On, Titanium
Item # SALCNA7AE6
•Mfr # CNA7AE6
$5.82
/Each
20 items
$5.71/Each
300 items
$5.57/Each
Finish: Titanium
Min Order: 1
Qty mult. by: 1
Product Details

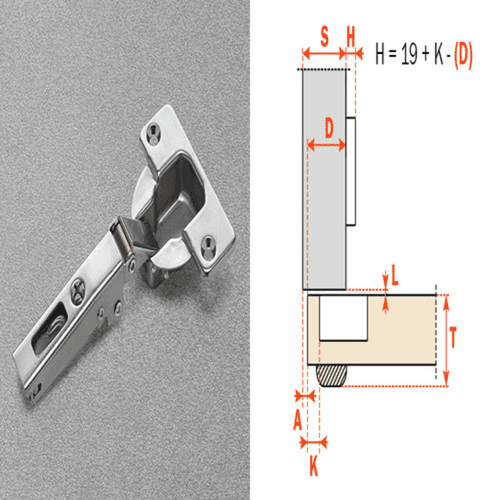

Features: • Series N 94° Opening thick door hinge full overlay hinge soft-closing screw-on in titanium finish • For profiled and thick doors - maximum of 40mm • 12 mm deep cup • Wood screw type • Possible drilling distance on the door (K): from 3 to 14 mm • Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | Euro Thick Door Hinge |
| Finish | Titanium |
| Boring Pattern | 52mm |
| Cup Diameter | 40mm |
| Cup Depth | 12mm |
| Material | |
| Cabinet Type | Face Frame/Frameless |
