Division 2 Electric Portable Vacuum System

Item # DB61430
Mfr # 61430

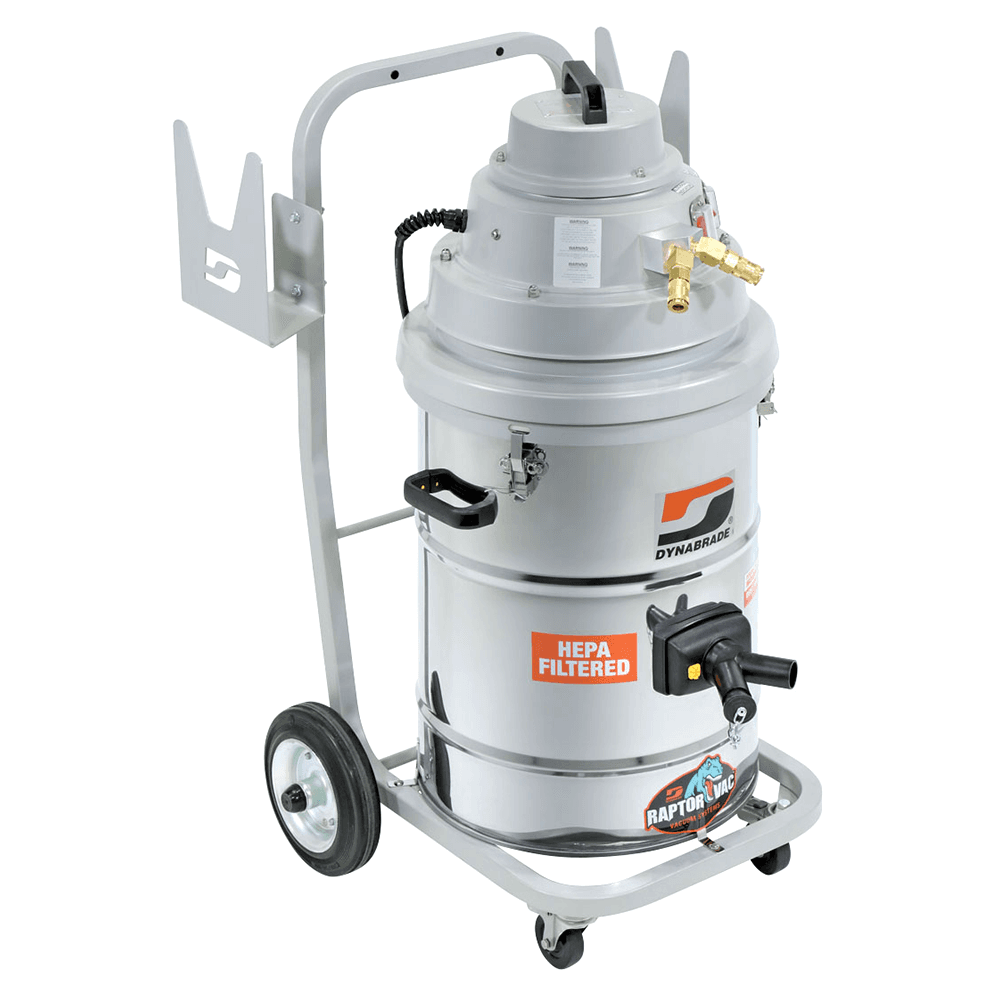

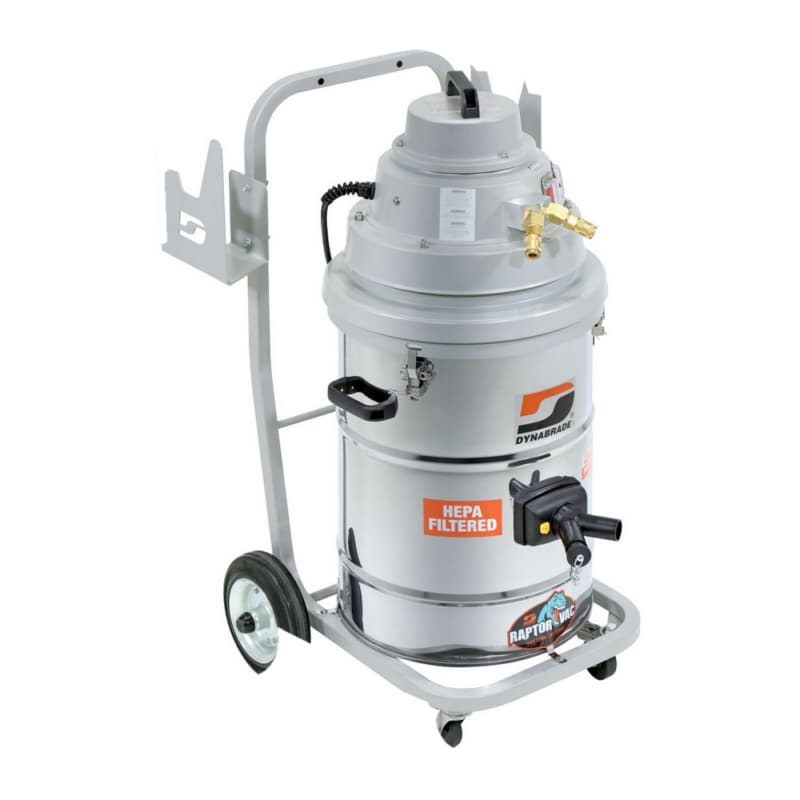

Dynabrade Division 2 Electric Portable Vacuum System with HEPA H14 filter
$5,464.42
/Each
Qty /
Min Order: 1
Qty mult. by: 1

Product Details

Features:
• Electric portable vacuum for use on non-metallic surfaces such as wood and plastics
• Designed for general source capture and cleanup
• Powerful suction is ideal for dry-only industrial applications
• Bypass motor system uses clean air to cool the motor and extend vacuum life
• Includes HEPA H14 filter with 99.995% efficiency on 0.3 micron
• Two additional HEPA filters included within power-head, making it eligible for IP6X
• Top-quality stainless steel body and 10 gallon (38 liter) recovery tank
• Unit is static-dissipating (kit included) and conductive
• Aerosol leak tested for quality assurance
• Equipped with easy-glide cart
• Also connects to optional 61483 Cart
• Dust ignition protected

CSA Group Certifications:
• Designed For Use In: Class II, Division 2,
• Group F (atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust)
• Group G (atmospheres, containing wood and plastic dusts)
• European Certifications: ATEX third party certified, CE EX II 1/3 D, Ex tc IIIC T200? C Dc IP6X c T3

System Included:
• Two 20' (6 m) conductive coaxial hoses with integrated air lines
• "Y" connector
• Two composite couplers
• Two vacuum hose swivel adapters
• Disposable collection bag
• Conductive poly liner

Specifications

Box Quantity1
Product TypePortable Vacuum System
Material
Maximum CFM
Color
