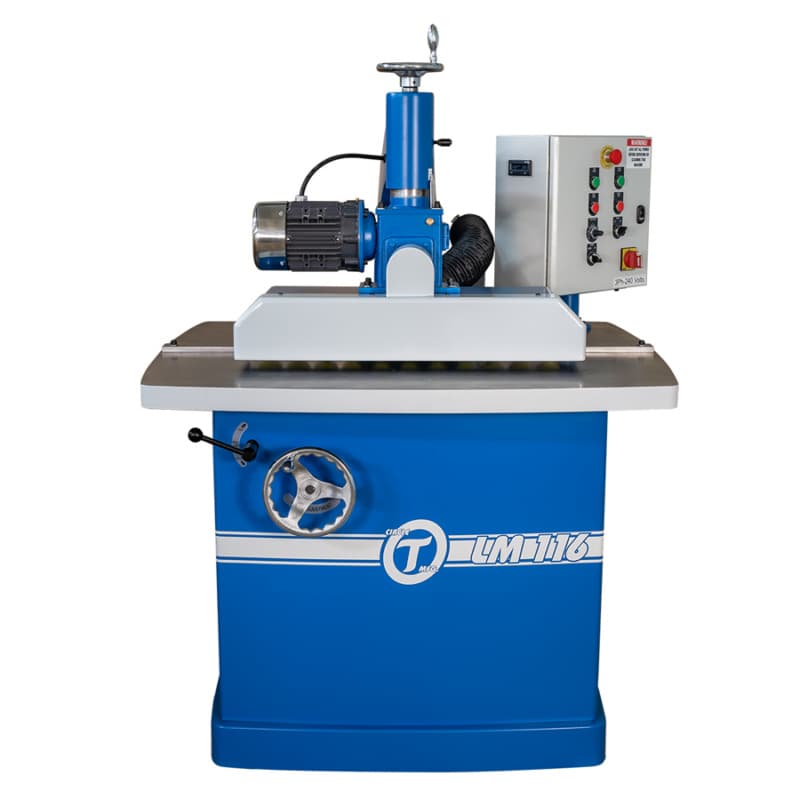

Circle T LM116 EASY Lock Miter 3PH 230V
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
Circle T's Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Many customers use thier machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!
- A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!
- No more downtime setting up and changing out your shaper!!!
- No more running pieces on their side!!!
- Upgrade to our EASY LOCK MITER LM116
APPLICATION SPECIFICATIONS:
- Maximum Material Thickness: 1"
- Minimum Material Thickness: 1/2"
- Minimum Material Width: 1-1/4"
- Minimum Material Width (2-Sided): 2"
- Minimum Material Length: 12"
- Capable of Machining Angles from 90 – 30 Degrees (Finish Angle)
DRIVE PACKAGE SPECIFICATIONS:
- Spindle Motor: 5 HP
- Feed Motor: 0.5 HP
- Spindle Diameter: 1-1/4"
- Spindle Speed: 8,200 RPM
- Variable Speed 11-Roll Positive Grip Feeder
UTILITY REQUIREMENTS:
- Dust Collection Requirements: 670 CFM, 4" Outlet
- Pneumatic Requirements: 100 PSI .5 CFM
- 25 AMP Disconnect at 480V 3phase
DIMENSION SPECIFICATIONS:
- Table Size: 40" x 47"
- Footprint: 42"L x 54"W x 60"H
- Shipping Dimensions 57"L x 48"W x 79"H
