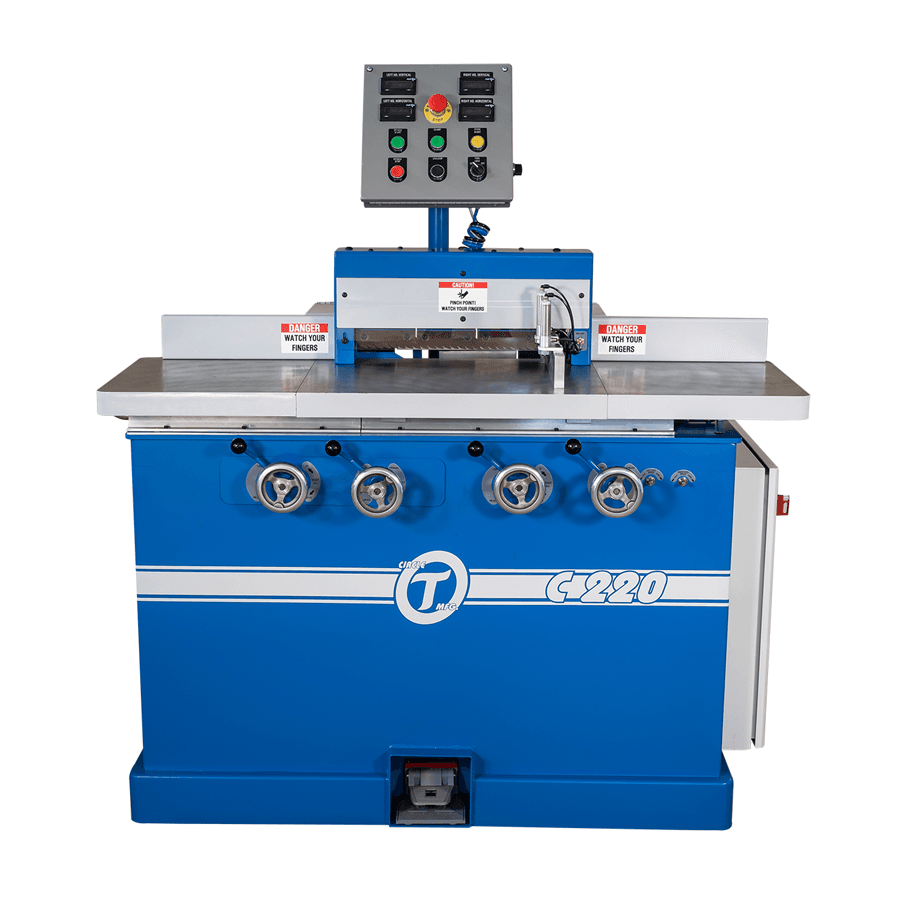

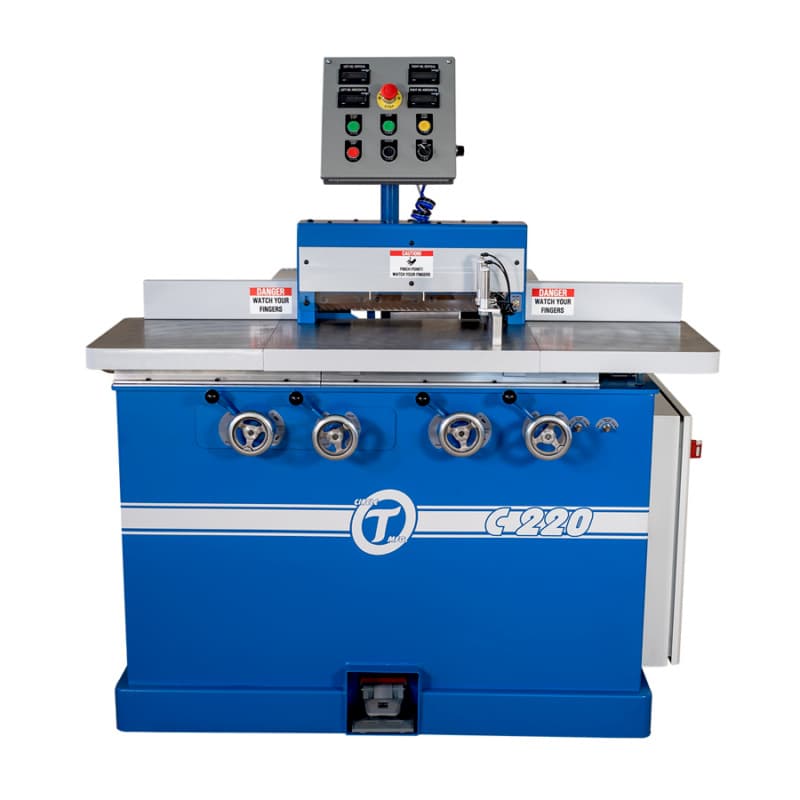

Circle T C220 EASY Coping Machine 2 Head

APPLICATION SPECIFICATIONS:

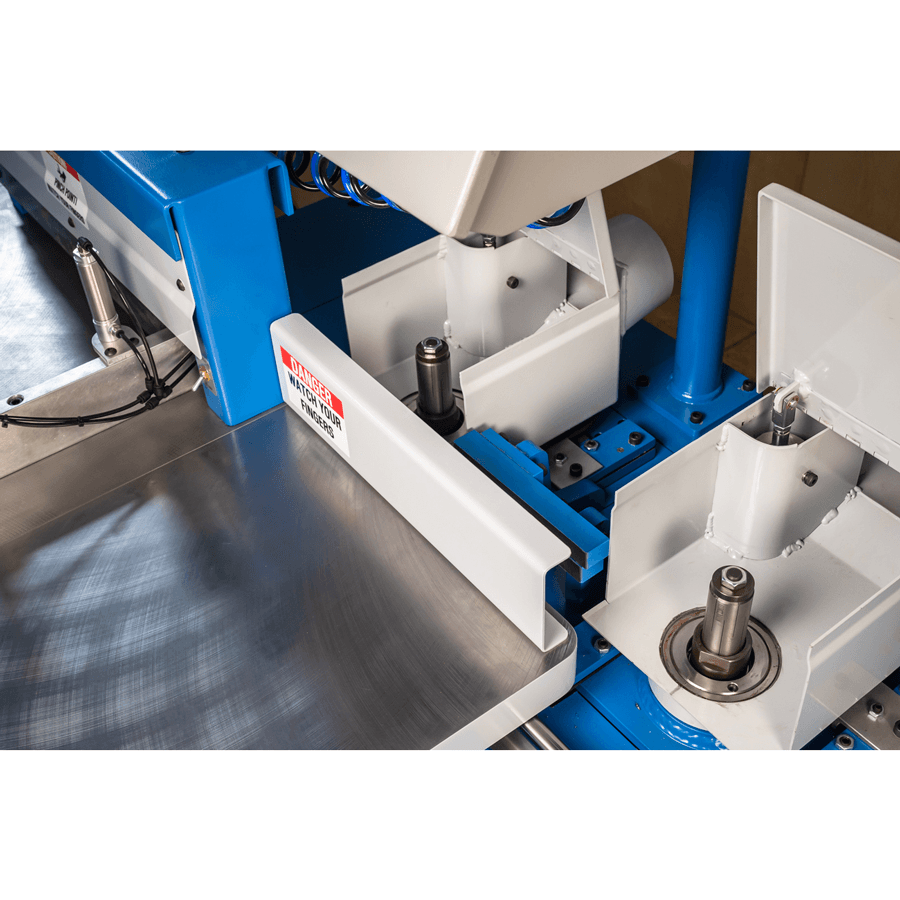

• EASY Quick-Change Spindles INCLUDED

• EASY Foot Pedal Cycle Start

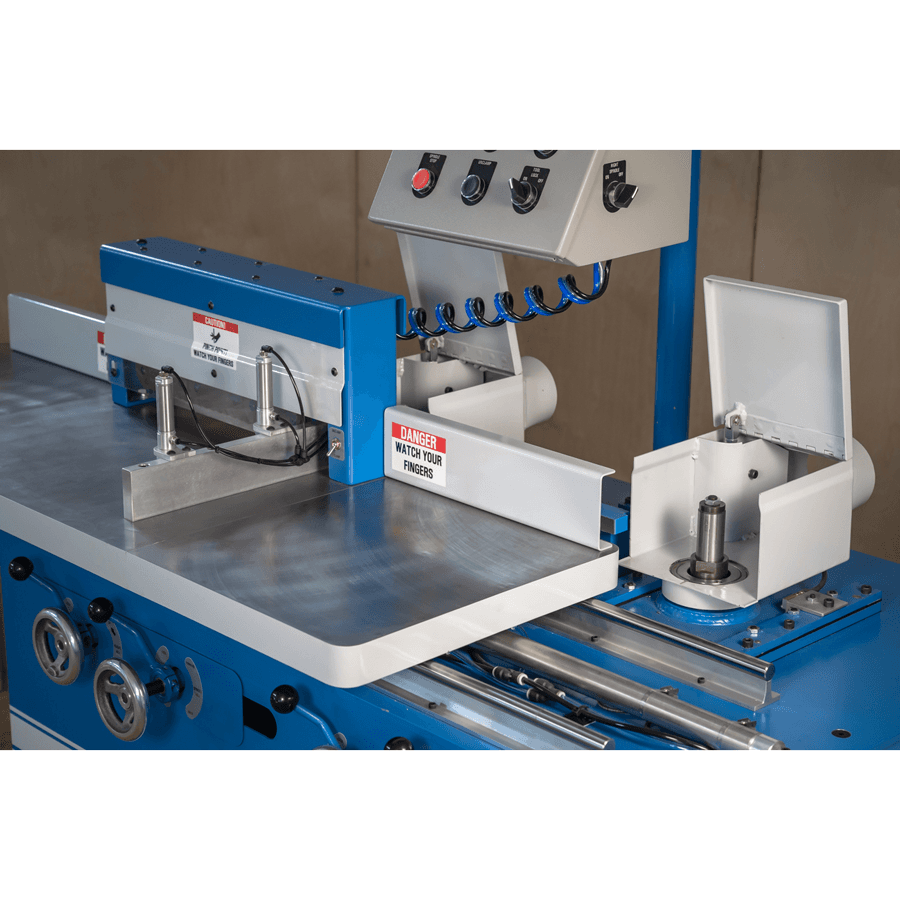

• EASY Pneumatic Hold Down Clamp System

• 16” Wide Cutting Capacity

• 5/8” to 1” Material Thickness

DRIVE PACKAGE SPECIFICATIONS:

• Main Motors: 2 – 5 H.P.

• 1.25” Spindles

• 3” and 4” (ID) Cutter Compatible

• Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts)

• Flat Belt Drive

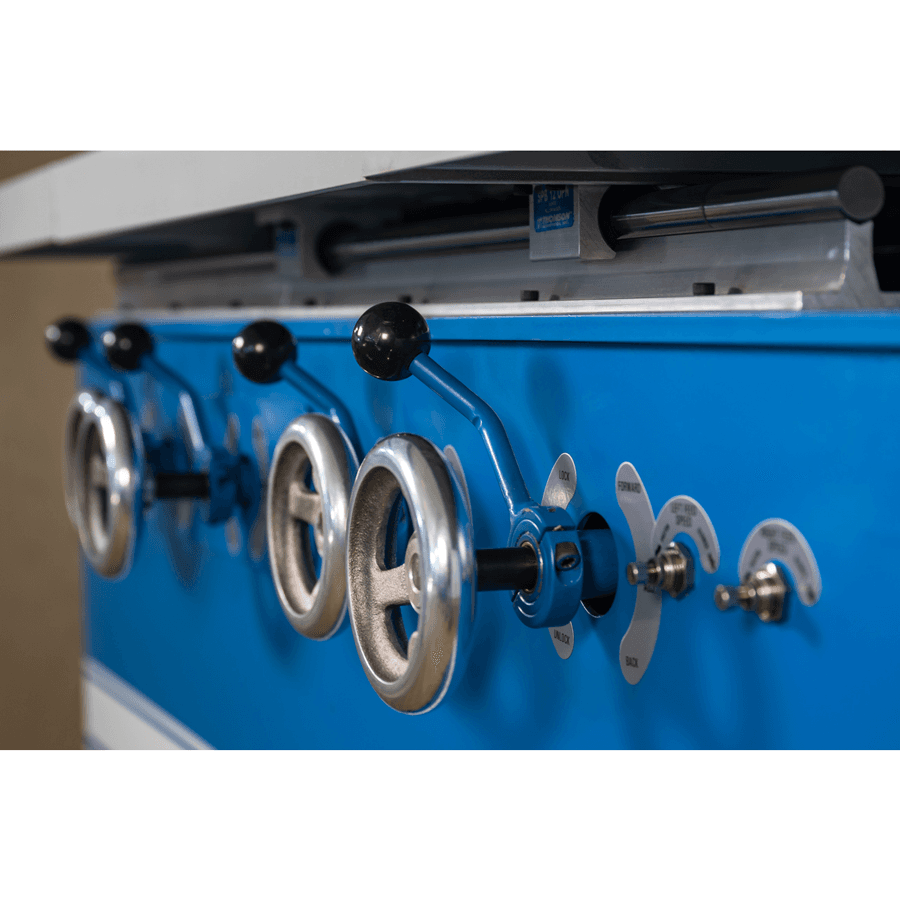

• Y and Z Axis Spindle Adjustments with DRO

UTILITY REQUIREMENTS

• Dust Collection Requirements: 2 – 4″ Outlets, 670 CFM (each)

• Pneumatic Requirements: .3 CFM @ 100 PSI to Power Table and Clamp

• 4 Amp FLA @ 460v 3ph (Motor FLA, not disconnect size)

• 8 Amp FLA @ 230v 3ph (Motor FLA, not disconnect size)

DIMENSION SPECIFICATIONS:

• Table Size: 53” L x 16” W

• Table Height: 36”

• Footprint: 53” L x 34” D x 60” H (Additional 17” needed on left side for table movement)

• Working Area Footprint: 70” L x 34” W x 60” H

SHIPPING WEIGHT: 1900lbs

SHIPPING DIMENSIONS: 61”L x 42”W x 69”H
