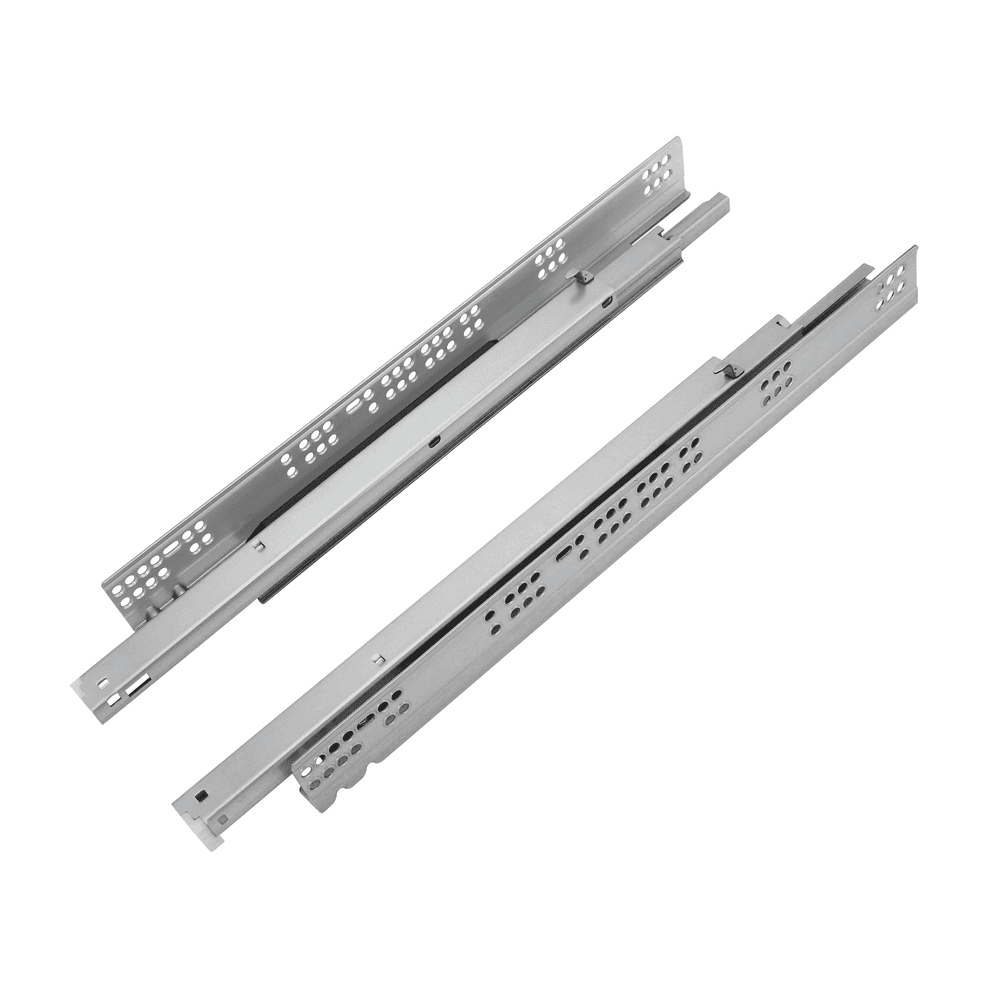

18" PRO Economy Undermount Drawer Slide for 5/8" Drawer Material, Full Extension with Soft-Closing
Item # PROECOUM-18B
•Mfr # 04195.457
Length: 18"
Drawer Length: 18"
Product Details
PRO Eco Standard Duty Undermount Slides for Drawer Thickness up to 5/8" with Locking Devices
The PRO Eco Undermount Slide is Imported exclusively to provide a low cost under mount with integrated soft-close mechanism.
LOCKING DEVICES INCLUDED
Features:
• Type: Soft Close Full Extension Undermount Slides
• Mounting: Undermount
• Material: Cold Rolled Steel Hole
• Pattern: 32mm
• Finish: Bright Zinc
• For ?" & 5/8" drawers

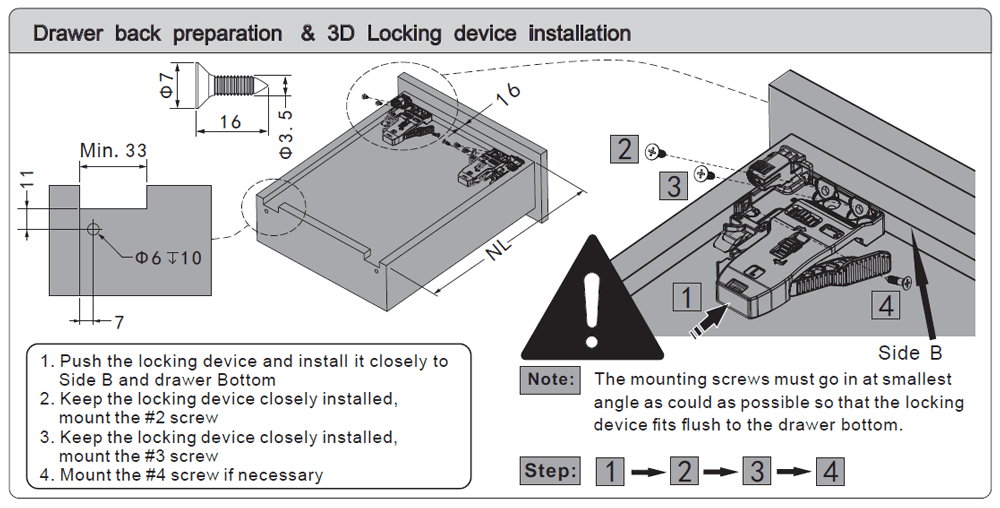

Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw

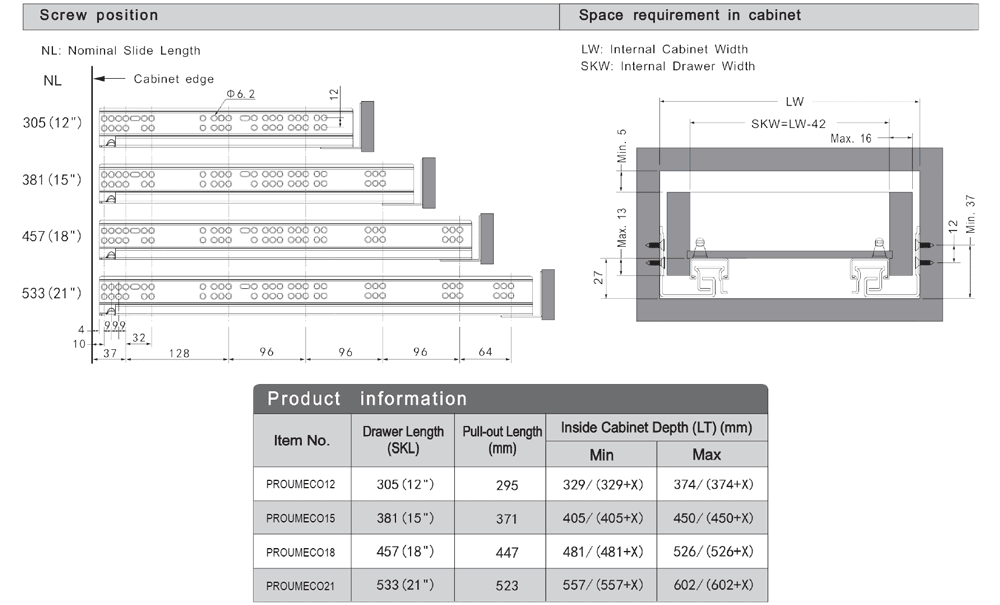

Setback on Standard Drawers: 4mm (5/32")
The PRO Eco Undermount Slide is Imported exclusively to provide a low cost under mount with integrated soft-close mechanism.
LOCKING DEVICES INCLUDED
Features:
• Type: Soft Close Full Extension Undermount Slides
• Mounting: Undermount
• Material: Cold Rolled Steel Hole
• Pattern: 32mm
• Finish: Bright Zinc
• For ?" & 5/8" drawers
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 6 |
| Length | 18" |
| Finish | |
| Drawer Length | 18" |
| Closing Type | Soft-Closing |
| Model | PRO ECO |
| Load Capacity | |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Weight Capacity | |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Minimum Clearance | |
| Mounting Type | Undermount |
| Material | |
| Hole Pattern | |
| Slide Type | |
| Application | |
| Height | |
| Depth | |
| Certifications | |
| Width | |
| Material Thickness | 1/2" - 5/8" |
| Clearance |
