Engineered for Laminate: The 10° Bevel Bit Behind a Clean Seamless Install

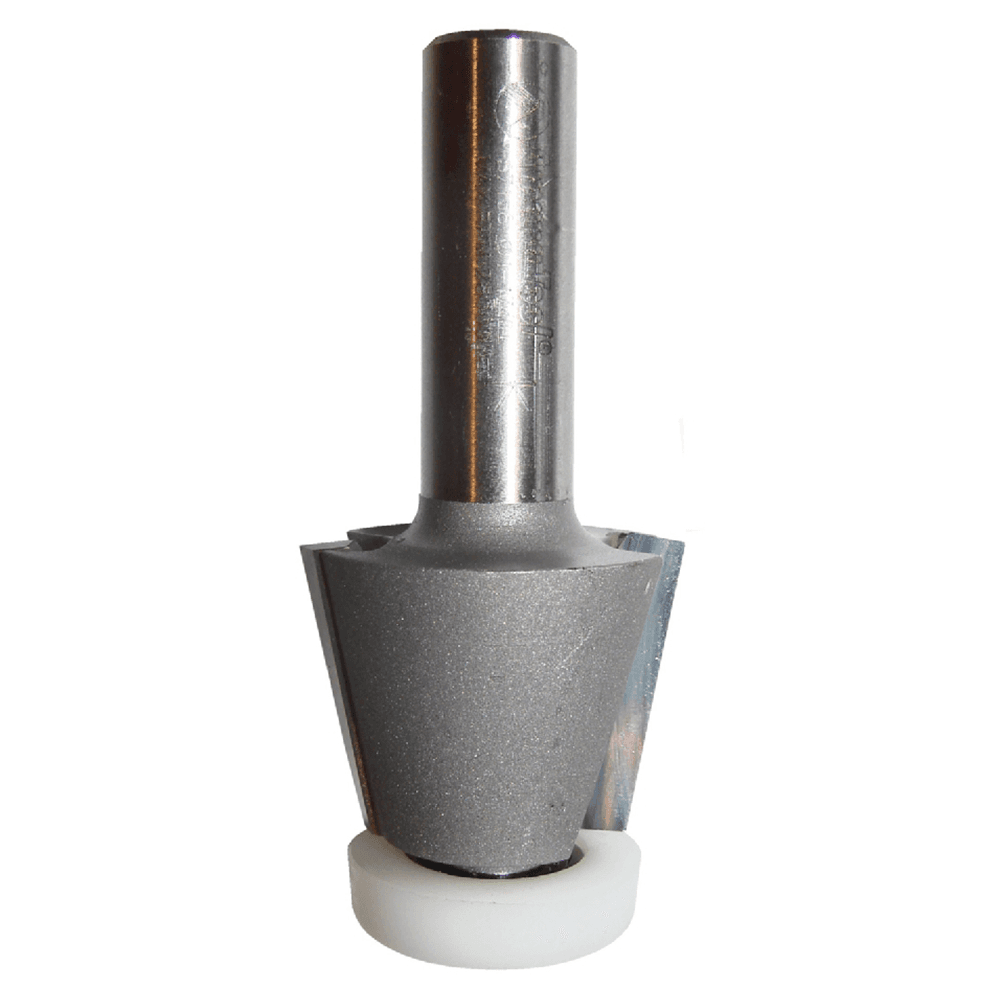

The Karran 10° Bevel Router Bit is the dedicated cutting tool for trimming high-pressure laminate flush to the bowl wall in a Karran seamless sink installation. Designed specifically for the Q Series, Edge E Series, and A Series seamless method, this bit uses a precisely angled cut and an oversized bearing to trim the laminate surface back to the bowl wall without contacting it, leaving a finished edge ready for the seam adhesive bond.
Key Features
• 10° bevel angle is matched to the geometry of Karran's laminate seamless installation method, producing the correct edge profile in one routing sequence.
• Oversized bearing rides against the bowl wall and holds the cutting edge at the right offset, protecting the sink surface while trimming the laminate precisely.
• 1/2 inch shank seats in a standard router collet for stable, chatter-free passes around the bowl perimeter.
• HPL-ready cutting geometry is intended for high-pressure laminate countertop material, the countertop type this seamless method serves.
• Karran-documented fit pairs this bit with Karran's own seamless install guides, so the tool and the method come from the same source.
Where This Bit Fits in the Seamless Workflow
Karran's seamless installation method integrates a sink bowl into a laminate countertop so no seam, rim, or exposed edge remains visible from above. The 10° bevel bit is the trimming step that makes this possible. Once the laminate top has been laid over the sink opening and the substrate has been prepared, this bit is run around the bowl perimeter to remove the overhanging laminate and create the precise bevel profile the seam adhesive needs to form a durable, invisible bond. Without the correct angle and bearing geometry, the laminate edge either contacts the bowl or leaves too wide a gap for the adhesive to bridge cleanly. This bit solves both problems in a single routing pass.
Laminate Only: Why the Angle Matters
The 10° angle is not interchangeable with the 24° bevel bit used on solid surface countertops. Laminate and solid surface present different edge profiles and different bonding requirements at the seam line. Using the laminate-specific 10° angle on the correct material produces the seam geometry Karran's adhesive system is designed to fill. The oversized bearing offsets the cut from the bowl wall by the designed amount, a clearance detail that prevents the bit from scoring the stainless or quartz bowl surface during the trim pass. The 1/2 inch shank keeps the bit running true in a full-size router, reducing deflection through the full circuit of the bowl.
Who Keeps This Bit in the Shop
Cabinet shops and countertop fabricators who regularly spec or install Karran Q Series, Edge E Series, or A Series sinks into laminate tops will reach for this bit on every seamless project. Kitchen and bath dealers who offer fabrication services benefit from having it on hand before the countertop is committed to the cut. Contractors completing a kitchen package that includes a Karran laminate-integrated sink need this bit to execute the install to the manufacturer's documented method. It is a single-purpose tool, but for fabricators doing seamless laminate work, it is the bit that defines the result.
Can this bit be used on solid surface countertops?
No. The 10° angle is calibrated for laminate (HPL) installations. Solid surface seamless installs call for the 24° bevel bit. Using the wrong angle produces an edge profile that the seam adhesive cannot bridge correctly.
Does the oversized bearing make contact with the sink bowl during use?
The oversized bearing rides against the bowl wall as a guide, but it is sized to keep the cutting edge clear of the bowl surface. Running the bit at a consistent, controlled pace is important for a clean result.
Which Karran sink series work with this bit?
This bit is used with Karran's laminate-compatible seamless series: the Q Series quartz seamless undermount, the Edge E Series stainless seamless, and the A Series acrylic seamless sinks. It is not part of the undermount (QU) or top mount (QT) installation method.
What router size do I need for a 1/2 inch shank bit?
A standard full-size router with a 1/2 inch collet is required. Laminate trimmers and smaller routers typically accept only 1/4 inch shanks and are not appropriate for this bit.
The Right Bit Means the Seam Disappears
A seamless laminate sink installation stands or falls on what happens at the bowl edge. The 10° Bevel Router Bit is the tool that gets that edge right, giving the seam adhesive the profile it needs and giving the finished counter the clean, uninterrupted surface the method is known for.
