A 24° Bevel Bit Built for Solid Surface Sink Installs

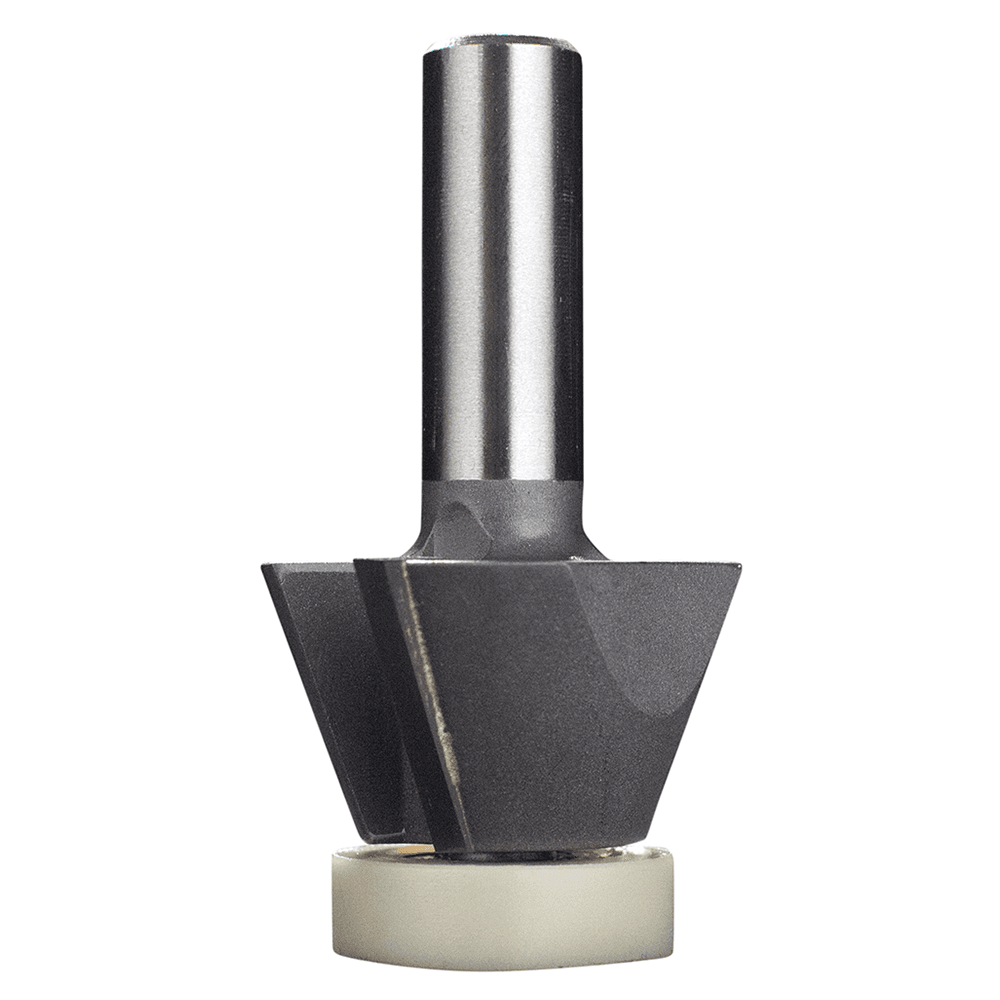

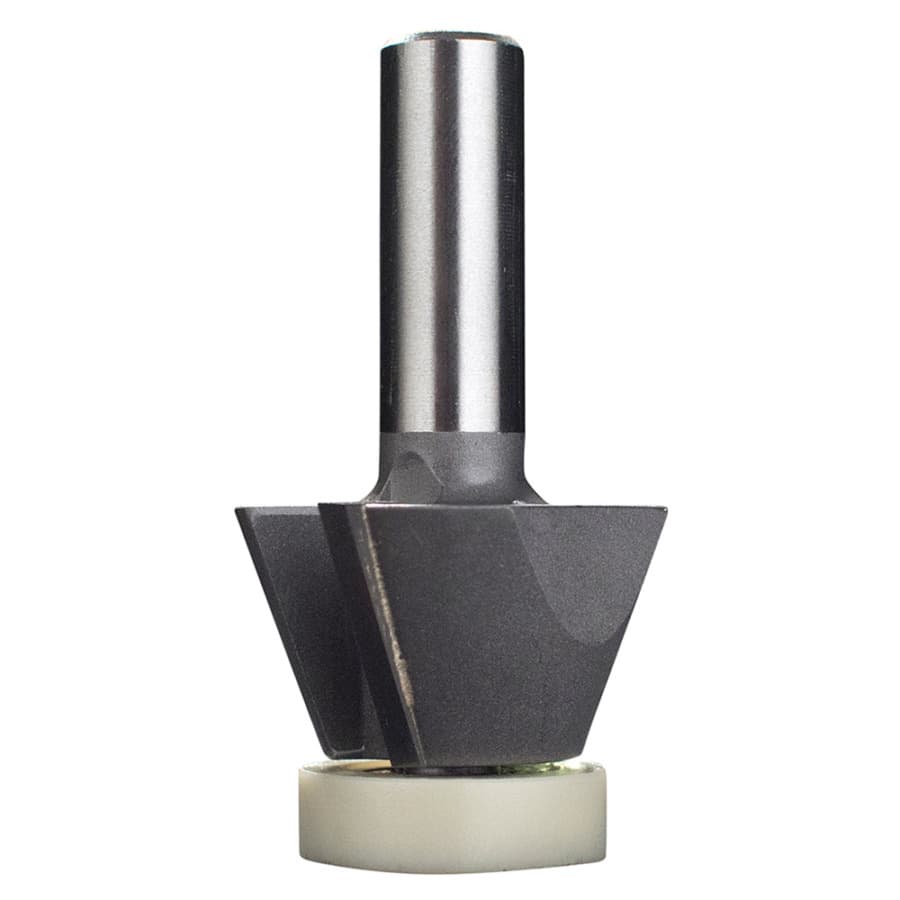

The Karran BITSS24 is a 24-degree bevel router bit designed specifically for trimming solid surface countertops flush to the bowl wall during a seamless sink installation. Where the laminate-specific bevel bit uses a shallower angle, this bit's steeper 24° profile matches the geometry solid surface fabrication demands, delivering a clean, tight fit at the bowl edge every time.
Key Features
• 24° bevel angle is engineered for solid surface countertop trimming in seamless Karran sink installs.
• 1/2 inch shank provides solid, chatter-free seating in compatible router collets.
• Oversized pilot bearing rides the bowl wall reference surface and controls the depth of cut without touching the sink.
• Stainless steel construction holds up to the repeated passes and abrasive mineral-filled material of solid surface fabrication.
Where This Bit Fits in the Seamless Install Process
Seamless sink installation in solid surface countertops calls for routing the countertop material back to the bowl wall so no gap, ridge, or exposed rim remains. This bit handles that trimming step. After the sink is bonded beneath the deck and the seam adhesive has cured, the fabricator runs this bit along the bowl wall with the bearing as the guide, cutting the solid surface to a precise bevel that meets the bowl cleanly. The result is the flush, integrated look that defines a seamless install. It is the step that separates a finished seamless counter from an ordinary undermount job, and having the right bevel angle for the material makes the difference between a clean first pass and a corrective second one.
Matched to Solid Surface, Not to Laminate
Solid surface and laminate are different materials that respond differently to a router, and Karran documents two separate bevel angles for its seamless system for exactly that reason. The 10-degree bevel bit is the laminate tool. This one, at 24 degrees, is sized for solid surface. The steeper angle accounts for the material's density and the wall geometry of a solid surface countertop at the bowl interface. Using the correct bit for the countertop material is not a minor preference — it is what keeps the cut clean, keeps the bearing off the bowl wall, and protects the finish of both the countertop and the sink.
Who Reaches for This Bit
Solid surface fabricators who run Karran seamless installations as a regular part of their workflow will recognize this bit as a dedicated step-tool — something that lives in the router station alongside the adhesive and mixing tips, not something borrowed from a general bit set. Cabinet shops expanding into countertop fabrication and kitchen designers who specify Karran seamless sinks over solid surface will also want this bit available before the countertop reaches the install stage. It is a single-purpose tool, and that is a strength: when the seamless trim step comes up, there is no hunting for the right angle.
What is the difference between this bit and the laminate bevel bit?
The laminate version uses a 10-degree bevel angle; this bit uses a 24-degree angle. Karran specifies the 24-degree profile for solid surface countertops and the 10-degree profile for laminate. The two materials require different geometry at the bowl wall, so the bits are not interchangeable.
Does the bearing contact the sink bowl during the cut?
The oversized pilot bearing is designed to ride the bowl wall as a reference, guiding the cut without the cutting edge contacting the sink. The oversized diameter keeps the blade offset from the bowl surface so the sink finish stays intact.
Which Karran sink series does this bit support?
This bit is used in Karran's seamless installation system, which applies to the Q Series quartz sinks, Edge stainless E Series sinks, and A Series acrylic sinks installed into solid surface countertops. It is not a general-purpose bevel bit for other sink types or countertop materials.
Does this bit work in a standard router?
The 1/2 inch shank fits any router with a 1/2 inch collet, which covers most mid-size and full-size routers used in countertop fabrication. Confirm your router accepts a 1/2 inch shank before ordering.
The Right Tool Makes the Seamless Install Repeatable
Seamless sink installation is a process where each step builds on the last, and the trim pass at the bowl wall is one of the most visible. Having the correct bevel bit for solid surface on hand means that step goes cleanly, the fit is right the first time, and the finished counter looks exactly the way the customer expects it to.
