15" Quadro IW21 4D Undermount Drawer Slide for 5/8" Material, 100lb Capacity Full Extension with Silent System Soft-Closing

Quadro 4D V6 IW21 Standard Duty Undermount Slides for Drawer Thickness up to 5/8"

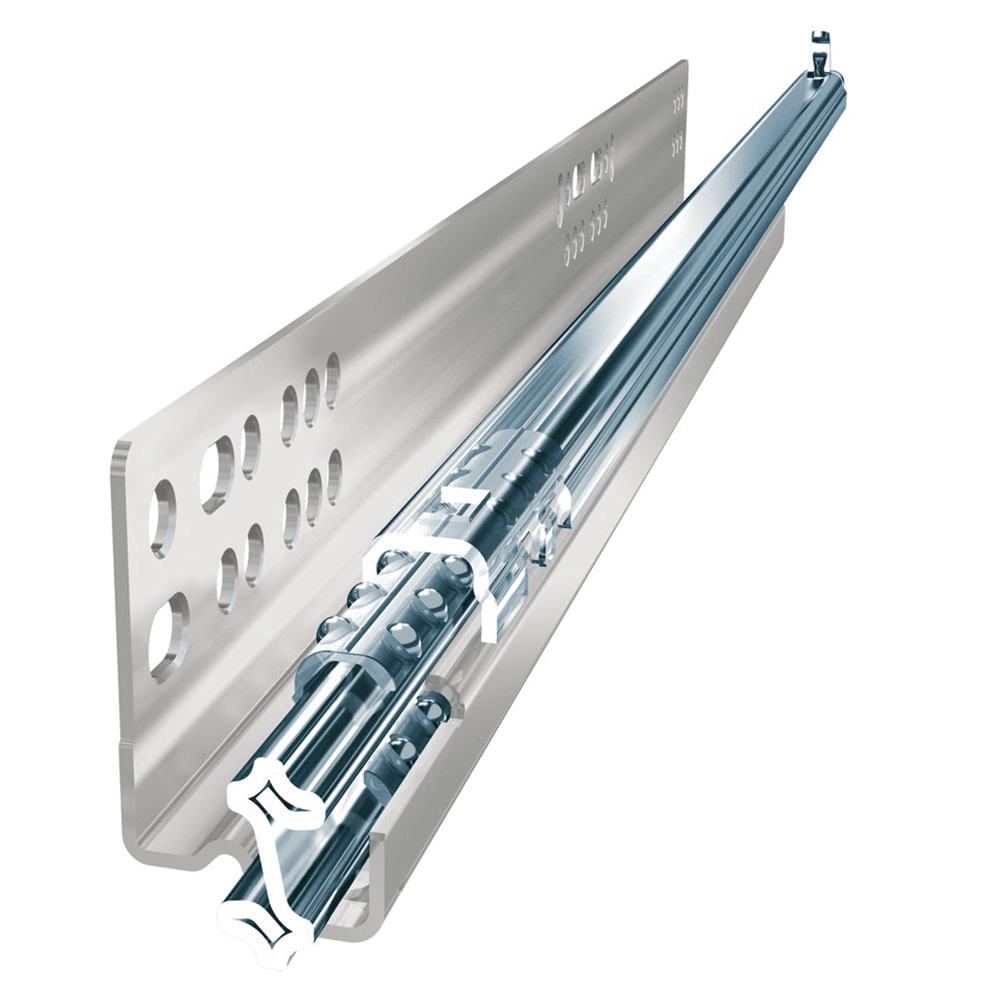

Quadro drawer runners guarantee the ultimate in drawer convenience. With attractive design from concealed installation. With long life and constant top performance. The robust, resilient runners provide the steel balls with optimum control - for perfect vertical and lateral stability.
The optional Silent System gently shuts drawers in complete silence. The Push to open function automatically opens the pull-out in response to a light press on the front panel - for handleless fronts.

Features:
• Integrated damping system Silent System
• Slide on installation with 4D front fixing clips and tilt adjustment
• Optionally upgradable with Push to open Silent: convenient opening mechanism in combination with silent and soft closing; upgradable with synchronisation
• Tool-less, intuitive height adjustment up to + 2 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to +/- 2 mm, and tilt adjustment
• For up to 5/8" (16mm) drawers side thickness
• For Face frame or frameless applications
• Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements
• Load capacity up to 90 lbs dynamic (100 lbs static), as per ANSI/BHMA 156.9 grade 1 specification on a 21" length slide
• Galvanised steel

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
