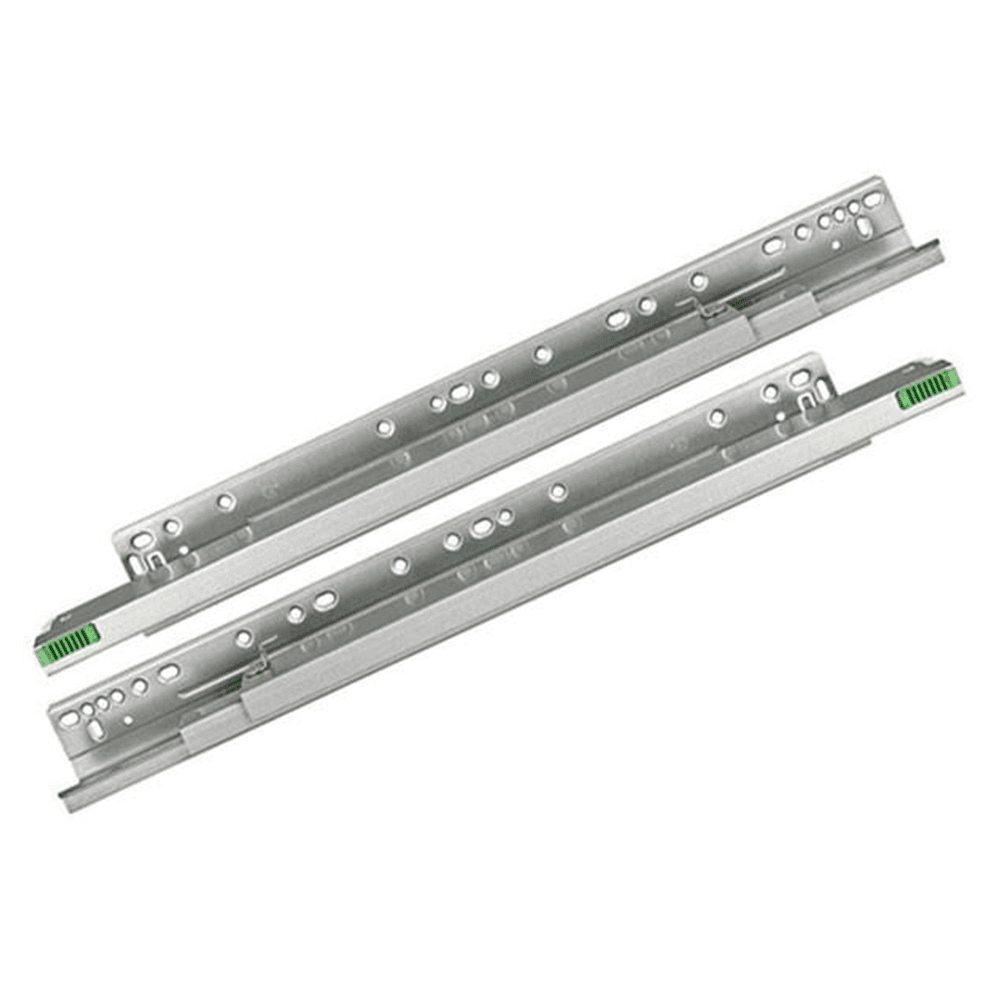

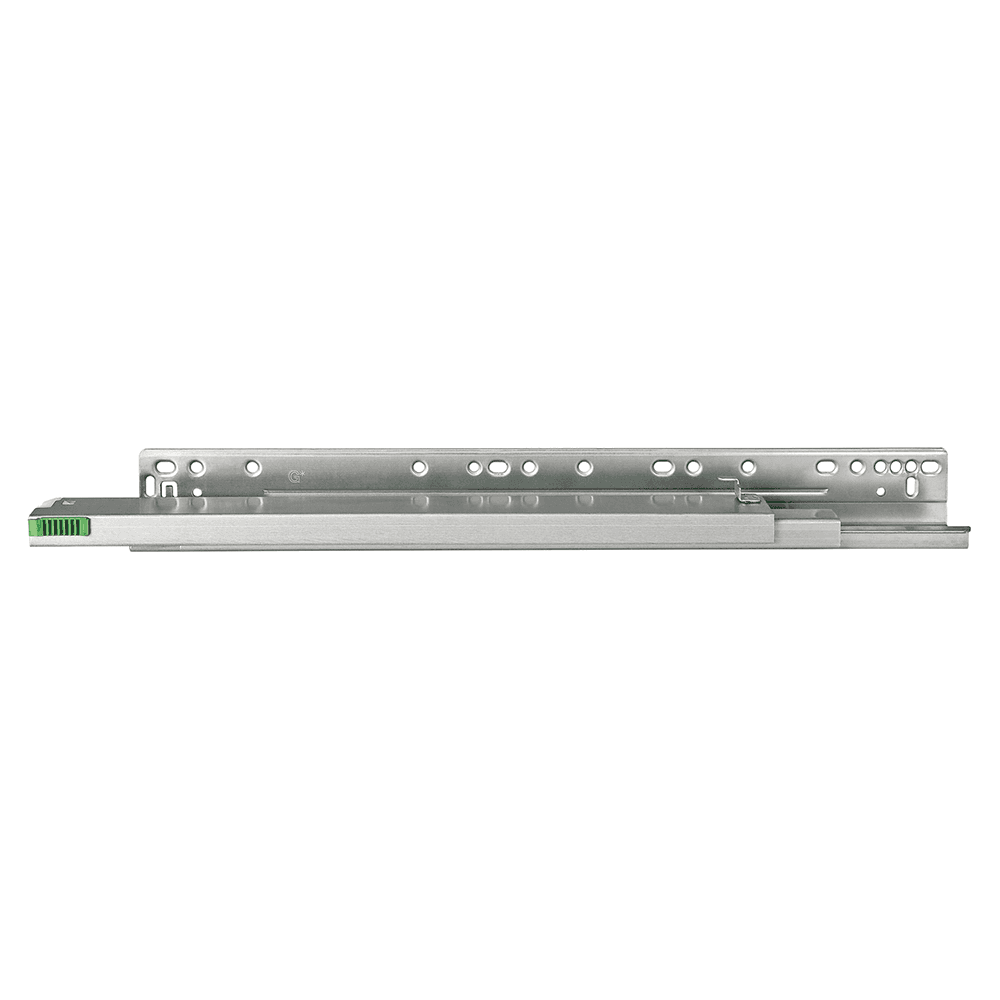

15" Elite Plus 16 Airmatic Undermount Drawer Slide, 100lb Capacity Full Extension Soft-Closing
Item # G7523-15AIR
•Mfr # 13035-03
$1.40
/Pair
Drawer Length: 15"
Min Order: 1
Quantity Multiple by: 1
Product Details
Elite Plus 16 Undermount Drawer Slide
The innovative Elite Plus drawer slide draws attention to the beauty of your cabinetry and leaves the mounted hardware completely out of sight. The Elite Plus brings together the advances of undermount technology with a precision roller carriage and features a new liquid damper technology that is designed for a smoother closing transition.
Features:
• Zinc plated, roll formed steel components
• Precision, smooth-running synthetic roller carriages
• Liquid damper softly glides drawers to a stop
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Full extension
• Height adjustment +2.5mm (3/32") with suitable front locking device
• Side adjustment ?1.5mm (1/16") with suitable front locking device
• Positive tracked right side, ? 1.5mm (1/16") side tolerance on left side
• Self-closing mechanism engages 30mm (1 1/4") before closed position
• Weight capacity: 75 lb dynamic, 100 lb static
• Meets and exceeds ANSI/BHMA A156.9 Standard, Grade 1
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
The innovative Elite Plus drawer slide draws attention to the beauty of your cabinetry and leaves the mounted hardware completely out of sight. The Elite Plus brings together the advances of undermount technology with a precision roller carriage and features a new liquid damper technology that is designed for a smoother closing transition.
Features:
• Zinc plated, roll formed steel components
• Precision, smooth-running synthetic roller carriages
• Liquid damper softly glides drawers to a stop
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Full extension
• Height adjustment +2.5mm (3/32") with suitable front locking device
• Side adjustment ?1.5mm (1/16") with suitable front locking device
• Positive tracked right side, ? 1.5mm (1/16") side tolerance on left side
• Self-closing mechanism engages 30mm (1 1/4") before closed position
• Weight capacity: 75 lb dynamic, 100 lb static
• Meets and exceeds ANSI/BHMA A156.9 Standard, Grade 1
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Specifications
| Length | |
| Finish | Zinc-Plated |
| Drawer Length | 15" |
| Closing Type | Soft-Closing |
| Model | Elite Plus 16 |
| Load Capacity | 100lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Undermount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
