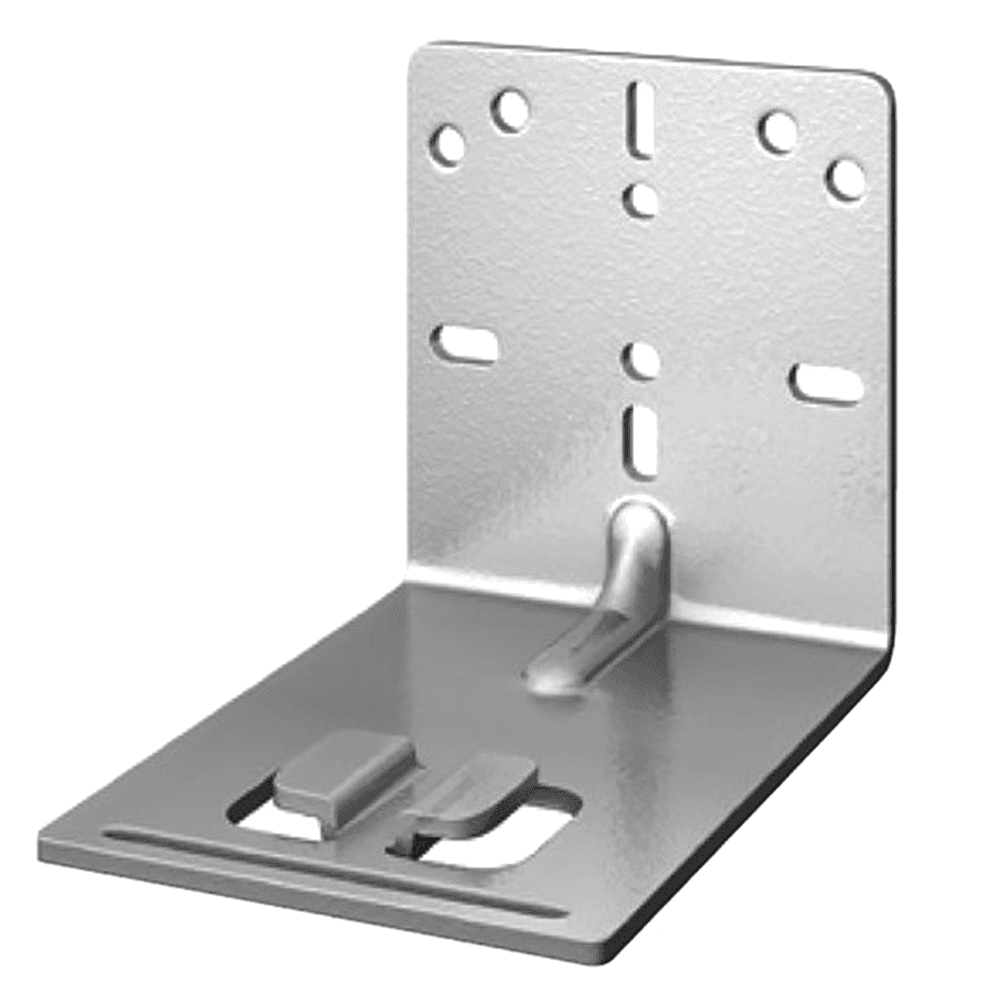

Dynapro/Maxess/Elite Plus/Dynamic NT Universal Rear Mount Bracket for Undermount Drawer Slides
300 items
Product Details
Dynapro/Maxess/Elite Plus/Elite/Dynamic NT Universal Rear Mount Bracket for Undermount Drawer Slides
NOTE: TWO REQUIRED PER DRAWER
Features:
• DYNAMIC NT rear socket

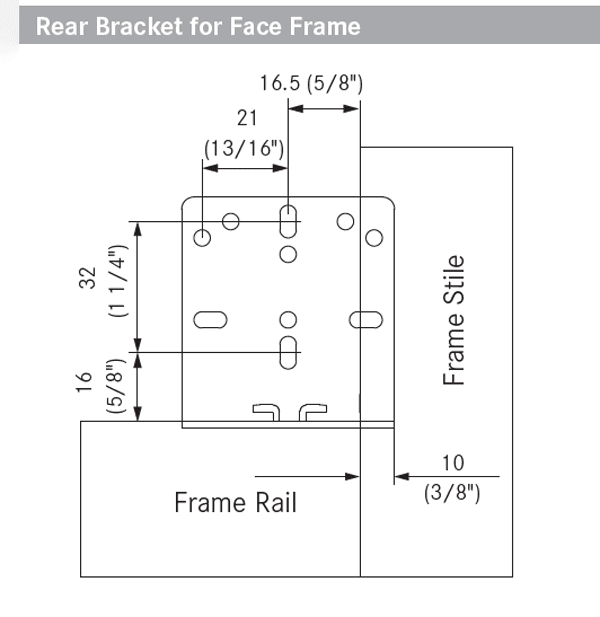

• For face frame cabinet construction
• 75lb dynamic load rating
• Easy to use front fixing bracket
• Height adjustable, compensates side tolerances
• Works with 1/2 “ to 5/8” drawer material
• Easy and clear function of drawer removal
• Interchangeable with Full Extension: oblong holes for length adjustment
• Choose from 2 closing systems: Soft-close, shock absorbing system or Self-close, standard closing system
• Minimal extension loss
• Self-closing system built into slide
• Drawer box material compensation with front-fixing
• Full access into drawer box gives full extension appearance
• No extra assembly - fast installation
• Secure connection to drawer slide
• Easy depth adjustment of interior drawers
• Fast alignment of drawer fronts after installation
• For frameless application, the rear socket is not needed
Specifications
| Box Quantity | 300 |
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Dynapro/Maxess/Elite Plus |
| Load Capacity | |
| Travel | |
| Product Type | Rear Mounting Bracket |
| Left or Right | |
| Cabinet Type | |
| Mounting Type | |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
