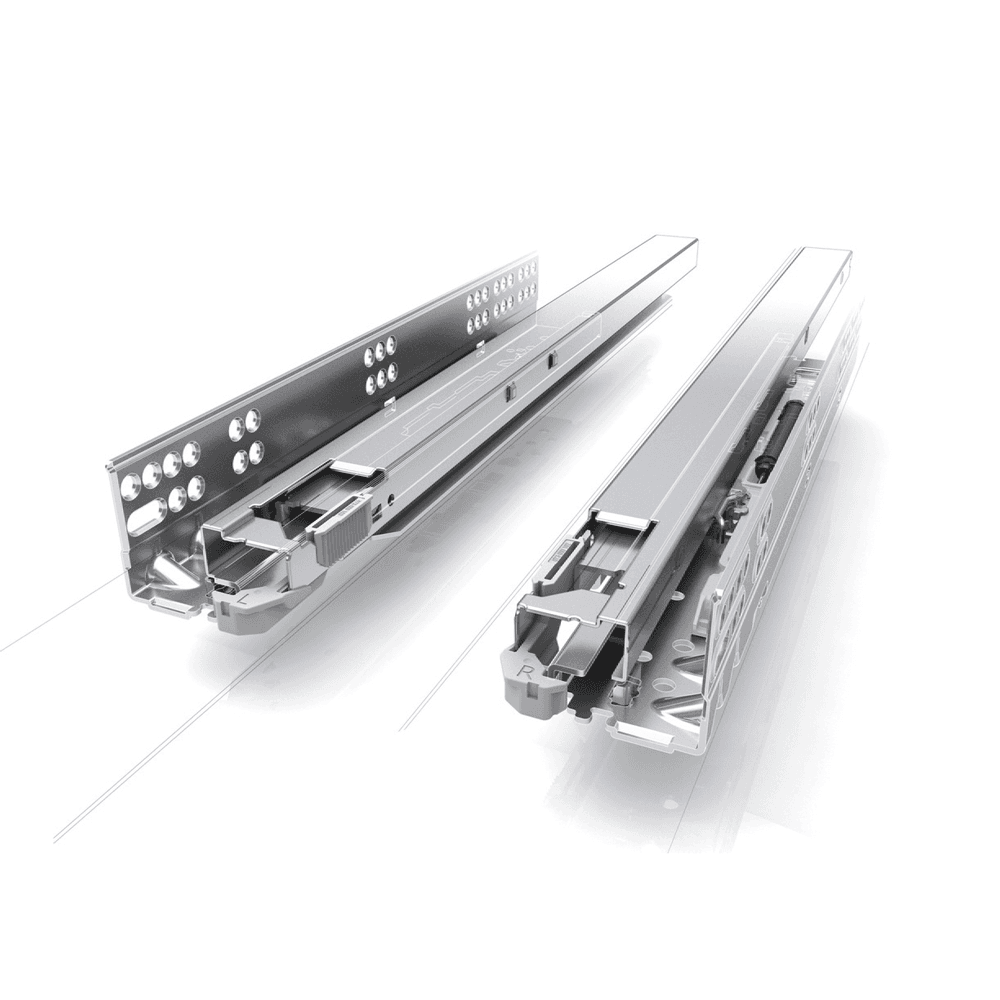

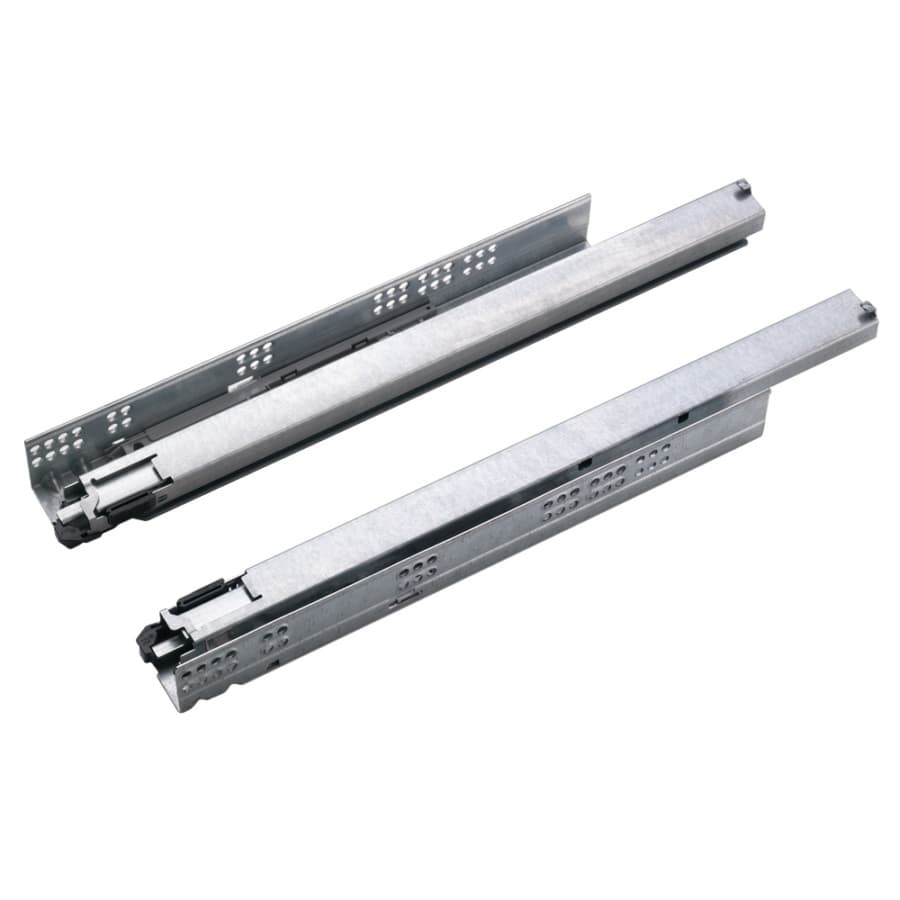

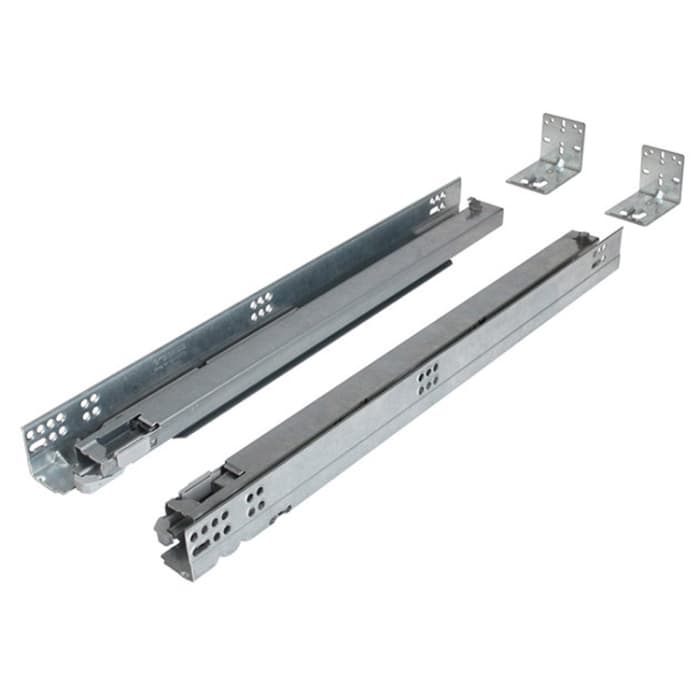

12" Dynapro 19 3D Undermount Drawer Slide for 3/4" Material, 100lb Capacity Full Extension Soft-Closing
5 items
10 items
Drawer Length: 12"
Product Details
Dynapro 19 Standard Duty Undermount Slides for Drawer Material Thickness 5/8" to 3/4"
With a drawer as technically advanced as Dynapro, you will find many enhanced features. The ease in which Dynapro pulls open is smooth and comfortable. But Dynapro’s closing action is what makes an impression. Whether it is the standard soft-closing action or a mechanically enhanced soft-closing action, Dynapro drawers pull closed with a smooth, gentle motion that is nothing short of amazing.
Features:
• Face frame or frameless applications from 16mm (5/8") up to 19mm (3/4") drawer material
• Full extension with a synchronized mechanism
• Fully enclosed soft-close liquid damping system
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Height adjustment +3.5mm with suitable front locking device
• Side adjustment ±1.5mm with suitable front locking device
• Tilt adjustment +4.0mm
• Depth adjustment +3.0mm forward with suitable front locking device
• 100 lb load rating (45 kg)
Drawer Setback: 4mm (5/32")
See Locking Device for Inset Drawer Setbacks
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Optional Rear Brackets Sold Seperately.
Specifications
Length | |
Finish | |
Drawer Length | 12" |
Closing Type | Soft-Closing |
Model | Dynapro 3D 19 |
Load Capacity | 100lb |
Travel | Full Extension |
Product Type | Undermount Drawer Slide |
Left or Right | |
Cabinet Type | |
Mounting Type | Undermount |
Material | |
Slide Type | |
Height | |
Certifications | |
Width | |
Material Thickness | 5/8" to 3/4" |
Cabinet Width | |
Thickness | |
Overlay |
