18" Elite Plus 16 Undermount Drawer Slide for 5/8" Material, 100lb Capacity Full Extension Soft-Closing

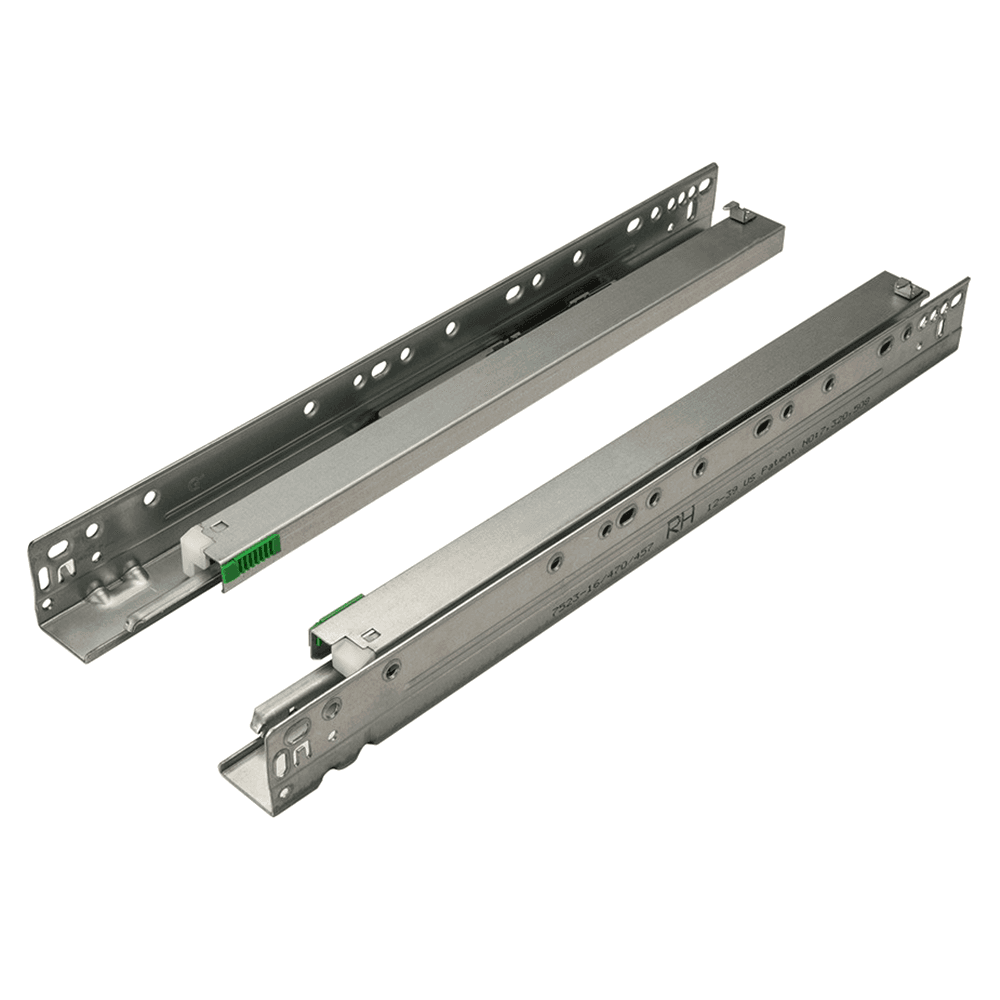

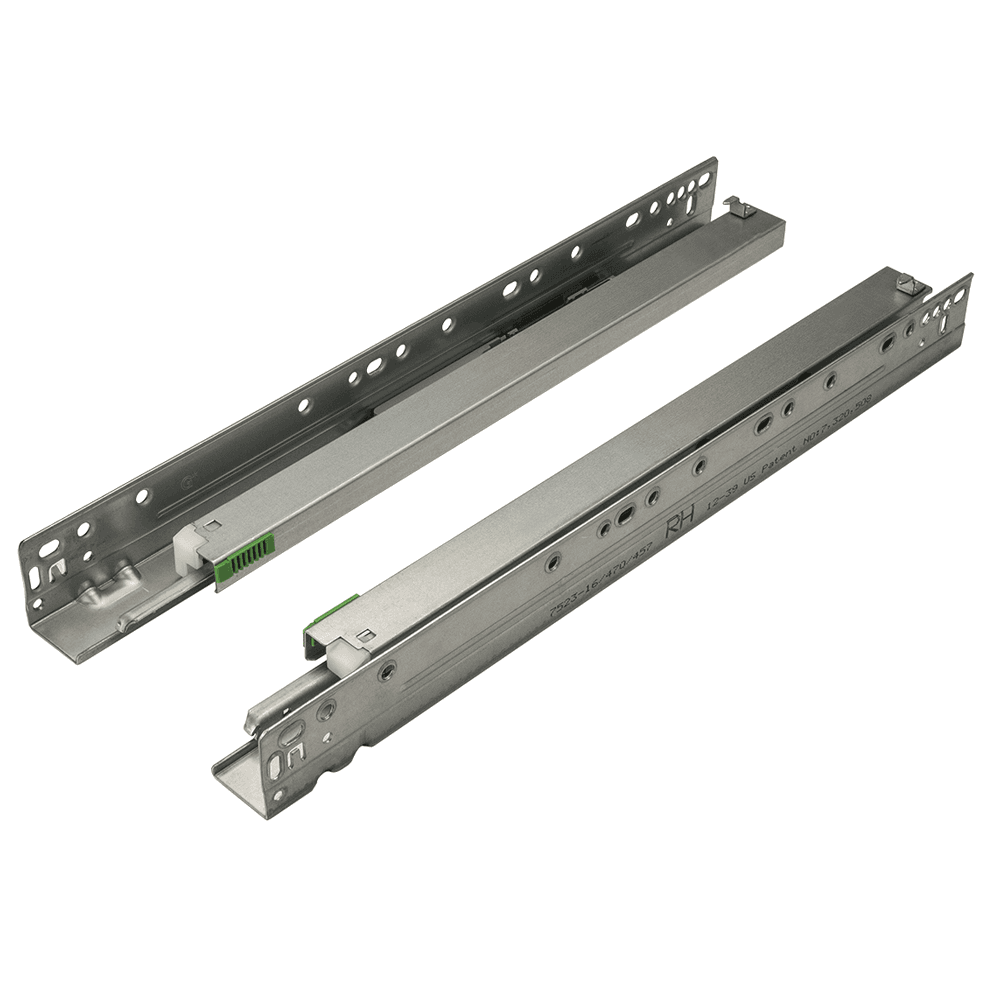

Elite Plus 16 Standard Duty Undermount Drawer Slide for 5/8" Material

The innovative Elite Plus drawer slide draws attention to the beauty of your cabinetry and leaves the mounted hardware completely out of sight. The Elite Plus brings together the advances of undermount technology with a precision roller carriage and features a liquid damper technology that is designed for a smoother closing transition.

Features:
• Zinc plated, roll formed steel components
• Precision, smooth-running synthetic roller carriages
• Liquid damper softly glides drawers to a stop
• Self-latching front locking devices have comfortable release levers for drawer removal and installation
• Full extension
• Height adjustment +2.5mm (3/32") with suitable front locking device
• Side adjustment ±1.5mm (1/16") with suitable front locking device
• Positive tracked right side, ± 1.5mm (1/16") side tolerance on left side
• Self-closing mechanism engages 30mm (1 1/4") before closed position
• Weight capacity: 75 lb dynamic, 100 lb static
• Meets and exceeds ANSI/BHMA A156.9 Standard, Grade 1

Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw

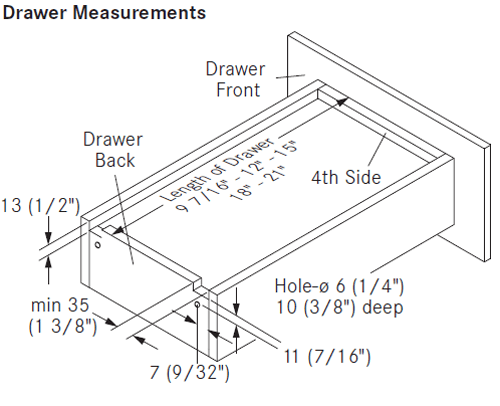

Setback on Standard Drawers: 4mm (5/32")

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
