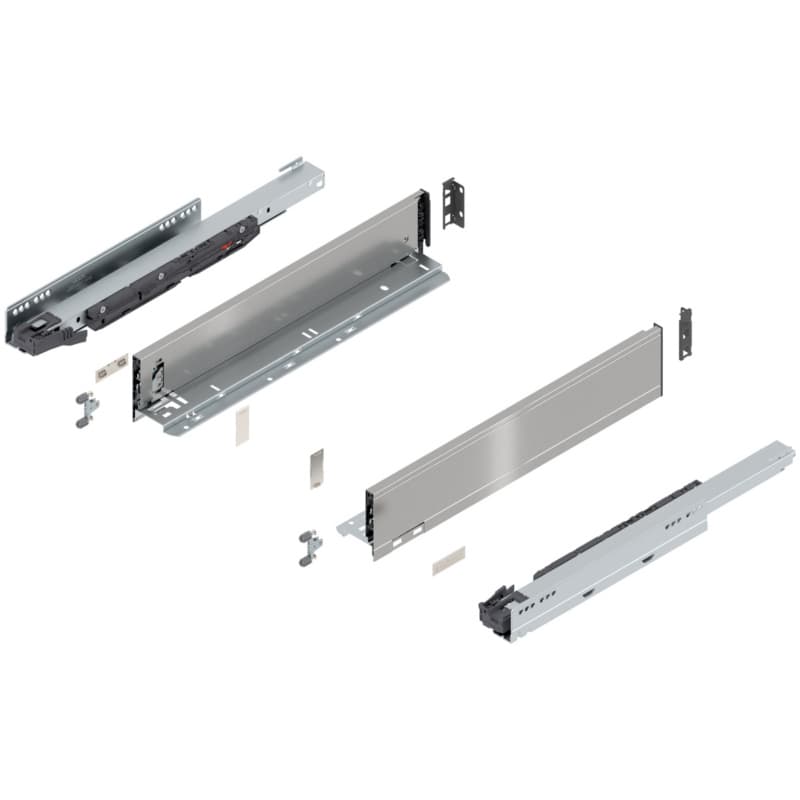

18" Legrabox Drawer System M Height, 3-9/16", 125lb Capacity Full-Extension with BLUMOTION, Stainless Steel
Item # B770M45S-18SS
•Mfr # 770M45S0I
$92.60
/Set
10 items
$91.19/Set
49 items
$89.43/Set
Length: 18"
Finish: Stainless Steel
Min Order: 1
Qty mult. by: 1
Product Details
The LEGRABOX cabinet profile is a system that combines sleek design with superior running characteristics. Even when heavily loaded and fully extended, LEGRABOX opens with ease and has minimal sag. This box system impresses with its slim sides, offering maximum storage space in drawers.
Ordering LEGRABOX is easy with V1 packaging that includes all parts needed to start building a drawer.
Features:
• Full extension drawer system with BLUMOTION
• Smooth running action
• Three-dimensional drawer front adjustment
• Static load capacity of 125 lb
• Drawer profile height 90.5 (3-9/16")
• Compatible with TIP-ON BLUMOTION and SERVO-DRIVE

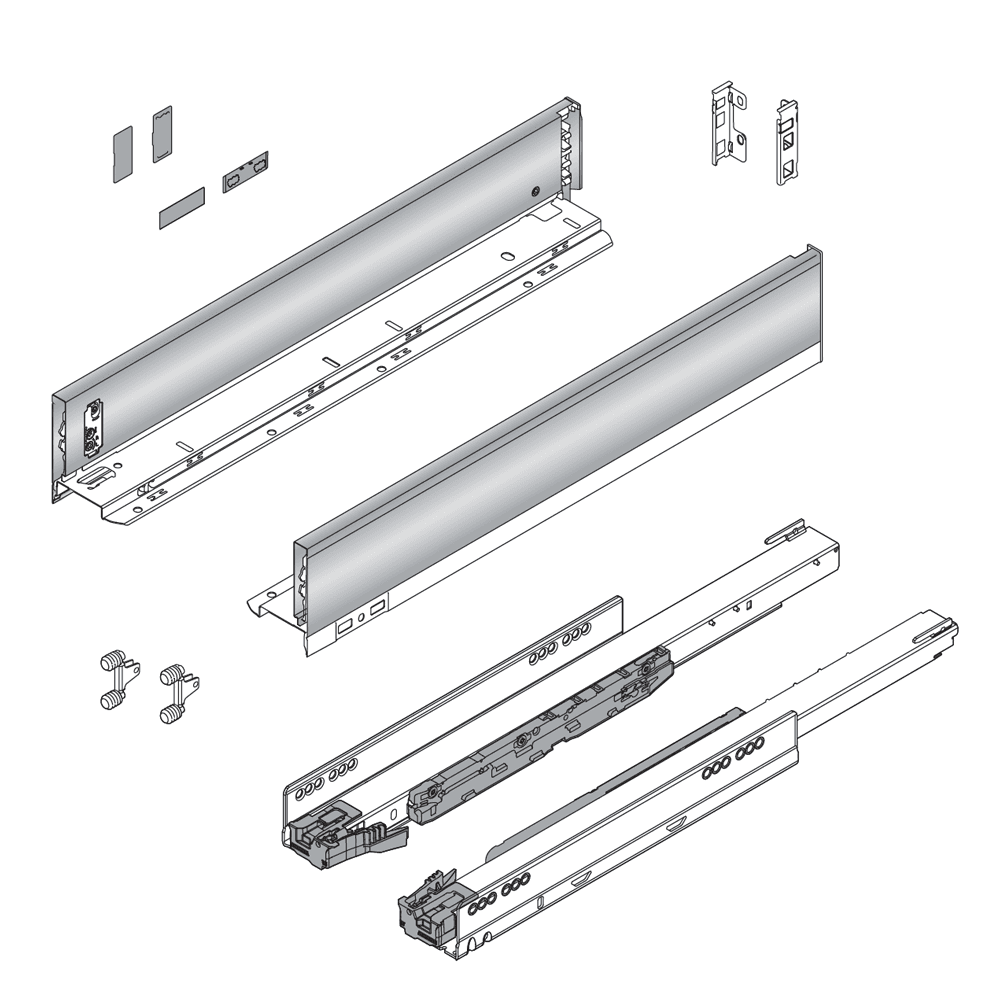

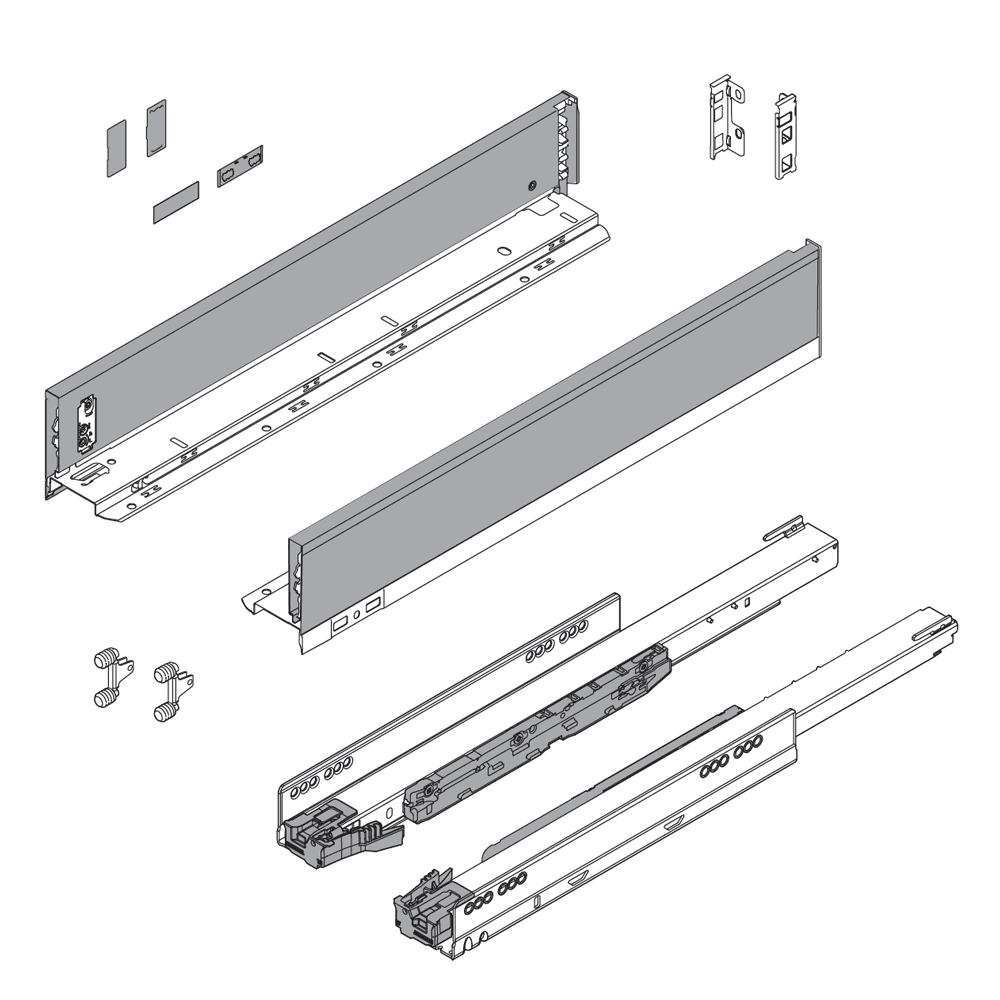

Includes:
• (1 Pair) B770M4502I-IGL - 18" M-Height 3-9/16" Drawer Profile, Stainless Steel
• (1 Pair) B750.4501S - 18" Full Extension Cabinet Profile, 88lb Capacity w/Blumotion
• (2 Each) BZF7M70E2 - Front Fixing Bracket for M-Height 3-9/16", Expando
• (1 Pair) BZB7M000S-GR - Rear Bracket for M-Height Drawer Members, Orion Gray
Ordering LEGRABOX is easy with V1 packaging that includes all parts needed to start building a drawer.
Features:
• Full extension drawer system with BLUMOTION
• Smooth running action
• Three-dimensional drawer front adjustment
• Static load capacity of 125 lb
• Drawer profile height 90.5 (3-9/16")
• Compatible with TIP-ON BLUMOTION and SERVO-DRIVE
Includes:
• (1 Pair) B770M4502I-IGL - 18" M-Height 3-9/16" Drawer Profile, Stainless Steel
• (1 Pair) B750.4501S - 18" Full Extension Cabinet Profile, 88lb Capacity w/Blumotion
• (2 Each) BZF7M70E2 - Front Fixing Bracket for M-Height 3-9/16", Expando
• (1 Pair) BZB7M000S-GR - Rear Bracket for M-Height Drawer Members, Orion Gray
Specifications
| Box Quantity | 1 |
| Drawer Length | |
| Length | 18" |
| Finish | Stainless Steel |
| Drawer Height | 3-9/16" |
| Product Type | Complete Drawer System |
| Closing Type | Soft-Closing |
| Load Capacity | 125lb |
| Travel | Full Extension |
| Material | Steel |
| Fixing | |
| Left or Right | |
| Model | |
| Width | |
| Mounting Type | |
| Material Thickness | |
| Bracket Type | |
| Gap | |
| Slide Type |
