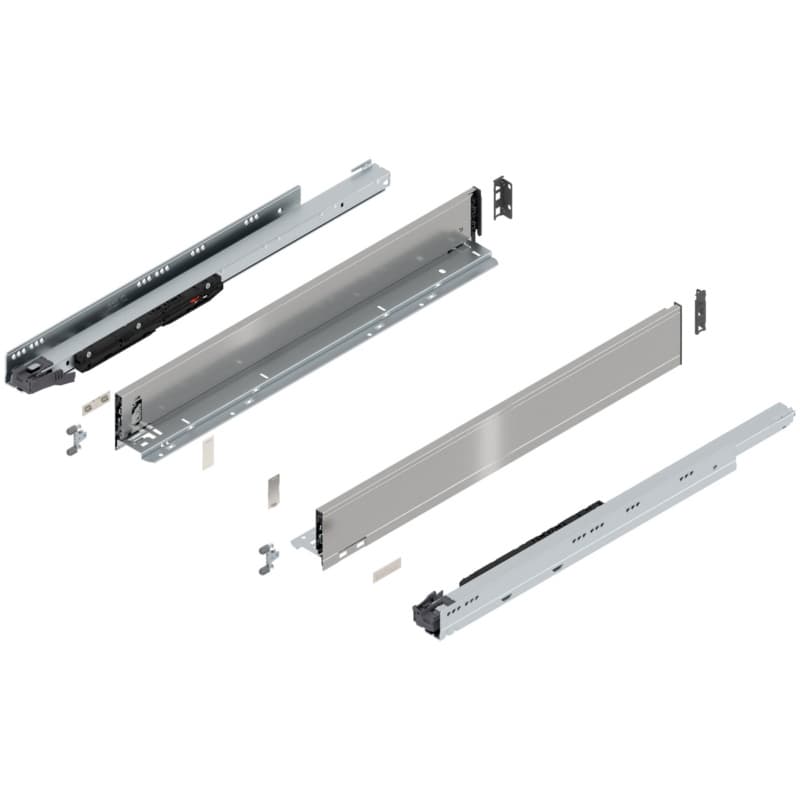

26" Legrabox Drawer System M Height, 3-9/16", 170lb Capacity Full-Extension with BLUMOTION, Stainless Steel
Item # B773M65S-26SS
•Mfr # 773M65S0I
Length: 26"
Finish: Stainless Steel
Product Details
The LEGRABOX cabinet profile is a system that combines sleek design with superior running characteristics. Even when heavily loaded and fully extended, LEGRABOX opens with ease and has minimal sag. This box system impresses with its slim sides, offering maximum storage space in drawers.
Ordering LEGRABOX is easy with V1 packaging that includes all parts needed to start building a drawer.
Features:
• Full extension drawer system with BLUMOTION
• Smooth running action
• Three-dimensional drawer front adjustment
• Static load capacity of 170 lb
• Drawer profile height 90.5 (3-9/16")
• Compatible with TIP-ON BLUMOTION and SERVO-DRIVE

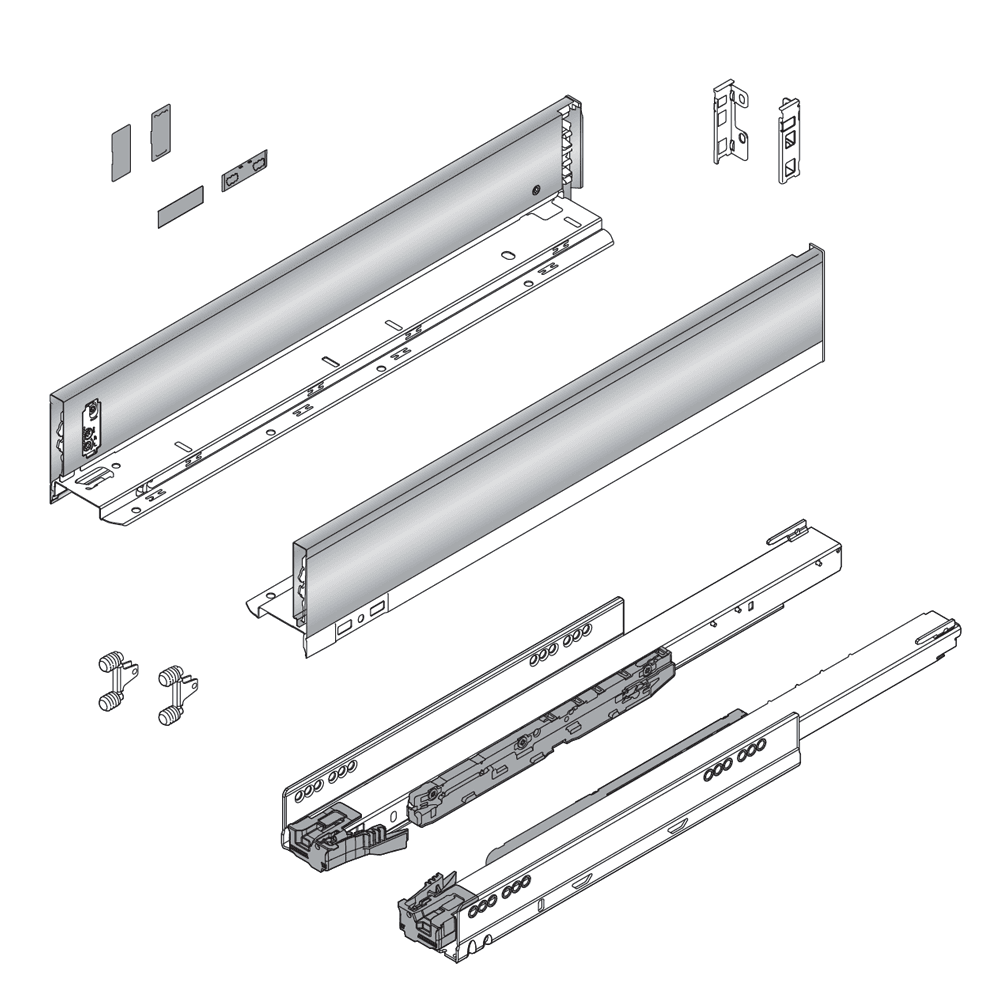

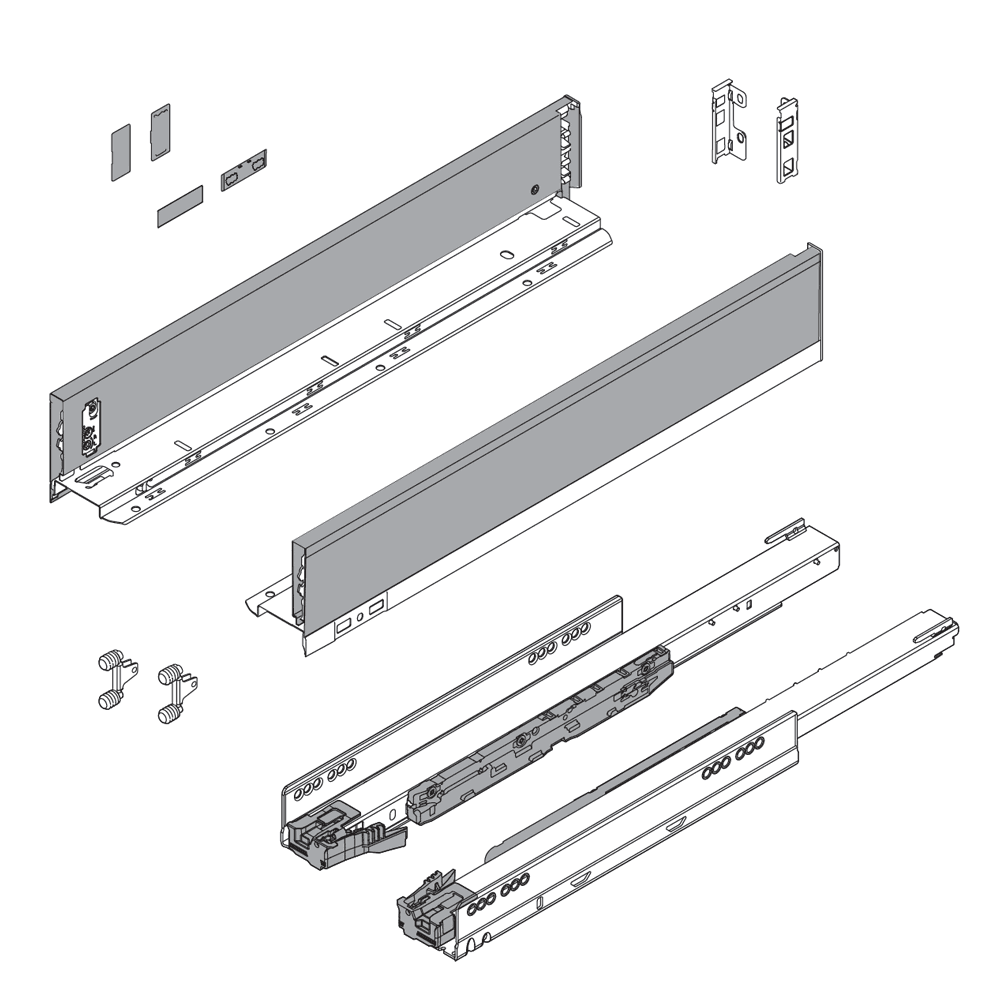

Includes:
• (1 Pair) B770M6502I-IGL - 26" M-Height 3-9/16" Drawer Profile, Stainless Steel
• (1 Pair) B753.6501S - 26" Full Extension Cabinet Profile, 155lb Capacity w/Blumotion
• (2 Each) BZF7M70E2 - Front Fixing Bracket for M-Height 3-9/16", Expando
• (1 Pair) BZB7M000S-GR - Rear Bracket for M-Height Drawer Members, Orion Gray
Ordering LEGRABOX is easy with V1 packaging that includes all parts needed to start building a drawer.
Features:
• Full extension drawer system with BLUMOTION
• Smooth running action
• Three-dimensional drawer front adjustment
• Static load capacity of 170 lb
• Drawer profile height 90.5 (3-9/16")
• Compatible with TIP-ON BLUMOTION and SERVO-DRIVE
Includes:
• (1 Pair) B770M6502I-IGL - 26" M-Height 3-9/16" Drawer Profile, Stainless Steel
• (1 Pair) B753.6501S - 26" Full Extension Cabinet Profile, 155lb Capacity w/Blumotion
• (2 Each) BZF7M70E2 - Front Fixing Bracket for M-Height 3-9/16", Expando
• (1 Pair) BZB7M000S-GR - Rear Bracket for M-Height Drawer Members, Orion Gray
Specifications
| Box Quantity | 1 |
| Length | 26" |
| Finish | Stainless Steel |
| Drawer Height | 3-9/16" |
| Product Type | Complete Drawer System |
| Closing Type | Soft-Closing |
| Load Capacity | 170lb |
| Travel | Full Extension |
| Material | Steel |
