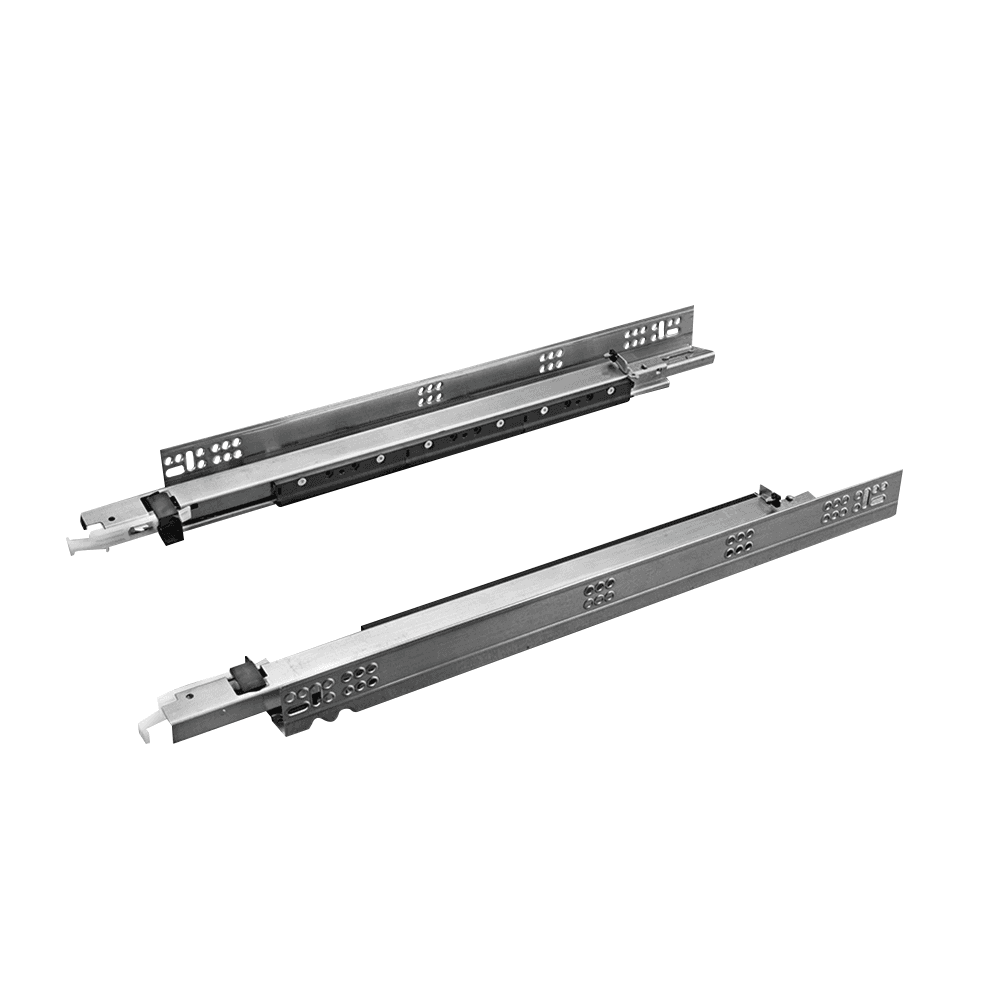

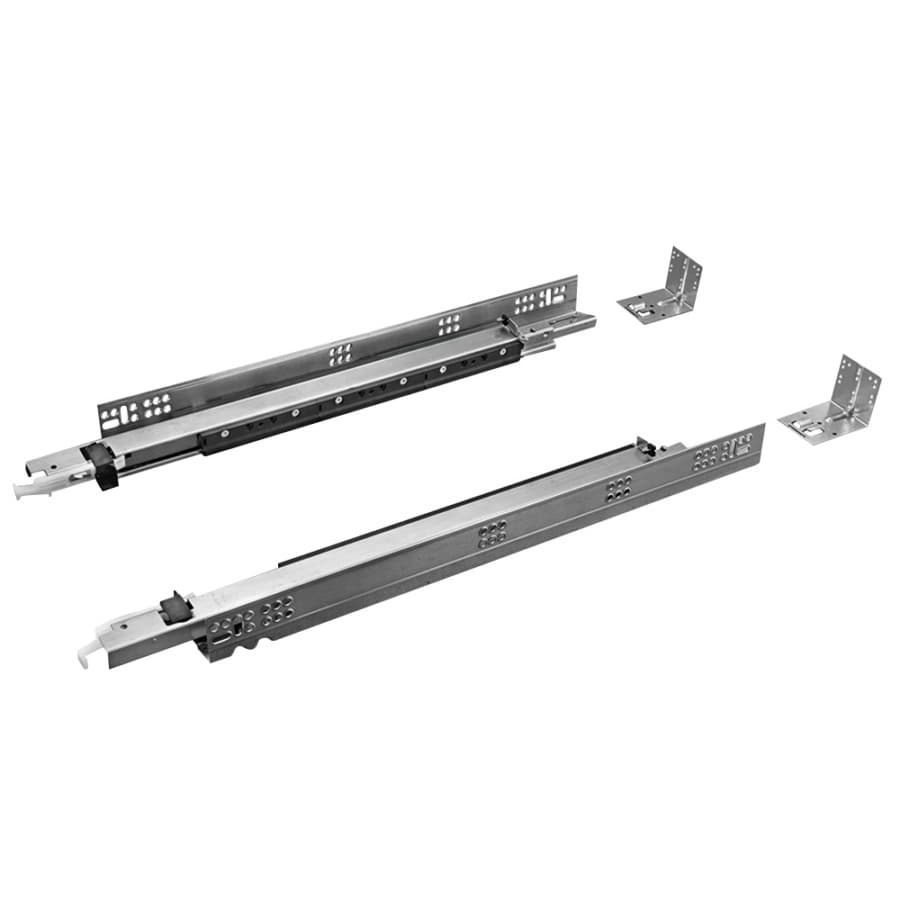

15" F70 PUSH Face Frame Undermount Drawer Slide for 5/8" Material, 170lb Capacity, Full Extension, Push-To-Open

F70 PUSH Face Frame Heavy-Duty Undermount Drawer Slide for 5/8" Material

Features:
• Full extension slide for 1/2" (12 mm) to 5/8" (16 mm) drawer thickness
• Push: opening system for handle-less drawers, fully integrated into the slide
• Slight pressure of the drawer front is enough for the drawer to open
• 150 lbs Dynamic, 170 lbs Static load capacity
• Integrated Push opening system
• Elongated holes for depth and height adjustment
• Adj. clips allow for easy drawer insertion/removal; special clip for narrow drawers
• The drawer is latched when closed
• Integrated tool free height adjustments + 2.5 mm
• Tool free depth adjustments +/- 3 mm
• Tool free side adjustments +/- 1.5 mm
• Optional: tool free tilt adjustment +3 mm or F70 Push Synchronizer
• Note: Any load over 75 lbs requires a filler in addition to rear sockets

Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw

Setback on Standard Drawers: 4mm (5/32")

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
