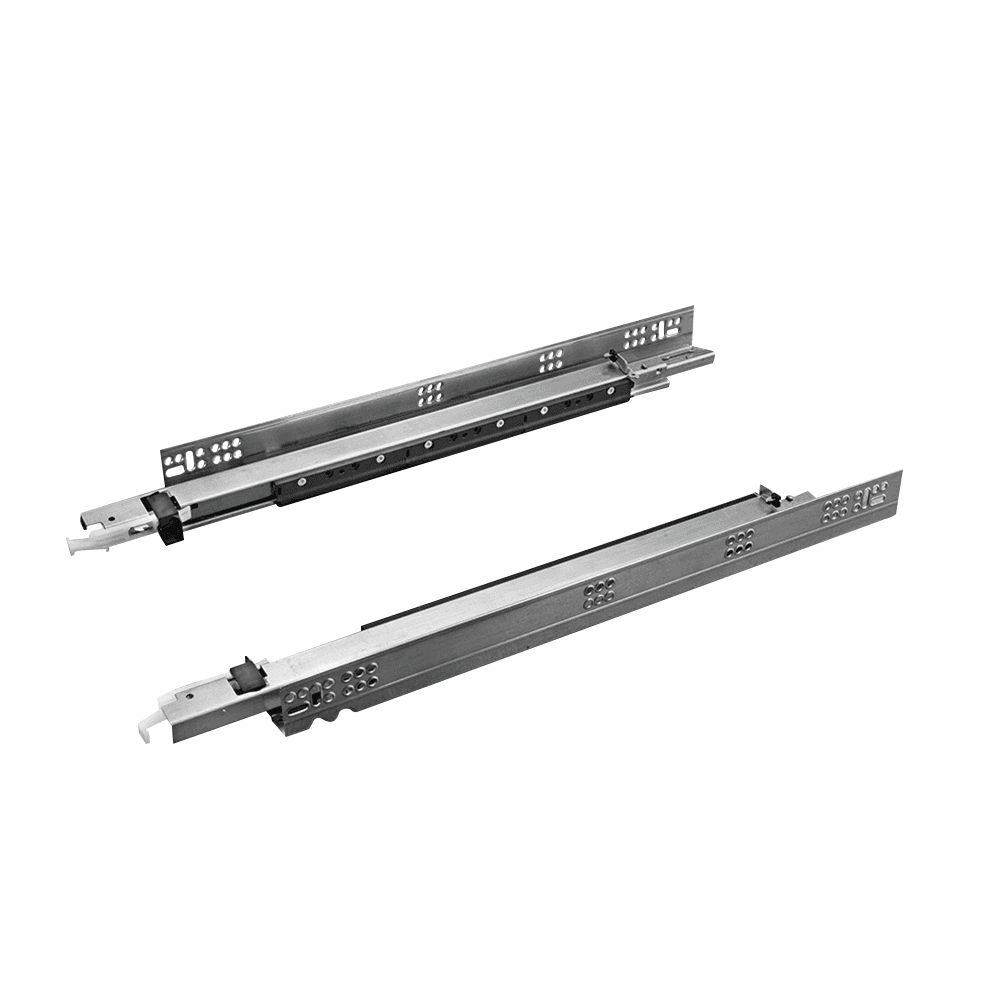

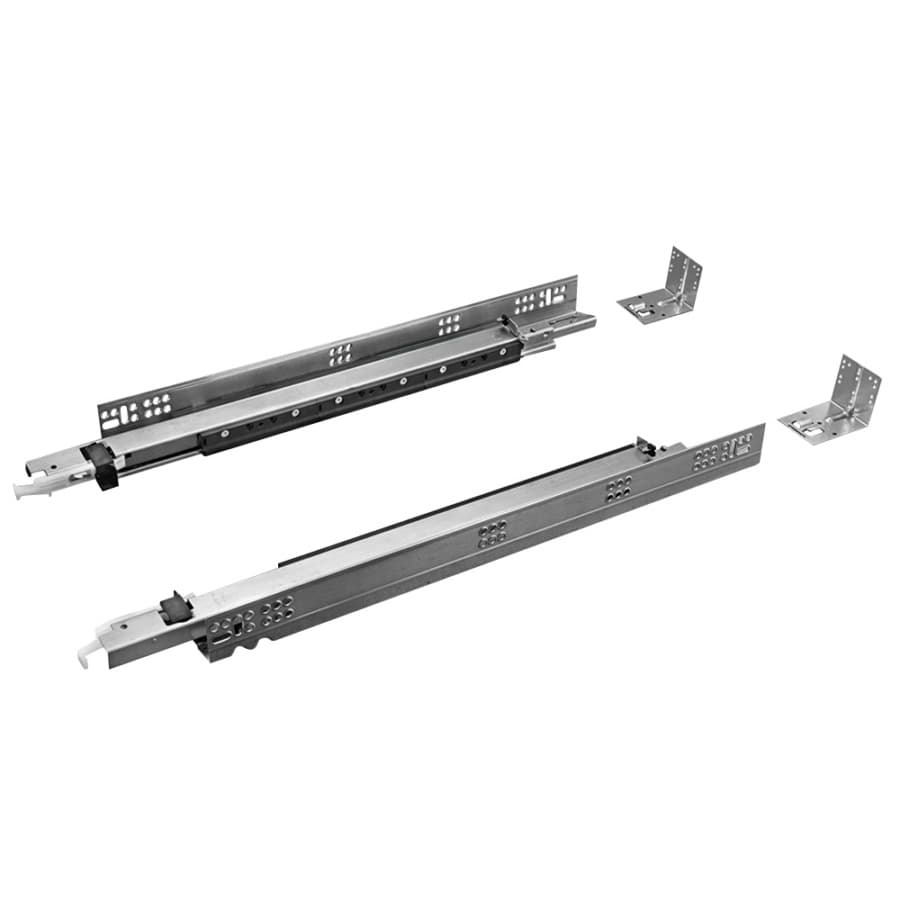

21" F70 PUSH Face Frame Undermount Drawer Slide for 5/8" Material, 170lb Capacity, Full Extension, Push-To-Open
Item # SALF70FFPO-21B
•Mfr # G7U6P533XXB
$33.43
/Pair
6 items
$30.47/Pair
Drawer Length: 21"
Min Order: 1
Quantity Multiple by: 1
Product Details
F70 PUSH Face Frame Heavy-Duty Undermount Drawer Slide for 5/8" Material
Features:
Full extension slide for 1/2" (12 mm) to 5/8" (16 mm) drawer thickness
Push: opening system for handle-less drawers, fully integrated into the slide
Slight pressure of the drawer front is enough for the drawer to open
150 lbs Dynamic, 170 lbs Static load capacity
Integrated Push opening system
Elongated holes for depth and height adjustment
Adj. clips allow for easy drawer insertion/removal; special clip for narrow drawers
The drawer is latched when closed
Integrated tool free height adjustments + 2.5 mm
Tool free depth adjustments +/- 3 mm
Tool free side adjustments +/- 1.5 mm
Optional: tool free tilt adjustment +3 mm or F70 Push Synchronizer
Note: Any load over 75 lbs requires a filler in addition to rear sockets
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Features:
Full extension slide for 1/2" (12 mm) to 5/8" (16 mm) drawer thickness
Push: opening system for handle-less drawers, fully integrated into the slide
Slight pressure of the drawer front is enough for the drawer to open
150 lbs Dynamic, 170 lbs Static load capacity
Integrated Push opening system
Elongated holes for depth and height adjustment
Adj. clips allow for easy drawer insertion/removal; special clip for narrow drawers
The drawer is latched when closed
Integrated tool free height adjustments + 2.5 mm
Tool free depth adjustments +/- 3 mm
Tool free side adjustments +/- 1.5 mm
Optional: tool free tilt adjustment +3 mm or F70 Push Synchronizer
Note: Any load over 75 lbs requires a filler in addition to rear sockets
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Downloads
Specifications
Length | |
Finish | Galvanized |
Drawer Length | 21" |
Closing Type | Push-to-Open |
Model | F70 PUSH |
Load Capacity | 170lb |
Travel | Full Extension |
Product Type | Undermount Drawer Slide |
Left or Right | Both (Pair) |
Cabinet Type | Face Frame |
Mounting Type | Undermount |
Material | |
Slide Type | |
Height | |
Certifications | |
Width | |
Material Thickness | 1/2" to 5/8" |
Cabinet Width | |
Thickness | |
Overlay |
