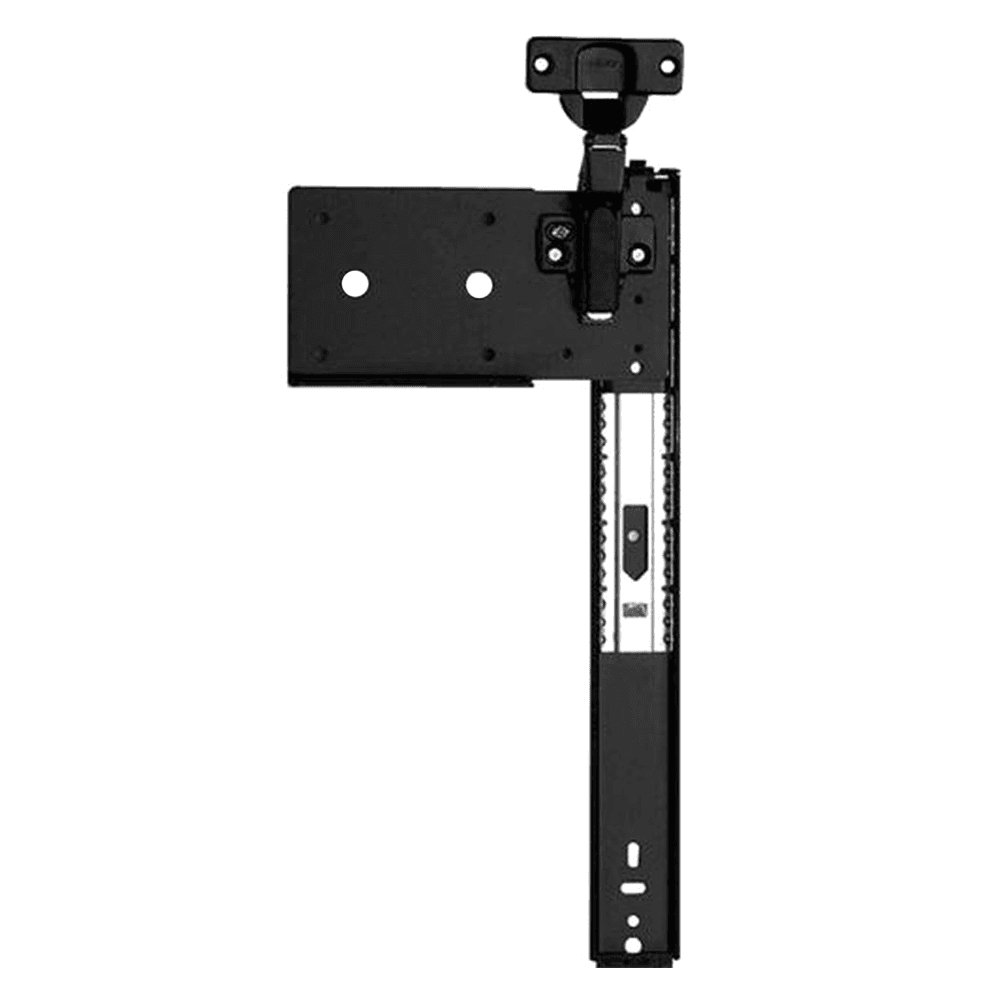

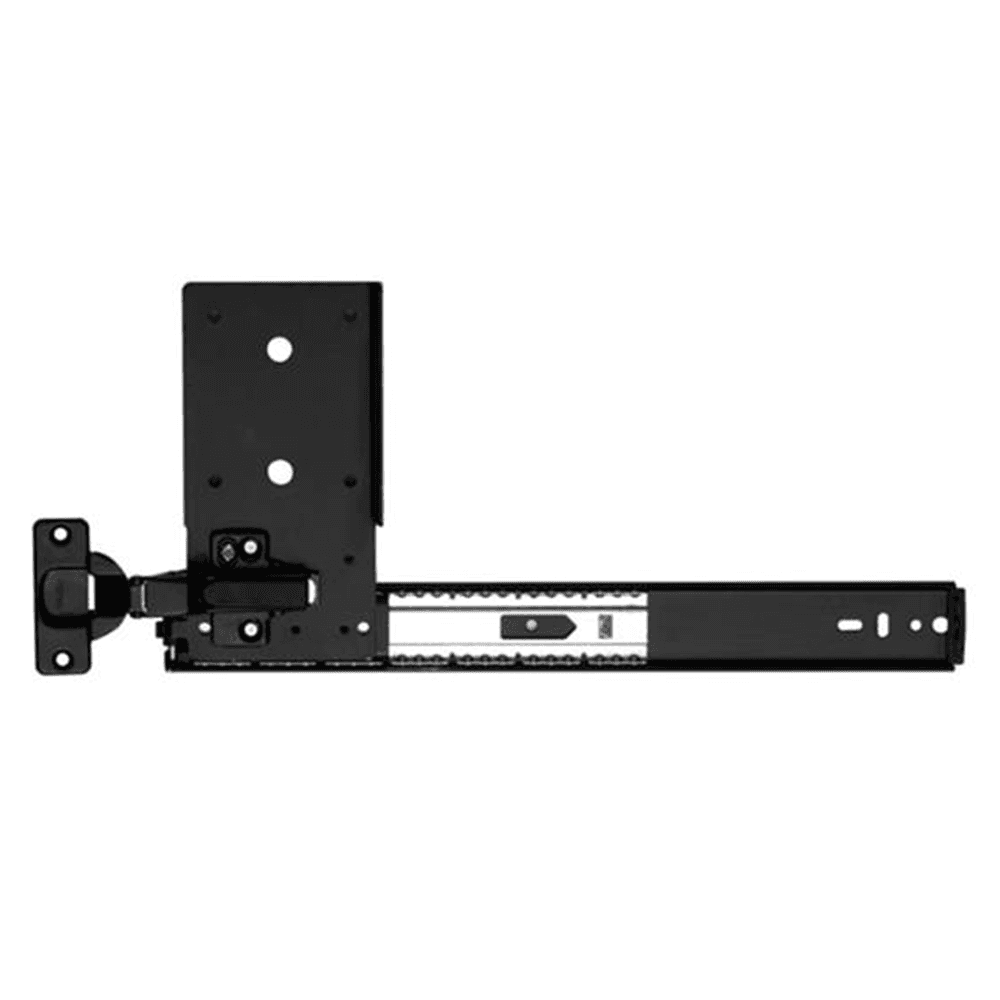

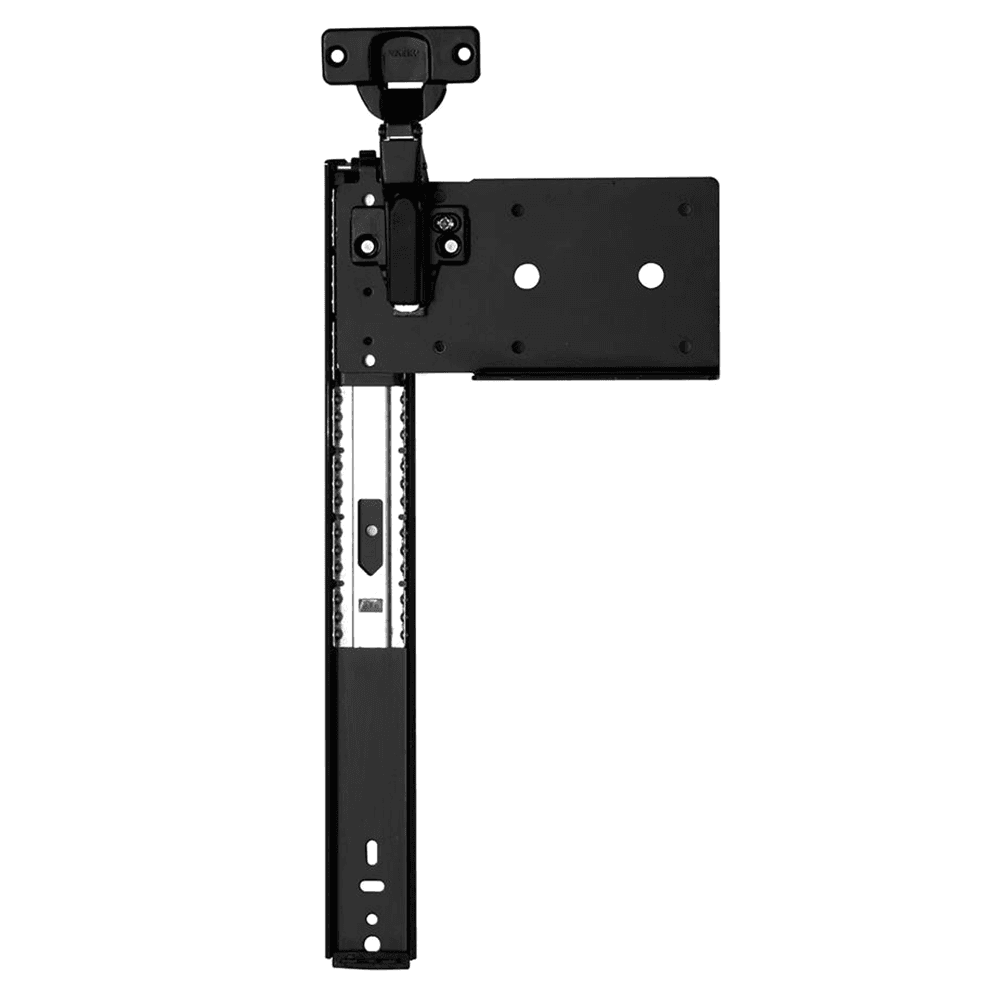

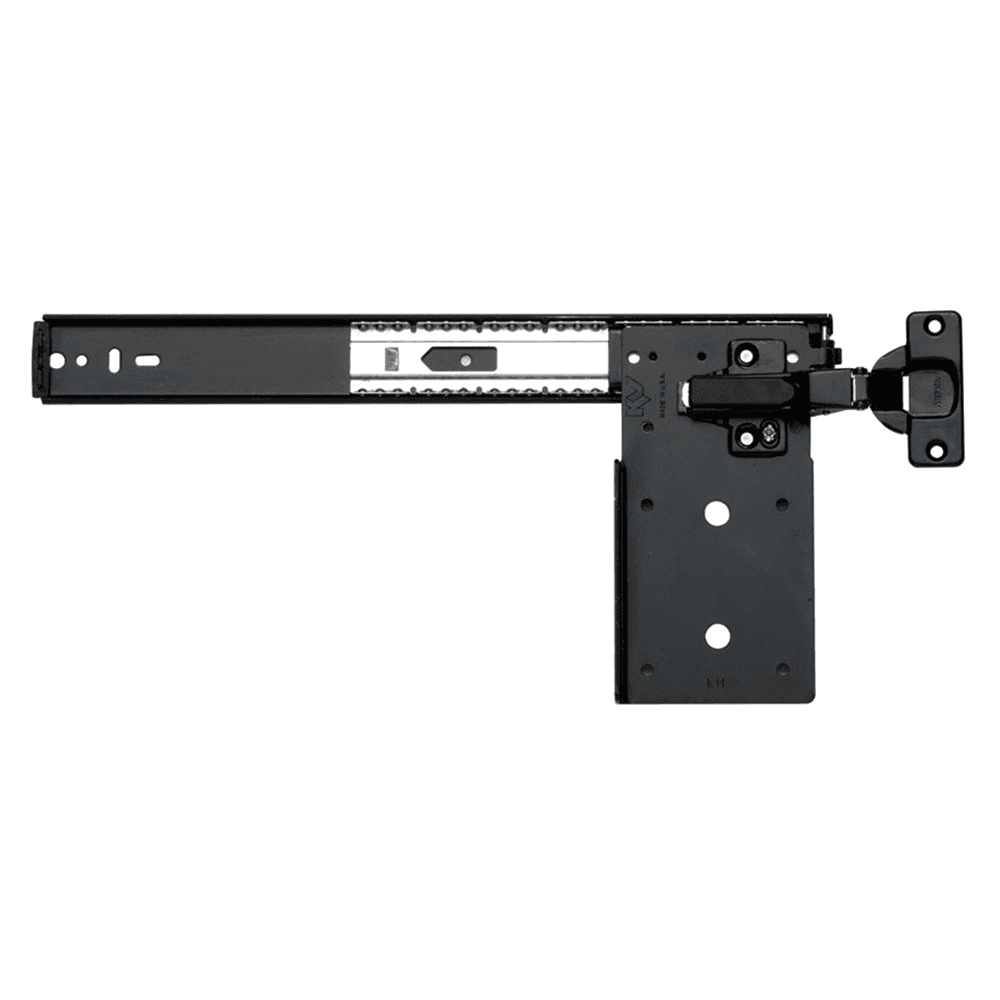

8080 EZ Pivot Door Slide with Hinge and Plate, 30lb Capacity, Anochrome, 12
Item # KV8080-12
•Mfr # 8080PEZ 12
$45.43
/Pair
10 items
$42.09/Pair
Length: 12"
Product Details
Features:
• 3/4 extension
• Mounts vertically or horizontally
• Recommended for 5/8" to 3/4" door and maximum door dimension of 24" x 42"
• Clip-on, self-closing three-way adjustable door hinge with 35mm cup bore diameter
• L-shaped follower-strip bracket for positive attaching and vertical alignment to wood follower-strip
• Cushioned stops and door hold-out feature and adjustable slots for installation ease
• Comes complete with hinges, rollers, screws and instructions
• 3/4 extension
• Mounts vertically or horizontally
• Recommended for 5/8" to 3/4" door and maximum door dimension of 24" x 42"
• Clip-on, self-closing three-way adjustable door hinge with 35mm cup bore diameter
• L-shaped follower-strip bracket for positive attaching and vertical alignment to wood follower-strip
• Cushioned stops and door hold-out feature and adjustable slots for installation ease
• Comes complete with hinges, rollers, screws and instructions
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 10 |
| Length | 12" |
| Finish | Anochrome |
| Left or Right | |
| Closing Type | Standard Closing |
| Load Capacity | 30lb |
| Travel | 3/4 Extension |
| Minimum Clearance | |
| Cup Diameter | |
| Door Thickness | |
| Cabinet Type | |
| Mounting Type | Side-Mount |
| Material | Steel |
| Slide Type | Ball Bearing |
| Product Type | Pivot Door Slide |
