1805 Euro Drawer Slide with 75lb Capacity, 3/4 Extension, Side-Mount, Self-Closing, White, 22", Taped Set
20 items
Length: 22"
Drawer Length: N/A
Load Capacity: 75lb
Product Type: Euro Drawer Slide
Product Details
Features:

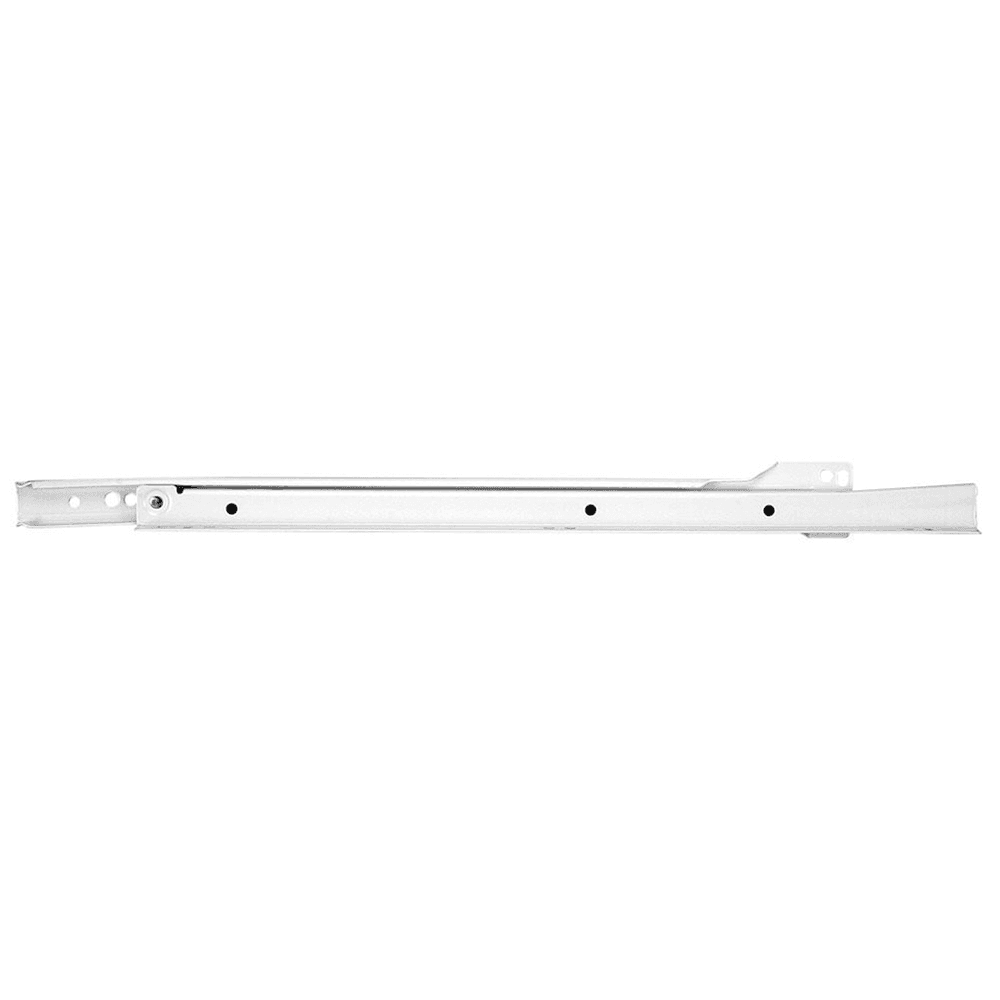

• 22" Epoxy Coated Euro Drawer Slide in White finish
• KV Model #1805 Series

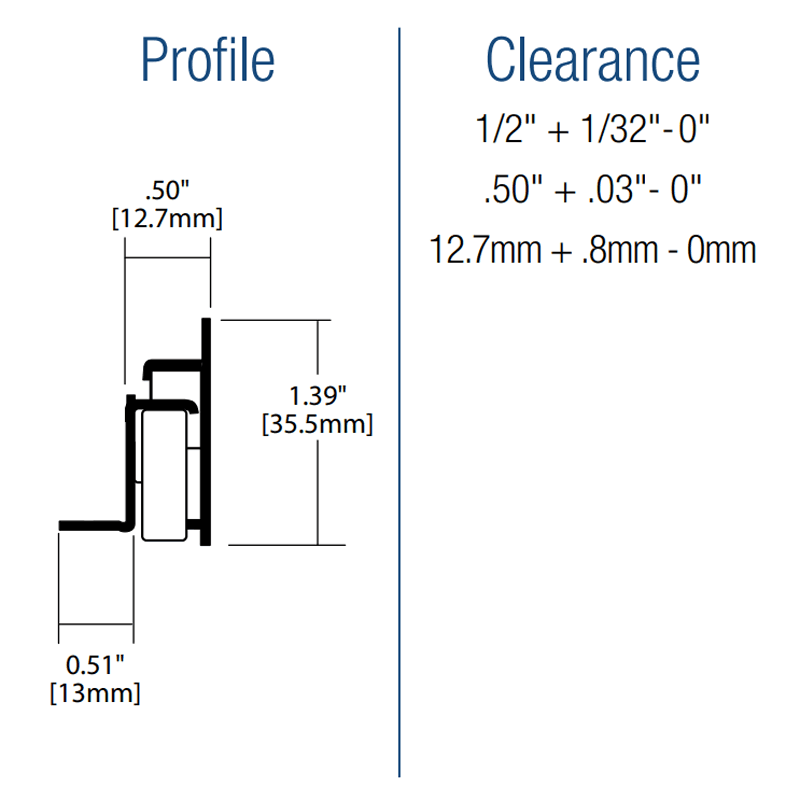

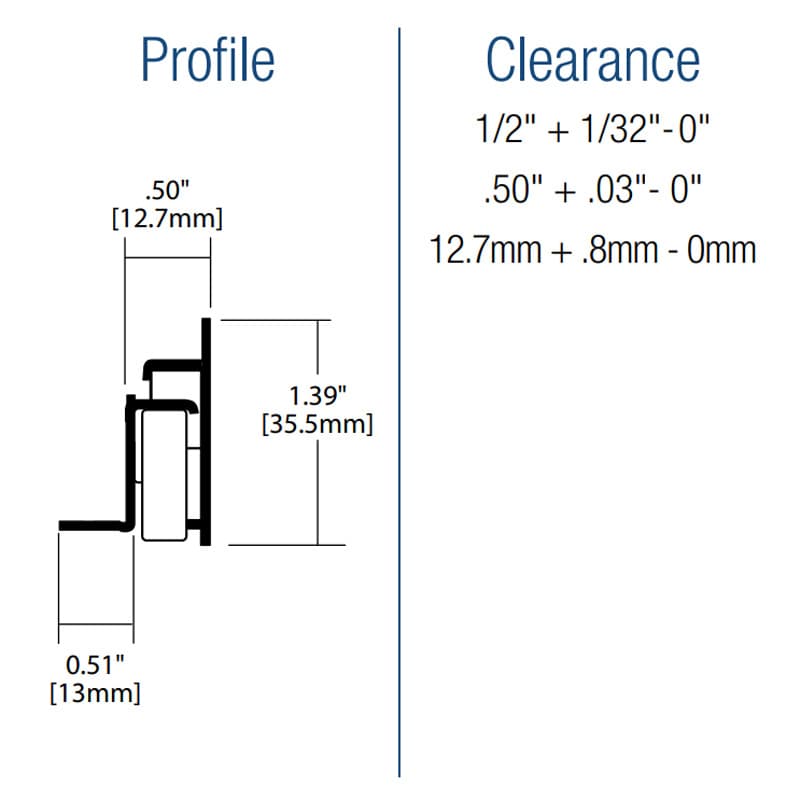

• Side clearance 1/2" (12.5mm) plus, 1/32" minus, 0" each side
• Height (35.5mm)
• 32mm Pattern: Yes
• Features: Self-closing design, positive double-out stop, lift out disconnect
• Recommended fasteners: #6 x 5/8" Phillips Pan Head
Taped Set - One pair of slides, no screws
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 20 |
| Length | 22" |
| Finish | White |
| Drawer Length | |
| Closing Type | Self-Closing |
| Model | |
| Load Capacity | 75lb |
| Travel | 3/4 Extension |
| Product Type | Euro Drawer Slide |
| Weight Capacity | |
| Left or Right | |
| Cabinet Type | |
| Minimum Clearance | |
| Mounting Type | Side-Mount |
| Material | |
| Hole Pattern | |
| Slide Type | |
| Application | |
| Height | |
| Depth | |
| Certifications | |
| Width | |
| Material Thickness | |
| Clearance |
