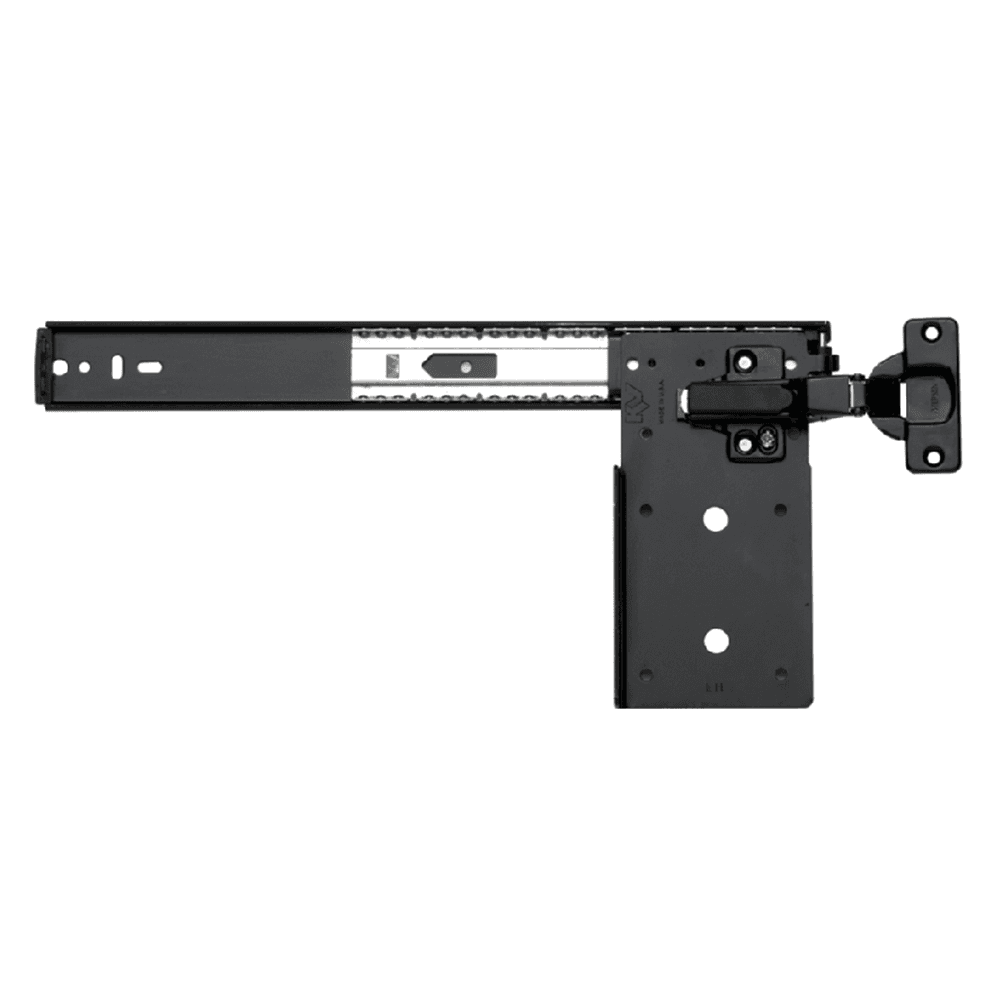

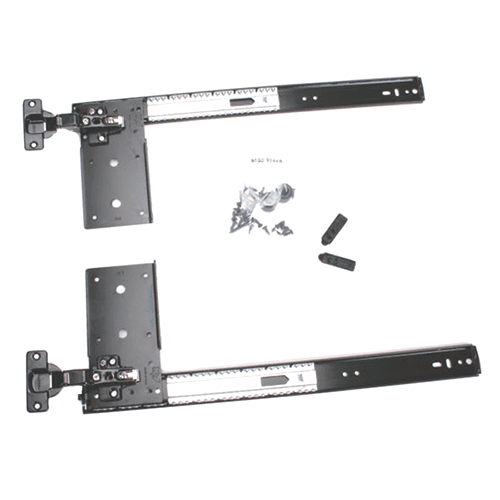

8082 EZ Pivot Door Slide with Baseplate (No Hinge), 30lb Capacity, Self-Closing, Ebony Black, 20", Polybag
Item # KV8082-20BK
•Mfr # 8082PEZ EB 20
Length: 20"
Finish: Ebony Black
Product Details
Features:
• 20" drawer length
• Pivot Door Slide available in Ebony Black finish
• Mounts vertically or horizontally
• Recommended for 5/8" to 3/4" door and maximum door dimension of 24" x 42"
• Clip-on, self-closing three-way adjustable door hinge with 35mm cup bore diameter
• L-shaped follower-strip bracket for positive attaching and vertical alignment to wood follower-strip
• Cushioned stops and door hold-out feature and adjustable slots for installation ease
• Hinge Not Included, Sold Seperately
• 20" drawer length
• Pivot Door Slide available in Ebony Black finish
• Mounts vertically or horizontally
• Recommended for 5/8" to 3/4" door and maximum door dimension of 24" x 42"
• Clip-on, self-closing three-way adjustable door hinge with 35mm cup bore diameter
• L-shaped follower-strip bracket for positive attaching and vertical alignment to wood follower-strip
• Cushioned stops and door hold-out feature and adjustable slots for installation ease
• Hinge Not Included, Sold Seperately
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 10 |
| Length | 20" |
| Finish | Ebony Black |
| Left or Right | |
| Closing Type | Self-Closing |
| Load Capacity | 30lb |
| Travel | 3/4 Extension |
| Minimum Clearance | 1-23/32" |
| Cup Diameter | |
| Door Thickness | |
| Cabinet Type | |
| Mounting Type | Side-Mount |
| Material | Steel |
| Slide Type | Ball Bearing |
| Product Type | Pivot Door Slide |
