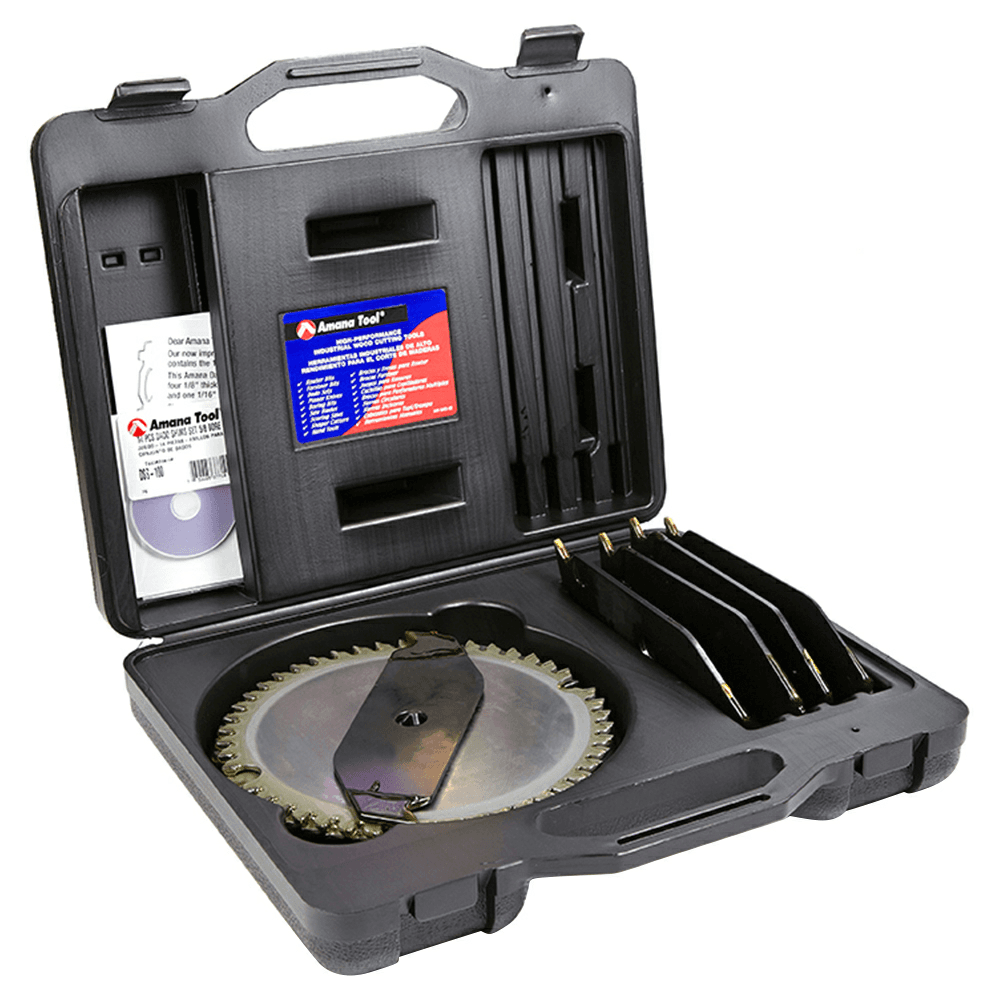

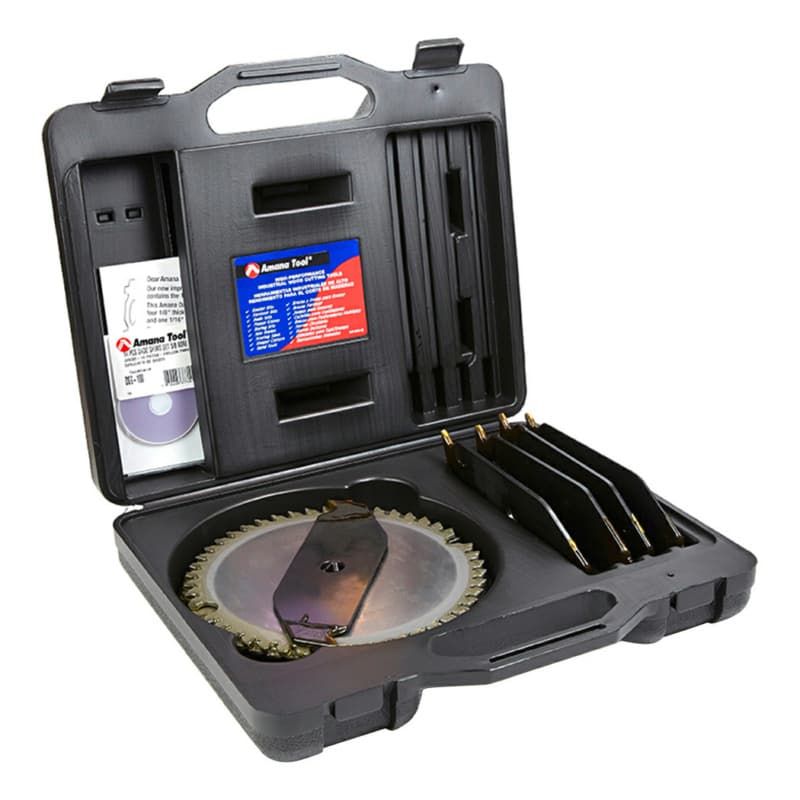

8" x 46 Teeth Dado Saw Blade Set with Five 2-Wing Chippers
Item # AN658040-1
•Mfr # 658040-1
Product Details

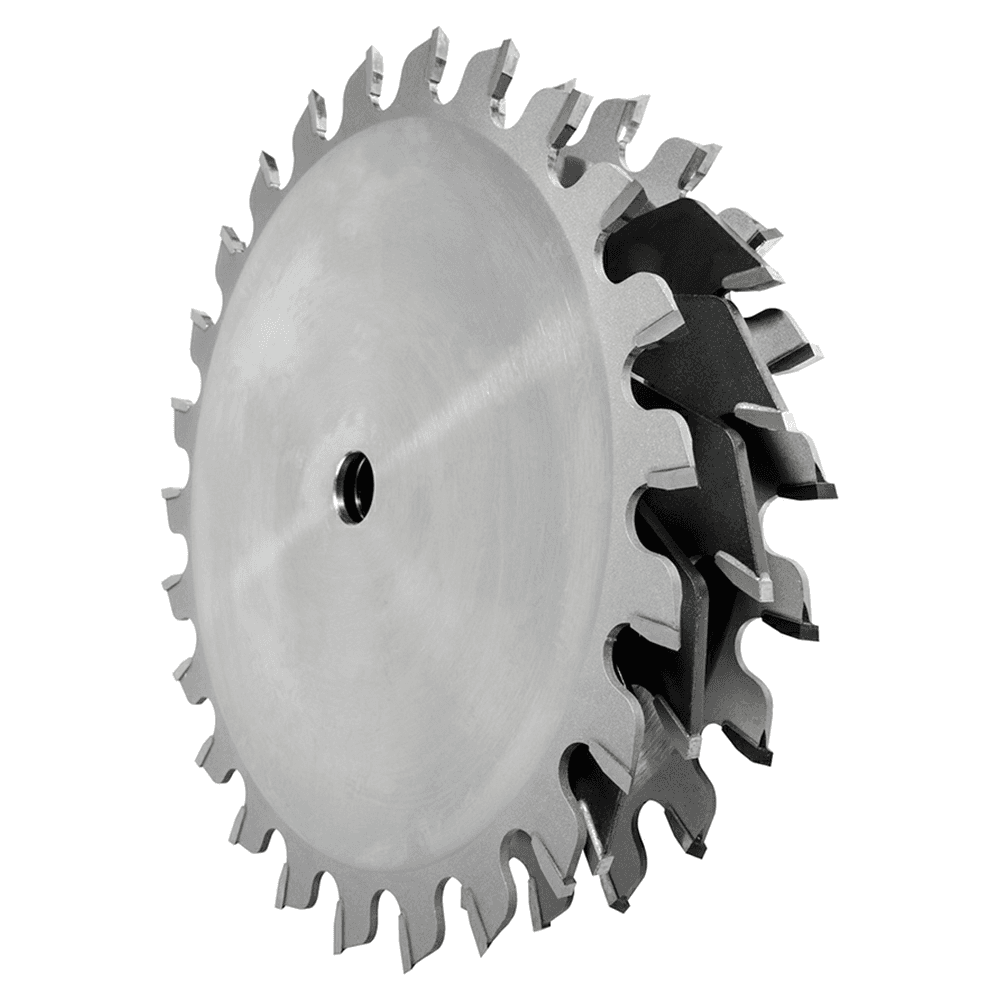

Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4" to 13/16". Additional chippers may be purchased separately to expand the capacity beyond 13/16". The standard set, regardless of diameter or tooth count, consists of two outside saw blades and four inside chippers. The outside blades feature hollow-ground plates for proper clearance, and alternate top bevel (ATB) grind with every sixth tooth flat ground (FT).
For plywood and melamine, the sets with 46-tooth outside blades are recommended. Teeth refers to the number of teeth for each outside saw blade.
For plywood and melamine, the sets with 46-tooth outside blades are recommended. Teeth refers to the number of teeth for each outside saw blade.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Arbor | 1" |
| Blade Diameter | 8" |
| Blade Type | Dado |
| Blade Material | Carbide Tipped |
| Kerf | 1/4" - 13/16" |
| Number of Teeth | 46 |
| Bore Diameter | 1" |
| Hook Angle | -5° |
| Tooth Grind Type | Alternating Top Bevel/Flat Top Grind |
