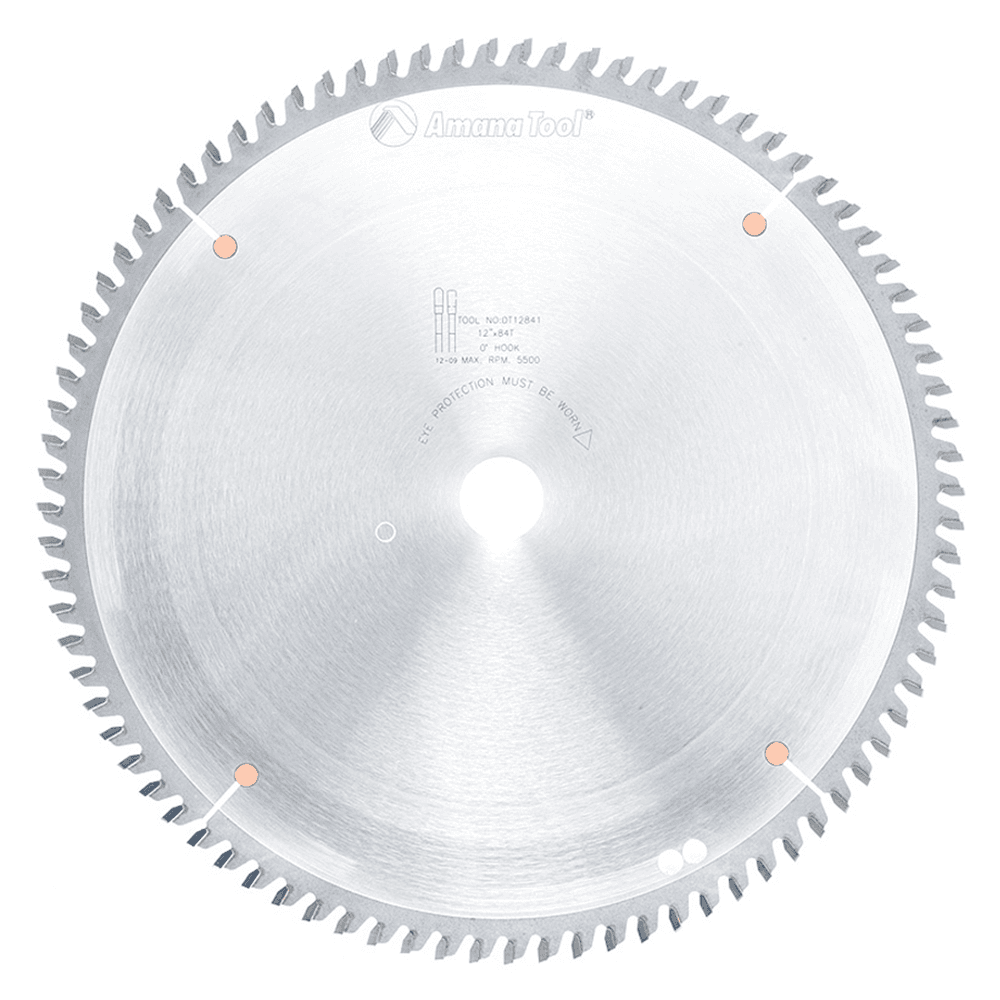

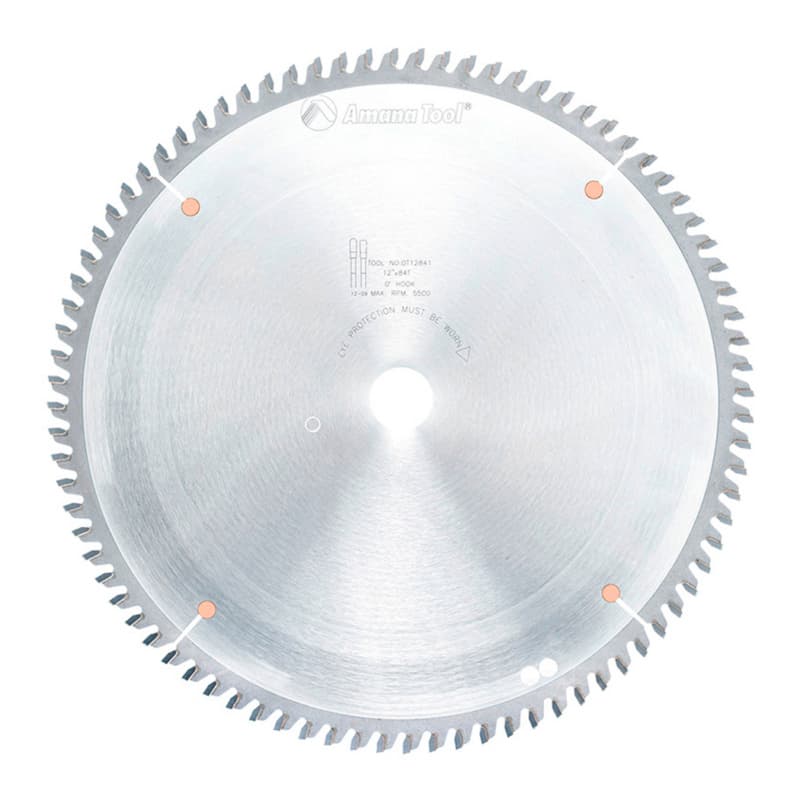

12" x 84 Teeth Ditec Solid Surface Saw Blade
Item # ANDT12841
•Mfr # DT12841
$322.51
/Each
Min Order: 1
Qty mult. by: 1
Product Details

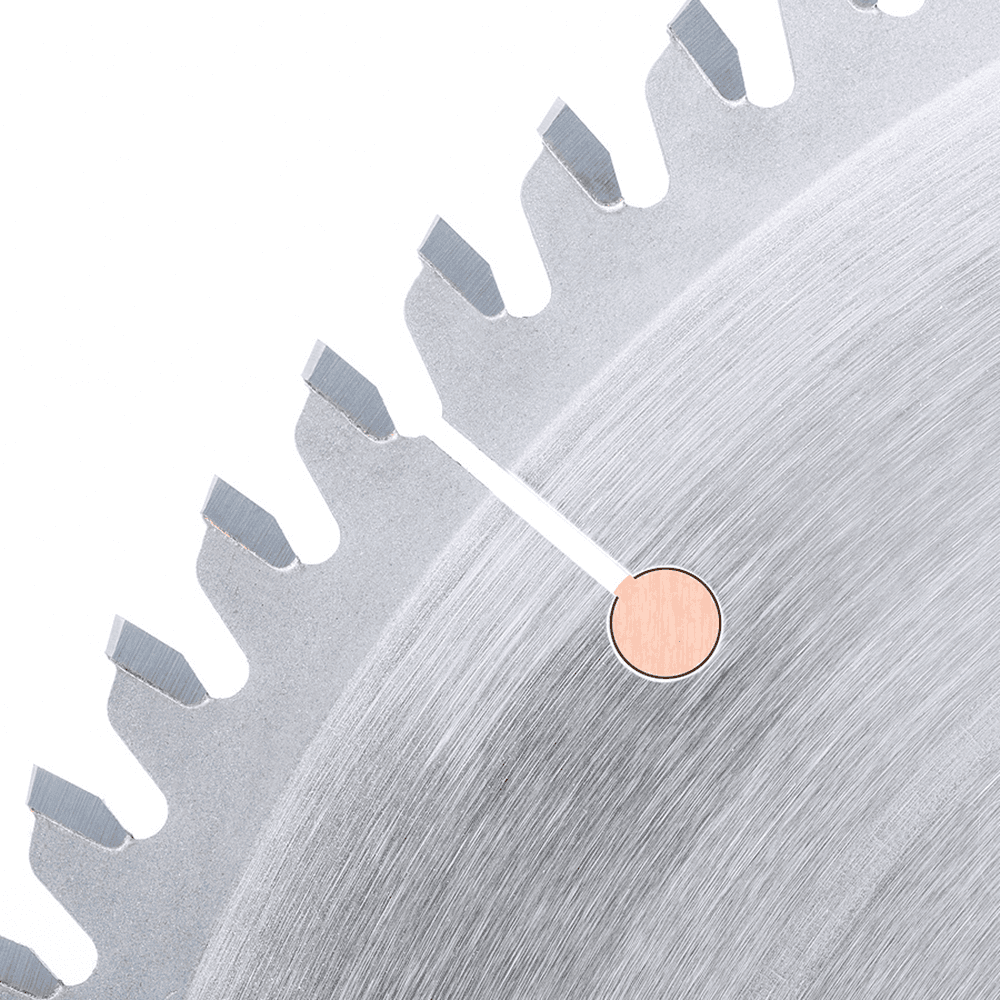

These blades are designed for cutting plastic laminate, Plexiglas, and solid surface materials such as Dupont Corian, Wilsonart, Gibraltar and Fountainhead. The DITEC carbide tips are ground in a triple chip geometry unique to this blade, and leave a swirl-free cut in solid surface materials. The thick, stable plate reduces vibration that degrades the cut and shortens tool life. The blade is suitable for a variety of saw configurations. Its 0? hook angle virtually eliminates self-feeding when used with a radial arm saw.
Features:
• Exclusive DITEC Carbide Tips
• Higher Reliability and Lower Maintenance
• Low Noise Level
• Laser Cut Saw Bodies
• Excellent Cutting Quality
Instructions for Grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
• Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
• Since the carbide in the DITEC is harder than other carbides, it is critical that you protect them from "thermal shock" if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC carbide
Features:
• Exclusive DITEC Carbide Tips
• Higher Reliability and Lower Maintenance
• Low Noise Level
• Laser Cut Saw Bodies
• Excellent Cutting Quality
Instructions for Grinding:
• For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
• Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
• Since the carbide in the DITEC is harder than other carbides, it is critical that you protect them from "thermal shock" if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC carbide
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Product Type | |
| Application | Solid Surface |
| Arbor | 1" |
| Blade Diameter | 12" |
| Blade Type | Swirl-Free |
| Blade Material | Carbide Tipped |
| Kerf | 3.2mm |
| Number of Teeth | 84 |
| Bore Diameter | 1" |
| Hook Angle | 0° |
| Tooth Grind Type | Special Triple Chip Grind |
