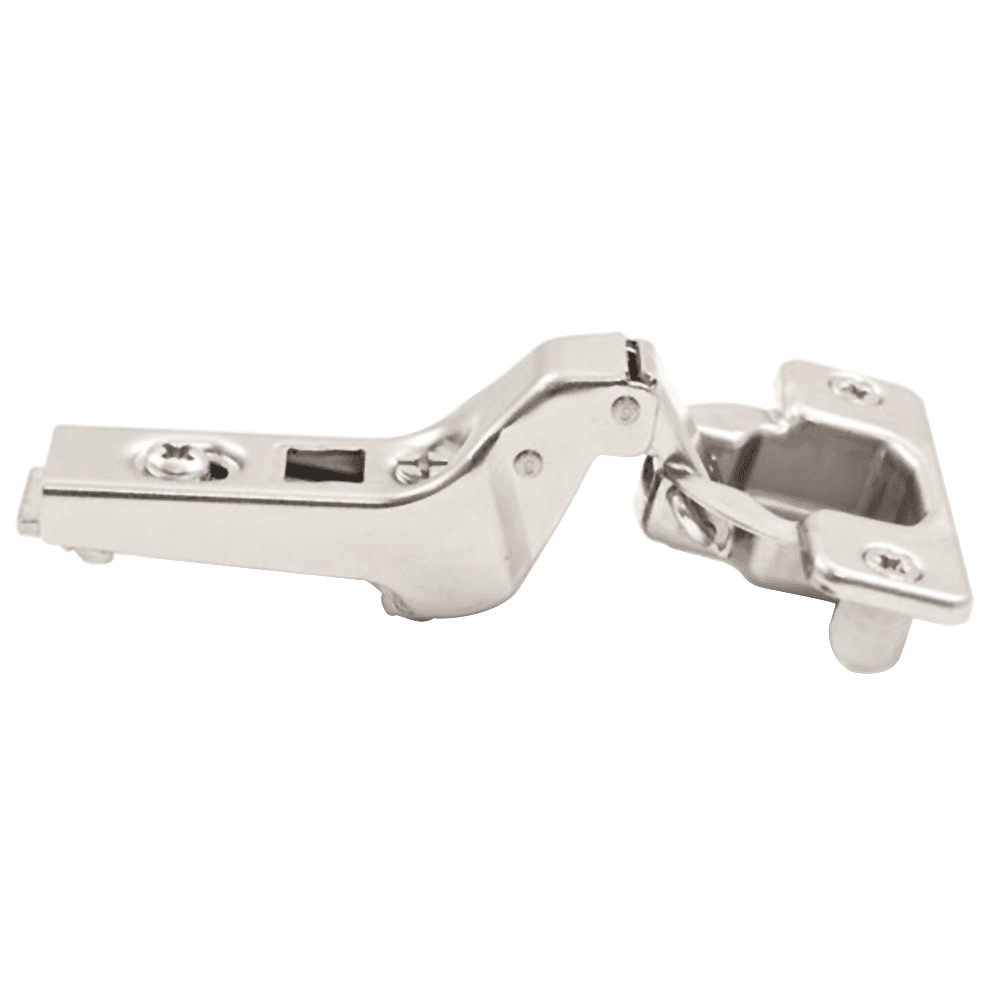

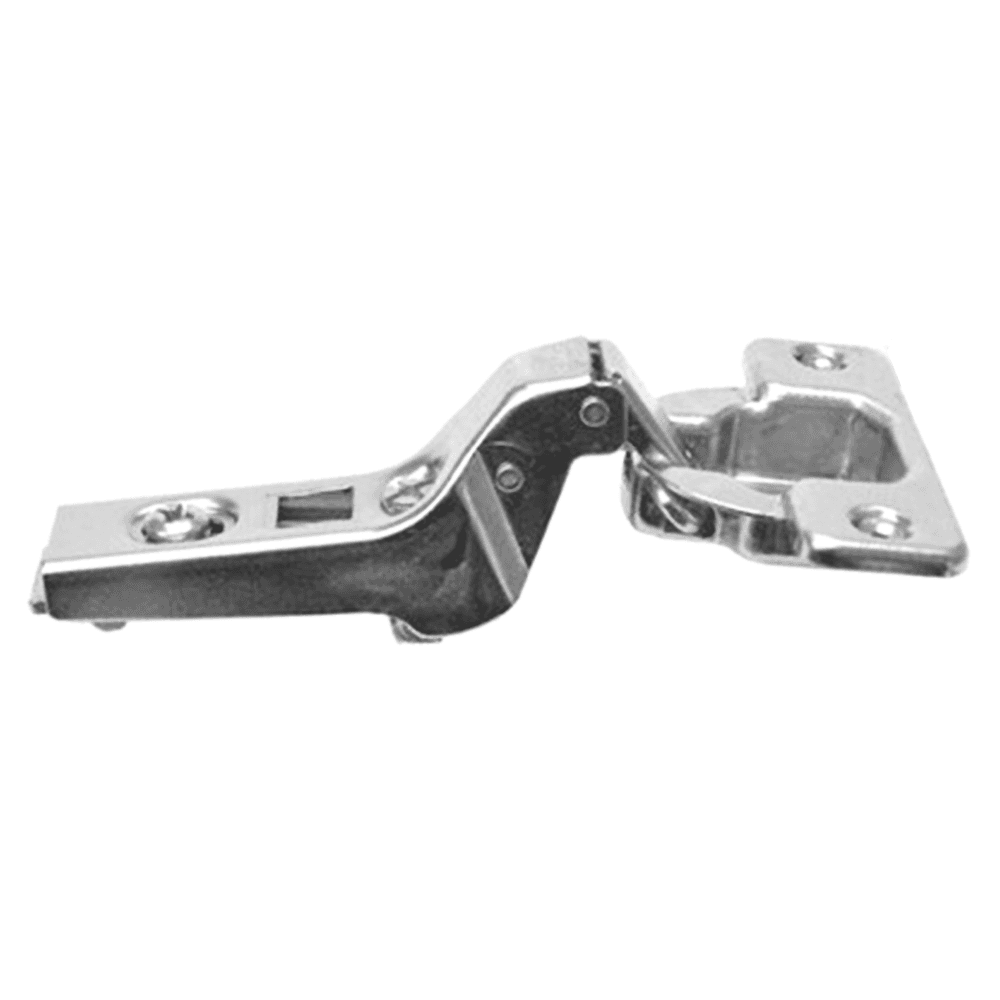

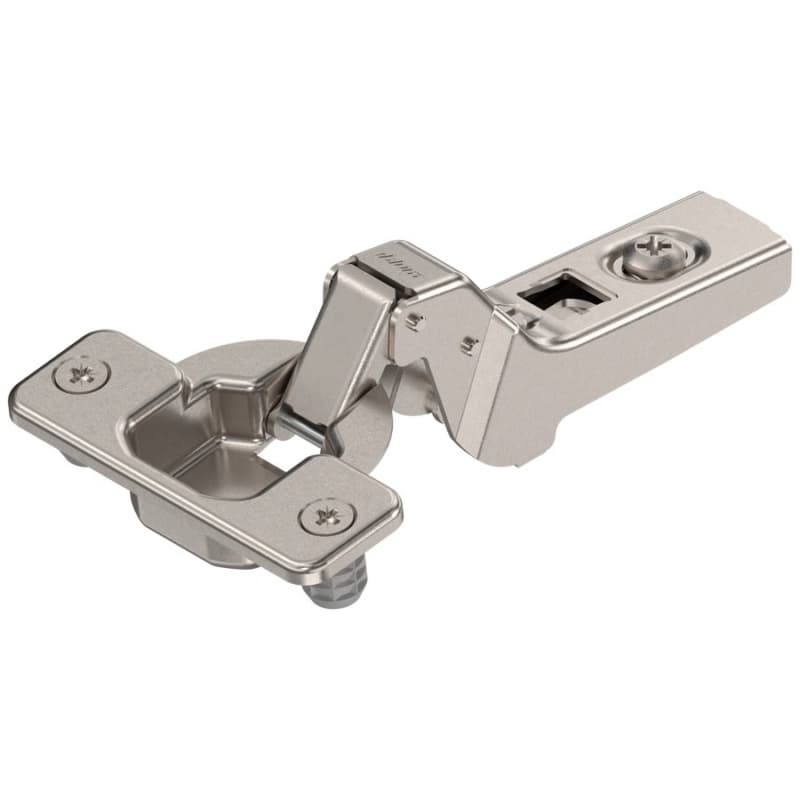

Clip 100° Opening Hinge, 45mm Bore Pattern, Free-Swinging, Inset, Nickel-Plated, Dowelled
50 items
250 items
Mounting Type: Dowelled
Product Details
The Blum CLIP Series 100° free-swinging screw-on hinge installs on face-frame and frameless cabinets effortlessly. Its corner merge application cranking enables sideways positioning of doors. Equipped with CLIP mechanism, the doors can be easily installed and removed without tools.
Features:
• Three-dimensional adjustment
• Available with INSERTA attachment
• For door thicknesses up to 24 (15/16")
• All metal hinge, nickel-plated
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 50 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Free-Swinging |
| Opening Angle | 100° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
