Clip 100° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Screw-On
250 items
500 items
Mounting Type: Screw-On
Product Details

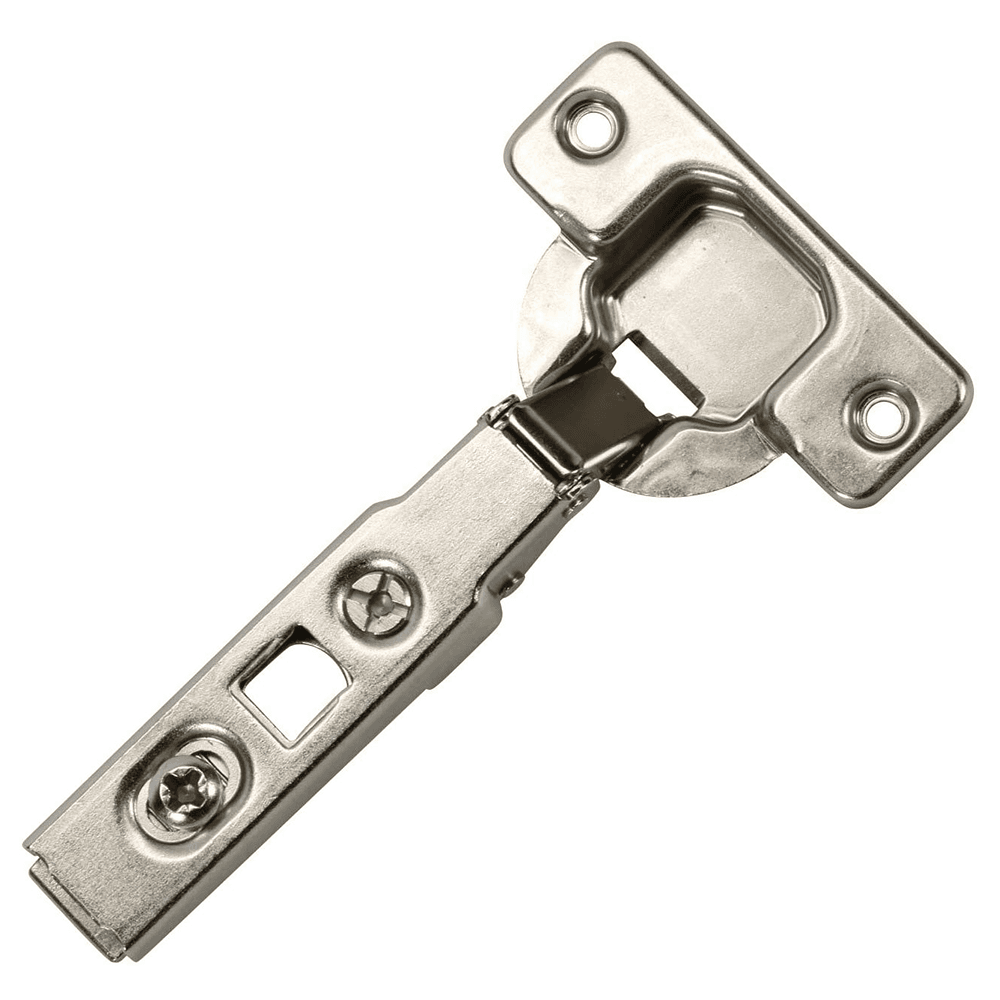

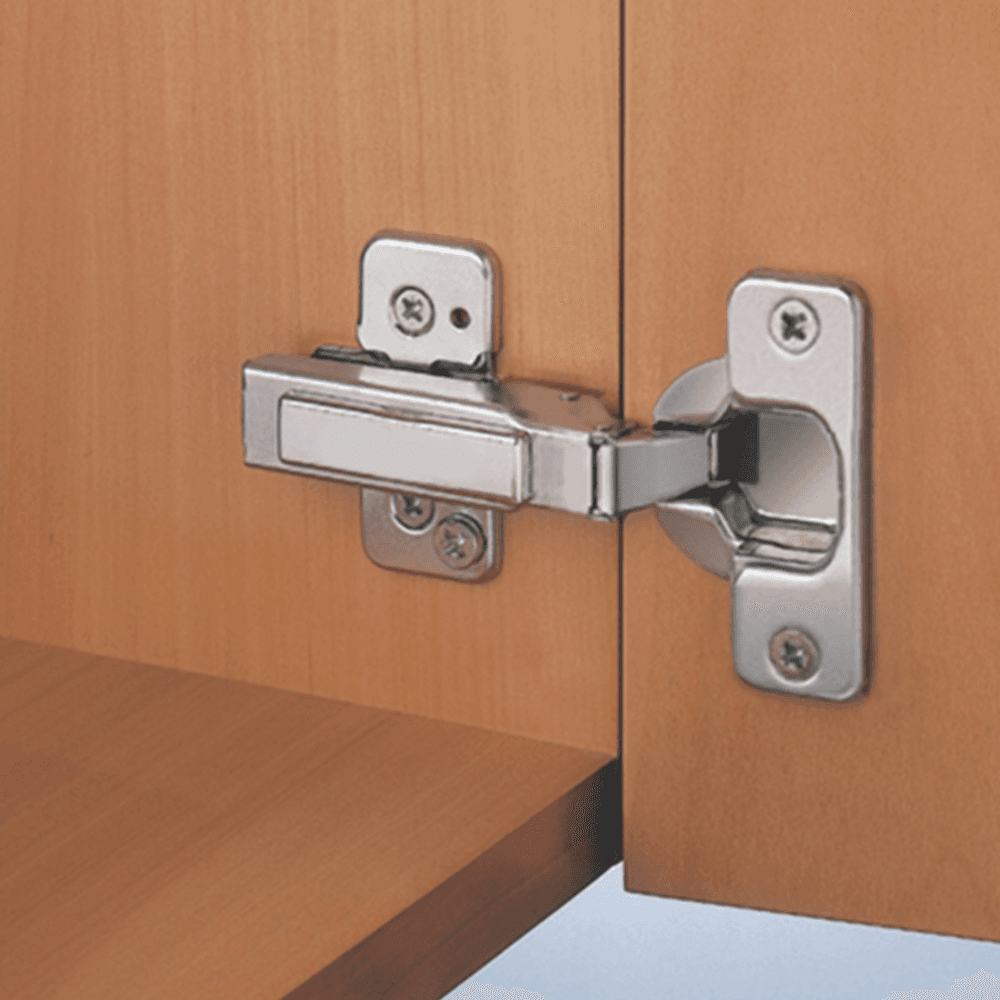

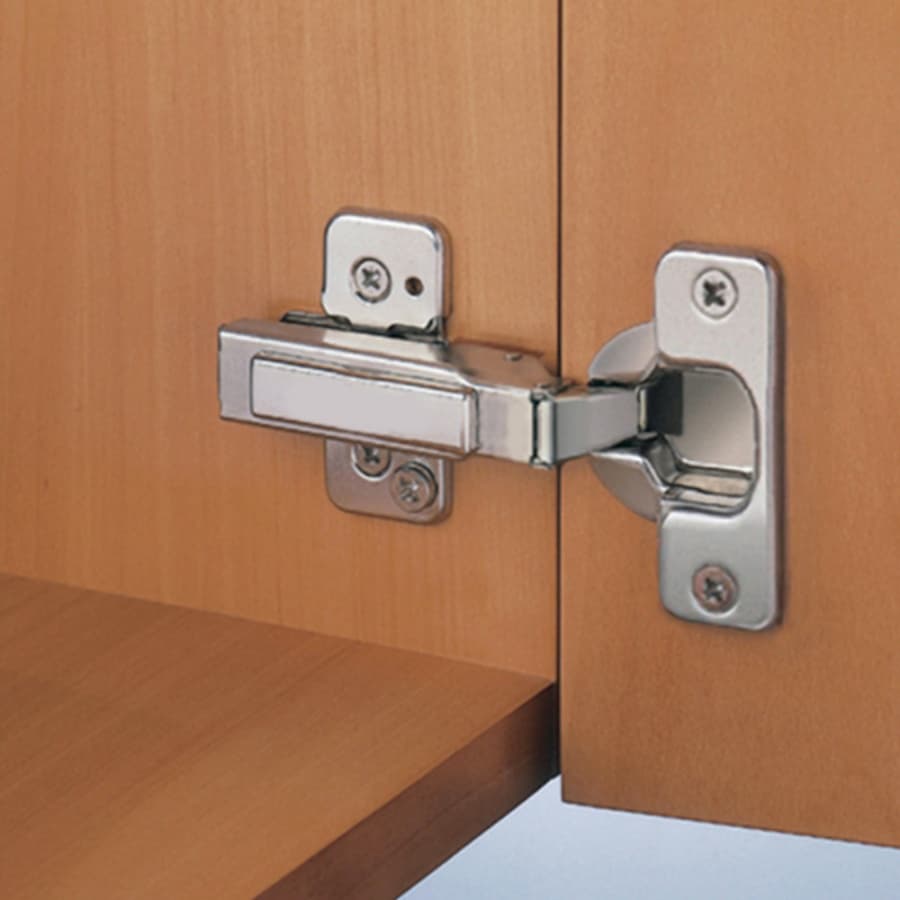

The Blum CLIP 100° full-overlay hinge mounts to face-frame and frameless cabinet doors. Its spring equipped closing mechanism provides more flexibility to door movements. Soft-closing action is activated by combining it with the BLUMOTION add-on. This screw-on hinge designed with an all-metal construction and nickel-plating lasts longer. Its straight arm results in efficient cranking action.
Features:
• 100° opening angle
• Overload safety feature safeguards BLUMOTION
• Three-dimensional adjustment
• For door thicknesses up to 24 (15/16")
• All metal hinge, nickel-plated
• Add-on BLUMOTION soft close available
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 100° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
