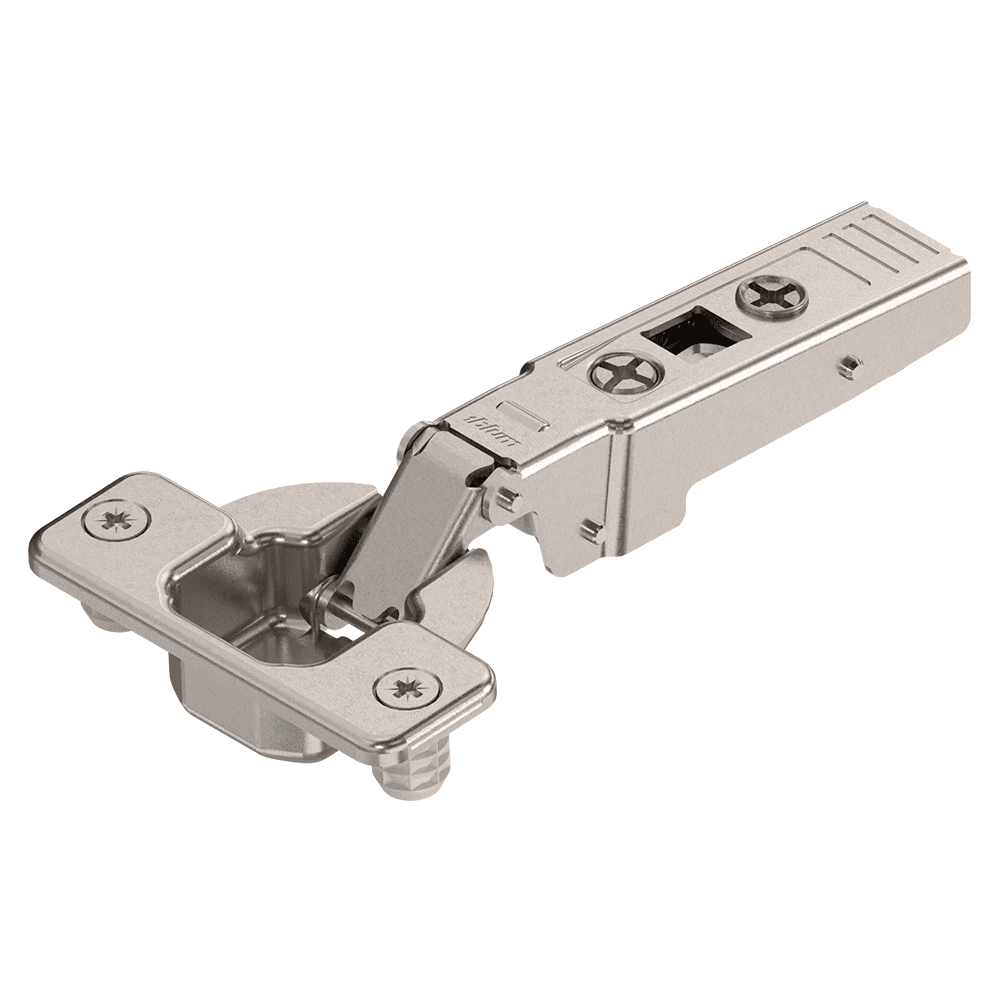

Clip Top 95° Opening Hinge, 45mm Bore Pattern, Free-Swinging, Full Overlay, Nickel-Plated, Dowelled
50 items
250 items
Mounting Type: Dowelled
Product Details

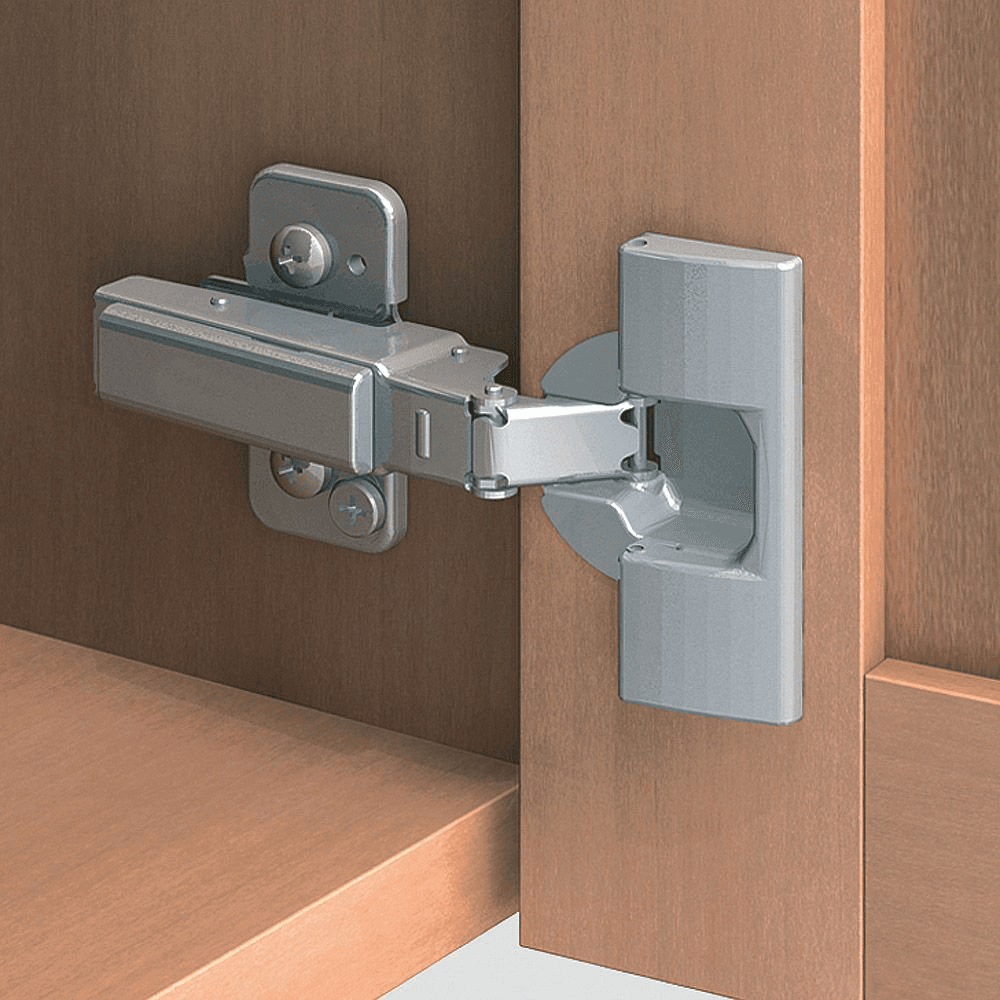

CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets.
Features:
• Three-dimensional adjustment
• Available with INSERTA attachment
• For door thicknesses up to 30 (1-3/16")
• All metal hinge, nickel-plated
• Add-on BLUMOTION soft close available
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Free-Swinging |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.3mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
