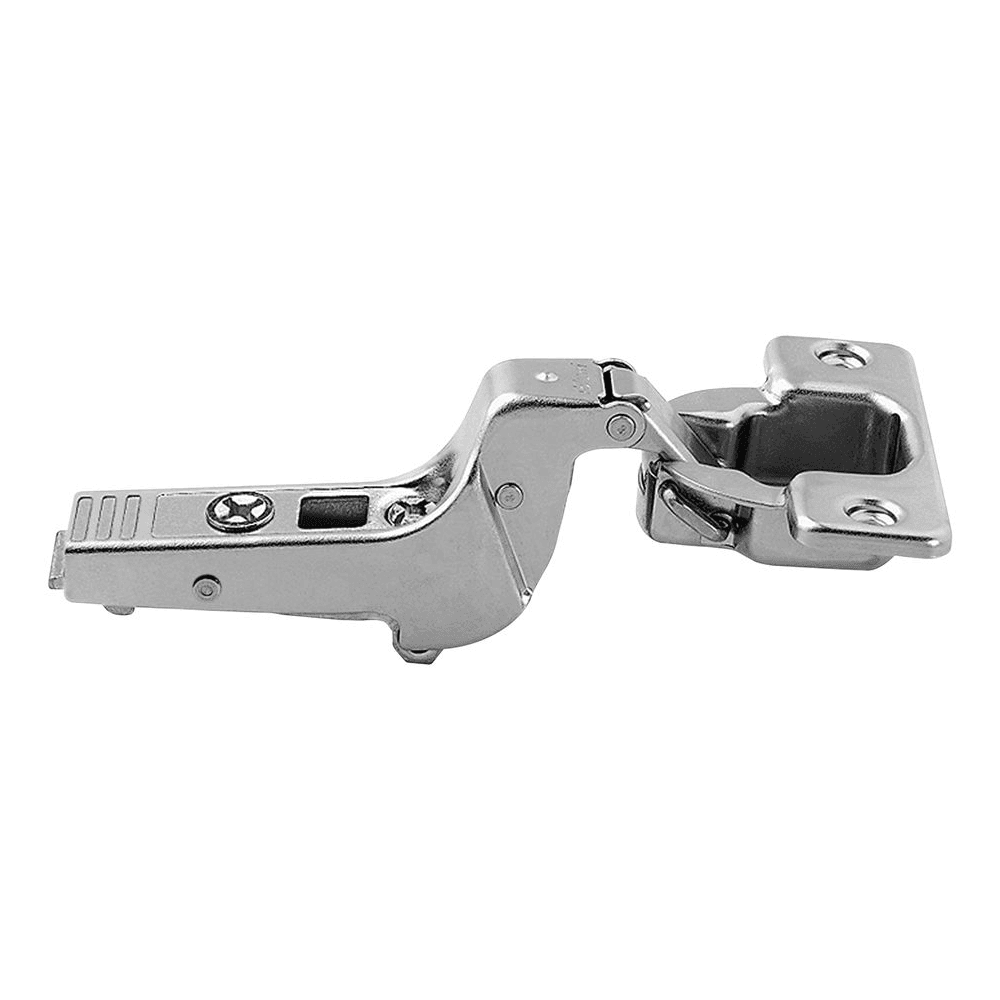

Clip Top 95° Opening Thick Door Hinge, 45mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Screw-On
50 items
Mounting Type: Screw-On
Product Details
CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets. CLIP top hinges can also be easily upgraded with soft closing BLUMOTION making them a flexible and reliable option for any cabinet
Features:
• Three-dimensional adjustment
• Available with INSERTA attachment
• For door thicknesses up to 30mm (1-3/16")
• All metal hinge, nickel-plated
• Add-on BLUMOTION soft close available
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Mounting Type | Screw-On |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |

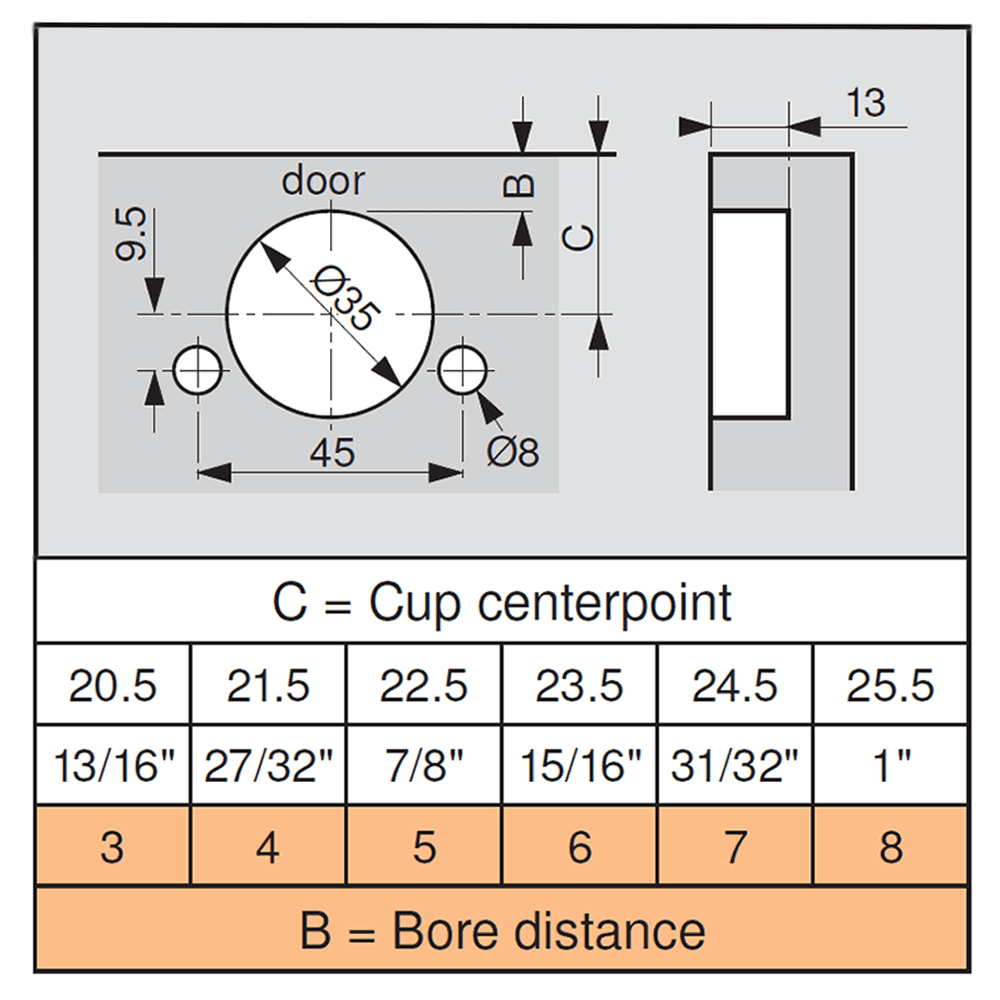

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
