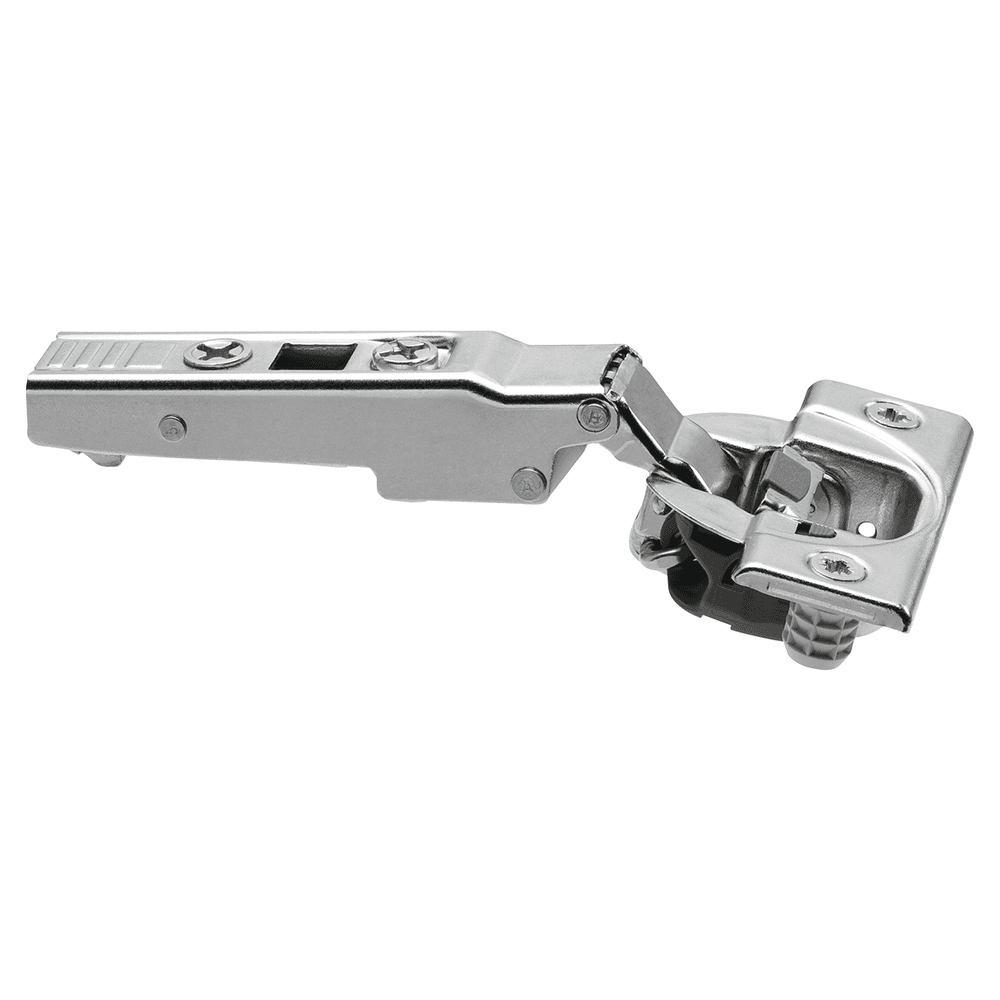

Clip Top 110°+ Opening Hinge with BLUMOTION Soft-Closing, 45mm Bore Pattern, Full Overlay, Nickel-Plated, Dowelled

Soft, silent, and superior performance is what you’ll get with the Blum CLIP top 110°+ soft-close cabinet hinges. Precision engineered for smooth motion and long-term durability, the BLUMOTION soft-close hinge mechanism is integrated directly into the Blum soft-close hinge cup, eliminating the need for additional components while maintaining a clean aesthetic.

A trusted choice for professionals and hobbyists, Blum soft-close cabinet hinges offer lasting performance with a sleek, concealed design. Designed for full overlay doors with a 45mm bore pattern, this nickel-plated dowelled Blum 110°+ cabinet hinge installs easily and functions reliably over thousands of cycles.

 A brilliant opening hinge for residential and commercial cabinetry, the Blum 110°+ hinge features a deactivation switch for lighter doors, an overload safety feature, and compatibility with standard CLIP mounting plates. As part of Blum’s trusted hinge family, this model is a premium option for kitchen cabinets, bathroom vanities, and custom furniture.

Features:

• 110° opening angle

• All-metal construction with nickel-plated finish

• BLUMOTION soft-close integrated into the hinge cup

• Compatible with CLIP mounting plates and cover caps

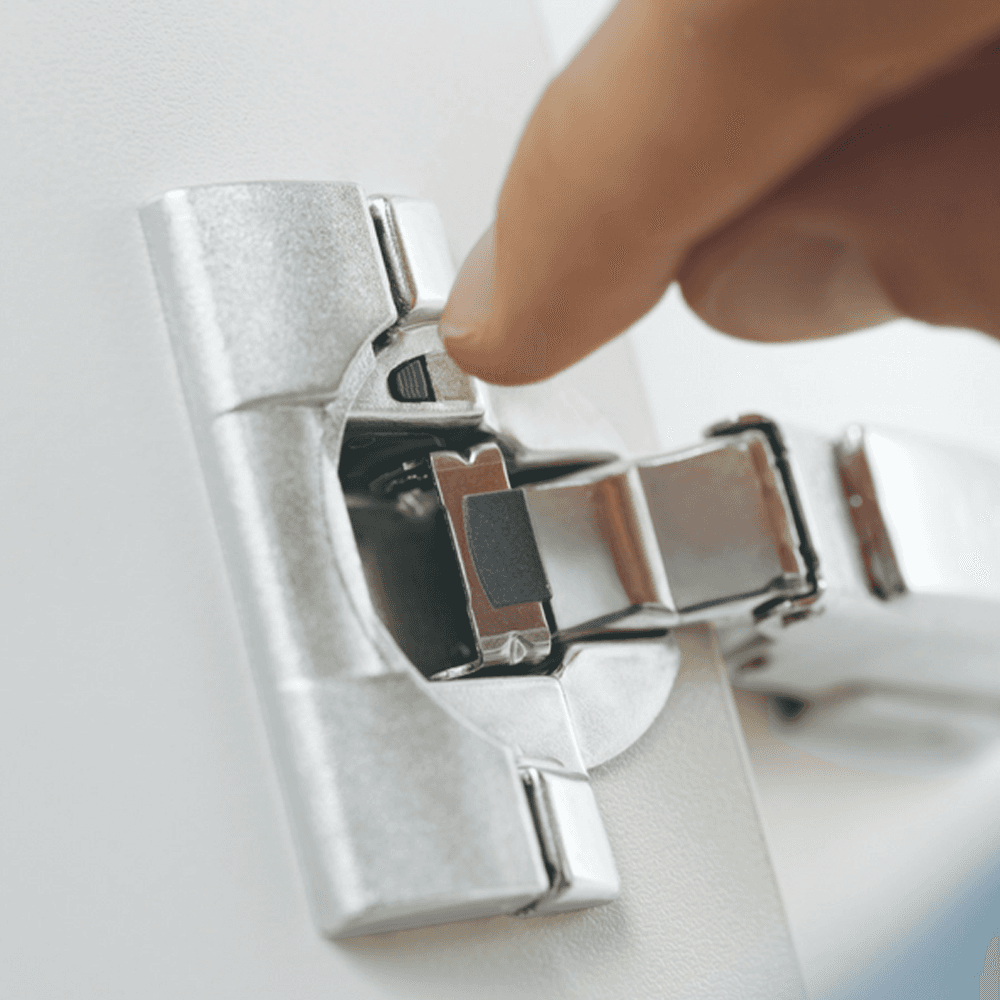

• Deactivation switch for light doors

• For door overlays up to 22mm (7/8”)

• For door thicknesses up to 26mm (1”)

• Overload safety feature

• Tool-free dowel insertion

• Works with face frame and frameless cabinets

• Made in the USA

Installation Notes:

• 86° angle restriction CLIP (Blum 70T3553) available if needed

• Compatible with standard CLIP wing mounting plates (sold separately)

• Confirm proper cup depth for 45mm bore pattern installation

• Dowelled design is ideal for tool-free press-fit installations

• Snap-on assembly with CLIP mounting plates

• Suitable for full overlay applications
