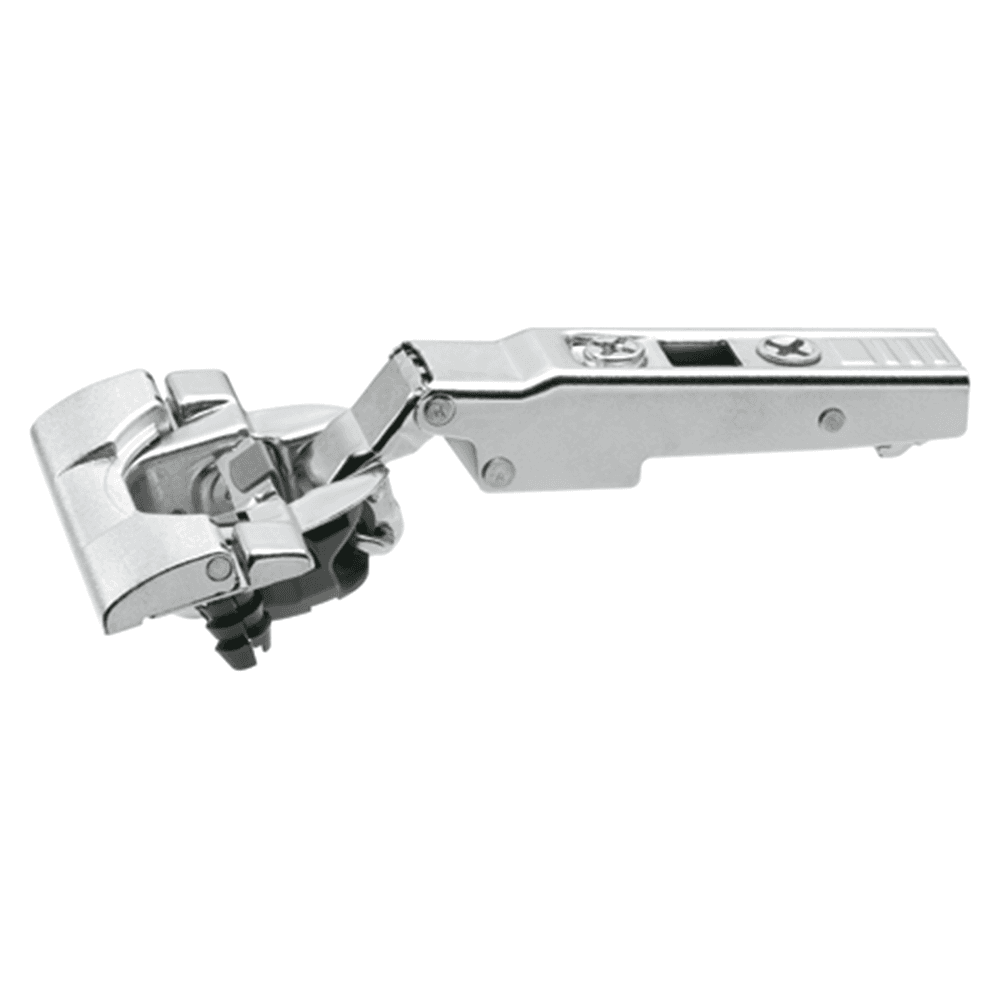

Clip Top 110°+ Opening Hinge with BLUMOTION Soft-Closing, 45mm Bore Pattern, Full Overlay, Nickel-Plated, Inserta
Item # B73B359
•Mfr # 73B3590
$4.48
/Each
250 items
$4.42/Each
3000 items
$4.33/Each
6000 items
$4.27/Each
Mounting Type: Tool-Free
Finish: Nickel-Plated
Min Order: 1
Qty mult. by: 1
Product Details

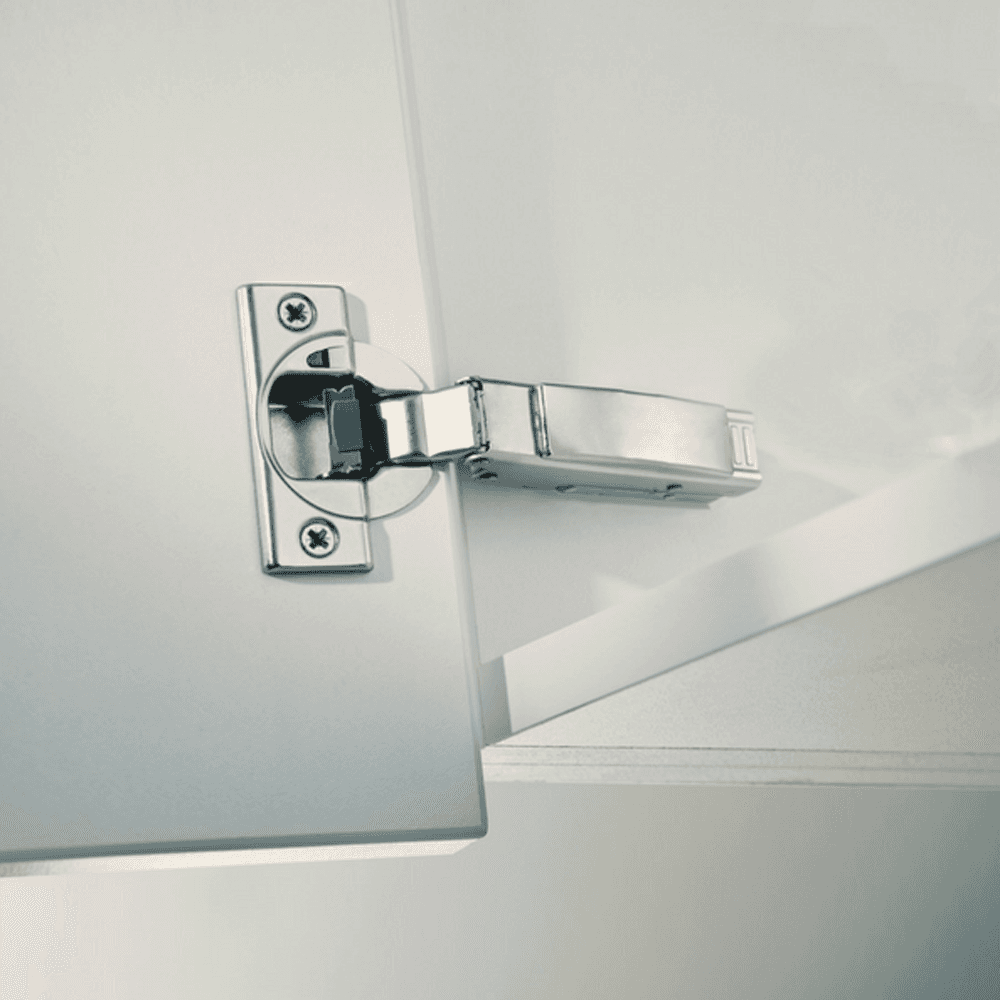

Silent and effortless, that's how cabinet doors close with Blum hinges - regardless of the weight or closing speed. CLIP top BLUMOTION hinges have the soft close mechanism integrated in the hinge cup, and continues to provide the quality of motion you have come to expect from Blum.
Features:
• BLUMOTION integrated into the hinge cup

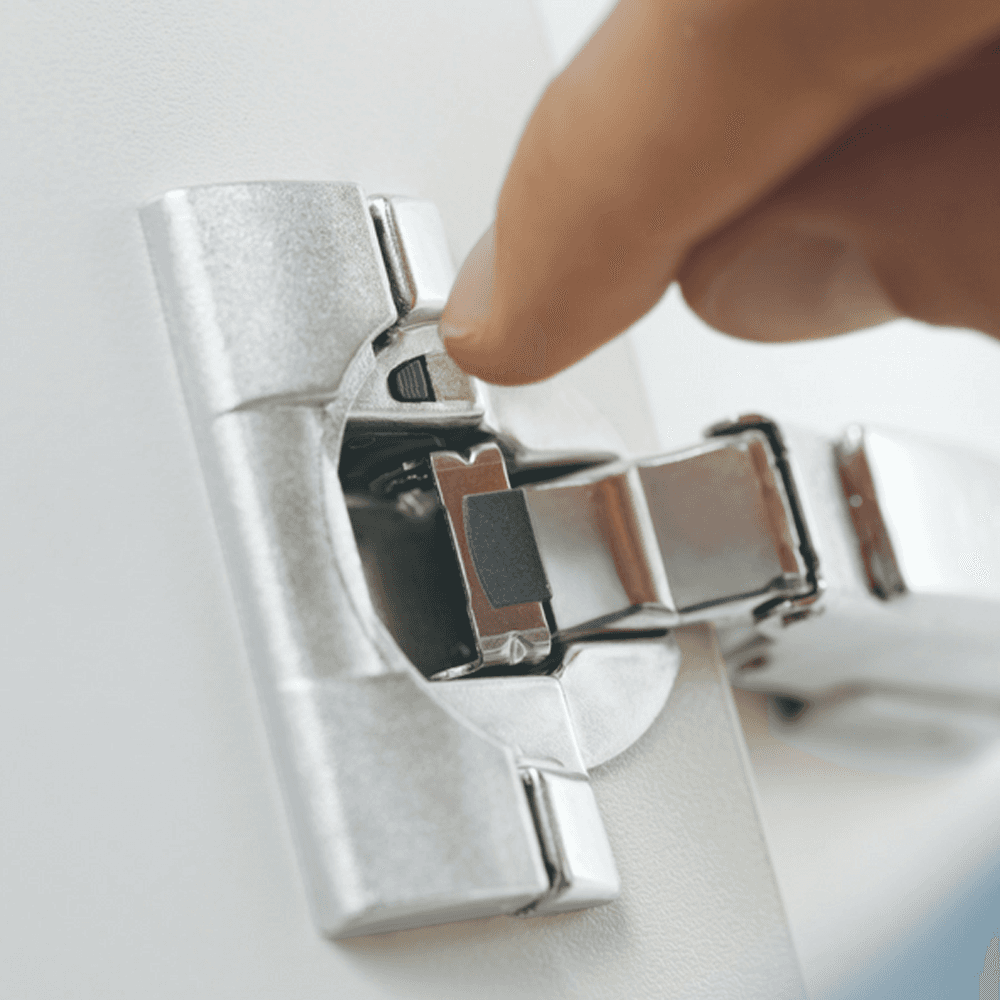

• Deactivation switch for small/light doors
• For door thicknesses up to 26 (1")
• Overload safety feature
• For door overlays up to 22mm (7/8")
• 86˚ angle restriction clip available (70T3553)
• Compatible with existing CLIP mounting plates and hinge arm cover caps
Features:
• BLUMOTION integrated into the hinge cup
• Deactivation switch for small/light doors
• For door thicknesses up to 26 (1")
• Overload safety feature
• For door overlays up to 22mm (7/8")
• 86˚ angle restriction clip available (70T3553)
• Compatible with existing CLIP mounting plates and hinge arm cover caps
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Tool-Free |
| Overlay | Full Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110°+ |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
