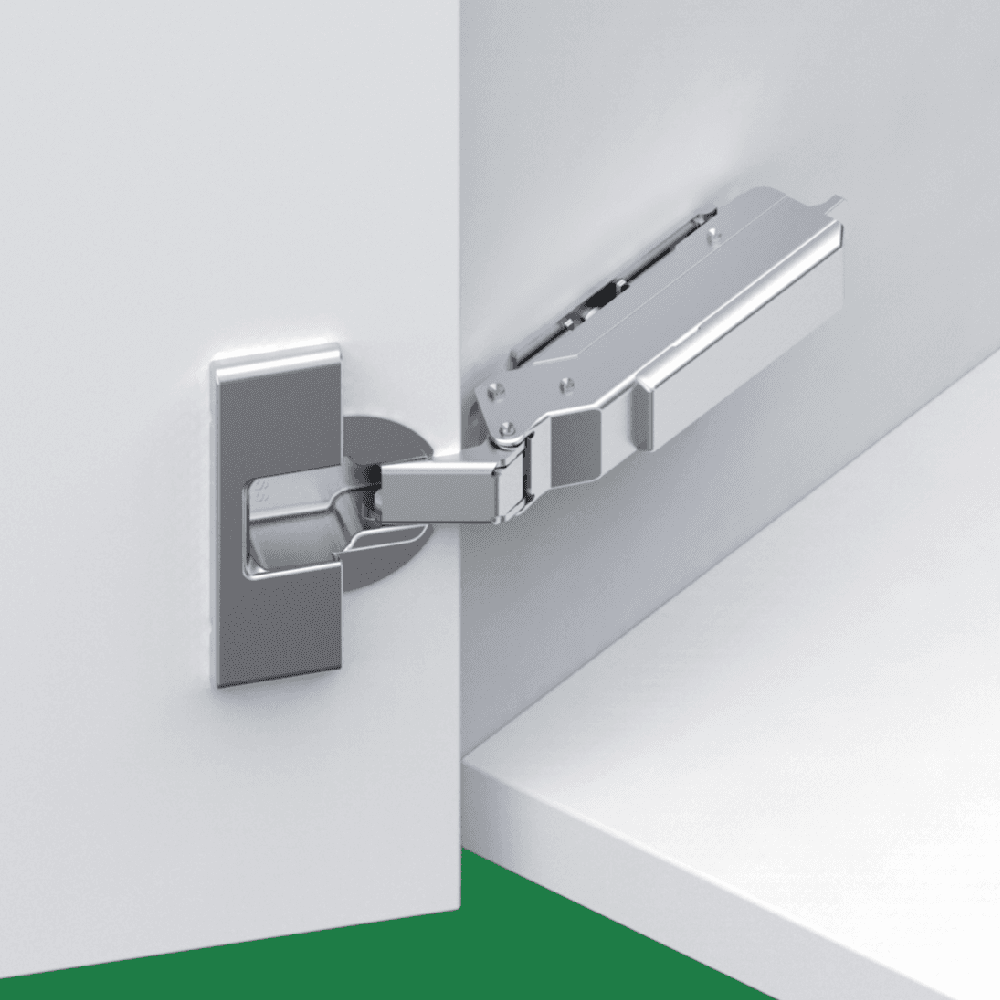

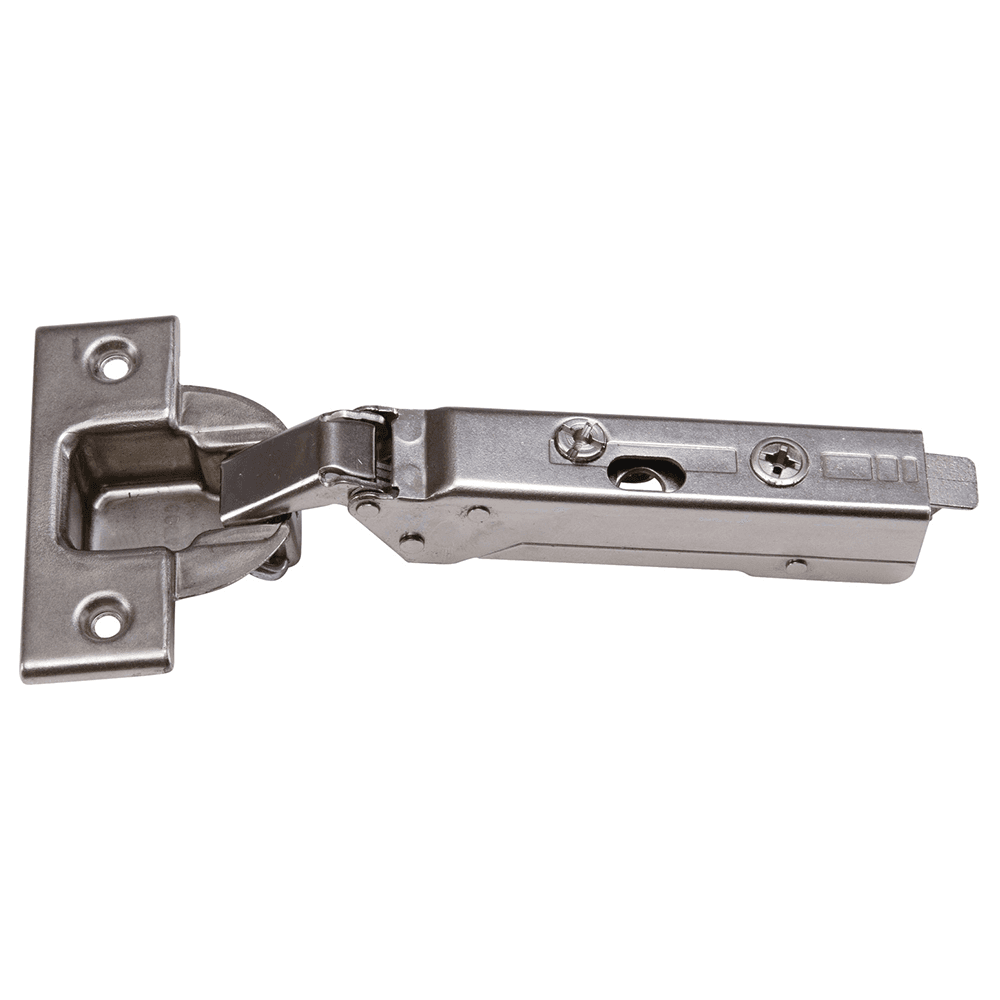

Tiomos 110° Opening Hinge, 45mm Bore Pattern, Self-Closing, Overlay, Nickel-Plated, Screw-On
Item # GTIOF045138458228
•Mfr # F045138458228
$2.39
/Each
150 items
$2.04/Each
750 items
$1.92/Each
Mounting Type: Screw-On
Min Order: 1
Quantity Multiple by: 1
Product Details
Present convenient door experience to the customers by installing the GRASS Tiomos 110˚ self-closing hinge to your wooden projects. It installs on face-frame and frameless doors and provides optimum reveal up to 24mm door thickness. The worm gear adjustment technology facilitates easy depth adjustment. Its height, side and depth can be adjusted as per the requirement by using suitable base plates. This press-in hinge designed with 30% larger bearing surface offers enhanced stability to doors.
Features:
• For doors with thicknesses range of 14 - 24mm
• 3-dimensional adjustment

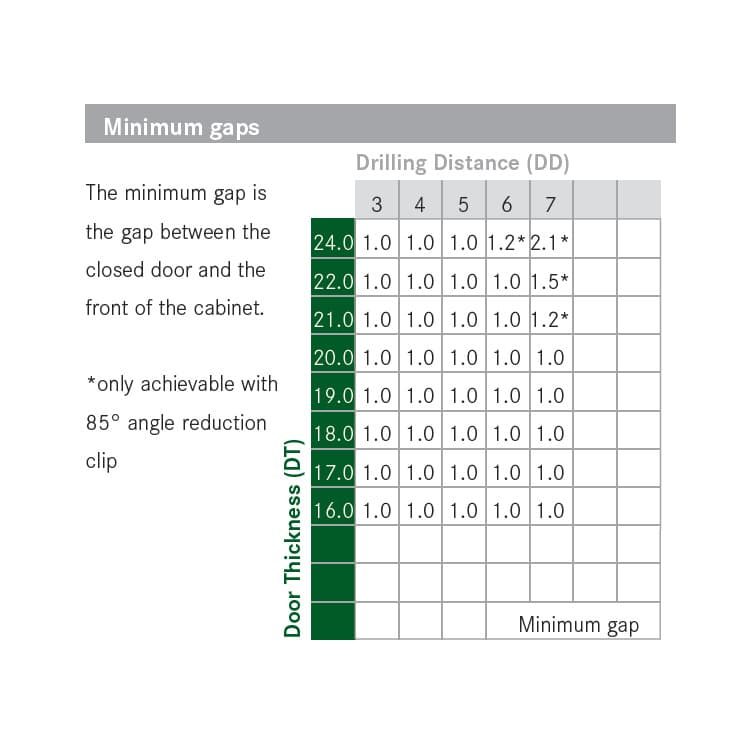

• Minimum gaps and reveals
• Optimum lever effect opens doors easily
• Stepless height adjustment
Features:
• For doors with thicknesses range of 14 - 24mm
• 3-dimensional adjustment
• Minimum gaps and reveals
• Optimum lever effect opens doors easily
• Stepless height adjustment
Specifications
| Mounting Type | Screw-On |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
