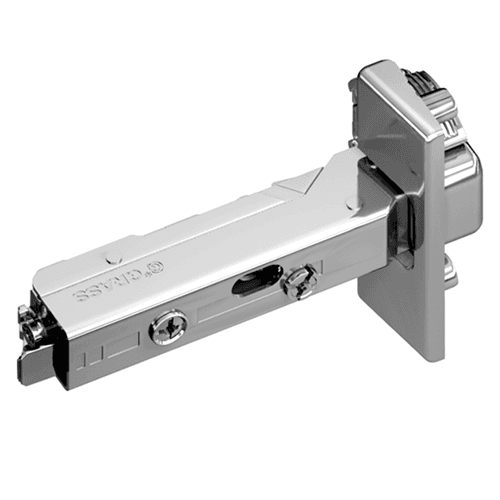

Tiomos 110° Opening Hinge, 42/45mm Bore Pattern, Soft-Closing, Overlay, Nickel-Plated, Impresso
Item # GTIOF017139415228
•Mfr # F017139415228
$6.31
/Each
150 items
$5.32/Each
750 items
$4.99/Each
In Stock
175 in stock at Brea, CA
Min Order: 1
Qty mult. by: 1
Product Details

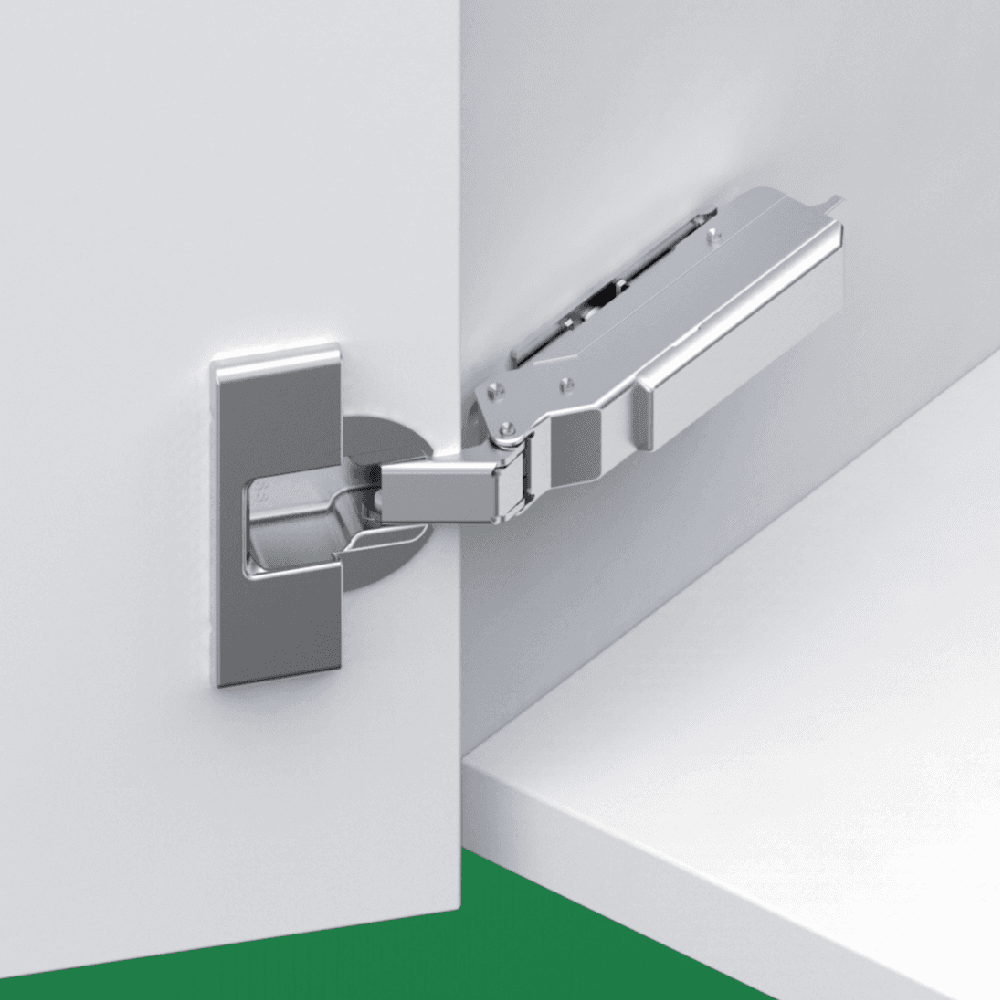

Designed for standard doors, the GRASS Tiomos 110˚ full-overlay hinge features an integrated soft-closing mechanism in its arm that enables smooth door closing action. It offers stepless height adjustment that keeps the hinge stable on the door. Its side, height and depth can be easily adjusted using appropriate base plate. The damping mechanism of this straight-arm hinge can be adjusted without any tools.
Features:
• For face-frame and frameless cabinets
• Soft-closing mechanism integrated to hinge arm
• Steel construction with nickel plating
• 3-dimensional adjustment
• Compatible with GRASS current insertion machinery
Features:
• For face-frame and frameless cabinets
• Soft-closing mechanism integrated to hinge arm
• Steel construction with nickel plating
• 3-dimensional adjustment
• Compatible with GRASS current insertion machinery
Specifications
| Box Quantity | 150 |
| Product Type | |
| Mounting Type | Tool-Free |
| Overlay | Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42/45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
