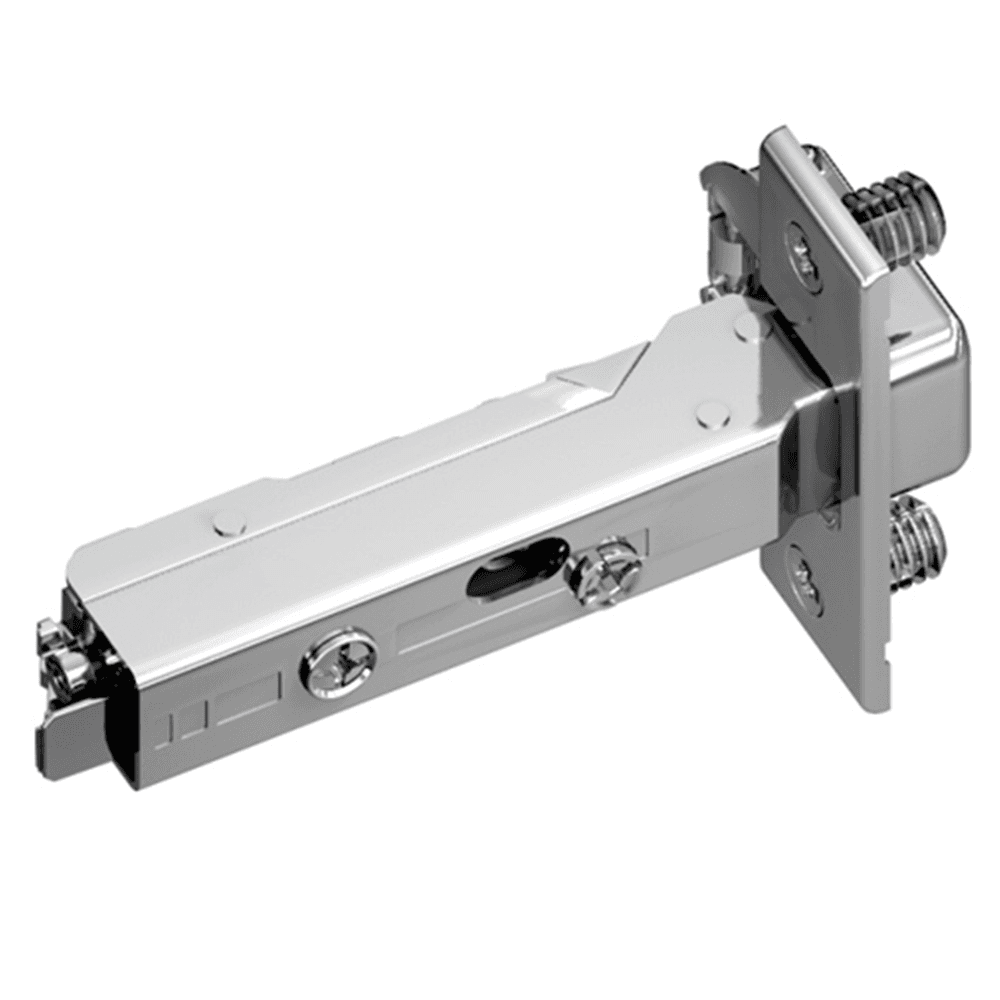

Tiomos 120° Opening Hinge, 45mm Bore Pattern, Self-Closing, Overlay, Nickel-Plated, Dowelled
Item # GTIOF045138490228
•Mfr # F045138490228
$3.19
/Each
150 items
$2.96/Each
750 items
$2.79/Each
Mounting Type: Dowelled
Min Order: 1
Qty mult. by: 1
Product Details

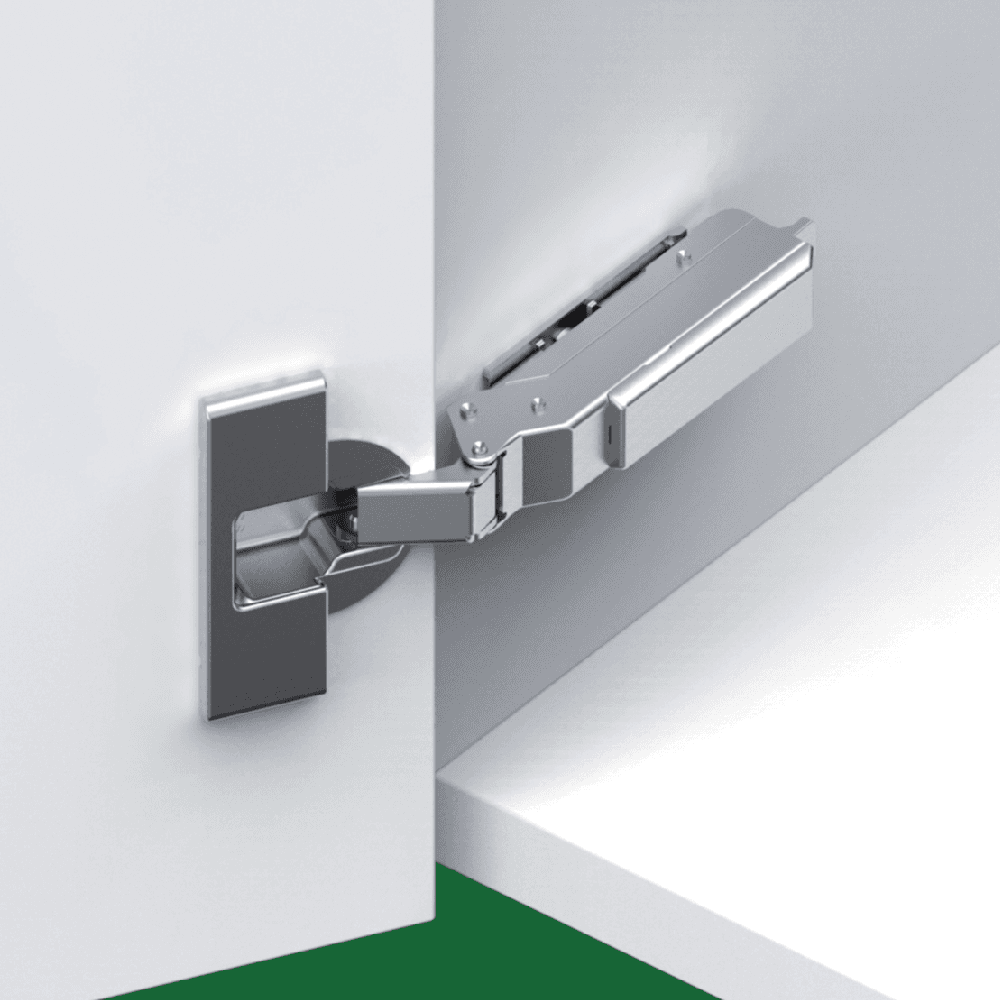

Installing the GRASS Tiomos 120˚ overlay hinge proves to be an additional selling point for your face-frame and frameless cabinets. Its 30% larger bearing surface provides more stability to doors. The stepless height adjustment feature of this nickel-plated hinge always keeps it in a stable position. Its flexible 3-dimensional adjustment allows easy door alignment. Furnished with steel construction and nickel-plating, this dowelled hinge lasts longer.
Features:

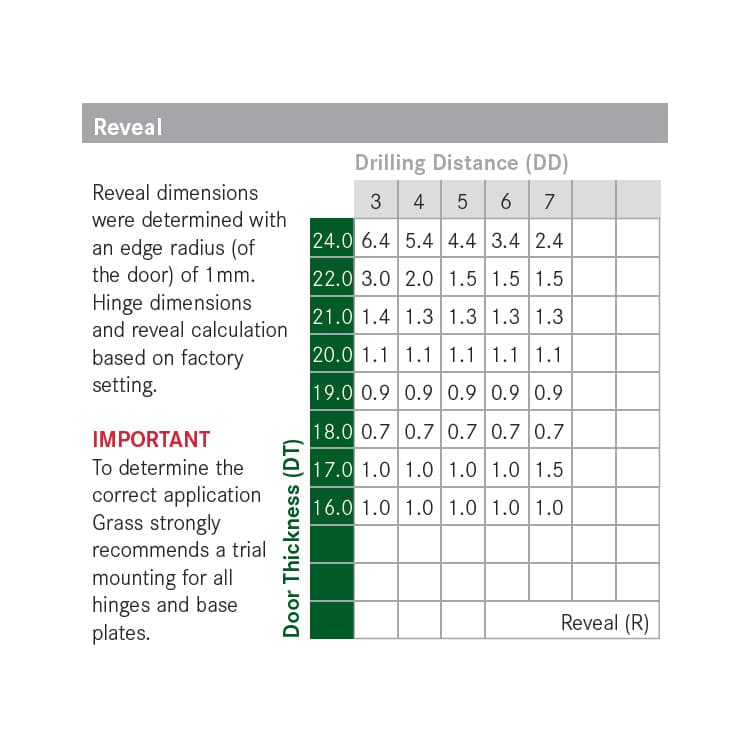

• Optimal reveal up to 24mm door thickness
• 3-dimensional adjustment with suitable base plate
• Optimum lever effect opens door easily
• Stepless height adjustment
• Resists wear and tear
Features:
• Optimal reveal up to 24mm door thickness
• 3-dimensional adjustment with suitable base plate
• Optimum lever effect opens door easily
• Stepless height adjustment
• Resists wear and tear
Specifications
| Box Quantity | 150 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 120° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
Item # GTIOF045138490228
•Mfr # F045138490228
$3.19
/Each
150 items
$2.96/Each
750 items
$2.79/Each
Mounting Type: Dowelled
Min Order: 1
Qty mult. by: 1
Product Details
Installing the GRASS Tiomos 120˚ overlay hinge proves to be an additional selling point for your face-frame and frameless cabinets. Its 30% larger bearing surface provides more stability to doors. The stepless height adjustment feature of this nickel-plated hinge always keeps it in a stable position. Its flexible 3-dimensional adjustment allows easy door alignment. Furnished with steel construction and nickel-plating, this dowelled hinge lasts longer.
Features:
• Optimal reveal up to 24mm door thickness
• 3-dimensional adjustment with suitable base plate
• Optimum lever effect opens door easily
• Stepless height adjustment
• Resists wear and tear
Features:
• Optimal reveal up to 24mm door thickness
• 3-dimensional adjustment with suitable base plate
• Optimum lever effect opens door easily
• Stepless height adjustment
• Resists wear and tear
Specifications
| Box Quantity | 150 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 120° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
