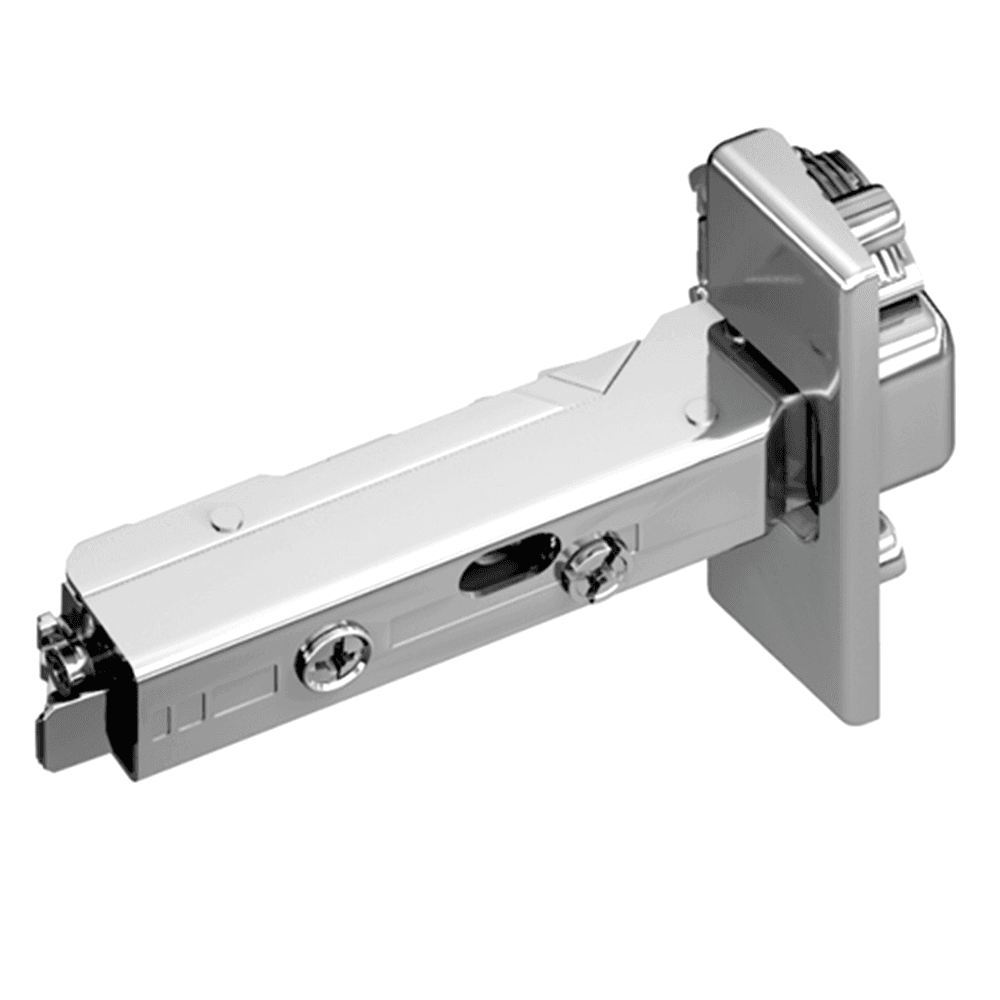

Tiomos 120° Opening Hinge, 42/45mm Bore Pattern, Soft-Closing, Overlay, Nickel-Plated, Impresso
Item # GTIOF034139400228
•Mfr # F034139400228
$3.80
/Each
150 items
$3.24/Each
750 items
$3.06/Each
Min Order: 1
Quantity Multiple by: 1
Product Details

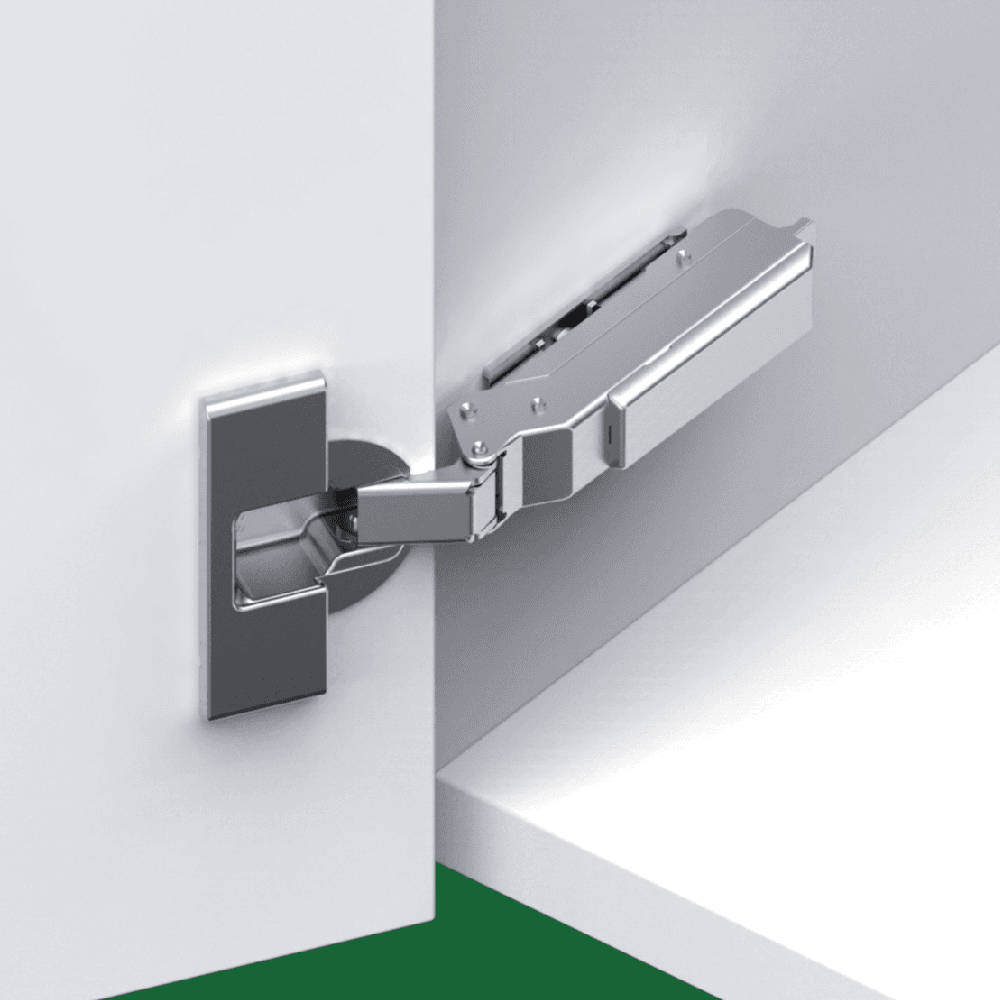

Installing the GRASS Tiomos 120˚ overlay hinge proves to be an additional selling point for your face-frame and frameless cabinets. Its 30% larger bearing surface provides more stability to doors. The stepless height adjustment feature of this nickel-plated hinge always keeps it in a stable position. Its flexible 3-dimensional adjustment allows easy door alignment. Furnished with steel construction and nickel-plating, this dowelled hinge lasts longer.
Features:
• Optimal reveal up to 24mm door thickness
• 3-dimensional adjustment with suitable base plate
• Optimum lever effect opens door easily
• Stepless height adjustment
• Resists wear and tear
Features:
• Optimal reveal up to 24mm door thickness
• 3-dimensional adjustment with suitable base plate
• Optimum lever effect opens door easily
• Stepless height adjustment
• Resists wear and tear
Specifications
| Mounting Type | Tool-Free |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 120° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42/45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
