Tiomos 110° Opening Hinge, 42/45mm Bore Pattern, Soft-Closing, Inset, Nickel-Plated, Impresso
Item # GTIOF017139417228
•Mfr # F017139417228
Product Details

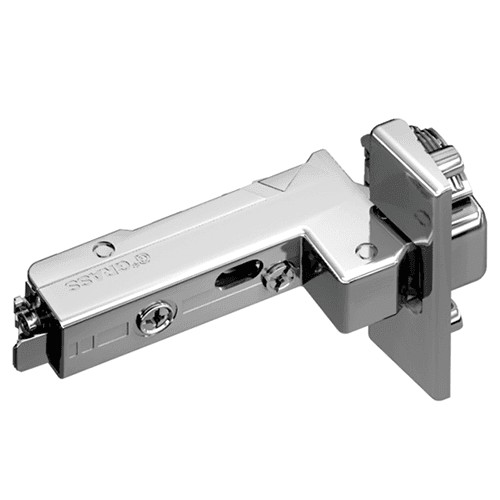

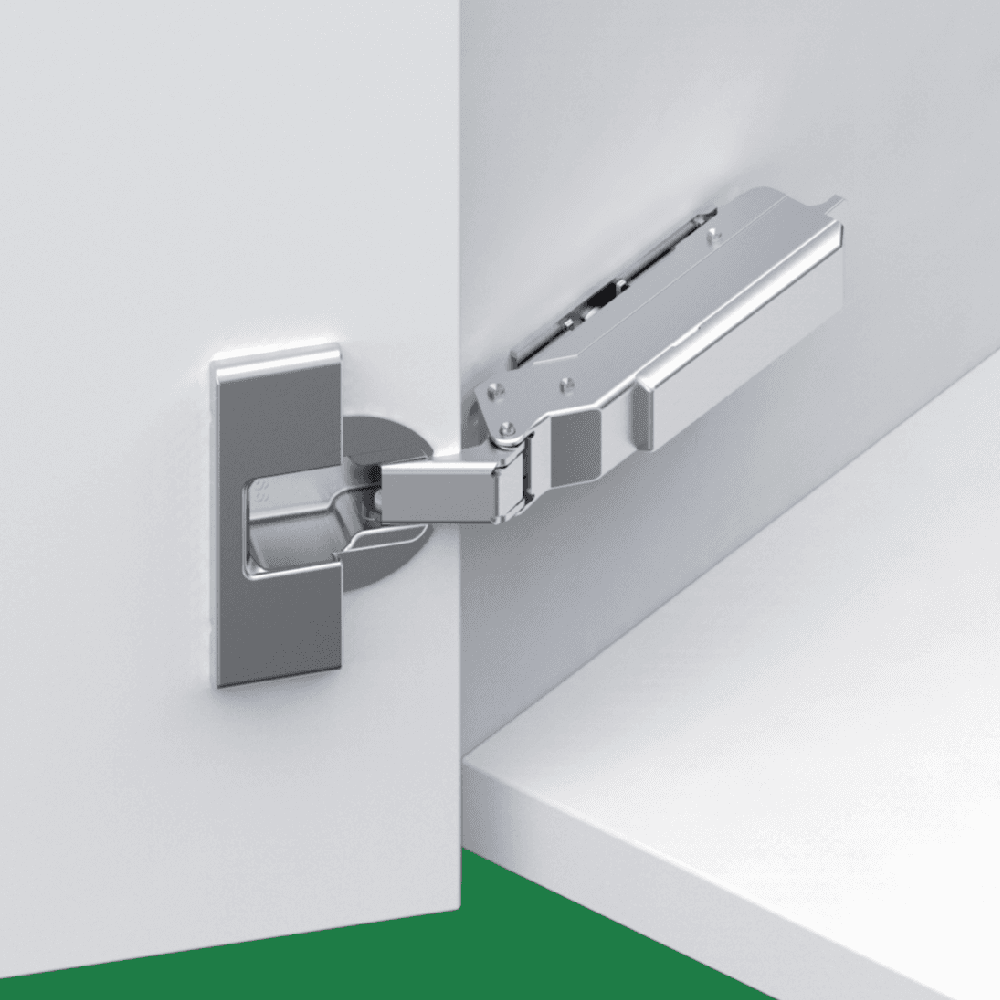

The GRASS Tiomos 110˚ standard door soft-closing hinge is designed with features facilitating an easy and safe door movement. It is equipped with a 3-dimensional adjustment feature enabling easy modifications to its height, depth and side. This dowelled hinge arm is furnished with the Tiomos damper technology that helps activate or de-activate soft-closing mechanism. This full-cranked hinge is designed with a bend and when opened, the door positions itself to the inside edge.
Features:
• Steel construction and nickel plating fortify anti-corrosion qualities
• For door overlays up to 24mm
• 3-dimensional adjustment with suitable base plate
• Depth is easily adjustable with worm gear
Features:
• Steel construction and nickel plating fortify anti-corrosion qualities
• For door overlays up to 24mm
• 3-dimensional adjustment with suitable base plate
• Depth is easily adjustable with worm gear
Specifications
| Box Quantity | 150 |
| Product Type | |
| Mounting Type | Tool-Free |
| Overlay | Inset Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42/45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
