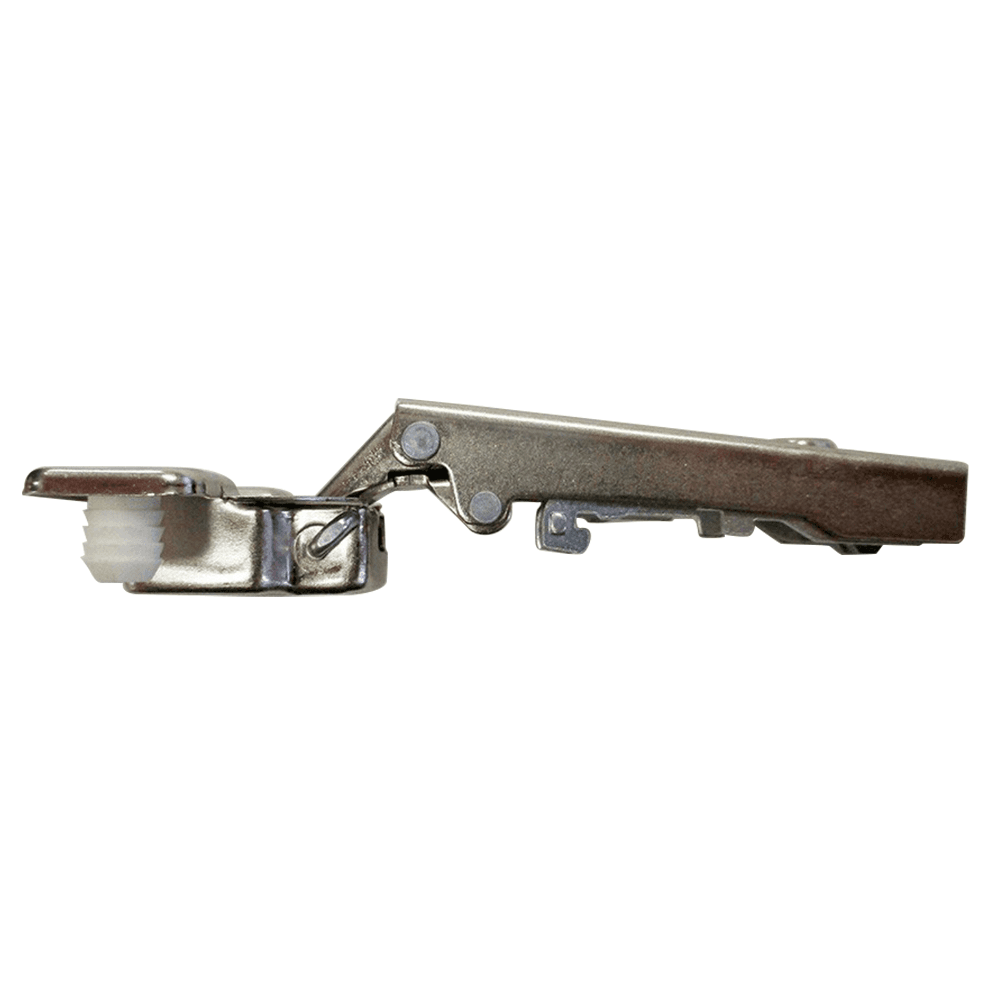

Intermate 110° Opening Hinge, 43mm Bore Pattern, Self-Close, Full Overlay, Nickel-Plated, Screw-On
Item # HET9071280
•Mfr # 9073650
$2.45
/Each
200 items
$2.09/Each
1000 items
$2.00/Each
Mounting Type: Screw-On
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Screw-on mounting type with Nickel-plated finish
• Concealed hinge with snap-on assembly, integrated door overlay and eccentric depth adjustment
• Opening angle 110?, cup diameter 35mm
• Shallow hole depth for door thickness min. of 15mm
• Intermat 9943 hinges are snapped on to the mounting plate
• Depth adjustment via eccentric screw are -0.5mm/+3.5mm
• Height adjustment via mounting plate are +2mm/-2mm
• Overlay adjustment of about +0.5mm/-3mm
• Screw-on mounting type with Nickel-plated finish
• Concealed hinge with snap-on assembly, integrated door overlay and eccentric depth adjustment
• Opening angle 110?, cup diameter 35mm
• Shallow hole depth for door thickness min. of 15mm
• Intermat 9943 hinges are snapped on to the mounting plate
• Depth adjustment via eccentric screw are -0.5mm/+3.5mm
• Height adjustment via mounting plate are +2mm/-2mm
• Overlay adjustment of about +0.5mm/-3mm
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |

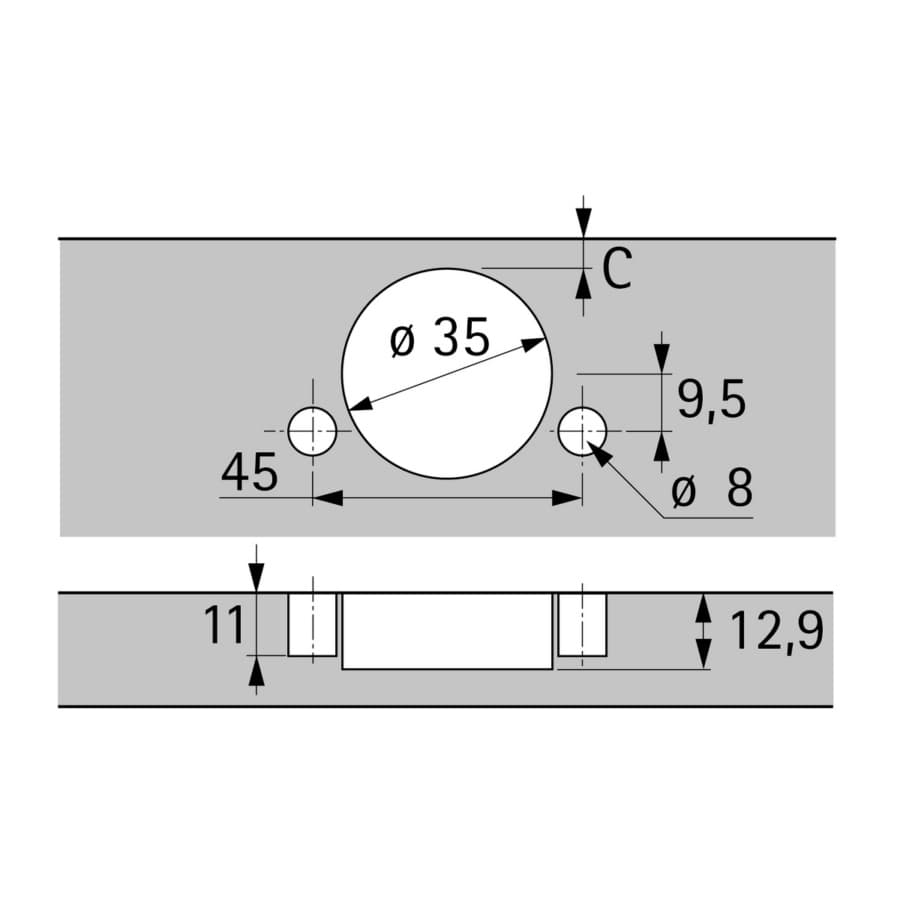

| Boring Pattern | 43mm |
| Cup Diameter | 35mm |
| Cup Depth | |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
