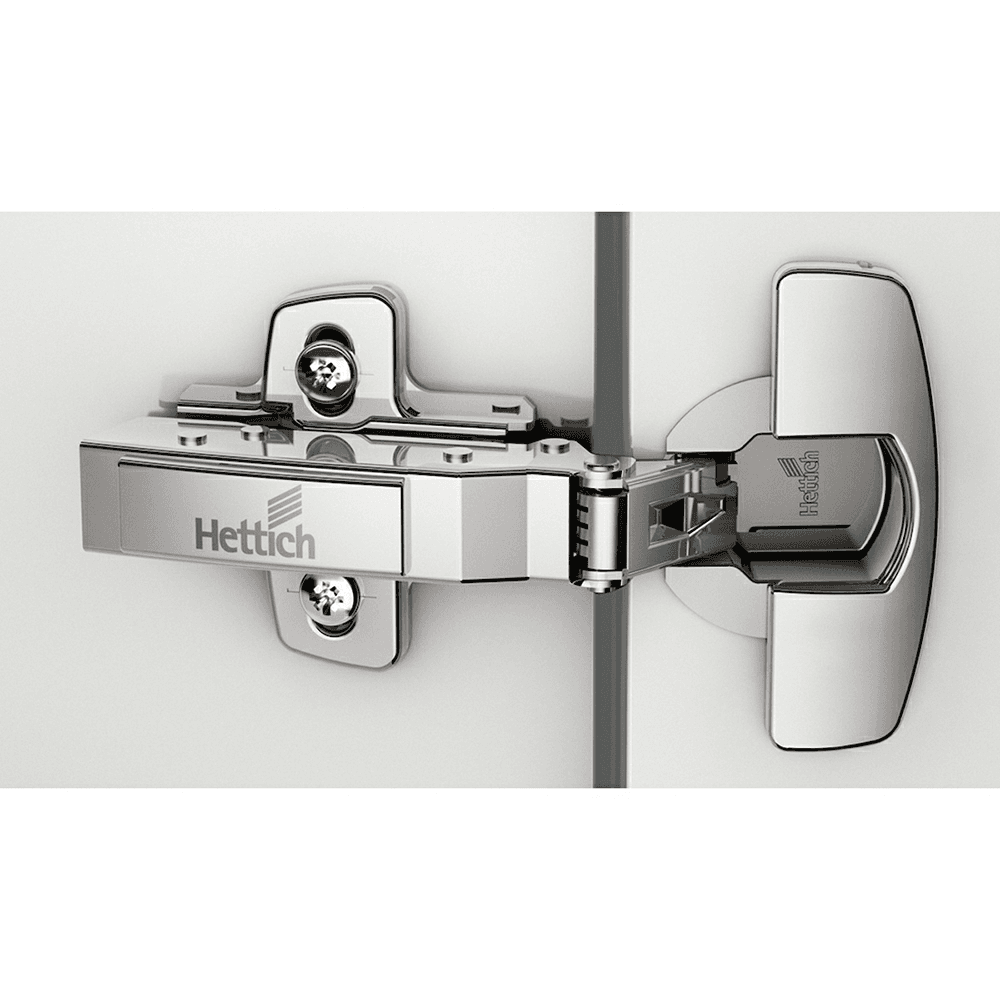

Sensys 110° Opening Hinge, 45mm Boring Pattern, Self-Closing, Overlay, Nickel-Plated, Dowelled
Item # HET9073650
•Mfr # 9073650
Product Details
Features:
• Dowelled mount
• Sensys 110? hinge in Nickel-Plated finish
• Without Silent System, with self closing feature (Sensys 8645)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 24mm
• Door mounting option overlay

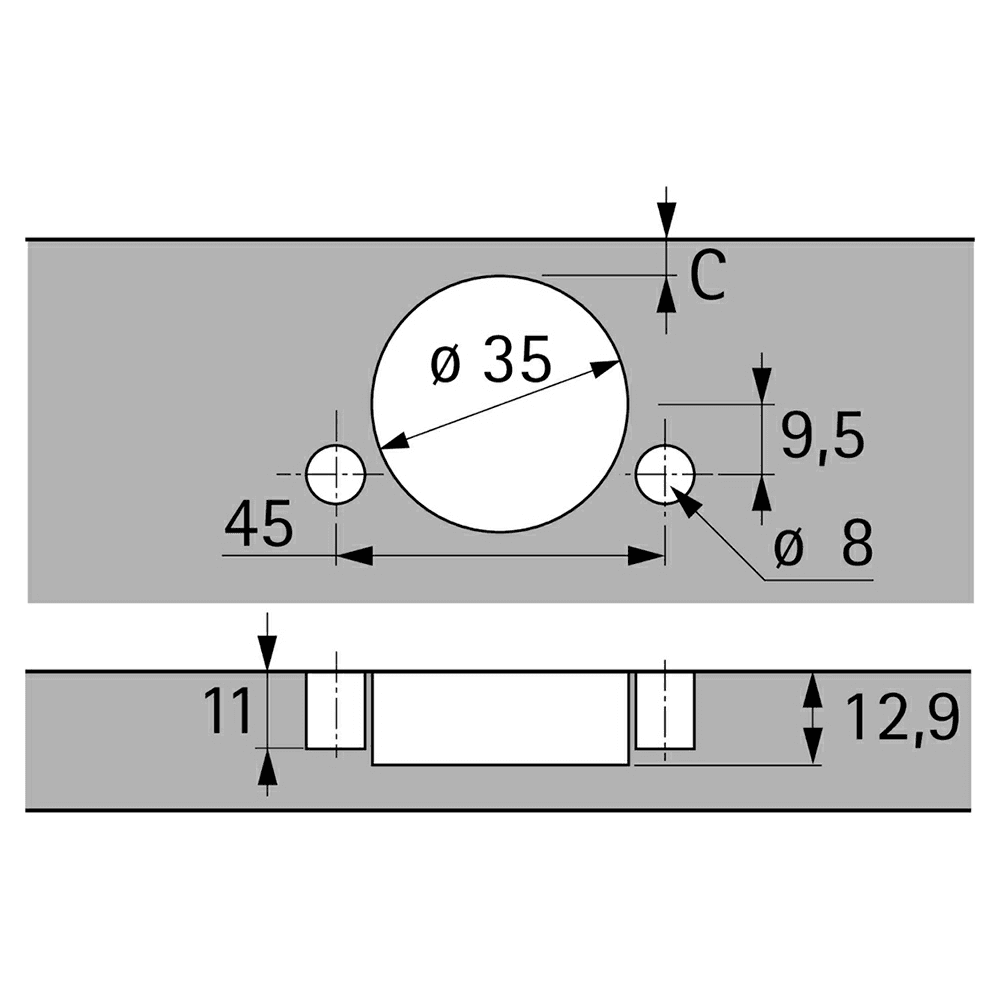

• Drilling pattern TB 45mm x 9,5mm
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
• Dowelled mount
• Sensys 110? hinge in Nickel-Plated finish
• Without Silent System, with self closing feature (Sensys 8645)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 24mm
• Door mounting option overlay
• Drilling pattern TB 45mm x 9,5mm
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
