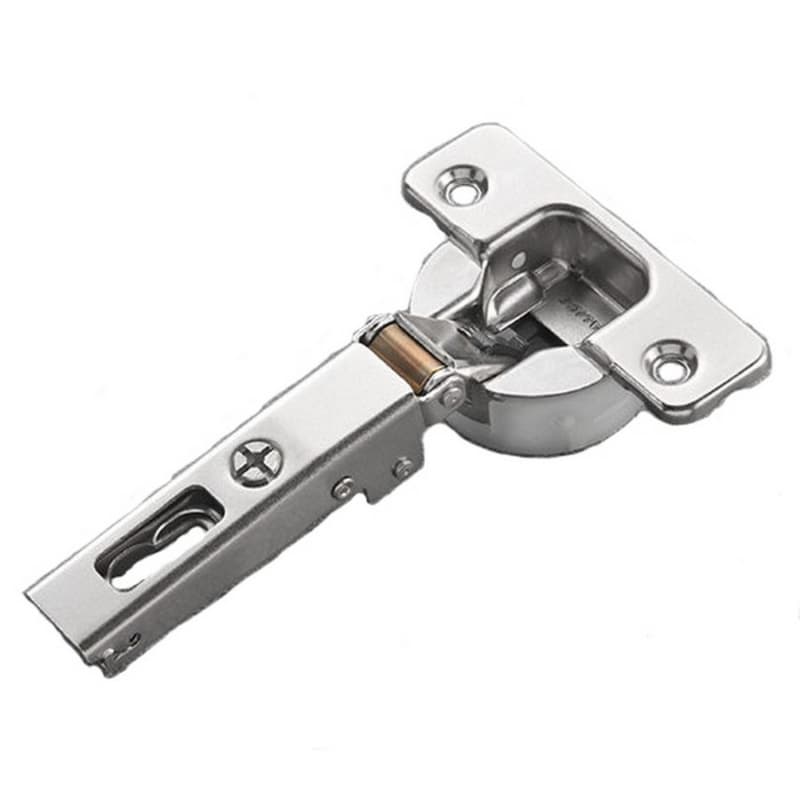

Series 200 94° Opening Thick Door Hinge, 45mm Bore Pattern, Silentia+ Soft-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # SALC2RBAE9
•Mfr # C2RBAE9
$3.61
/Each
300 items
$3.32/Each
Mounting Type: Dowelled
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Silentia Series 200 hinges are the original cabinet hinge with a soft close mechanism fully integrated within the hinge cup
• The soft-close mechanism is completely hidden from view within the hinge cup
• Suitable for doors up to 1-1/4" thick while maintaining minimal gaps between doors
• Large overlays possible: up to 24mm
• All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants
• Cup depth of 15.5mm
• Hinge cup edge drilling distance of 3mm to 9mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Series 200 hinges are designed to work with Salice mounting plates
• Silentia Series 200 hinges are the original cabinet hinge with a soft close mechanism fully integrated within the hinge cup
• The soft-close mechanism is completely hidden from view within the hinge cup
• Suitable for doors up to 1-1/4" thick while maintaining minimal gaps between doors
• Large overlays possible: up to 24mm
• All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants
• Cup depth of 15.5mm
• Hinge cup edge drilling distance of 3mm to 9mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Series 200 hinges are designed to work with Salice mounting plates
Specifications
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 15.5mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
