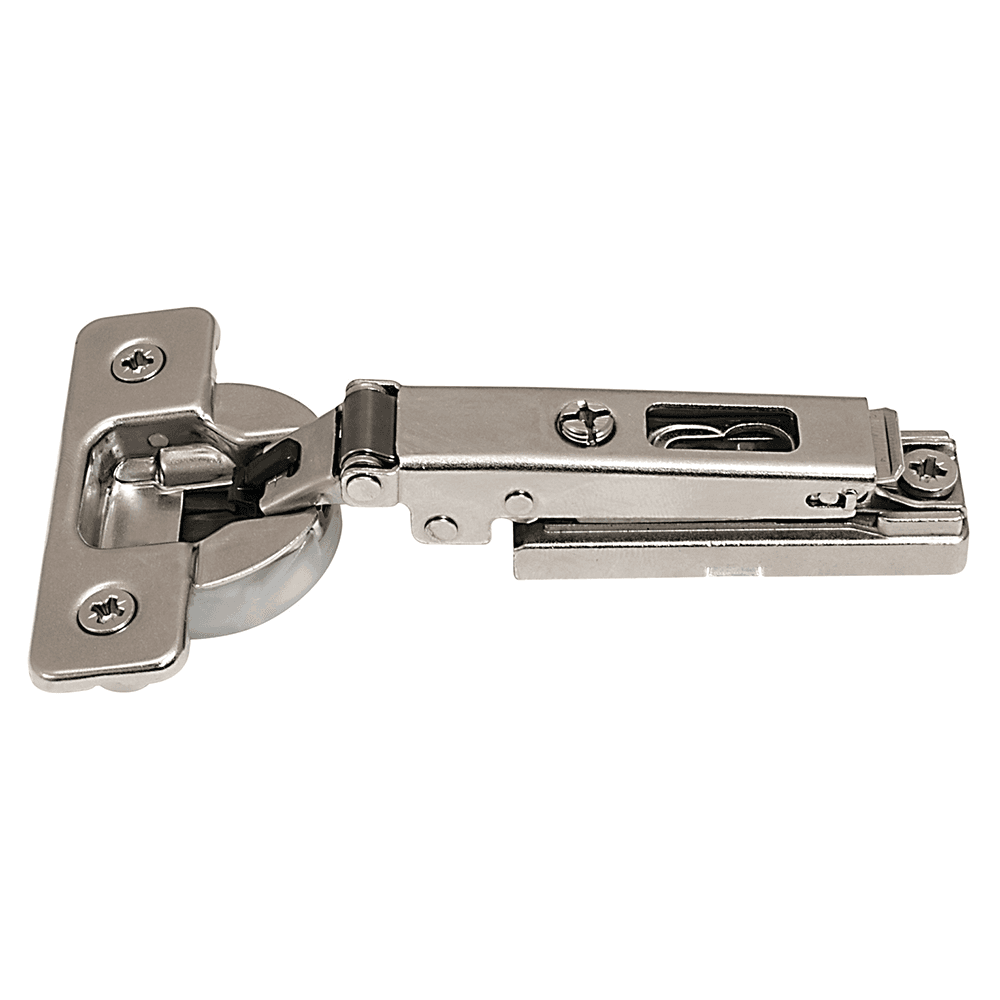

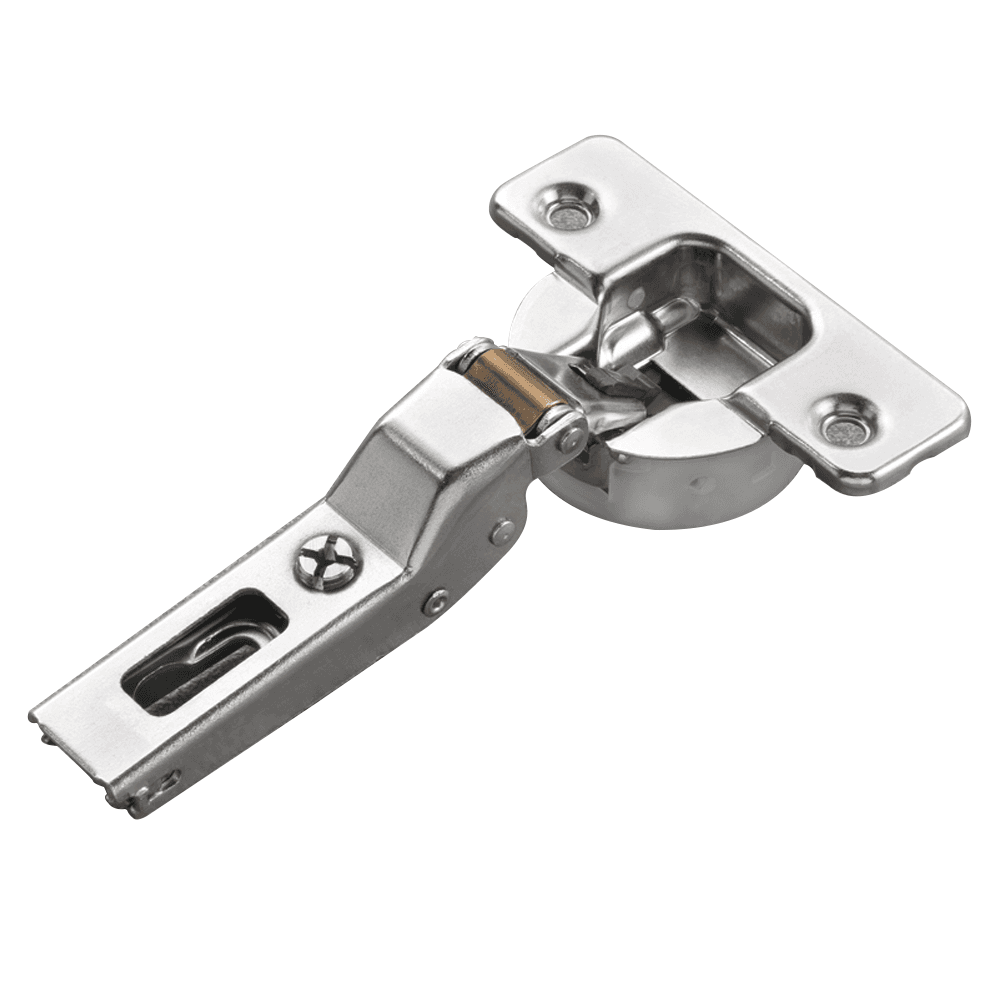

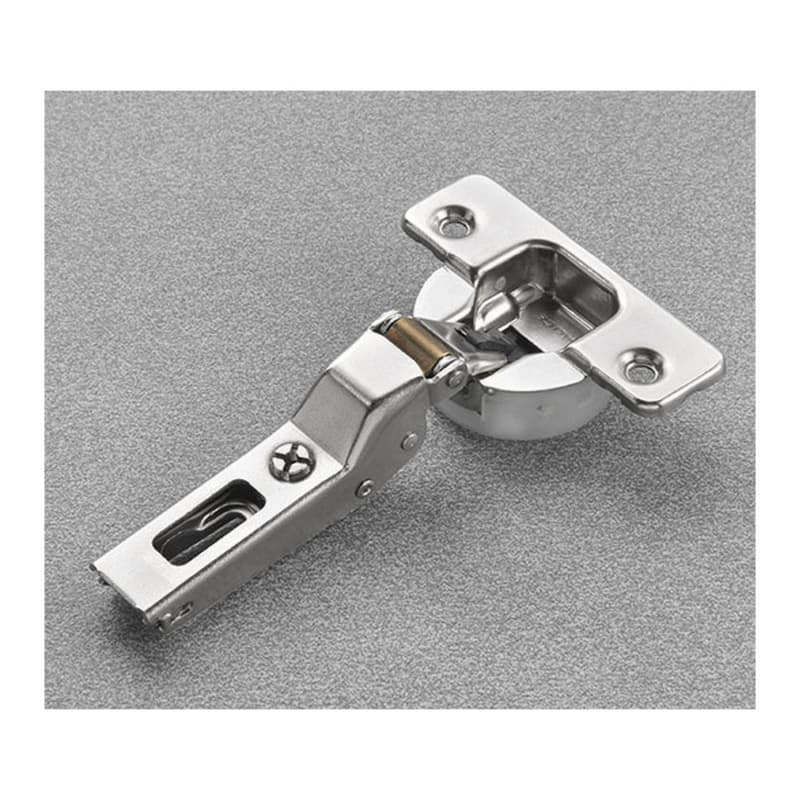

Series 100 105° Opening Hinge, 45mm Bore Pattern, Silentia+ Soft-Closing, Half Overlay, Nickel-Plated, Dowelled
Item # SALC1R6GE9
•Mfr # C1R6GE9
Mounting Type: Dowelled
Product Details
Silentia+ allows a perfect and constant closing of the door in any condition, use and application.
The innovative soft-close technology guarantees excellent performances to the complete range of hinges. Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.
Features:
• Compensated side adjustment from -1.5 mm to +4.5 mm.
• Height adjustment ?2 mm.
• Depth adjustment with Series 200 mounting plates +2.8 mm.
• Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm.
• Anti-sliding safety stop
• Symmetrical and asymmetrical bright nickel plated steel or die-cast
• Series 200 mounting plates.
• Snap-on assembly on Domi mounting plates.
• Positioning with pre-determined stop on traditional Series 200mounting plates.
• Use Pozi drive No. 2 screwdrivers for all screws
The innovative soft-close technology guarantees excellent performances to the complete range of hinges. Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.
Features:
• Compensated side adjustment from -1.5 mm to +4.5 mm.
• Height adjustment ?2 mm.
• Depth adjustment with Series 200 mounting plates +2.8 mm.
• Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm.
• Anti-sliding safety stop
• Symmetrical and asymmetrical bright nickel plated steel or die-cast
• Series 200 mounting plates.
• Snap-on assembly on Domi mounting plates.
• Positioning with pre-determined stop on traditional Series 200mounting plates.
• Use Pozi drive No. 2 screwdrivers for all screws
Specifications
| Mounting Type | Dowelled |
| Overlay | Half Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |

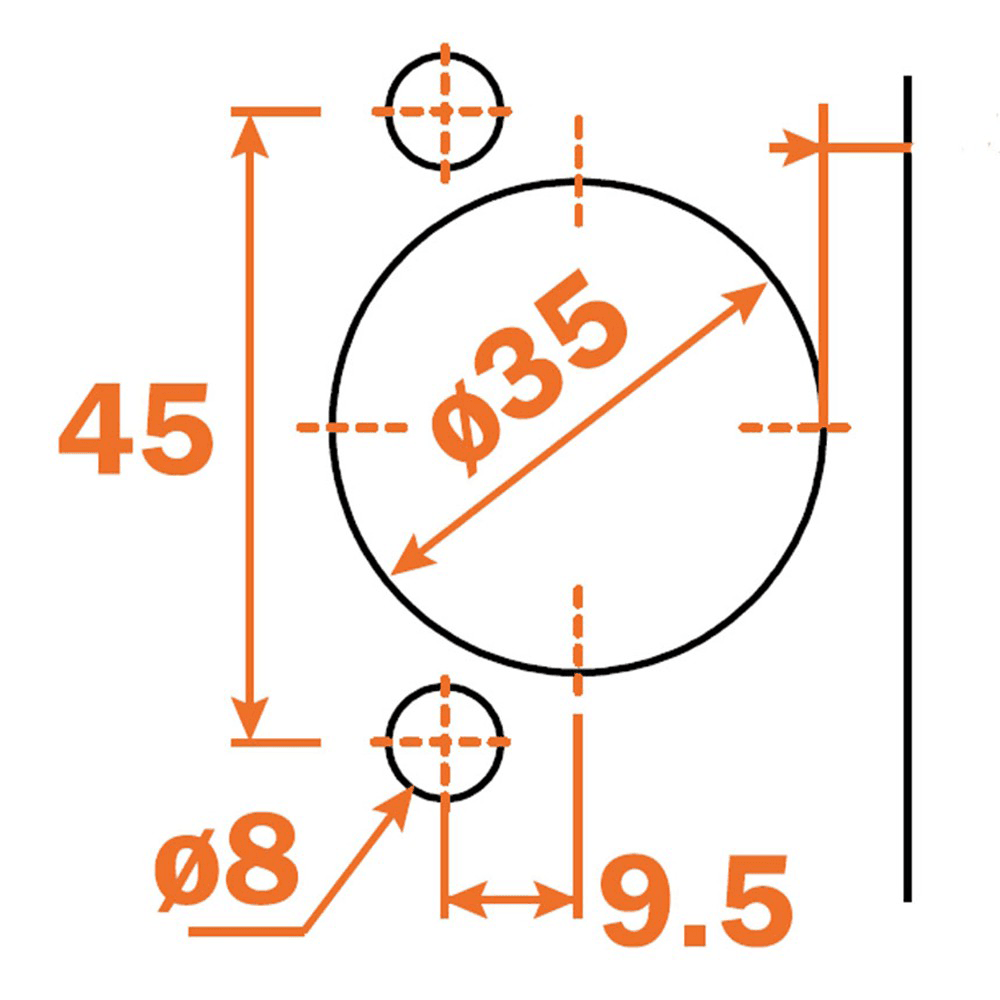

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
