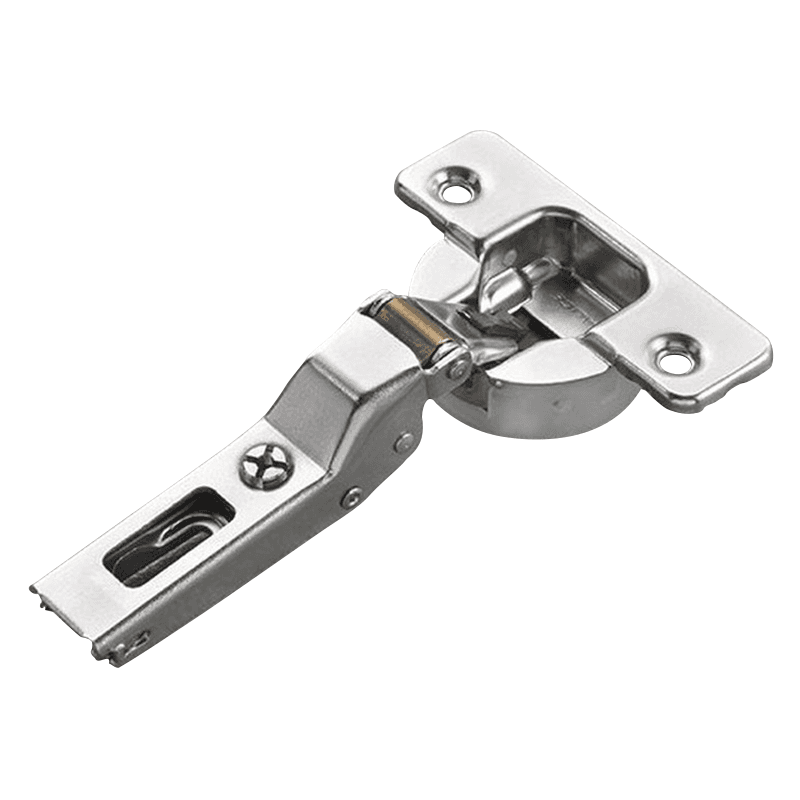

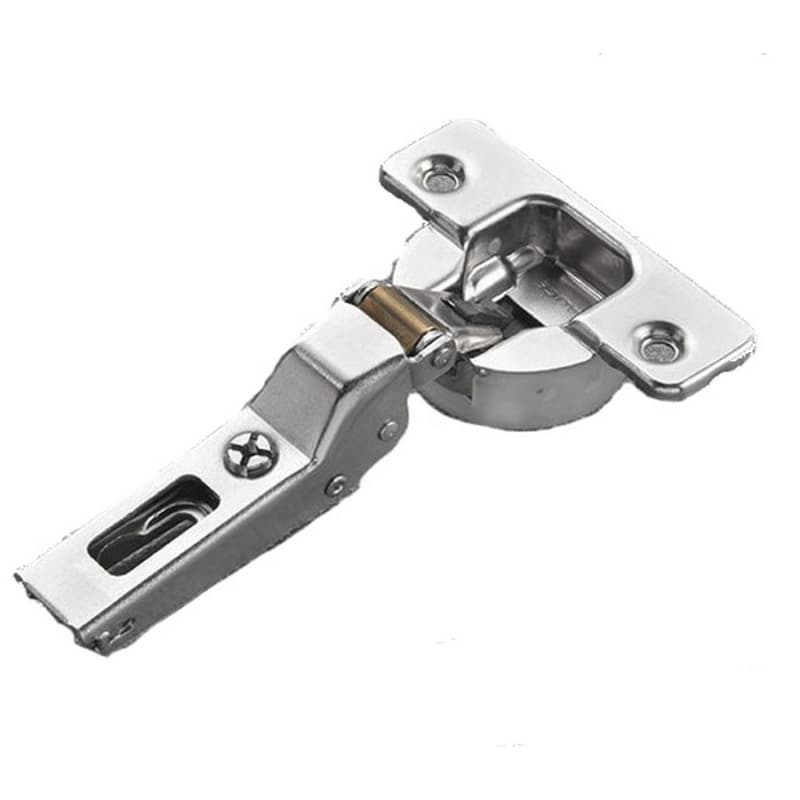

Series 100 105° Opening Hinge, 45mm Bore Pattern, Silentia+ Soft-Closing, Half Overlay, Titanium, Screw-On
Item # SALC1P6GE6
•Mfr # C1P6GE6
$3.23
/Each
300 items
$2.97/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Silentia+ 100 series half overlay screw-on hinge in titanium finish
• Integrated soft-close motion
• New soft close adjustment switch
• Smooth opening with little resistance
• Impervious to temperature extremes
• 105? opening angle
• 12mm hinge cup boring depth

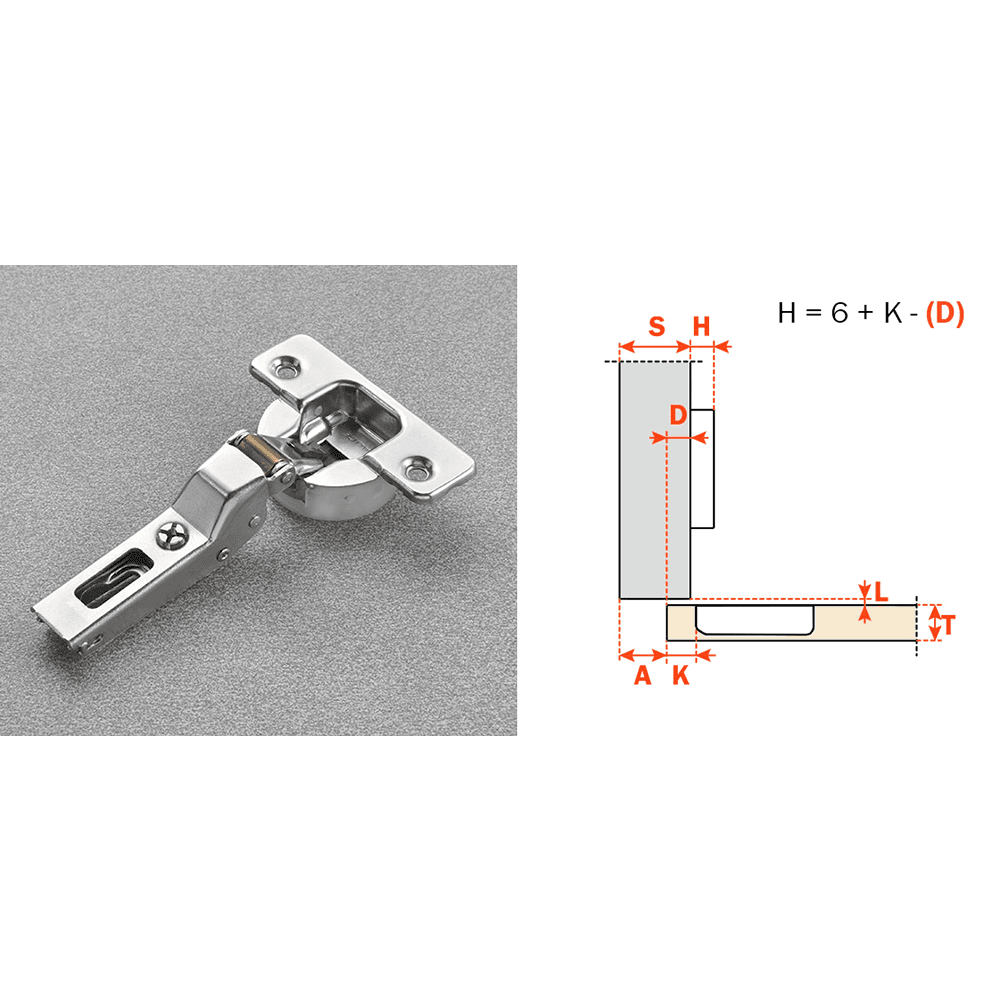

• Edge bore distance (K) from 3mm to 6mm
• Up to 21mm overlay
• For door thickness up to 25mm
• Uniform closing action regardless of door size
• Compatible with all series 200 mounting plates
• Standard 45mm x 9.5mm Salice boring pattern
• Exceeds ANSI/BHMA standards. A156.9-2010
• Silentia+ 100 series half overlay screw-on hinge in titanium finish
• Integrated soft-close motion
• New soft close adjustment switch
• Smooth opening with little resistance
• Impervious to temperature extremes
• 105? opening angle
• 12mm hinge cup boring depth
• Edge bore distance (K) from 3mm to 6mm
• Up to 21mm overlay
• For door thickness up to 25mm
• Uniform closing action regardless of door size
• Compatible with all series 200 mounting plates
• Standard 45mm x 9.5mm Salice boring pattern
• Exceeds ANSI/BHMA standards. A156.9-2010
Specifications
| Mounting Type | Screw-On |
| Overlay | Half Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Titanium |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
