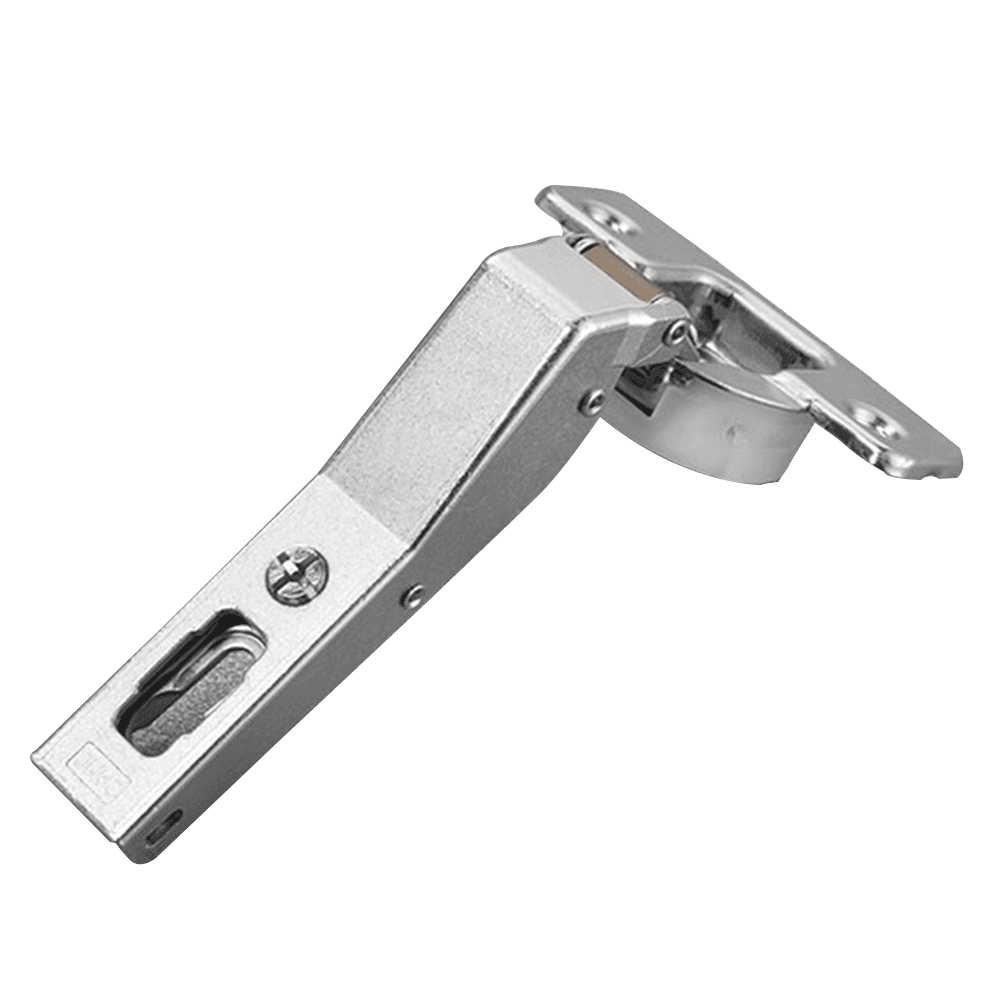

Series 100 +45° Angled-Corner 105° Opening Hinge, Silentia Soft-Closing, Rapido
Item # SALC176ME9AC
•Mfr # C176ME9AC
Mounting Type: Expanding Dowels
Product Details
Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
Features:
• Hinges 45? angled corner with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
• Rapido mounting type
• The decelerating effect is adjusted by using a simple switch
• For wooden doors with positive angled assembly
• Hinges for doors of small weight and thickness
• Dimensions of the 35mm cup
• 12 mm deep cup
• 105? opening

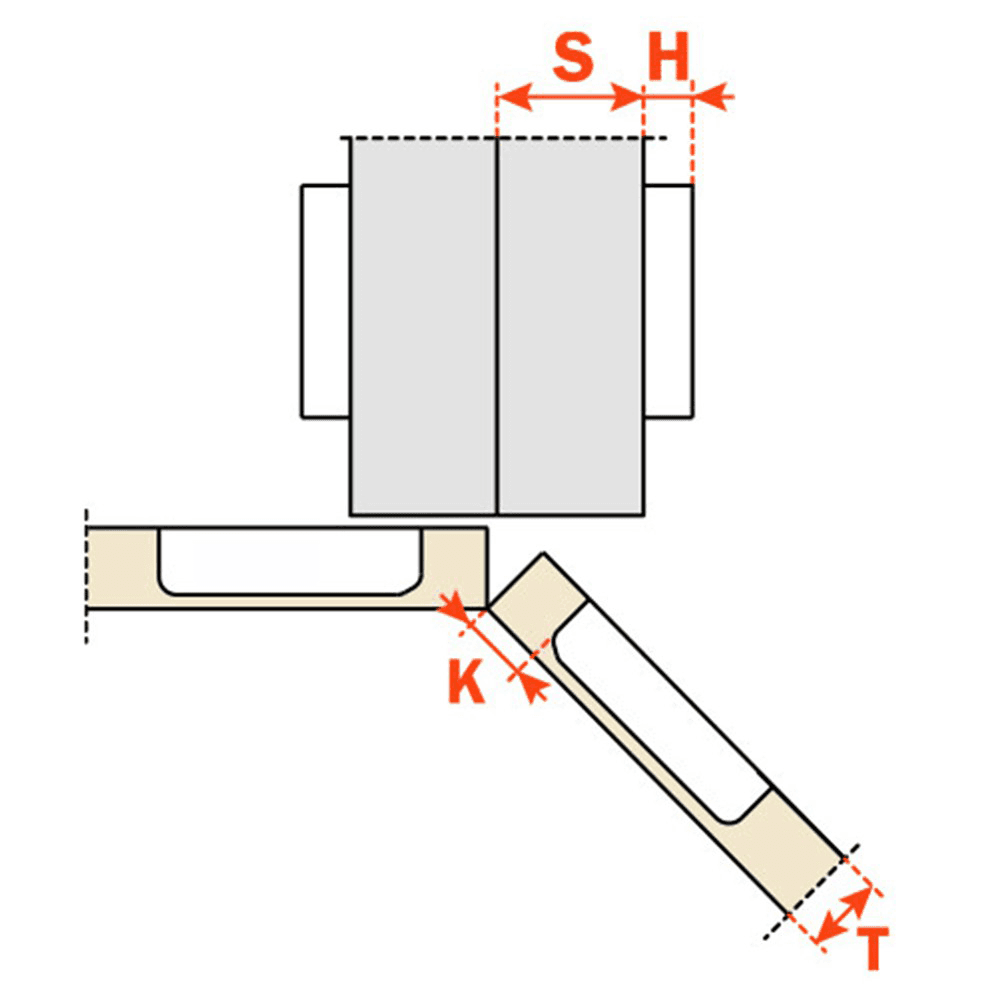

• Possible drilling distance on the door (K): from 3 to 6 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi Snap-On mounting plates
Features:
• Hinges 45? angled corner with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
• Rapido mounting type
• The decelerating effect is adjusted by using a simple switch
• For wooden doors with positive angled assembly
• Hinges for doors of small weight and thickness
• Dimensions of the 35mm cup
• 12 mm deep cup
• 105? opening
• Possible drilling distance on the door (K): from 3 to 6 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi Snap-On mounting plates
Specifications
| Box Quantity | 1 |
| Mounting Type | Expanding Dowels |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Hinge Type | +45° Angled |
| Finish | Nickel-Plated |
| Cup Diameter | 35mm |
| Cup Depth | 12mm |
Item # SALC176ME9AC
•Mfr # C176ME9AC
Mounting Type: Expanding Dowels
Product Details
Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
Features:
• Hinges 45? angled corner with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
• Rapido mounting type
• The decelerating effect is adjusted by using a simple switch
• For wooden doors with positive angled assembly
• Hinges for doors of small weight and thickness
• Dimensions of the 35mm cup
• 12 mm deep cup
• 105? opening
• Possible drilling distance on the door (K): from 3 to 6 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi Snap-On mounting plates
Features:
• Hinges 45? angled corner with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
• Rapido mounting type
• The decelerating effect is adjusted by using a simple switch
• For wooden doors with positive angled assembly
• Hinges for doors of small weight and thickness
• Dimensions of the 35mm cup
• 12 mm deep cup
• 105? opening
• Possible drilling distance on the door (K): from 3 to 6 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi Snap-On mounting plates
Specifications
| Box Quantity | 1 |
| Mounting Type | Expanding Dowels |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Hinge Type | +45° Angled |
| Finish | Nickel-Plated |
| Cup Diameter | 35mm |
| Cup Depth | 12mm |
