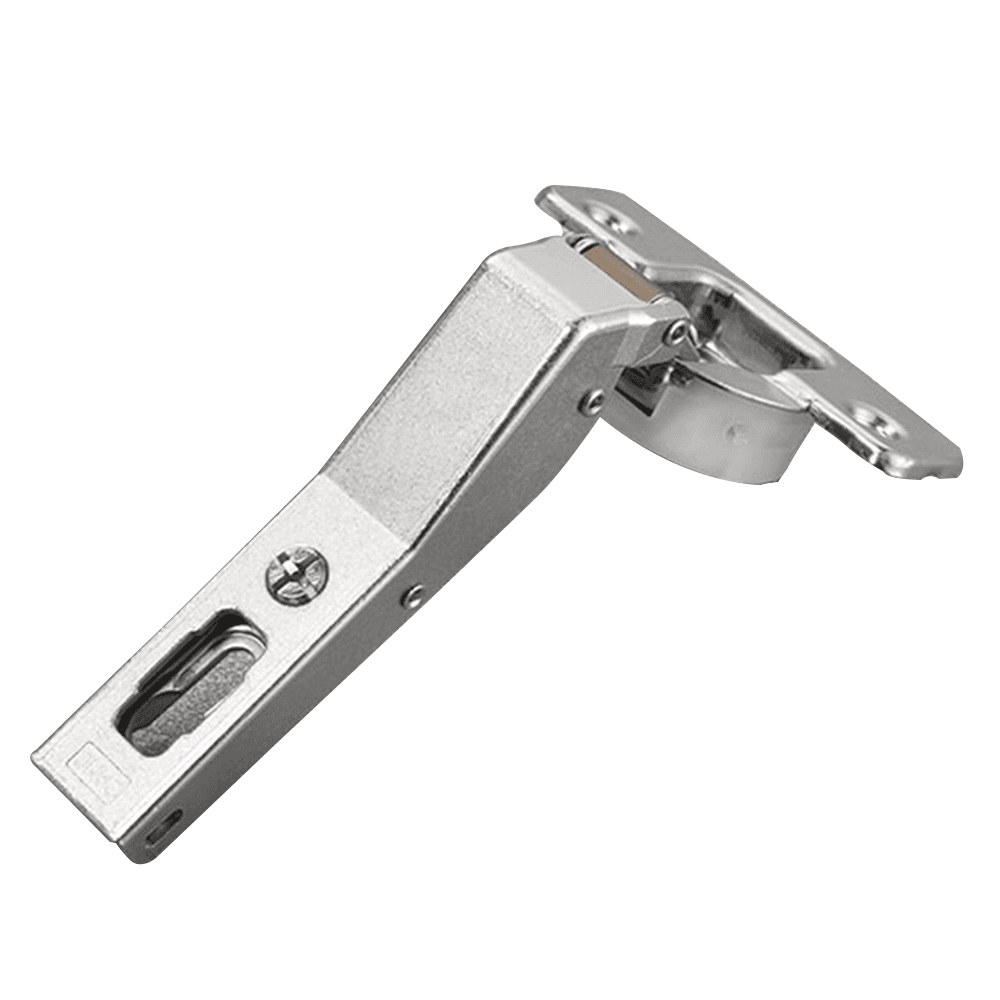

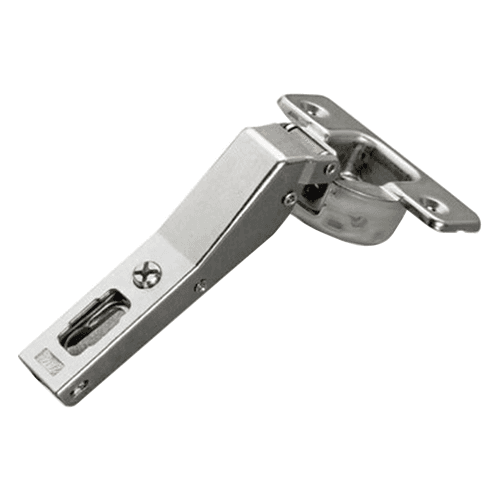

Series 100 +45° Angled-Corner 105° Opening Hinge, Silentia Soft-Closing, Dowelled
Item # SALC1R6ME9AC
•Mfr # C1R6ME9AC
$7.26
/Each
150 items
$6.68/Each
Mounting Type: Dowelled
Min Order: 1
Quantity Multiple by: 1
Product Details
Silentia+ is also equipped with the innovative switch to delay the decelerating action. The activation of this switch allows, even to special doors, to obtain the ideal decelerating strength.
Features:
Dowelled mounting type
Hinges 45? angled corner with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
The decelerating effect is adjusted by using a simple switch
For wooden doors with positive angled assembly
Hinges for doors of small weight and thickness
Dimensions of the 35mm cup
12mm deep cup
105? opening

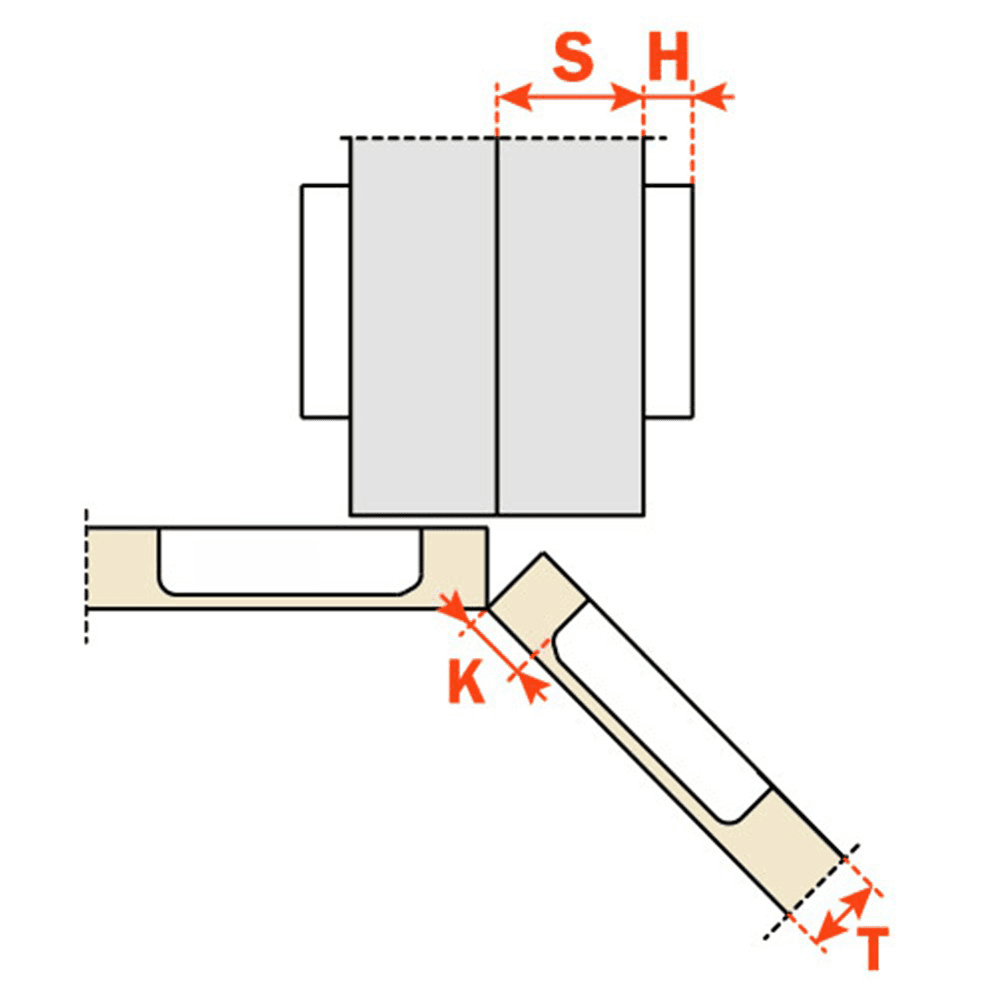

Possible drilling distance on the door (K): from 3 to 6 mm
Compatible with all traditional Series 200 mounting plates and with all Domi Snap-On mounting plates
Features:
Dowelled mounting type
Hinges 45? angled corner with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
The decelerating effect is adjusted by using a simple switch
For wooden doors with positive angled assembly
Hinges for doors of small weight and thickness
Dimensions of the 35mm cup
12mm deep cup
105? opening
Possible drilling distance on the door (K): from 3 to 6 mm
Compatible with all traditional Series 200 mounting plates and with all Domi Snap-On mounting plates
Specifications
Mounting Type | Dowelled |
Overlay | |
Closing Type | Soft-Closing |
Opening Angle | 105° |
Model | |
Hinge Type | +45° Angled |
Finish | Nickel-Plated |
Boring Pattern | |
Cup Diameter | 35mm |
Cup Depth | 12mm |
Material | |
Cabinet Type |
