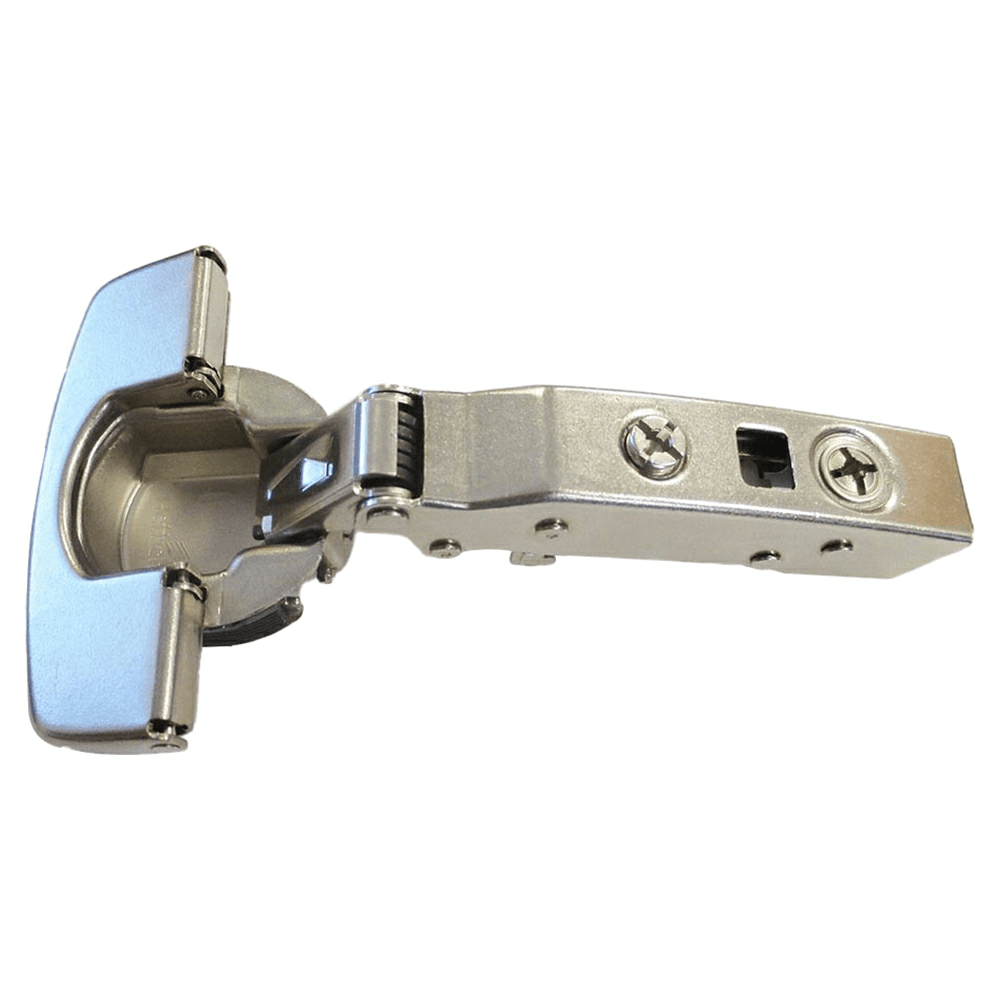

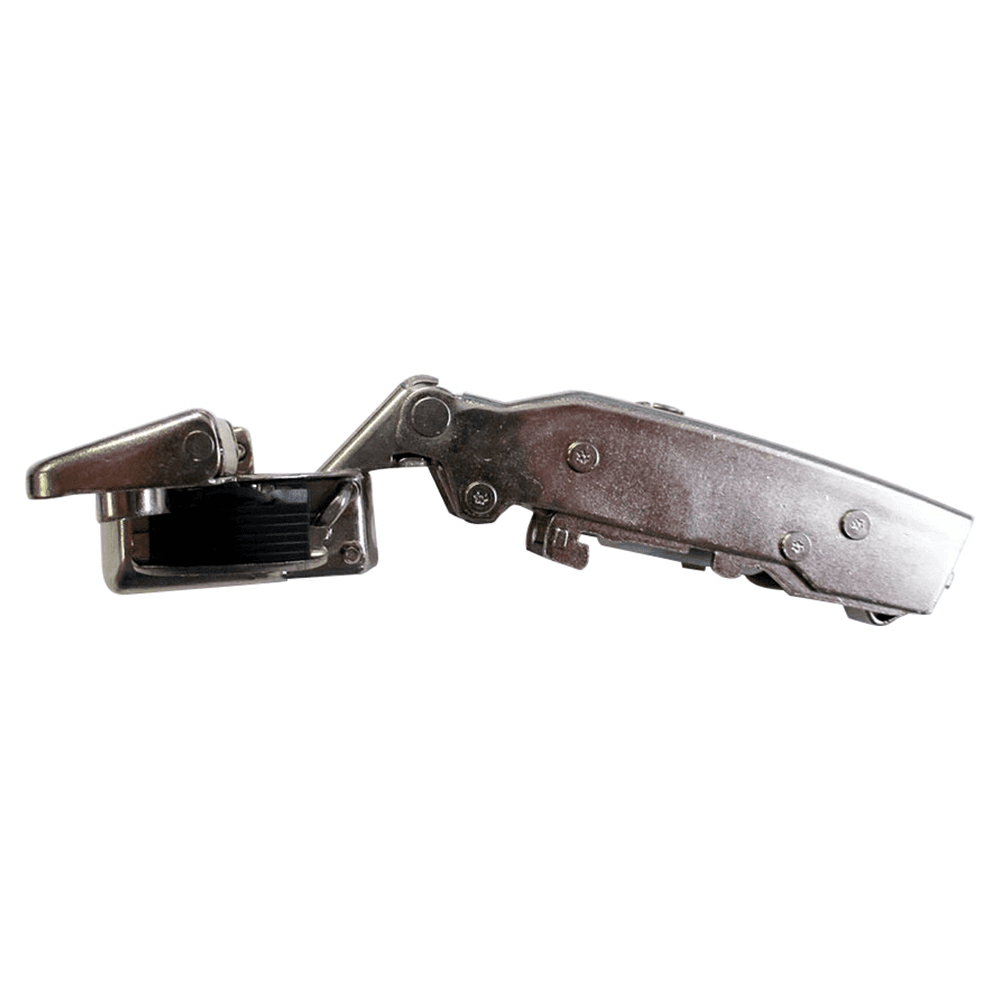

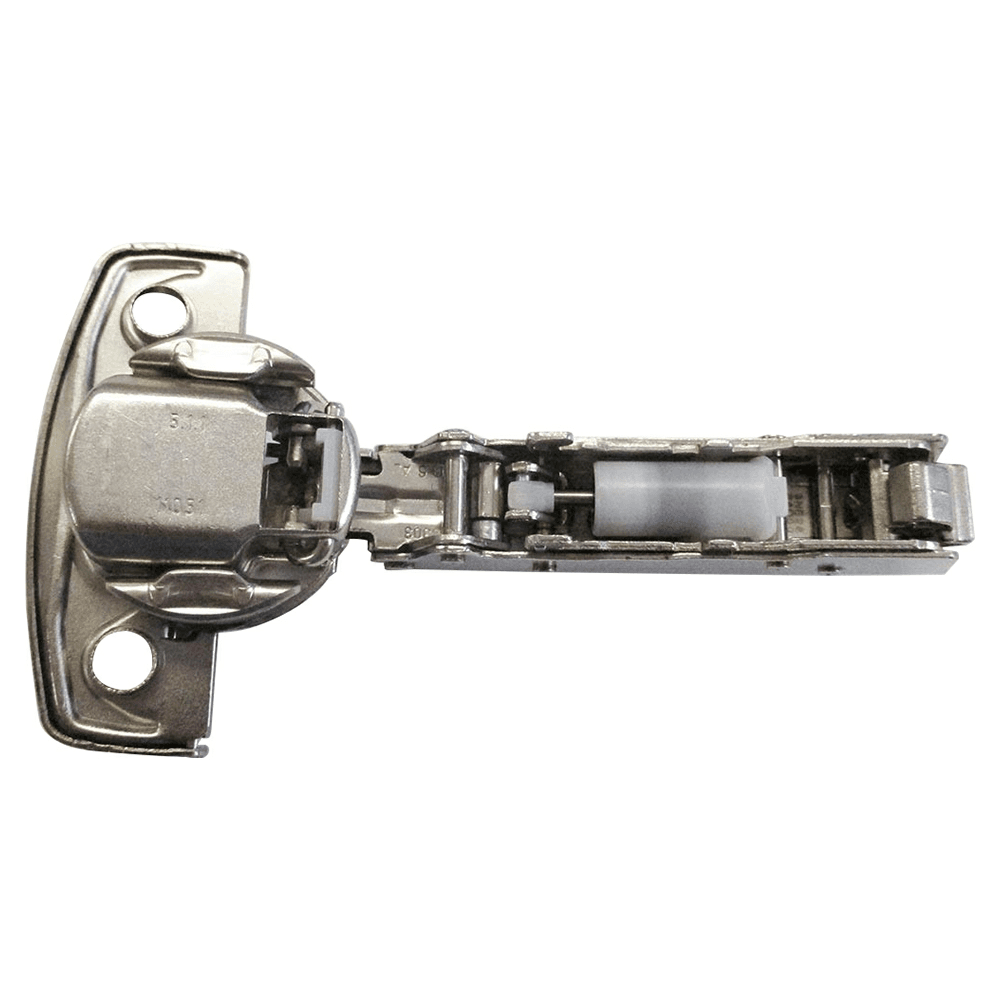

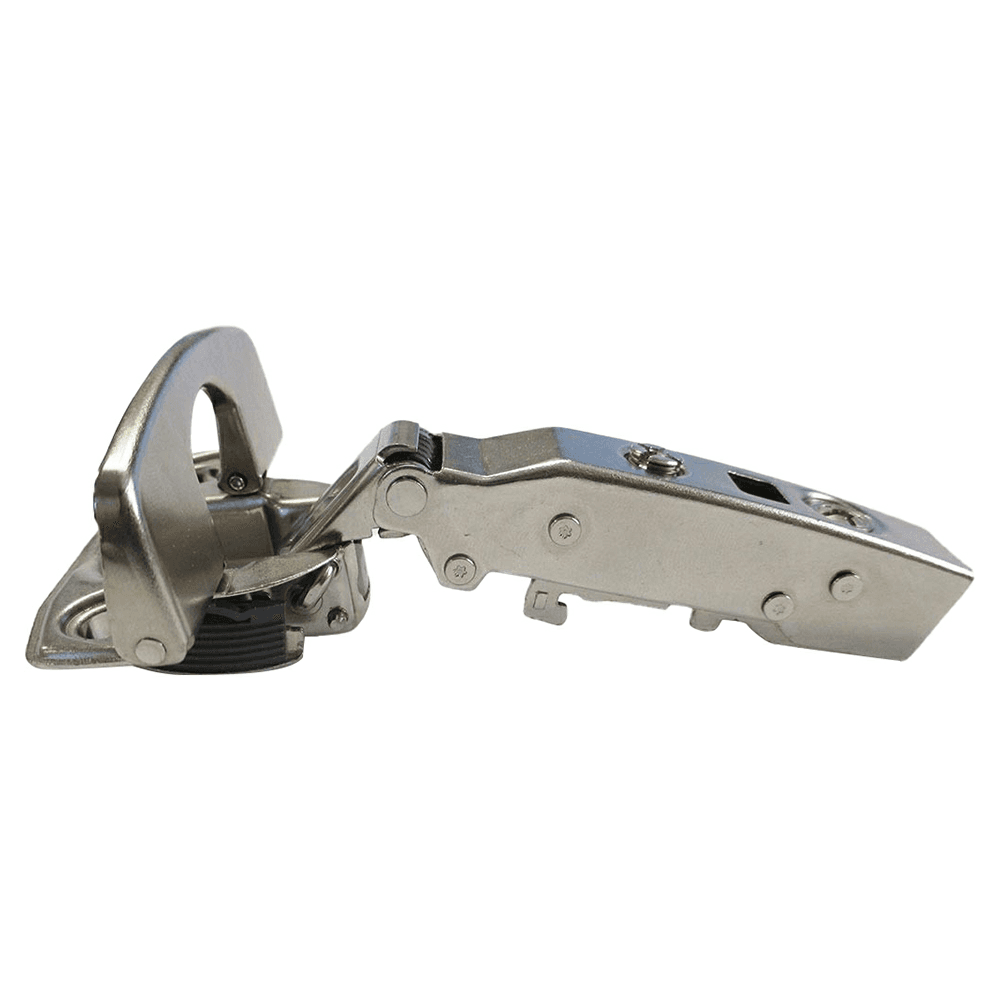

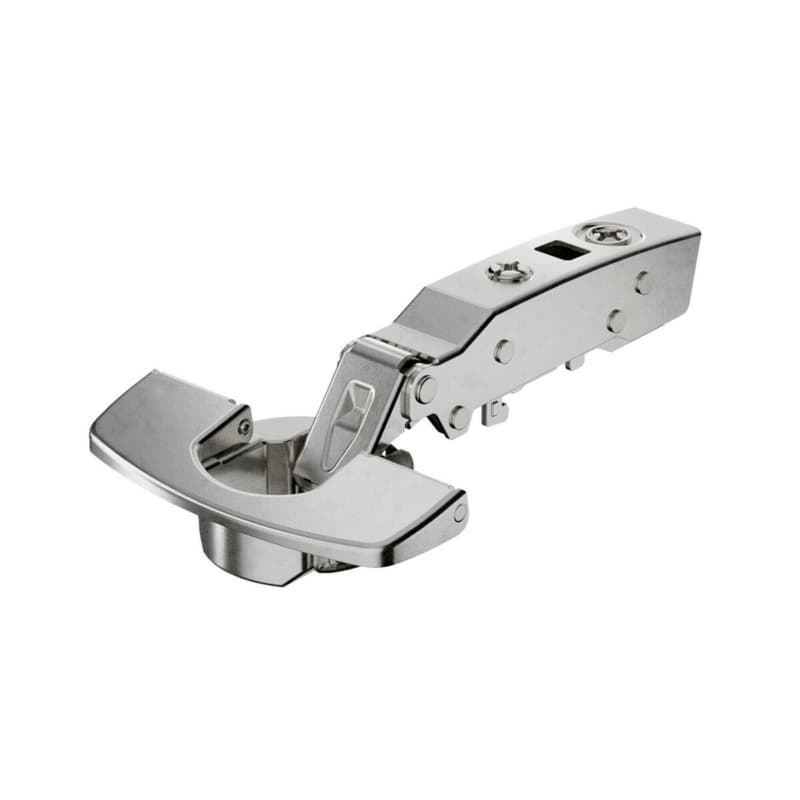

Sensys 8645i 110° Opening Euro Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, Full Overlay, Fix Fast Assembly
Item # HET9073626
•Mfr # 9073626
$3.65
/Each
50 items
$3.11/Each
1000 items
$2.98/Each
Mounting Type: Tool-Free
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Full overlay euro face frame Hinge
• Concealed hinge with clip on installation and integrated silent system
• Quality classification under EN 15570, Level 3
• For door thickness of 15 - 24 mm
• Cup diameter 35 mm
• Cup depth 12.8 mm
• Integrated overlay adjustment + 2mm/-2mm
• Integrated depth adjustment + 3mm/-2mm
• Height adjustment at mounting plate
• Hinge arm material: steel, nickel plated
• Full overlay euro face frame Hinge
• Concealed hinge with clip on installation and integrated silent system
• Quality classification under EN 15570, Level 3
• For door thickness of 15 - 24 mm
• Cup diameter 35 mm
• Cup depth 12.8 mm
• Integrated overlay adjustment + 2mm/-2mm
• Integrated depth adjustment + 3mm/-2mm
• Height adjustment at mounting plate
• Hinge arm material: steel, nickel plated
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Tool-Free |
| Overlay | Full Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Face-Frame Hinge |
| Finish | Nickel-Plated |

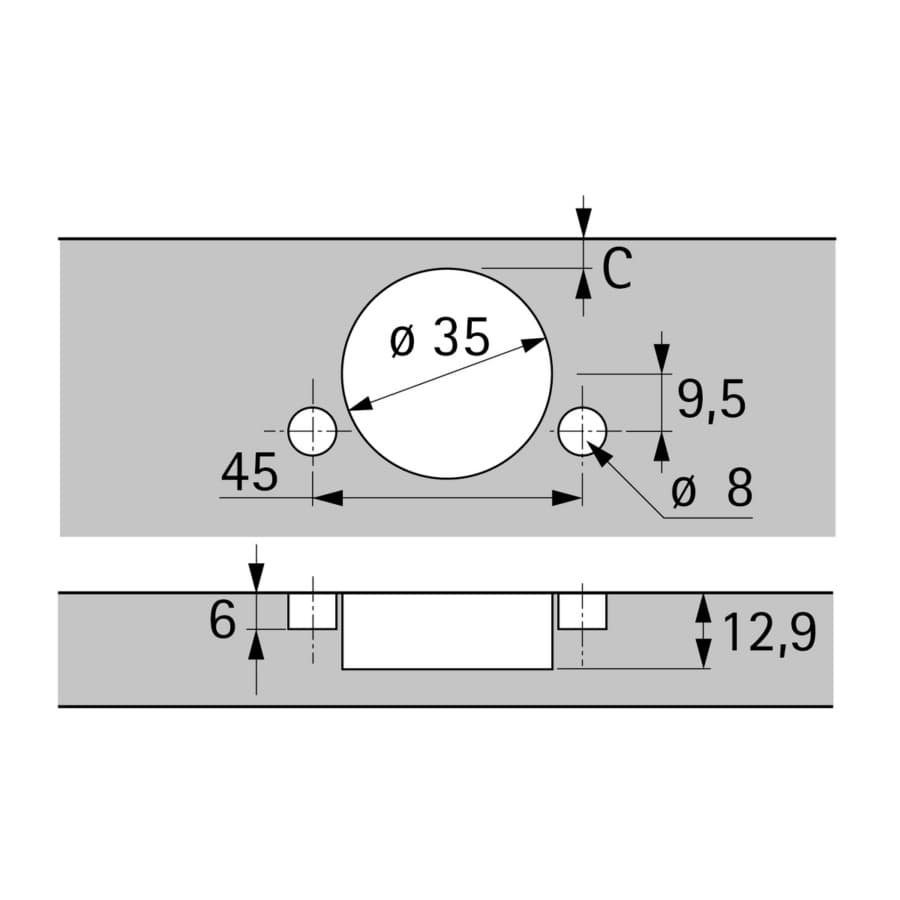

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type | Face Frame |
